Crankshaft
Sort:Popularity
NSK BO15 shoulder ball bearing 15/40/10 (A4502)
Bearing cage: Brass cage ball-guided · Inner ring width: 10 mm · Manufacturer: NSK · Material: Brass · Area of application: Standard · Material: Steel · Surface: blank · Bearing type: Shoulder bearing · Stock number: BO15 · Width: 10 mm · Ø inside: 15 mm · Ø outside: 40 mm · Ball bearing closed: No · Pony spare part no.: A4502 · Sachs spare part no.: 0932 007 001
28,10 EUR
Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)
Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Ø inside: 15 mm · Ø outside: 30 mm · Temperature resistance (min.): -30 - 100 °C · Pony spare part no.: A1830 · Sachs spare part no.: 0250 090 000
6,10 EUR
NSK E15 shoulder ball bearing 15/35/8 (A1149)
Stock number: E15 · Inner ring width: 8 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Bearing cage: Brass cage ball-guided · Groove ring: No · Material: Brass · Area of application: Standard · Material: Steel · Surface: blank · Bearing type: Shoulder bearing · Width: 8 mm · Ø inside: 15 mm · Ø outside: 35 mm · Ball bearing closed: No · Pony spare part no.: A1149 · Sachs spare part no.: 0232 017 006
28,10 EUR
Oil seal NBR 15/30/7 B AS | Sachs 503, 50/2
Simmering type: B - With sheet metal outer casing / one sealing lip. · Ø inside: 15 mm · Ø outside: 30 mm · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Temperature resistance (min.): -30 - 100 °C · Pony spare part no.: A1830 · Sachs spare part no.: 0250 090 000
6,10 EUR
Oil seal FPM 15/30/7 B DUO VITON | Sachs 50/2, 503
Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: FPM - Rubber · Area of application: Standard · Surface: raw · Width: 7 mm · Ø inside: 15 mm · Ø outside: 30.1 mm · Temperature resistance (min.): -30 - 200 °C · Pony spare part no.: A1830 · Sachs spare part no.: 0250 090 000
8,90 EUR
swiing® revival shim set | Sachs 503, 502, 50/2, 50/3
Nominal diameter inside: 13 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.4 mm · Thickness: 0.45 mm · Thickness: 0.5 mm · Thickness: 1 mm · Ø inside: 12.5 mm · Ø inside: 15.2 mm · Ø outside: 18 mm · Ø outside: 21 mm
19,00 EUR
NTN 6203 Ball bearing 17/40/12
Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: CM (special/noise-reduced) · Material: Steel · Surface: blank · Bearing type: Deep groove ball bearing · Stock number: 6203 · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Ball bearing closed: No
7,30 EUR
Oil seal NBR 15/30/5.5 A crankshaft | Sachs (A4215 & A5602)
Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Width: 5.5 mm · Ø inside: 15 mm · Place of use: Crankshaft · Ø outside: 30 mm · Temperature resistance (min.): -30 - 100 °C · Pony spare part no.: A5602 · Sachs spare part no.: 0230 111 100
8,90 EUR
swiing® revival locking plate drive wheel Inox | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A1717)
Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Number of lobes: 1 pcs · Thickness: 0.5 mm · Pony spare part no.: A1717 · Sachs spare part no.: A1717 · Sachs spare part no.: 0246 049 000
7,80 EUR
swiing® revival needle roller bearing 12/15/14.2 original
Bearing cage: Sheet steel cage · Manufacturer: swiing® revival parts · Bearing type: Needle sleeve · Width: 14.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony Spare part no.: A4222 · Alternative version of Sachs spare part no.: 0232 155 001 · Tomos spare part no.: 035548
10,00 EUR
swiing® ingenious needle roller bearing 12/15/14.2 original silver cage
Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Bearing type: Needle roller and cage assembly · Width: 14.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony Spare part no.: A4222 · Alternative version of Sachs spare part no.: 0232 157 001 · Tomos spare part no.: 035548
13,40 EUR
Oil seal FPM 15/30/7 BS VITON | Sachs 50/2, 503
Simmering type: BS - With sheet metal outer casing / one sealing lip / one dust lip. · Manufacturer: Sachs · Material: FPM - Rubber · Width: 7 mm · Ø inside: 15 mm · Ø outside: 30 mm · Temperature resistance (min.): -30 - 200 °C · Pony spare part no.: A1830 · Sachs spare part no.: 0250 090 000
8,80 EUR
swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage
Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Bearing type: Needle roller and cage assembly · Width: 16.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 16.2 · Tomos spare part no.: 035548
15,70 EUR
Oil seal NBR 17/33/7 B DUO crankshaft | Sachs 503 AB, ADV
Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Ø inside: 17 mm · Place of use: Crankshaft · Ø outside: 33 mm · Temperature resistance (min.): -30 - 100 °C
10,00 EUR
swiing® ingenious puller L17 / BO15 / E15 shoulder bearing
Width across flats (trigger): 8 mm · Width across flats (trigger): 19 mm · Span: 24 mm · Manufacturer: swiing® ingenious parts · Clamping depth: 10 mm · Peel-off tray: BO15 · Peel-off tray: E15 · Peel-off tray: L17 · Area of application: (Dis)assembly tool · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Diameter: 24 mm · Diameter: 40.3 mm · Total length: 120 mm · Number of components: 1 pcs
49,50 EUR
Not in stock
swiing® revival connecting rod bushing 12/15.05/12 | Sachs (A1153)
Nominal diameter inside: 12 mm · Manufacturer: swiing® revival parts · Material: special bearing bronze · Ø inside: 12 mm · Ø outside: 15.05 mm · Total height: 12 mm · Pony spare part no.: A1153 · Sachs spare part no.: 0232 038 015
14,50 EUR
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Number of components: 7 pcs
22,40 EUR
Hot

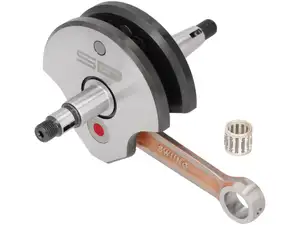

swiing® ingenious crankshaft "Wolfram Edition" | Sachs 503 2AL, 2BL
Manufacturer: swiing® ingenious parts · Area of application: High End · Cheek type: standard · Crankshaft stroke: 42 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 43.1 mm · Total length crankpin ignition side: 63.4 mm · Ø crank webs: 85 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Weight: 901 g · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 8 mm · Thread length: 12 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 30 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 14 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Length of shoulder (ignition side): 34 mm · Number of gears: 2 pcs
196,00 EUR
Oil seal NBR 15/30/9 B DUO crankshaft | Sachs 503 ADV, AB, AC (A1832)
Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Width: 9 mm · Ø inside: 15 mm · Place of use: Crankshaft · Ø outside: 30 mm · Temperature resistance (min.): -30 - 100 °C
11,20 EUR
Jasil crankshaft | Sachs 503 AB-CH / ABL CH (A2901 / A2902)
Manufacturer: Jasil · Area of application: Standard · Material: Steel · Cheek type: standard · Crankshaft stroke: 42 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 84 mm · Total length crankpin ignition side: 101 mm · Ø crank webs: 85 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Weight: 875 g · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 11 mm · Dimension needle bearing: 12 / 15 x 12.8 mm (axe 12) · Wide crank webs: 30.3 mm · Length 1st paragraph: 19 mm · Length 2nd paragraph: 51 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14 mm · Length of shoulder (ignition side): 34 mm · Number of gears: 2 pcs · Alternative version of the Pony Spare part no.: A2900 · Pony spare part no.: A2901 · Pony spare part no.: A2902 · Alternative version of Sachs spare part no.: 0288 115 002 · Alternative version of Sachs spare part no.: 0288 115 102
236,60 EUR
NTN 6203 C4 ball bearing 17/40/12 engine | Puch E50
Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C4 · Area of application: Standard · Material: Steel · Surface: blank · Bearing type: Deep groove ball bearing · Width: 12 mm · Stock number: 6203 · Ø inside: 17 mm · Ø outside: 40 mm
12,30 EUR

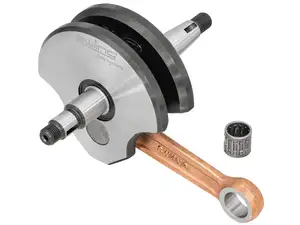

swiing® revival crankshaft standard | Sachs 50/2, 50/3
Thread length: 8 mm · Thread length: 11 mm · Manufacturer: swiing® revival parts · Weight: 901 g · Material: Steel · Cheek type: standard · Crankshaft stroke: 42 mm · Ø piston pin (B): 12 mm · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 40.6 mm · Thread type: MF10x1 (fine pitch thread) · Total length crankpin ignition side: 63.2 mm · Ø crank webs: 30 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Length 1st paragraph: 18.7 mm · Length 2nd paragraph: 14 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Length of shoulder (ignition side): 34 mm · Area of application: Standard · Number of gears: 1 pcs · Number of gears: 3 pcs · Pony spare part no.: A2565 · Sachs spare part no.: 0286 139 400
128,40 EUR
Oil seal NBR 15/35/7 AS crankshaft | Sachs 504, 535 (A4214)
Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Width: 7 mm · Ø inside: 15 mm · Place of use: Crankshaft · Ø outside: 35 mm · Temperature resistance (min.): -30 - 100 °C
10,00 EUR
Oil seal FPM 15/30/5.5 AS crankshaft / main shaft | Sachs 503, 504, 535, 504/1 (A4215 / A5602)
Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 30 mm · Width: 5.5 mm · Manufacturer: Sachs · Material: FPM - Rubber · Surface: rubberized · Pony spare part no.: A5602 · Sachs spare part no.: 0230 111 100
10,90 EUR
Not in stock

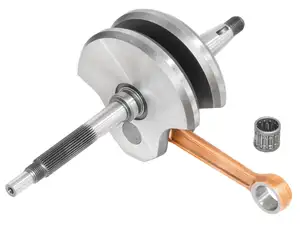

Jasil crankshaft | Sachs 503 AC / ADV (A3337 / A2904)
Manufacturer: Jasil · Area of application: Standard · Material: Steel · Cheek type: standard · Crankshaft stroke: 44 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 86 mm · Total length of crankpin on clutch side: 97 mm · Total length crankpin ignition side: 62 mm · Ø crank webs: 83 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Weight: 964 g · Ø Bearing seat (clutch side): 12 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 7 mm · Thread length: 11 mm · Dimension needle bearing: 12 / 15 x 12.8 mm (axe 12) · Wide crank webs: 34.2 mm · Length 1st paragraph: 9.4 mm · Length 2nd paragraph: 19.4 mm · Length 3rd paragraph: 74 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Ø 3rd step (on the clutch side): 11.6 mm · Length of shoulder (ignition side): 32 mm · Number of gears: 2 pcs
225,30 EUR
Hot
swiing crankshaft Racing (Version 2.0) | Sachs 50/2, 50/3
Manufacturer: swiing · Area of application: Racing · Cheek type: standard · Crankshaft stroke: 42 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 40.7 mm · Total length crankpin ignition side: 63.4 mm · Ø crank webs: 85 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Weight: 878 g · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 30 mm
162,20 EUR
Page 1 of 3
The optimum crankshaft for your Sachs moped
Robustness, durability, resistance and precision - there is hardly any other part of your mopeds where these properties are as crucial as they are for the crankshaft. If it or other parts of the assembly are getting on in years, you should therefore always look for quality spare parts. At mofakult you will find complete Sachs full cheek crankshafts from standard models to high-end variants for your tuned moped from swiing, Rito and Jasil Top Racing. You can even find rare, original Sachs NOS crankshafts in our large range. Individual components such as shoulder ball bearings, shims and spacers, connecting rods, oil seals and needle bearings from Malossi, Polini and other proven manufacturers complete the wide range of spare parts for this assembly.
Indispensable precision component
As an essential component in the piston engine of the moped, the crankshaft has a very special task. With the help of a well-thought-out mechanism and the so-called connecting rods, it converts the ascending and descending movement of the piston inside the cylinder into torque. This energy is then transferred to the gearbox via the moped clutch. As the crankshaft is a precision component that has to be fitted very accurately, installation and removal not only requires expert assembly skills and the necessary tools. A certain amount of dexterity is also required. If you are confident enough to carry out the assembly, you should definitely have a hot air gun to hand to heat the bearing. You will also need a torque spanner and a tool for separating the crankcase.
High-end crankshafts for tuned mopeds
Do you like speed and have given your Sachs moped a moderate to extreme tuning set-up? Then the standard versions of the crankshaft are out of the question for your moped. You need a special racing crankshaft for your tuned Sachs moped. And of course you will also find precisely such high-end parts in our range! These high-quality customised parts can withstand the toughest loads. For maximum pre-compression, the large balancing bores in the cheeks are sealed with inserts made of durable aluminium. So you can really get the absolute maximum out of your Sachs plane!
Order high-quality crankshafts for your Sachs moped at mofakult
Discover crankshafts from brand manufacturers Rito and Malossi, rare Sachs original parts, bearings for gearboxes and clutches, shim discs and matching oil seals in our range. Whether you're looking for a spare part for Sachs models 502, 503, 50/3, 505, 535 or 504, you'll find what you're looking for here. Have you already discovered the fascinating selection of exciting tuning parts? Are you tweaking the individual style of your Sachs mopeds? Then you'll be interested in the selection of fascinating custom parts. Just browse through our categories! You'll discover lots of exciting components and cool accessories for your moped. Do you have a question about a specific product, your delivery or payment options? Then don't hesitate to drop us an e-mail. We will be happy to answer your questions. The mofakult team is also available on the phone. We look forward to your call.
