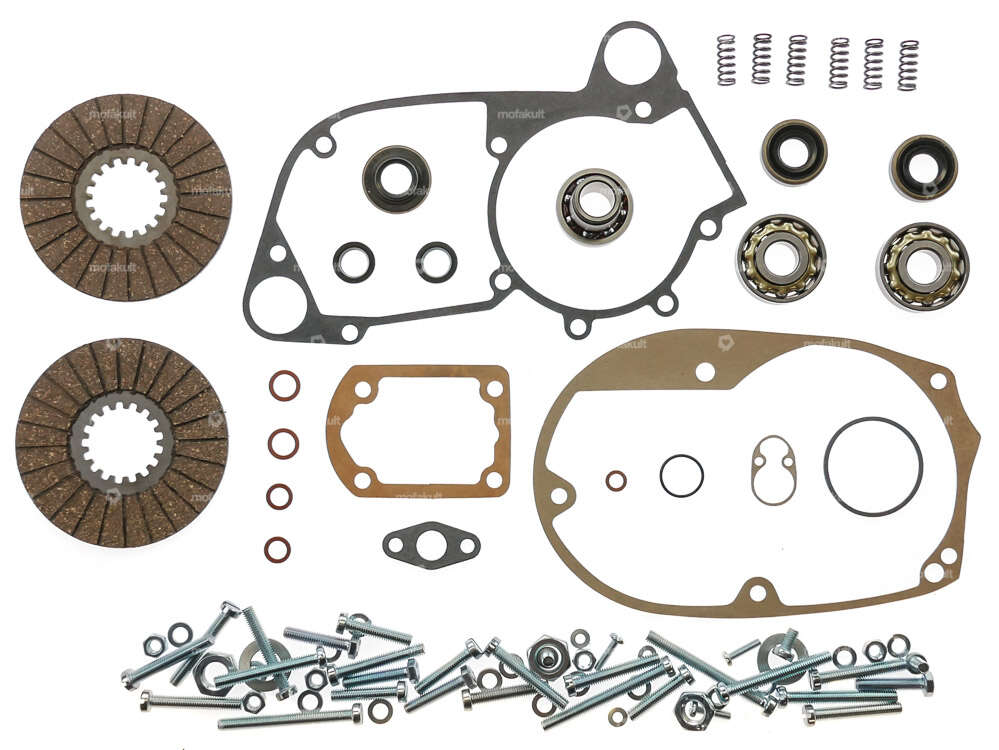

Revision set for Sachs engines of the manual 503 series with the designation 2AL-CH / 2BL-CH.
The revision set contains all parts for a comprehensive engine revision such as gasket set, oil seals, bearings, gaskets, screws, clutch parts, etc.
Bolt set with galvanized screws.
Screw set with galvanized screws.
When you purchase this complete set, you will receive a substantial discount on the retail price of the individual parts.
Nostalgic product for the highest demands of the quality brand swiing®.
The set includes the following fixed parts:
Hole pattern [mm]: 60 x 40 · Material: Sealing paper, Sealing carton, Aluminum, Fiber, Copper · Number of components: 14 pcs · Hole spacing inlet: 32 mm · Ø outlet inside: 13.3 mm · Area of application: Standard
Manufacturer: NSK · Material: Steel, Brass · Surface: blank · Area of application: Standard · Bearing type: Shoulder bearing · Stock number: BO15 · Ø inside: 15 mm · Ø outside: 40 mm · Width: 10 mm · Inner ring width: 10 mm · Ball bearing closed: No · Bearing cage: Brass cage ball-guided · Pony spare part no.: A4502 · Sachs spare part no.: 0932 007 001
Nut type: Hexagon flat nut · Drive: External hexagon · Thread type: MF21x1 LH (fine/left-hand thread) · Width across flats SW: 26 mm · Pony spare part no.: A1504 · Sachs spare part no.: 0242 030 005, 0242 030 105
Manufacturer: swiing® revival parts · Material: Steel, Composite materials · Recording type: Interlocking · Ø inside: 29.7 mm, 36 mm · Ø outside: 93.7 mm · Number of slats: 2 pcs · Thickness: 3.3 mm · Area of application: Standard · Pony spare part no.: A3887 · Sachs spare part no.: 0659 010 006
Manufacturer: GPO · Material: Rubber · Ø inside: 12.8 mm · Ø outside: 19 mm · Thickness: 2.4 mm · Pony spare part no.: A3844 · Sachs spare part no.: 0650 017 000
Manufacturer: BING · Material: Rubber · Surface: raw · Area of application: Standard · Place of use: Carburetor · Ø inside: 17.2 mm · Ø outside: 20 mm · Cord thickness: 1.4 mm · Color: black · Number of components: 1 pcs · Pony spare part no.: A4281 · Sachs spare part no.: 0250 160 101
Manufacturer: swiing® revival parts · Spring design: Pressure spring · Pony spare part no.: A1325 · Sachs spare part no.: 0239 015 000
Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized
Manufacturer: swiing® revival parts · Material: Steel · Area of application: Standard, High End · Bearing type: Deep groove ball bearing · Stock number: E15 · Bearing clearance: CN (standard) · Ø inside: 15 mm · Ø outside: 35 mm · Width: 8 mm · Inner ring width: 25.6 mm · Bearing cage: "-" Sheet steel cage ball-guided · Thread type: MF20.8x1 LH (fine/left-hand thread) · Pony spare part no.: A2531 · Sachs spare part no.: 0286 079 105
Details
| Manufacturer | swiing® revival parts |
| Area of application | Standard |
Suitable for the following models
| Sachs | 503 - 2AL / 2BL |
