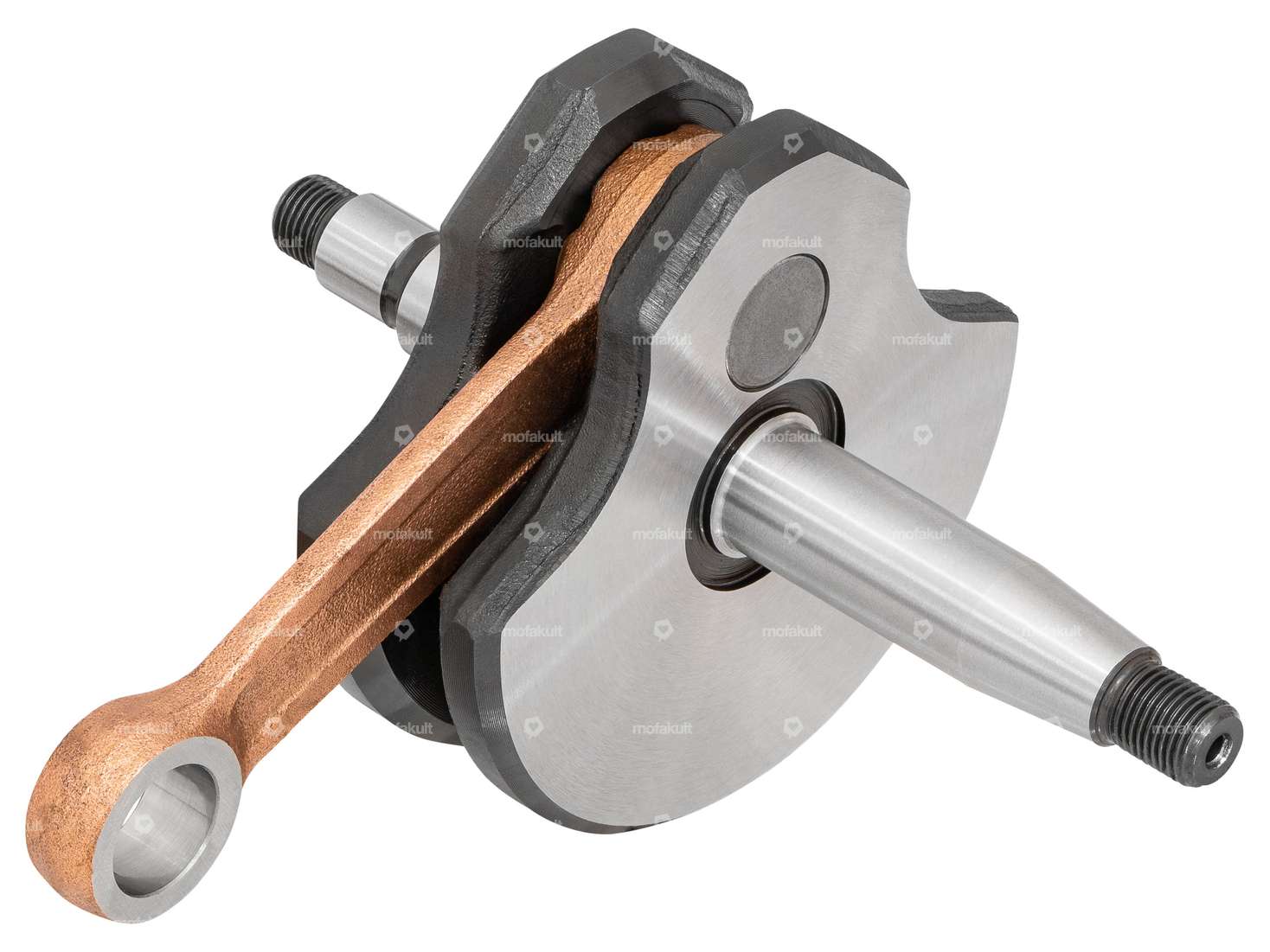

Original crankshaft suitable for Sachs 50/2 (also called 502), as well as three-speed 50/3 (not to be confused with 503) mopeds, mopeds and small motorcycles.
High-quality and precisely fitting crankshaft, which has proven itself in original engines.
Dimensions of the crankshaft:
Total length of clutch-side crankpin: 40.6 mm
Total length of clutch-side crankpin: 63.2 mm
Length of 1st shoulder (clutch-side): 18.7 mm
Length 2nd shoulder (clutch side) 14 mm
Ø 1st shoulder (clutch side): 15 mm
Ø 2nd shoulder (clutch side): 12 mm
Thread (coupling side): MF10x1 mm
Length of shoulder (on coupling side): 34 mm
Ø shoulder (on coupling side): 15 mm
Thread (on end face): MF10x1 mm
Ø crank webs: 85 mm
Width crank webs: 30 mm
Ø connecting rod eye top: 15 mm
Ø connecting rod pin bottom: 16 mm
Connecting rod length (center-to-center): 85 mm
Stroke: 42 mm
Weight (incl. Connecting rod): 901 grams
Needle bearing dimension: Ø 12 / 15 x 14.2 mm (axe 12)

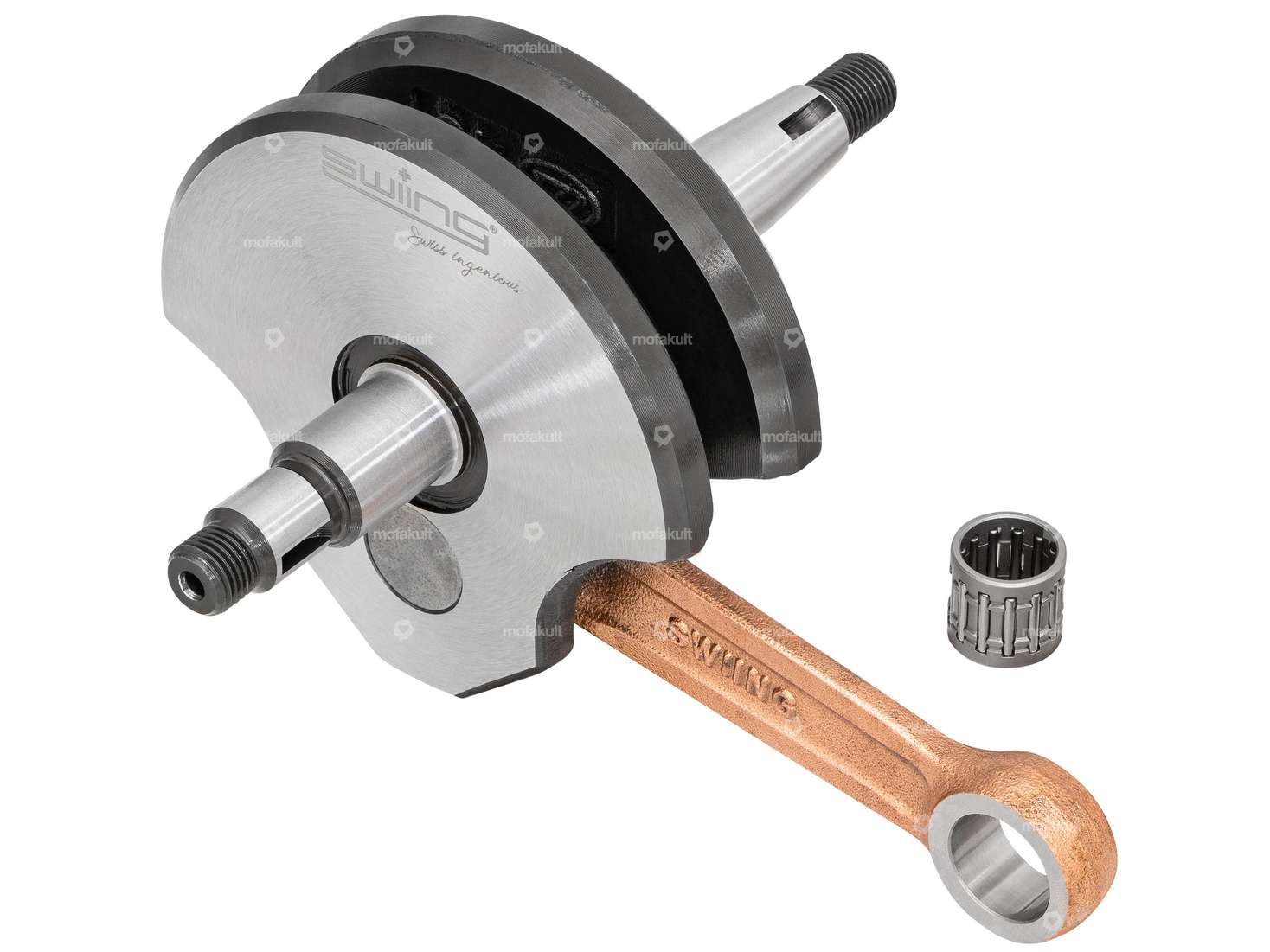

The needle bearing is included in the scope of delivery
Nostalgic product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Area of application | Standard |
| Cheek type | standard |
| Crankshaft stroke | 42 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Connecting rod length center-center | 85 mm |
| Total length of crankpin on clutch side | 40.6 mm |
| Total length crankpin ignition side | 63.2 mm |
| Ø crank webs | 30 mm |
| Ø piston pin (B) | 12 mm |
| Ø Connecting rod eye | 15 mm |
| Weight | 901 g |
| Ø Bearing seat (clutch side) | 15 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Thread length | 8 mm, 11 mm |
| Dimension needle bearing | 12 / 15 x 14.2 mm (axe 12) |
| Length 1st paragraph | 18.7 mm |
| Length 2nd paragraph | 14 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Ø 2nd shoulder (on the clutch side) | 12 mm |
| Length of shoulder (ignition side) | 34 mm |
| Number of gears | 1 pcs, 3 pcs |
| Pony spare part no. | A2565 |
| Sachs spare part no. | 0286 139 400 |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 |
