Revision kit for Sachs 503 engines with automatic transmission. Suitable for the ADV CH engine type (wide-body with catalytic converter)

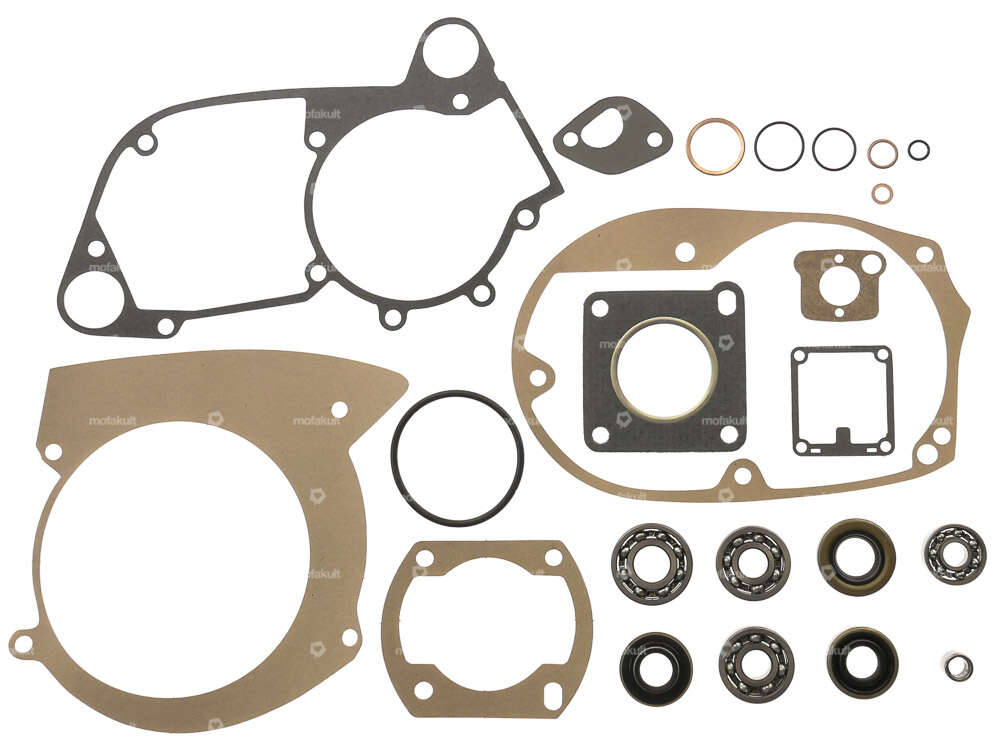

This 23-part revision kit includes all seals, rings, bearings and oil seals.
When you purchase this complete set, you will receive a substantial percentage off the retail price of the individual parts.
The set includes the following fixed parts:
Hole pattern [mm]: 56 x 56 · Manufacturer: swiing® revival parts · Material: Sealing paper, Sealing carton, Copper, Fiber, Rubber · Number of components: 15 pcs · Hole spacing inlet: 38 mm · Ø outlet inside: 23.3 mm · Decompressor: No · Area of application: Standard
Dimension needle bearing: 8/12 x 10 · Manufacturer: NTN · Bearing type: Needle sleeve · Stock number: HK0810 · Ø inside: 8 mm · Ø outside: 12 mm · Width: 10 mm · Pony OEM number: A1176 · Sachs OEM number: 0232 137 000
Manufacturer: NSK · Material: Steel · Surface: blank · Area of application: Standard · Bearing type: Shoulder bearing · Stock number: 6201 · Bearing clearance: CM (special/noise-reduced) · Ø inside: 12 mm · Ø outside: 32 mm · Width: 10 mm · Inner ring width: 10 mm · Ball bearing closed: No · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No
Manufacturer: NTN · Bearing type: Deep groove ball bearing · Stock number: 6202 · Bearing clearance: C3 · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Inner ring width: 11 mm · Bearing cage: "-" Sheet steel cage ball-guided · Puch OEM number: 900.4.6202
Manufacturer: Sachs · Material: NBR · Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Ø inside: 15 mm · Ø outside: 30 mm · Width: 7 mm · Pony OEM number: A1830 · Sachs OEM number: 0250 090 000
Manufacturer: Sachs · Material: NBR · Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 33 mm · Width: 7 mm
Manufacturer: Sachs · Material: NBR · Surface: coated · Area of application: Standard · Place of use: Pinion shaft · Temperature resistance (min.): -30 - 100 °C · Ø inside: 14.96 mm · Ø outside: 31.5 mm · Width: 3.5 mm · Pony OEM number: A1134 · Sachs OEM number: 0230 011 100, 0230 011 200
Manufacturer: NSK · Bearing type: Deep groove ball bearing · Stock number: 6000 · Bearing clearance: CN (standard) · Ø inside: 10 mm · Ø outside: 26 mm · Width: 8 mm · Inner ring width: 8 mm · Bearing cage: "-" Sheet steel cage ball-guided
Details
| Manufacturer | NSK, NTN |
| Area of application | Standard |
Suitable for the following models
| Sachs | 503 - ADV |
Accessories & related products
Motorex Automatic Motor Oil (ATF) 450 ml
Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM number: 0263 014 002
11,60 EUR
25,78 EUR/l
Moped fans like you also bought:
Oil seal NBR 17/33/7 B DUO crankshaft | Sachs 503 AB, ADV
Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 33 mm · Manufacturer: Sachs · Material: NBR · Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Width: 7 mm
10,40 EUR
NSK 6201 ball bearing 12/32/10
Ø inside: 12 mm · Bearing cage: "-" Sheet steel cage ball-guided · Ø outside: 32 mm · Stock number: 6201 · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CM (special/noise-reduced) · Groove ring: No · Material: Steel · Area of application: Standard · Bearing type: Shoulder bearing · Surface: blank · Ball bearing closed: No · Width: 10 mm
9,95 EUR
Oil seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)
Ø inside: 14.96 mm · Ø outside: 31.5 mm · Manufacturer: Sachs · Material: NBR · Area of application: Standard · Surface: coated · Place of use: Pinion shaft · Temperature resistance (min.): -30 - 100 °C · Width: 3.5 mm · Pony OEM number: A1134 · Sachs OEM number: 0230 011 100 · Sachs OEM number: 0230 011 200
8,80 EUR
Jasil crankshaft | Sachs 503 AC / ADV (A3337 / A2904)
Manufacturer: Jasil · Thread length: 7 mm · Thread length: 11 mm · Material: Steel · Cheek type: standard · Area of application: Standard · Crankshaft stroke: 44 mm · Ø piston pin (B): 12 mm · Connecting rod length center-center: 86 mm · Total length of crankpin on clutch side: 97 mm · Total length crankpin ignition side: 62 mm · Ø crank webs: 83 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 12 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 12.8 mm (axe 12) · Thread type: MF10x1 (fine pitch thread) · Wide crank webs: 34.2 mm · Length 1st paragraph: 9.4 mm · Length 2nd paragraph: 19.4 mm · Length 3rd paragraph: 74 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Weight: 964 g · Ø 3rd step (on the clutch side): 11.6 mm · Length of shoulder (ignition side): 32 mm · Number of gears: 2 pcs
234,30 EUR
Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)
Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Ø inside: 15 mm · Ø outside: 30 mm · Manufacturer: Sachs · Material: NBR · Temperature resistance (min.): -30 - 100 °C · Width: 7 mm · Pony OEM number: A1830 · Sachs OEM number: 0250 090 000
6,35 EUR
NTN 6202 C3 ball bearing 15/35/11
Ø inside: 15 mm · Bearing cage: "-" Sheet steel cage ball-guided · Ø outside: 35 mm · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: C3 · Bearing type: Deep groove ball bearing · Width: 11 mm · Puch OEM number: 900.4.6202
6,90 EUR
swiing® revival gasket set | Sachs 503 ADV wide wall Cat.
Manufacturer: swiing® revival parts · Number of components: 15 pcs · Material: Copper · Material: Fiber · Material: Rubber · Material: Sealing carton · Material: Sealing paper · Area of application: Standard · Ø outlet inside: 23.3 mm · Hole pattern [mm]: 56 x 56 · Decompressor: No · Hole spacing inlet: 38 mm
52,60 EUR
Collection only possible with online purchase and appointment.
