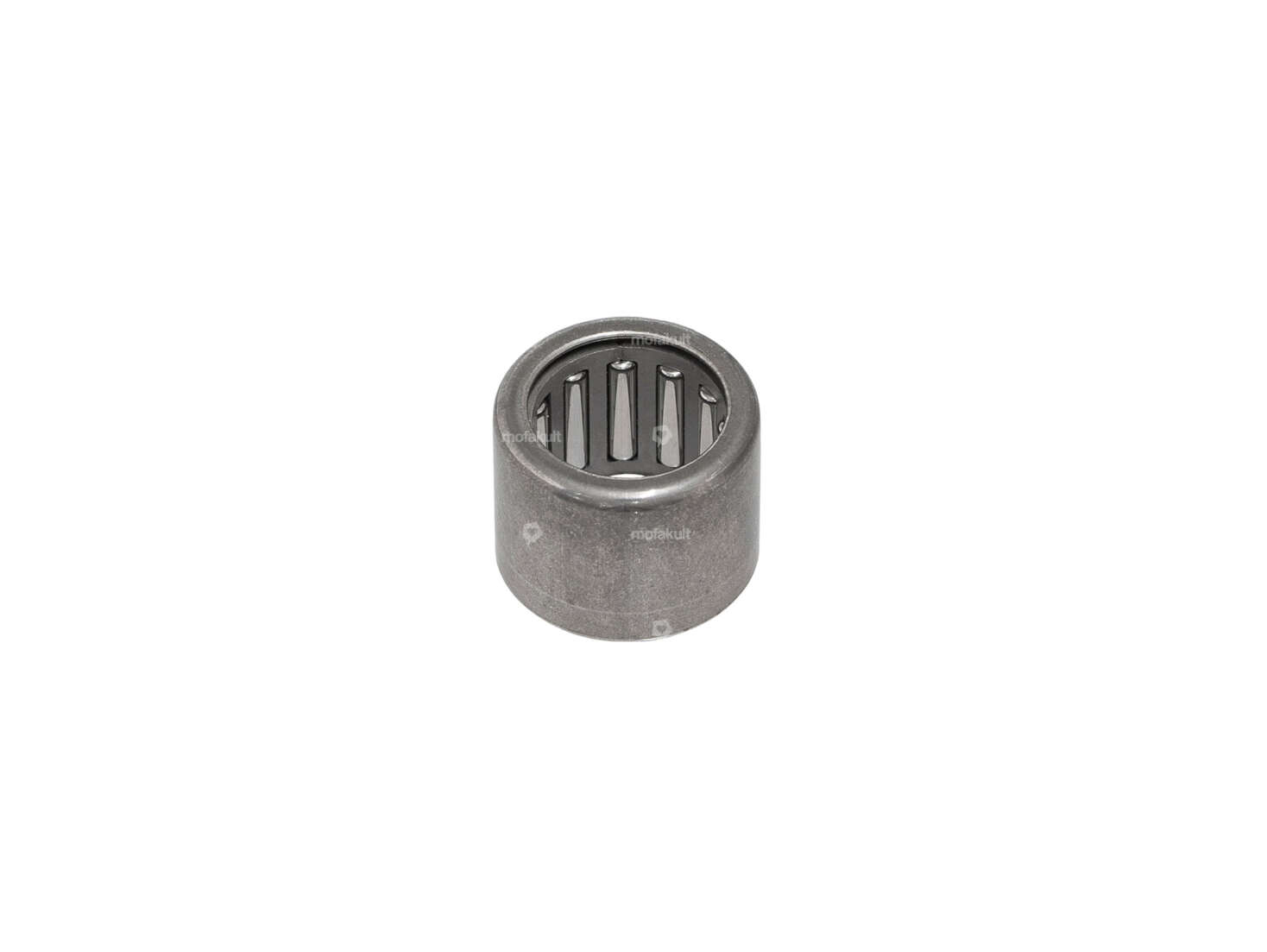

The HK0810 needle sleeve is installed in the gearbox cover (clutch side) of the following Sachs engines:
50/2 AML, AL (Saxonette)
503 AC, ADV, AAL
Quality product from the Japanese manufacturer NTN.
Original spare part number: A1176
Details
| Manufacturer | NTN |
| Bearing type | Needle sleeve |
| Stock number | HK0810 |
| Ø inside | 8 mm |
| Ø outside | 12 mm |
| Width | 10 mm |
| Dimension needle bearing | 8/12 x 10 |
| Pony spare part no. | A1176 |
| Sachs spare part no. | 0232 137 000 |
Suitable for the following models
| Sachs | 502 (Saxonette) - AL, AML 503 - AAL, AC, ADV |
