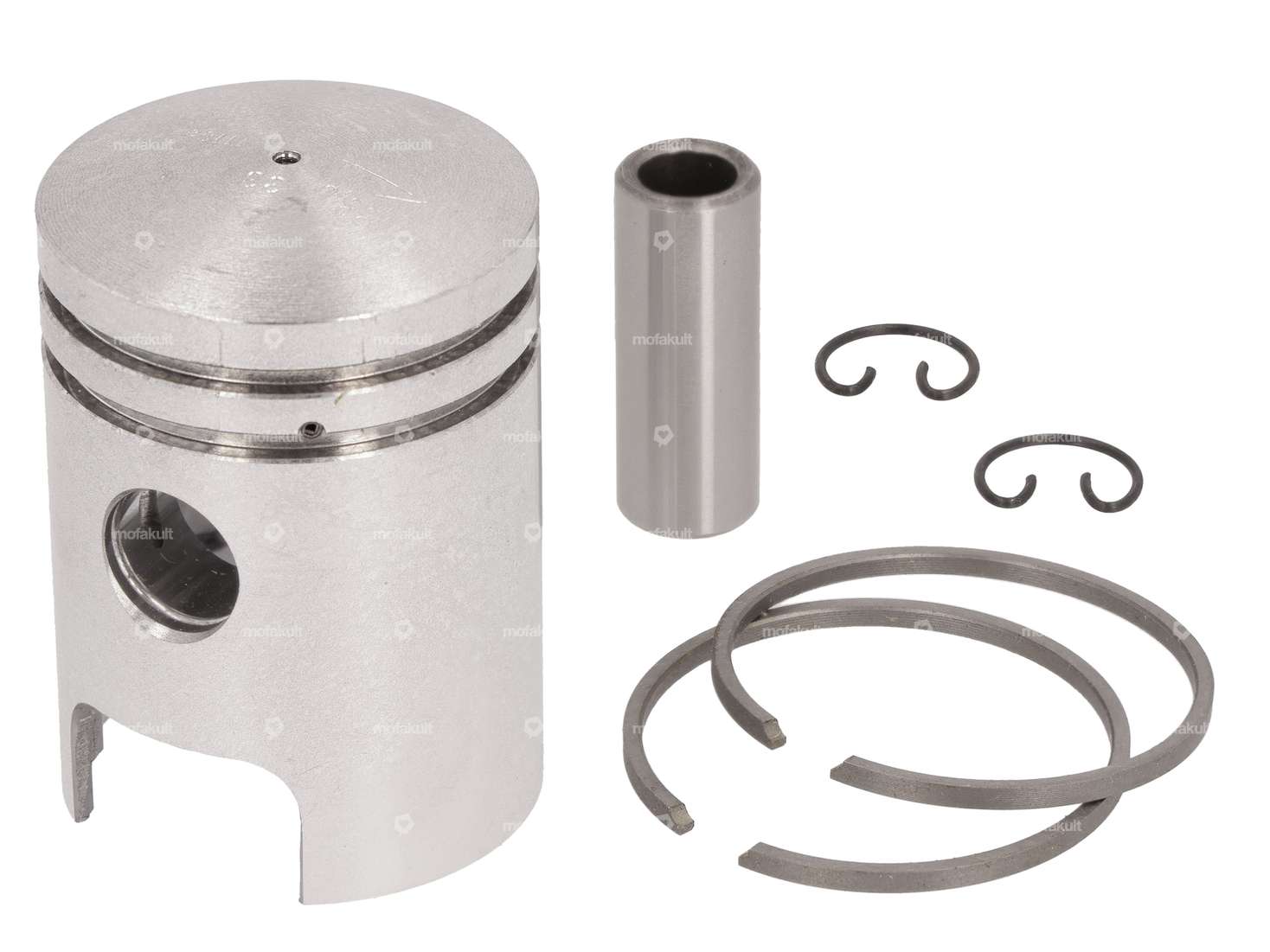

38 mm piston kit with two 2 mm rectangular piston rings with flank lock (FS) for your Puch moped / moped.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
Details
Manufacturer | ELKO (König) |
Ø outside piston (A) | 37.98 mm |
Ø piston pin (B) | 12 mm |
Compression height (C) | 22.5 mm |
Curvature (D) | 3.4 mm |
Total piston height (E) | 55 mm |
Number of piston rings (F) | 2 pcs |
Nominal diameter | 38 mm |
Piston ring mold | Rectangular ring |
Piston ring impact | Flank safety device (FS) |
Piston ring height | 2 mm |
Puch spare part no. | 350.3.101060/33 |
Suitable for the following models
Puch |
Accessories & related products
Meteor piston 38 mm #2 | Puch
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.96 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring impact: Flank safety device (FS) · Piston ring mold: Rectangular ring · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 2
56,20 EUR
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Number of components: 7 pcs · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Total length: 130 mm · Area of application: (Dis)assembly tool
22,40 EUR
GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH
Manufacturer: GPO · Area of application: Standard · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Ø cylinder: 38 mm · Number of components: 4 pcs · Ø outlet inside: 22 mm · Hole pattern [mm]: 44 x 44 mm · Hole spacing outlet: 42 mm · Decompressor: Yes · Hole spacing inlet: 32 - 38 mm
8,35 EUR
Gilardoni italkit piston 38 mm no. 1 | Puch Maxi
Manufacturer: Gilardoni italkit · Nominal diameter: 38 mm · Ø outside piston (A): 37.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.7 mm · Curvature (D): 3.9 mm · Total piston height (E): 52.6 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm
90,10 EUR

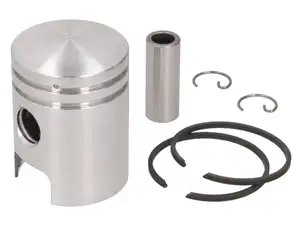

Gilardoni italkit piston 38 mm No. 3 | Puch Maxi
