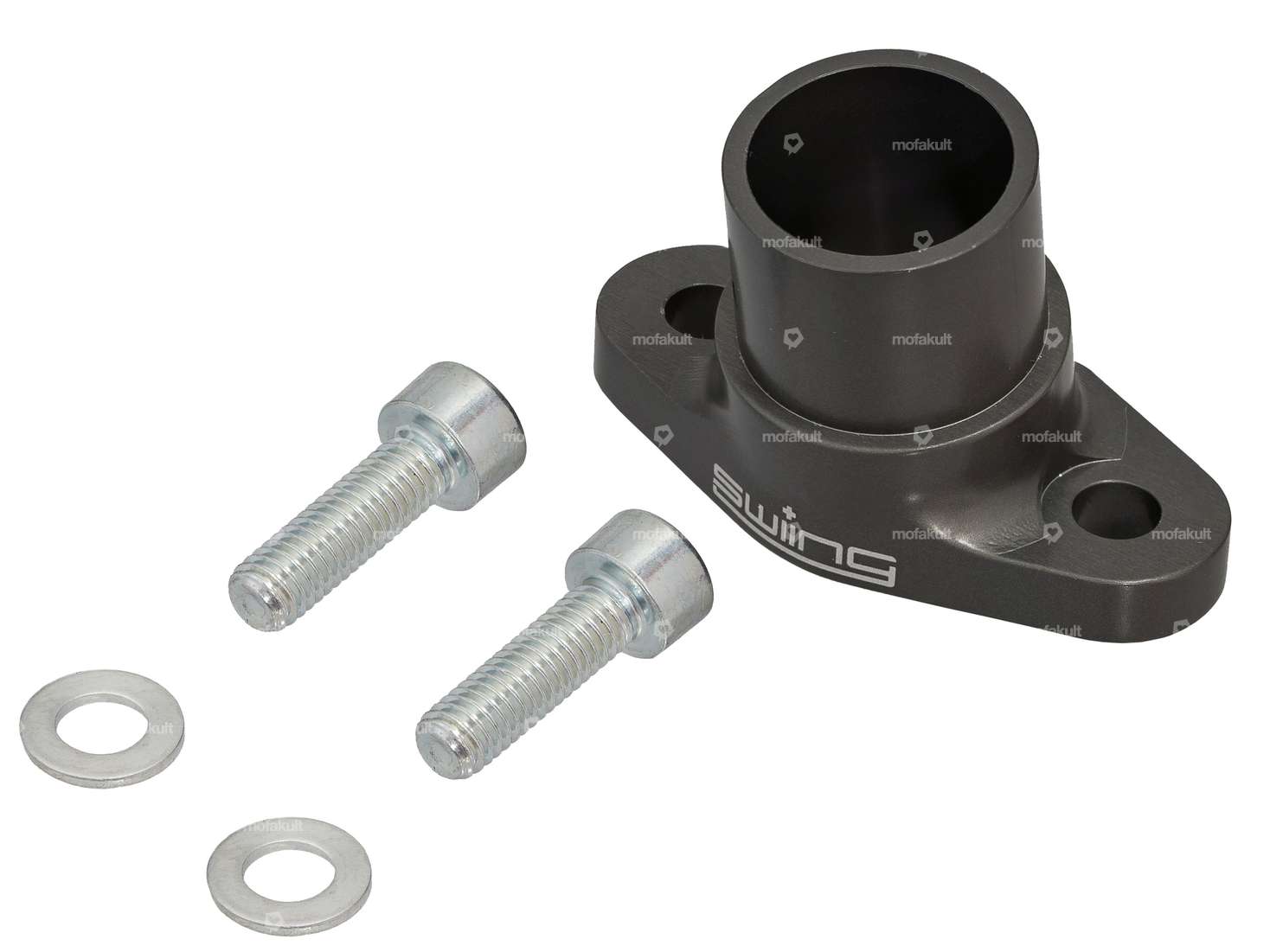

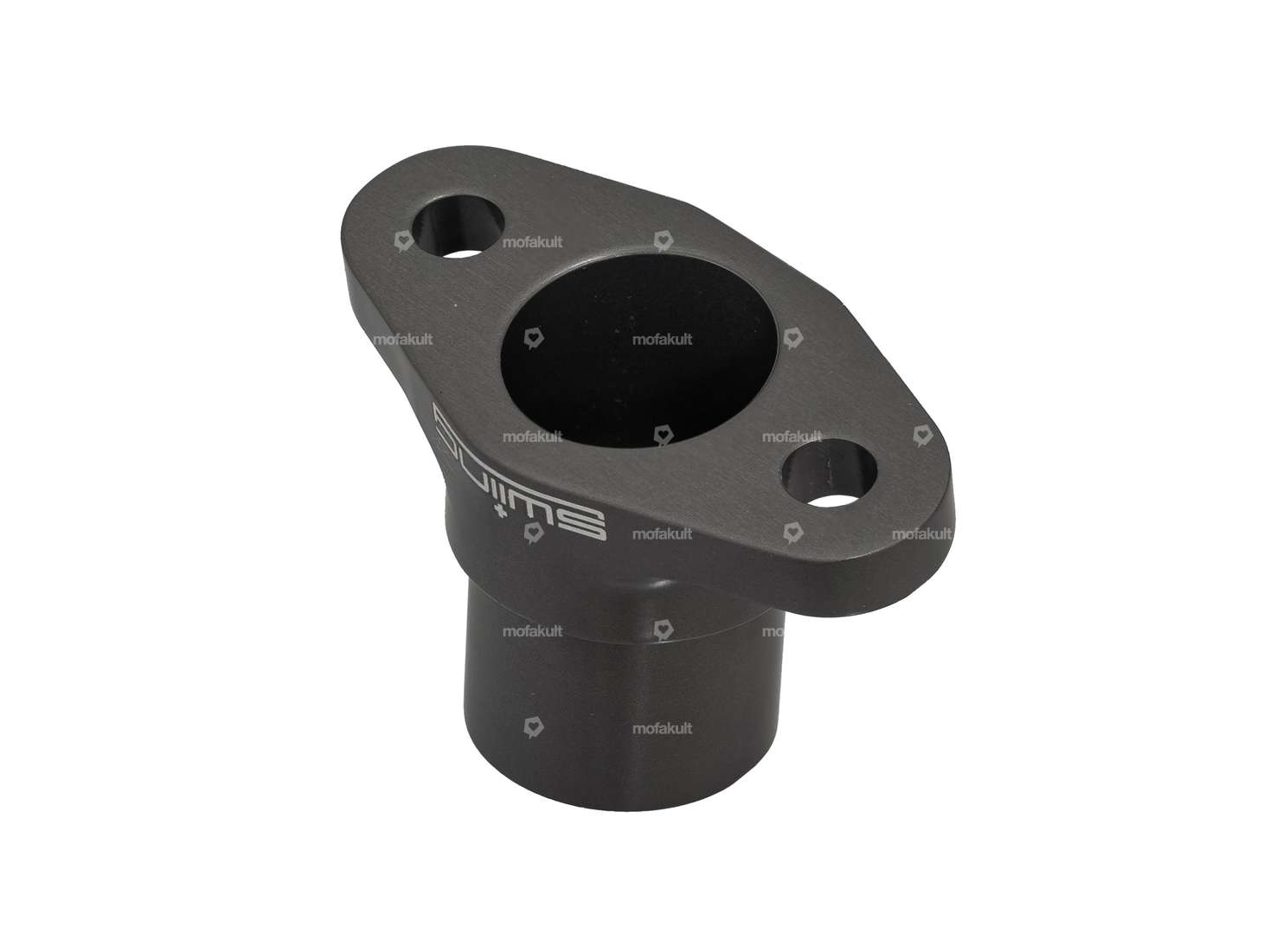

16 mm tuning intake manifold, silver anodized, suitable for the slotted 38 mm / 41 mm swiing aluminium cylinders for Sachs 502, 50/2, 50/3 and 50/4 mopeds, mopeds and small motorcycles.
The CNC-milled aluminium intake flange, in conjunction with a Dell'Orto SHA carburettor, provides a decent increase in performance.
Depending on the frame type, a 90° pipe bend should be used on the SHA carburetor for the throttle cable so that the racing carburetor can be mounted cleanly and straight.
Ø inside: 16 mm
Ø carburetor connection: 19 mm
Ø mounting hole: 5.5 mm
Hole spacing: 31 mm
The mounting screws are included in the scope of delivery.
Matching add-on parts such as gaskets, carburettors, pipe bends etc. can be found in the accessories section.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Ø inside | 16 mm |
| Manufacturer | swiing® ingenious parts |
| Area of application | Tuning |
| Material | Aluminum |
| Surface | anodized |
| Color | graphite colors |
| Ø External connection | 19 mm |
| Hole spacing inlet | 31 mm |
| Number of fixing points | 2 pcs |
| Mounting type | Screws |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 50/5 503 - AAL, ABL, 2AL / 2BL |
