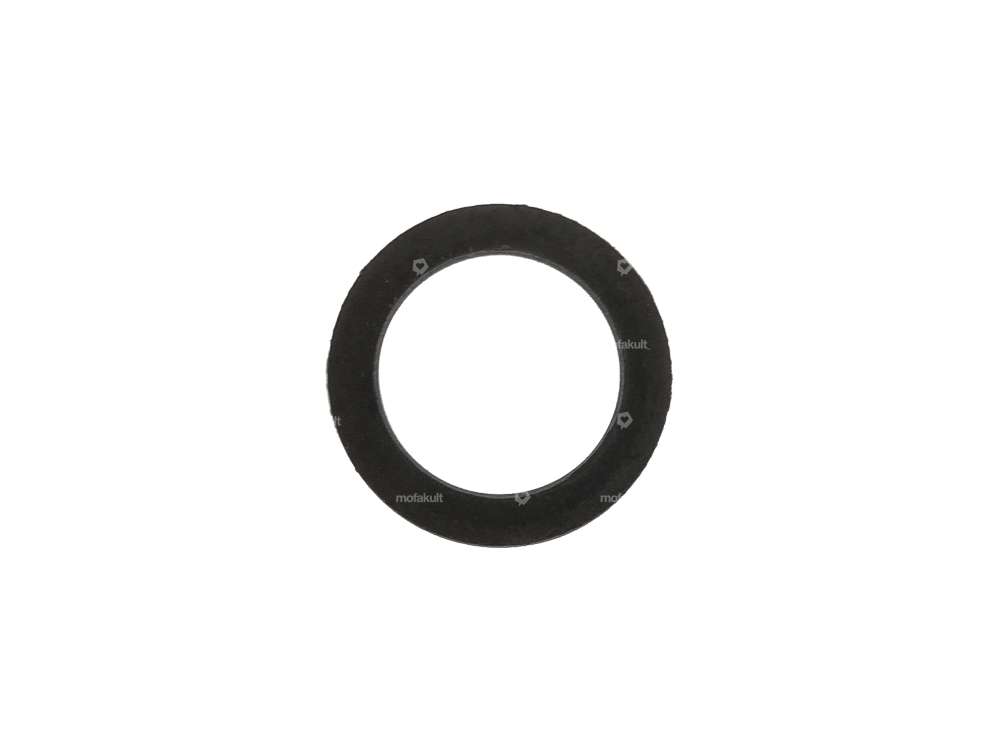

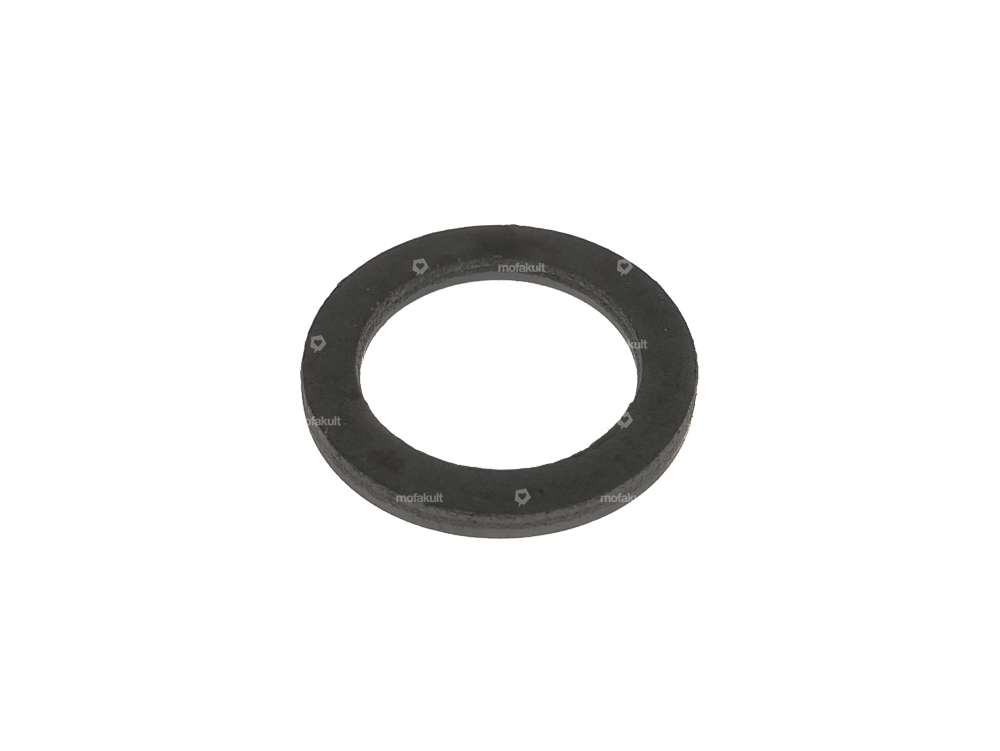

Spacer washer 14/20/2 crankshaft clutch side | Tomos

Jasil crankshaft | Tomos

Manufacturer: Jasil · Area of application: Racing · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Tomos spare part no.: 223421

swiing crankshaft Racing Tomos

Manufacturer: swiing · Area of application: Racing · Cheek type: Full cheeks · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 115 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Wide crank webs: 34 mm · Tomos spare part no.: 223421

Crankshaft original | Tomos

Manufacturer: Tomos · Area of application: Original · Cheek type: standard · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 115 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Tomos spare part no.: 223421

GPO control bearing set M26x1 mm | Puch

Bearing type: Bearing ring · Thread type: MF26x1 (fine pitch thread) · Manufacturer: GPO · Material: Steel · Surface: blue galvanized · Ø inside: 26.8 mm · Ø mounting frame: 31 mm · Ø outside: 41 mm · Color: silver

swiing® revival snap ring low control bearing set (version 2.0)

Manufacturer: swiing® revival parts · Thickness: 0.6 mm · Material: Spring steel · Surface: blank · Nominal diameter: 20 mm · Nominal diameter: 28 mm · Height: 7 mm · Puch spare part no.: 349.1.30.015.1 · Sachs spare part no.: P0521

swiing® revival plain bearing clutch basket | Puch Z50

Nominal diameter: 15 mm · Total height: 16.2 mm · Manufacturer: swiing® revival parts · Ø inside: 15 mm · Ø outside: 17 mm · Material: special bearing bronze

Circlip Ø 6 mm external

Fuse type: Outside · Ø outside: 6 mm

Shim 19/26/0.5

Ø inside: 19 mm · Nominal diameter: 19 mm · Ø outside: 26 mm · Material: Steel · Surface: blank / oiled · Thickness: 0.5 mm

Spacer washer 16/26/0.5 Pedal axle | Tomos

Ø inside: 16 mm · Nominal diameter: 16 mm · Ø outside: 26 mm · Manufacturer: Tomos · Material: Steel · Surface: blank / oiled · Thickness: 0.5 mm · Tomos spare part no.: 200175

Spacer washer 16/26/1 Pedal axle blank | Tomos

Ø inside: 16 mm · Nominal diameter: 16 mm · Ø outside: 26 mm · Manufacturer: Tomos · Material: Steel · Surface: blank / oiled · Thickness: 1 mm · Tomos spare part no.: 206391

Shim 19/26/0.3

Ø inside: 19 mm · Nominal diameter: 19 mm · Ø outside: 26 mm · Material: Steel · Surface: blank / oiled · Thickness: 0.3 mm

Shim 19/26/0.3 Clutch basket Clutch hub 1st gear | Tomos

Ø inside: 19.1 mm · Nominal diameter: 19 mm · Ø outside: 26 mm · Thickness: 0.3 mm · Tolerance: DIN 988 (-0.03 mm) · Manufacturer: Tomos · Tomos spare part no.: 209073

Shim 19/26/0.5 Clutch basket / hub 1st gear | Tomos

Ø inside: 19.1 mm · Nominal diameter: 19 mm · Ø outside: 26 mm · Thickness: 0.5 mm · Tolerance: DIN 988 (-0.03 mm) · Manufacturer: Tomos · Material: Spring steel · Surface: Hardened · Tomos spare part no.: 209119
