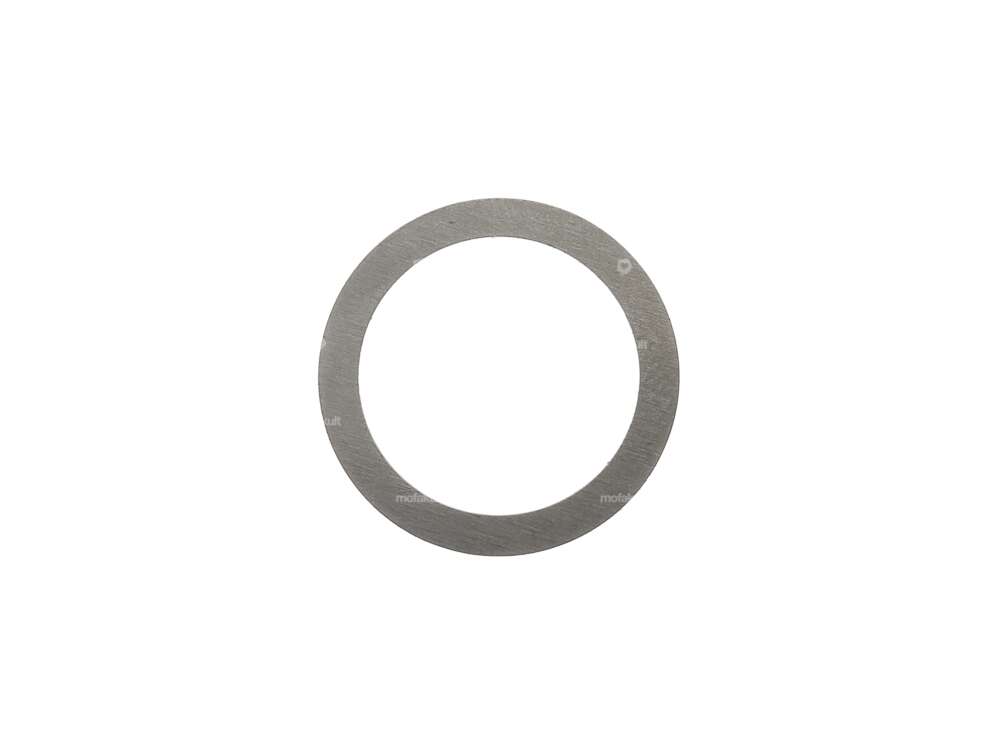

Shim 18.6/24/0.2 Crankshaft | Tomos

Jasil crankshaft | Tomos

Manufacturer: Jasil · Area of application: Racing · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Tomos OEM number: 223421

swiing crankshaft Racing Tomos

Manufacturer: swiing · Area of application: Racing · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Ø piston pin (B): 12 mm · Connecting rod length center-center: 115 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Wide crank webs: 34 mm · Tomos OEM number: 223421

Crankshaft original | Tomos

Manufacturer: Tomos · Area of application: Original · Cheek type: standard · Connecting rod length center-center: 115 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Thread type: MF10x1 (fine pitch thread) · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Tomos OEM number: 223421

NTN 6203 C3 Ball bearing 17/40/12

Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Material: Steel · Surface: blank · Ø outside: 40 mm · Bearing type: Deep groove ball bearing · Ø inside: 17 mm · Area of application: Standard · Width: 12 mm · Ball bearing closed: No

Shim 19/26/0.5

Material: Steel · Surface: blank / oiled · Nominal diameter inside: 19 mm · Ø inside: 19 mm · Ø outside: 26 mm · Thickness: 0.5 mm

Spacer washer 10.5/14.1/0.2 Gear shaft | Tomos

Nominal diameter inside: 10 mm · Ø outside: 14.15 mm · Manufacturer: Tomos · Material: Steel · Surface: blank / oiled · Thickness: 0.2 mm · Ø inside: 10.5 mm · Tomos OEM number: 209075

Spacer washer 10.1/16/2 gear shaft | Tomos

Nominal diameter inside: 10 mm · Ø outside: 16 mm · Manufacturer: Tomos · Material: Steel · Surface: blank / oiled · Thickness: 2 mm · Ø inside: 10.1 mm · Tomos OEM number: 223469

Clutch hub spring washer | Tomos

Ø outside: 18 mm · Manufacturer: Tomos · Ø inside: 10.5 mm · Tomos OEM number: 031978

Spacer washer 16/26/0.5 Pedal axle | Tomos

Nominal diameter inside: 16 mm · Ø outside: 26 mm · Manufacturer: Tomos · Material: Steel · Surface: blank / oiled · Thickness: 0.5 mm · Ø inside: 16 mm · Tomos OEM number: 200175

NTN 6203 C3 ball bearing 17/40/12 crankshaft | Tomos

Bearing type: Deep groove ball bearing · Stock number: 6203 · Manufacturer: NTN · Bearing clearance: C3 · Ø outside: 40 mm · Width: 12 mm · Ø inside: 17 mm · Tomos OEM number: 035070

Shim 19/26/0.3

Nominal diameter inside: 19 mm · Material: Steel · Surface: blank / oiled · Ø inside: 19 mm · Thickness: 0.3 mm · Ø outside: 26 mm

Spacer washer 14/20/2 crankshaft clutch side | Tomos

Nominal diameter inside: 14 mm · Manufacturer: Tomos · Material: Steel · Surface: blank / oiled · Ø inside: 14 mm · Ø outside: 20 mm · Thickness: 2 mm

Seeger ring 20 mm freewheel Tomos

Nominal diameter: 20 mm · Fuse type: Outside · Manufacturer: Tomos · Material: Spring steel · Tomos OEM number: 032077
