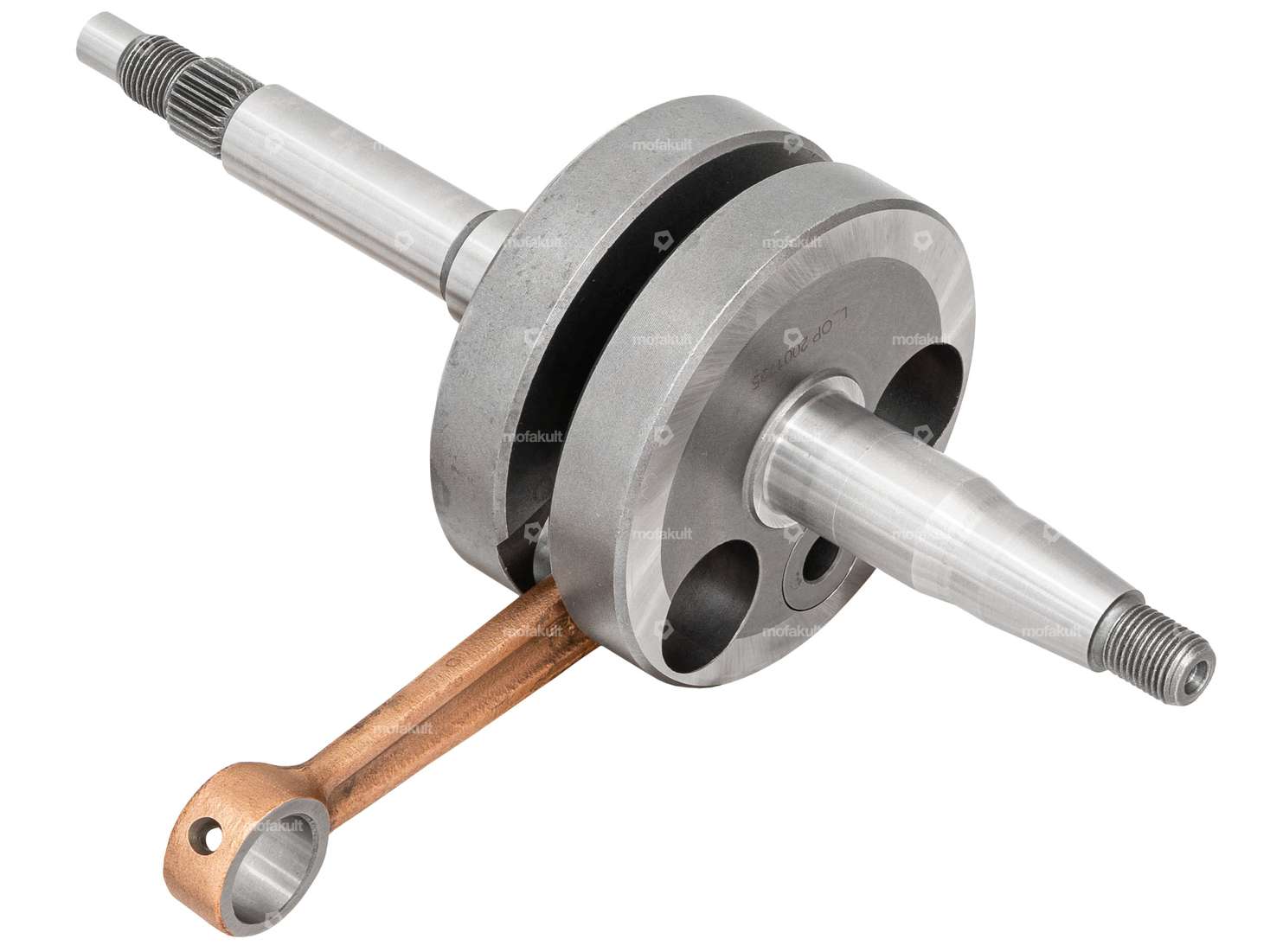

Jasil crankshaft | Tomos

swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage

Ø inside: 12 mm · Bearing cage: Silver cage · Width: 16.2 mm · Manufacturer: swiing® ingenious parts · Bearing type: Needle roller and cage assembly · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 16.2 · Tomos spare part no.: 035548

swiing® revival needle roller bearing 12/15/14.2 original

Bearing cage: Sheet steel cage · Manufacturer: swiing® revival parts · Bearing type: Needle sleeve · Ø outside: 15 mm · Width: 14.2 mm · Ø inside: 12 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony Spare part no.: A4222 · Tomos spare part no.: 035548 · Alternative version of Sachs spare part no.: 0232 155 001

swiing crankshaft Racing Tomos

Manufacturer: swiing · Cheek type: Full cheeks · Area of application: Racing · Ø piston pin (B): 12 mm · Connecting rod length center-center: 115 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Thread type: MF10x1 (fine pitch thread) · Wide crank webs: 34 mm · Tomos spare part no.: 223421

Crankshaft original | Tomos

Manufacturer: Tomos · Cheek type: standard · Connecting rod length center-center: 115 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Thread type: MF10x1 (fine pitch thread) · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Area of application: Original · Tomos spare part no.: 223421

Shim 18.6/24/0.2 Crankshaft | Tomos

Ø inside: 18.6 mm · Nominal diameter inside: 18 mm · Ø outside: 24 mm · Thickness: 0.2 mm · Manufacturer: Tomos · Material: Steel · Surface: blank / oiled · Tomos spare part no.: 212959

NTN 6203 C3 ball bearing 17/40/12 crankshaft | Tomos

Bearing type: Deep groove ball bearing · Stock number: 6203 · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Tomos spare part no.: 035070

Spacer washer 14/20/2 crankshaft clutch side | Tomos

Ø inside: 14 mm · Nominal diameter inside: 14 mm · Ø outside: 20 mm · Thickness: 2 mm · Manufacturer: Tomos · Material: Steel · Surface: blank / oiled

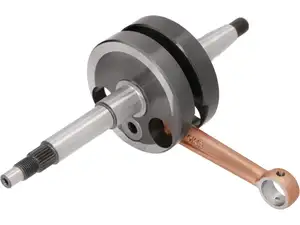

DMP Crankshaft | Tomos Classic, Quadro, Sprint, FunSport

Manufacturer: DMP · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 69.95 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 10 mm · Thread length: 12 mm · Wide crank webs: 34 mm · Length 1st paragraph: 20 mm · Length 2nd paragraph: 42.6 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 14 mm · Length of shoulder (ignition side): 24 mm · Weight: 887 g · Area of application: Standard · Tomos spare part no.: 223421

Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)

Ø nipple: 3.5 mm · Ø nipple: 6 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Ø Stranded wire: 1.8 mm · Cable length: 2200 mm · Nipple shape: Pears · Nipple length: 10 mm · Number of components: 1 pcs · Area of application: Standard

NTN 6203 C3 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Ball bearing closed: No · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Area of application: Standard · Material: Steel · Surface: blank · Width: 12 mm · Ø inside: 17 mm · Ø outside: 40 mm

Oil seal NBR 17/35/7 A DUO

Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 35 mm · Material: NBR · Surface: rubberized · Temperature resistance (min.): -30 - 100 °C · Width: 7 mm

Magura stop sleeve special Ø 5.5 mm

Nominal diameter inside: 2.5 mm · Ø inside: 2.5 mm · Ø inside: 5.5 mm · Manufacturer: Magura · Ø outside: 4 mm · Ø outside: 7 mm · Total length: 5 mm · Total length: 10 mm

Brass nut M6 3D

Material: Brass · Surface: blank · Nut type: Neck nut · Ø outside: 9 mm · Height: 25 mm · Drive: External hexagon · Area of application: Standard · Thread depth: 25 mm · Shank length: 20 mm · Thread type: M6x1 (standard thread) · Width across flats SW: 10 mm

Cable sheath Ø 5 mm black (per meter) Teflon inner sheath

Coating: Teflon · Color: black · Ø outside: 5 mm · Ø cable: 1.5 mm · Ø inside: 1.8 mm · Total length: 1000 mm

RMS reinforced lock solid Ø 22 x 1200 mm textile cover blue

Manufacturer: RMS · Material: Plastic · Material: Steel · Area of application: Security · Closing method: key · Thickness: 22 mm · Color: black · Color: blue · Cable length: 1200 mm

Union pedals aluminum black

Drive: Outer edge · Manufacturer: Union · Material: Aluminum · Material: Plastic · Color: black · Thread type: FG14.3 (9/16" 20G) · Reflectors: Yes

Speedometer drive 11 mm axle left with grease nipple holder

Material: Aluminum · Color: gray · Place of use: left · Wheel size [inch]: 16 " · 4-edge speedometer cable: 1.9 mm · Ø outside: 42 mm · Ø mounting hole: 11.2 mm · Ø axle: 11 mm · Thread type: MF10x1 (fine pitch thread) · Overall width outside: 48 mm · Total height: 52 mm
