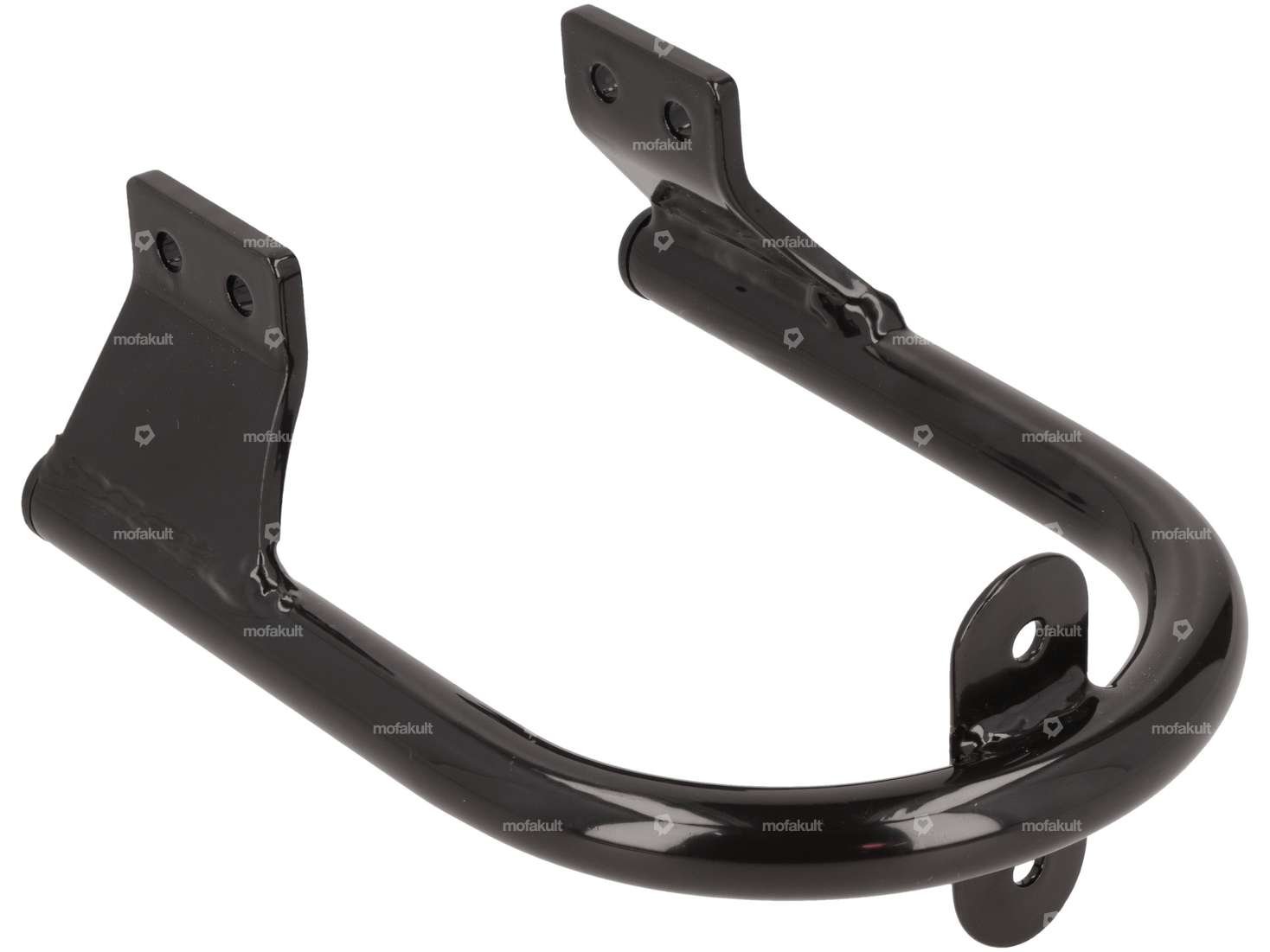

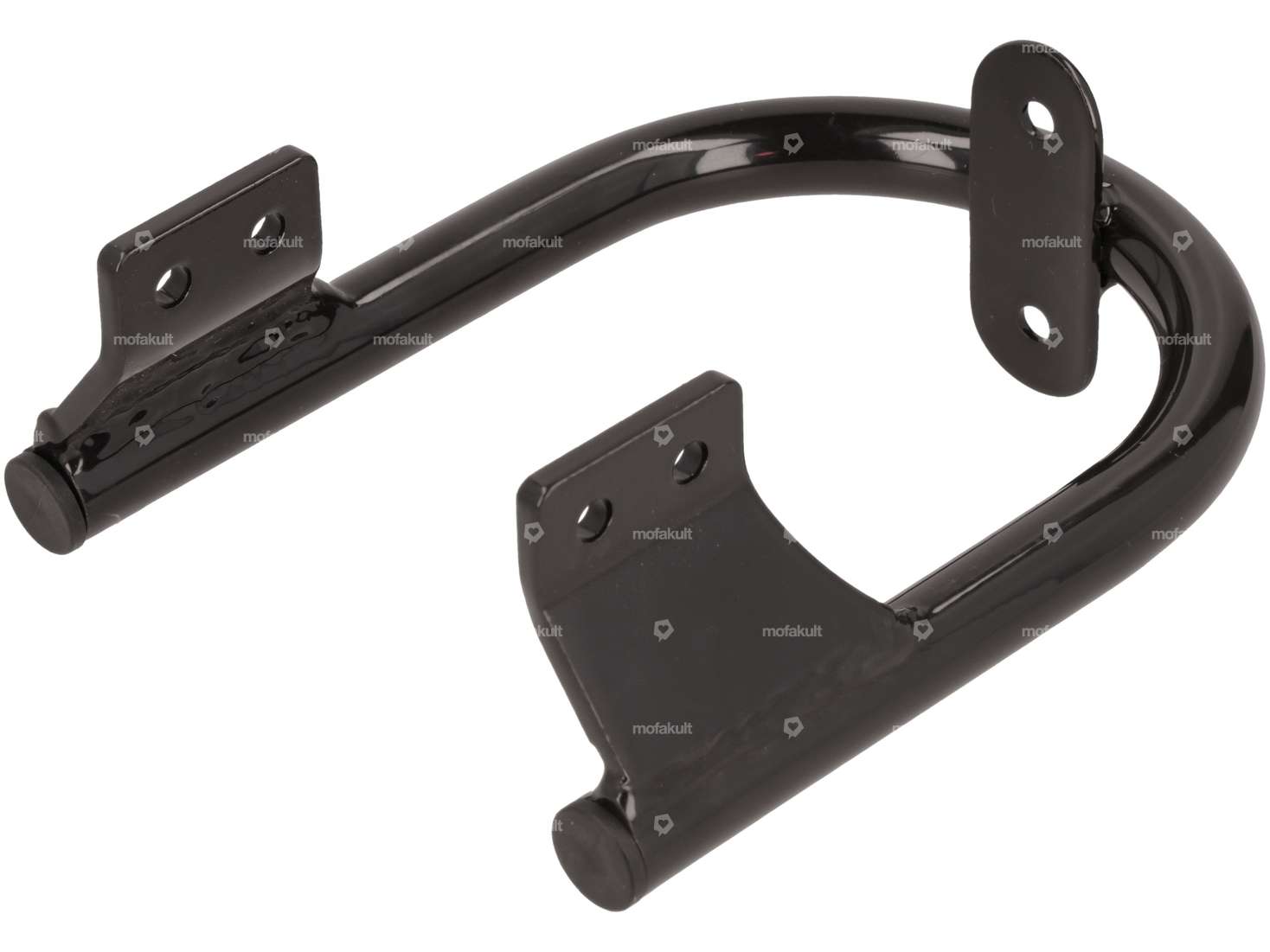

Black painted tube bend suitable for all EBR forks at the bottom of the accessories.
This reinforcement elbow does not fit on standard EBR forks without corresponding mounts on the fork legs.
The upper bracket is used to attach the mudguard.
Please check the dimensions below and compare them with your fork.
- Total height: 175 mm
- Width: 135 mm
- Distance between mounting holes: 18 mm
- Ø mounting holes: 6.45 mm
- Distance between fixing lugs (inside): 82 mm
- Distance between fixing lugs for mudguards: 25 mm
A quality product made in the United States.
A quality product made in the United States.
Details
| Total length | 175 mm |
| Manufacturer | Made in USA |
| Wide intake | 82 mm |
| Material | Steel |
| Outer width | 135 mm |
| Surface | varnished |
| Color | black |
| Mounting type | Nuts & bolts |
| Number of fixing points | 6 pcs |
| Hole spacing | 18 mm, 25 mm |
| Ø mounting hole | 6.45 mm |
| Depth | 100 mm |
Suitable for the following models
| Puch | |
| Sachs | |
| Pony / Cilo (Beta 521 & 512) | |
| Zündapp Belmondo |
