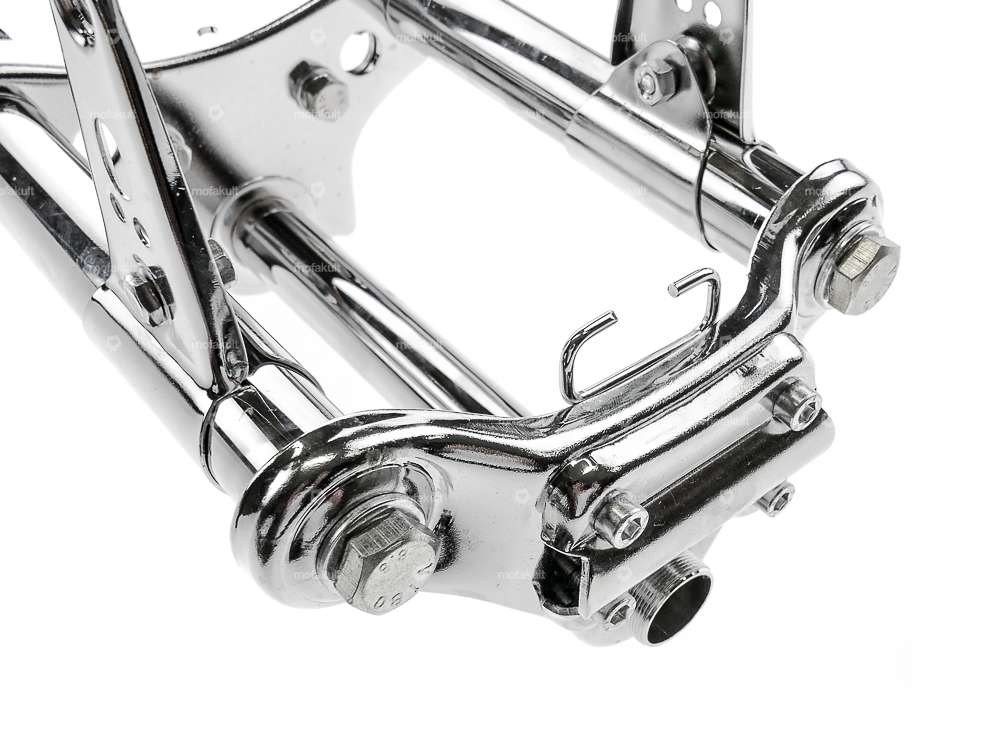

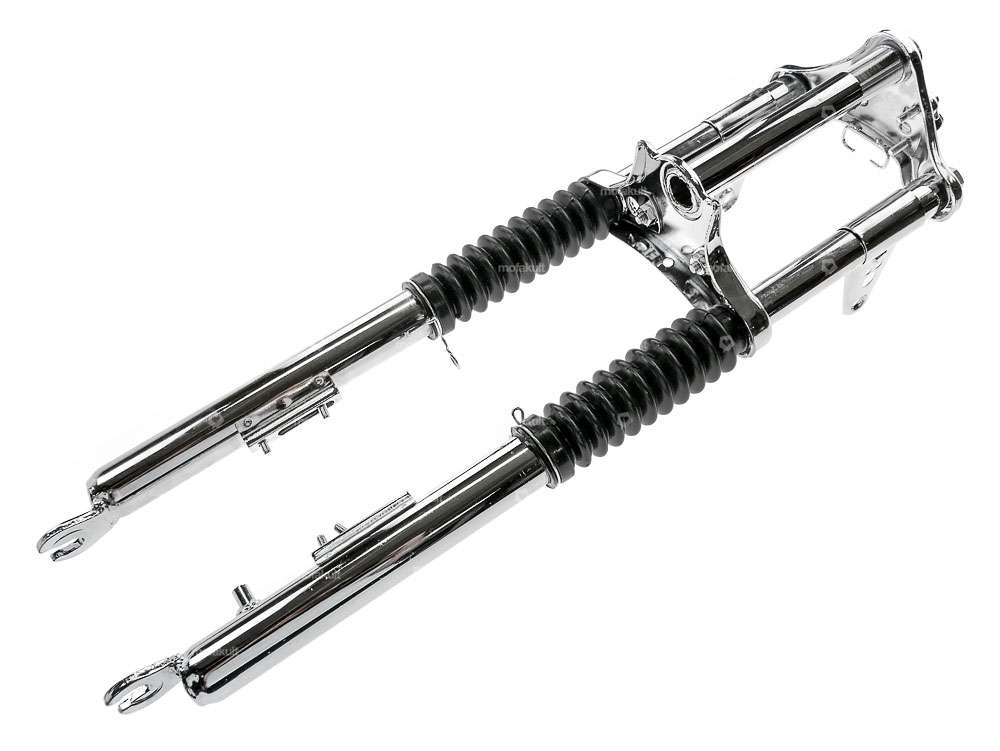

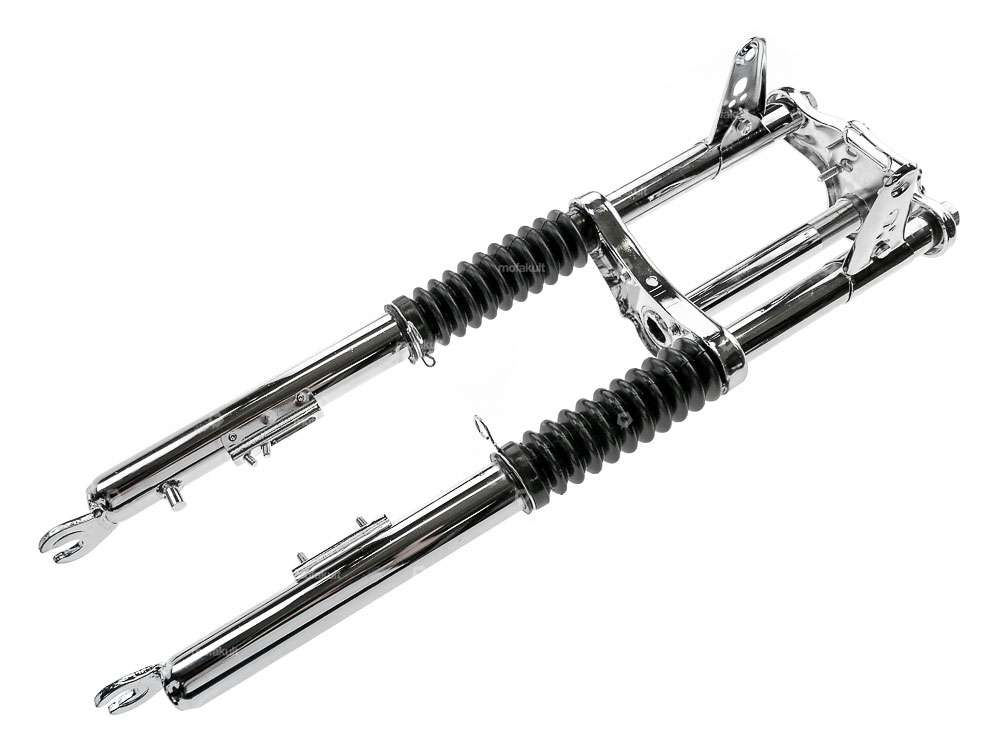

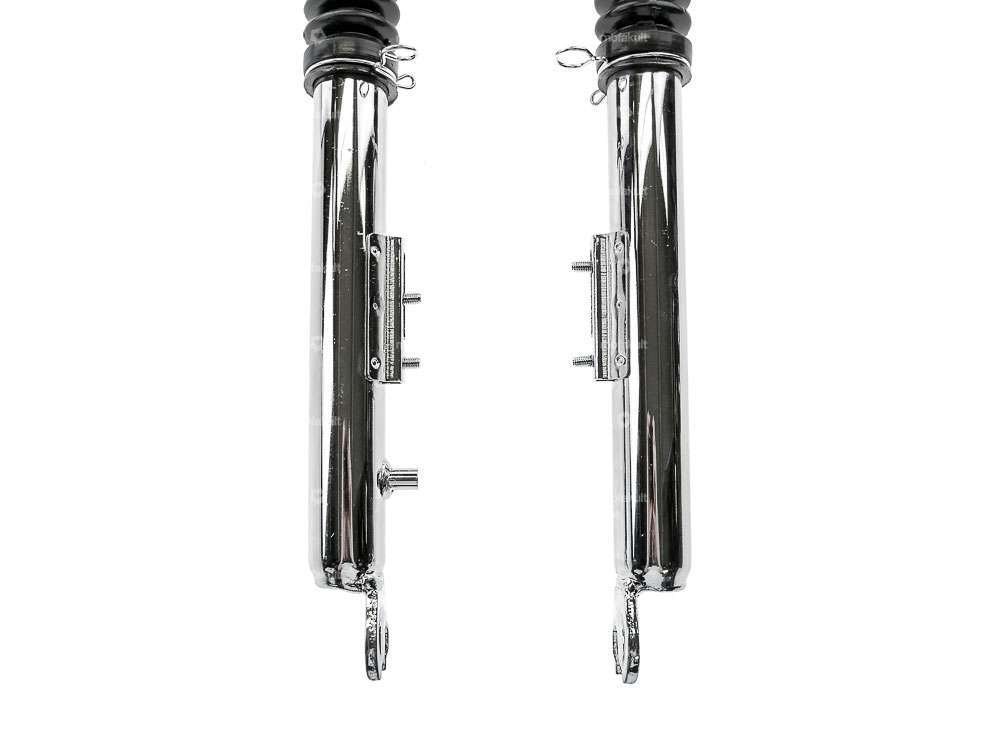

Chromed EBR fork with reinforced bars.
For various mopeds. E.g. Zündapp Belmondo, Sachs 50/2, Hercules etc.
Bolt to attach the brake anchor plate is located on the right side. 7 cm above the center of the wheel axle.
With clamp for attaching the handlebars to the fork plate.
Two M6 threaded bolts are provided for attaching the mudguard. The distance of these bolts is adjustable and can be varied from 15 to 50 mm.
Internal diameter head tube (for stem mounting): 22 mm
Head tube length: 20 cm
Length center wheel axle to lower edge of lower fork crown: 41 cm
Total length: 64 cm
Thread: M26x1
Thread length on head tube: 3 cm
Suitable headset sets can be found below in the accessories section.
Branded product of the Italian manufacturer EBR.
Details
| Manufacturer | EWC |
| Material | Steel |
| Surface | chrome-plated |
| Thread type | MF26x1 (fine pitch thread) |
| Color | Chrome |
| Adjustable | No |
| Spar end distance (center-center) | 140 mm |
| Ø outer head tube | 26 mm |
| Ø spars | 28 mm |
| Ø head tube inside | 22.3 mm |
| Head tube length | 200 mm |
| Thread length | 58 mm |
| Total length | 635 mm |
| Fork bridge - center wheel axle | 410 mm |
| Distance brake cam to wheel axle center-center | 70 mm |
Suitable for the following models
| Sachs | |
| Zündapp Belmondo | |
| Hercules |
