Gearboxes & shafts

Cylindrical roller Ø 4x6 mm | Sachs 50/2, 50/3, 50/4, 503 manual/automatic (A1145)

Manufacturer: Sachs · Material: Steel · Surface: Hardened · Diameter: 4 mm · Width: 6 mm · Pony spare part no.: A1145 · Sachs spare part no.: 0232 002 000

Cylindrical roller Ø 3.5x7.5 mm Gearbox | Puch Z50

Manufacturer: Puch · Material: Steel · Surface: Hardened · Area of application: Standard · Diameter: 3.5 mm · Width: 7.4 mm

SKF 6202 C3 ball bearing 15/35/11

Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Bearing type: Deep groove ball bearing · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Puch spare part no.: 900.4.6202

17 mm circlip E50 & ZA50 motor

Fuse type: Outside · Manufacturer: Puch · Material: Spring steel · Surface: gas nitrided · Nominal diameter: 17 mm · Thickness: 0.9 mm · Place of use: Clutch · Ø inside: 15.6 mm · Ø outside: 19.2 mm

swiing® revival clamp body reinforced | Sachs 503 AB, AC, ADV, ABL (A1196)

Manufacturer: swiing® revival parts · Surface: Hardened · Material: Steel · Ø inside: 19 mm · Number of teeth: 24 pcs · Ø outside: 26.8 mm · Height: 10.9 mm · Pony spare part no.: A1196 · Sachs spare part no.: 0232 186 100

swiing® revival sprag / freewheel bearing motor | Beta 521, 512 (A8078)

Manufacturer: swiing® revival parts · Material: Steel · Ø inside: 24 mm · Number of teeth: 29 pcs · Ø outside: 32 mm · Height: 8.7 mm

swiing® revival locking plate drive wheel Inox | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A1717)

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Thickness: 0.5 mm · Number of lobes: 1 pcs · Pony spare part no.: A1717 · Sachs spare part no.: A1717 · Sachs spare part no.: 0246 049 000

Washer for engine mounting | Sachs 503 2AL/2BL/AAL (A1628)

Ø Bundle: 10 mm · Manufacturer: Sachs · Nominal diameter (thread): 8 mm · Ø inside: 8.1 mm · Ø outside: 20 mm

Spring for gear wheel Puch ZA50

Spring design: Ironing spring · Manufacturer: Puch · Material: Spring steel · Surface: raw

SKF 6203 C3 Ball bearing 17/40/12

Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: SKF · Bearing clearance: C3 · Bearing type: Deep groove ball bearing · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm

Woodruff key KW/Transmission | Sachs (A1674)

Manufacturer: Sachs · Material: Steel · Total length: 9.3 mm · Width: 3 mm · Height: 3.8 mm · Pony spare part no.: A1674 · Sachs spare part no.: 0246 005 000

Snap ring gear wheel | Puch E50

Manufacturer: Puch · Puch spare part no.: 901.4656

swiing® revival manual shift spring | Sachs 50/2, 503 2AL, 2BL (A1337)

Spring design: Tension spring · Length spring hook: 8 mm · Total length: 28 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: burnished · Color: gray · Ø outside: 8.5 mm · Ø wire: 1.25 mm · Ø inside: 6 mm · Pony spare part no.: A1337 · Sachs spare part no.: 0239 102 100

Cylindrical roller Ø 8x8 mm gearbox NOS | Puch ZA50

Manufacturer: Puch · Material: Steel · Surface: Hardened · Diameter: 8 mm · Width: 8 mm · Puch spare part no.: 900.6129

MBR spur gear 94 teeth "Racing" straight | Puch E50

Manufacturer: MBR · Material: Steel · Surface: hardened & ground · Recording type: Interlocking · Ø axle: 17 mm · Toothing type: straight toothed · Number of teeth: 94 pcs · Ø outside: 145 mm

GPO ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Manufacturer: GPO · Bearing clearance: CN (standard) · Material: Steel · Surface: blank / oiled · Area of application: Standard · Thread type: MF20x1 (fine pitch thread) · Ø outside: 35 mm · Ø inside: 15 mm · Width: 8 mm · Width: 25.6 mm · Ball bearing closed: No · Pony spare part no.: A2531 · Sachs spare part no.: 0286 079 105

Ball Ø 7 mm circuit | Zündapp Belmondo (Type 247)

Material: Steel · Surface: hardened & ground · Number of components: 8 pcs · Ø ball [inch] / [mm]: 7 mm

Splined pinion shaft 13 mm pinion | Sachs 50/2 AL, 502 AAL (A1673)

Total length: 12.1 mm · Width: 3 mm · Height: 4.9 mm · Manufacturer: Sachs · Material: Steel · Pony spare part no.: A1673 · Sachs spare part no.: 0246 001 001

O-ring selector shaft Z50

Cord thickness: 2.4 mm · Hardness [Shore]: 70 Shore · Manufacturer: Puch · Material: NBR · Place of use: Shift shaft · Color: black · Ø inside: 8.3 mm · Ø outside: 13.1 mm · Number of components: 1 pcs

MBR clutch basket & spur gear 18:94 teeth Racing straight | Puch E50

Manufacturer: MBR · Toothing type: straight toothed · Number of teeth: 18 pcs · Number of teeth: 94 pcs · Area of application: Tuning

Roller bearing 24/32/5 | Beta 521 (A8120)

Manufacturer: Pony · Material: Steel · Surface: Hardened · Ø inside: 24 mm · Ø outside: 32 mm · Width: 5 mm

Sliding block circuit old version | Sachs 50/2, 503 2AL/2BL (A1910)

Material: Steel · Surface: Hardened · Total length: 18.4 mm · Total height: 10.4 mm · Width: 4.4 mm · Ø Pin: 3.95 mm · Pony spare part no.: A1910 · Sachs spare part no.: 0259 021 000

Nut M12x1.25 Clutch/gearbox engine | Beta 521 & 512 (A8052)

Manufacturer: Pony · Material: Steel · Surface: blue galvanized · Nut type: Hexagon nut 0.5D · Thread type: MF12x1.25 (fine pitch thread) · Height: 6 mm · Drive: External hexagon

swiing® revival locking plate gear nut M10 | Puch X30

Manufacturer: swiing® revival parts · Material: Steel · Thread size: M10 · Ø inside: 10.45 mm · Number of lobes: 1 pcs

swiing® revival pinion pulley | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Ø inside: 13.9 mm · Ø inside: 17.1 mm · Nominal diameter (thread): 17 mm · Ø outside: 24.3 mm · Thickness: 3 mm · Puch spare part no.: 050.1.1319

NTN 6203 C4 ball bearing 17/40/12 engine | Puch E50

Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C4 · Material: Steel · Surface: blank · Area of application: Standard · Bearing type: Deep groove ball bearing · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm

Reinforcement set 9 springs clutch | Sachs 50/2 & 503

Spring design: Pressure spring · Number of components: 12 pcs

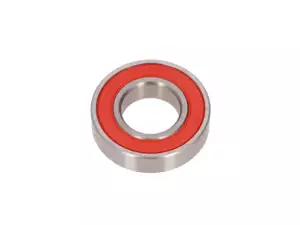

swiing® ingenious ball bearing pinion shaft 15.5/31.5/8 | Sachs 502 AML, 50/2 ML, 50/3, 50/4

Bearing cage: Sheet steel cage · Manufacturer: swiing® ingenious parts · Dust protection type: 2RS1 - NBR contact seal on both sides · Material: Steel · Bearing type: Deep groove ball bearing · Ø inside: 15.5 mm · Ø outside: 31.5 mm · Ball bearing closed: Yes · Width: 8 mm

Tubular rivet Circuit Sachs 503 2AL2BL (A1532)

Total length: 25 mm · Manufacturer: Sachs · Material: Steel · Ø outside: 6 mm · Ø outside: 9 mm

Outer ring 23.5/31.5/6 Main shaft left | Sachs 502, 50/2, 50/3, 50/4, 503 (A1157)

Material: Steel · Surface: hardened & ground · Width: 6 mm · Ø inside: 23.5 mm · Ø outside: 31.5 mm · Pony spare part no.: A1157 · Sachs spare part no.: 0232 049 000

swiing snapper to gearshift | Puch Z50

Manufacturer: swiing · Material: Steel · Surface: gas nitrided · Puch spare part no.: 050.1.1421

Locking plate countershaft | Puch X30 Velux

Number of lobes: 2 pcs · Ø inside: 12.7 mm · Thickness: 1 mm · Width: 6 mm · Width 2: 9 mm

Oil seal FPM 15/30/5.5 AS crankshaft / main shaft | Sachs 503, 504, 535, 504/1 (A4215 / A5602)

Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 30 mm · Width: 5.5 mm · Manufacturer: Sachs · Material: FPM - Rubber · Surface: rubberized · Pony spare part no.: A5602 · Sachs spare part no.: 0230 111 100

Spring freewheel Tomos

Spring design: Ironing spring · Manufacturer: Tomos · Material: Spring steel · Tomos spare part no.: 223121

Outer ring 21/28/6 Main shaft right | Sachs 502, 50/2, 50/3, 50/4, 503 (A1146)

Material: Steel · Surface: hardened & ground · Ø inside: 21 mm · Ø outside: 28 mm · Width: 6 mm · Pony spare part no.: A1146 · Sachs spare part no.: 0232 012 000

Elastic driver gearbox | Puch ZA50

Material: Rubber · Total length: 8 mm · Ø outside: 19 mm

swiing® revival washer for engine mounting Inox | Sachs 503 (A1628)

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Ø inside: 8.6 mm · Ø outside: 20 mm · Ø Bundle: 10.5 mm

Koyo 12.7/17.46/15.8 pinion shaft | Puch ZA50

Ø outside: 17.5 mm · Manufacturer: Koyo · Width: 15.7 mm · Bearing type: Needle box · Ø inside: 12.7 mm · Dimension needle bearing: 12.7/17.5 x 15.7

Spring washer gearshift shaft Puch Z50

Spring design: Special spring · Manufacturer: Puch · Material: Spring steel · Surface: raw · Ø inside: 8.5 mm · Ø outside: 15.5 mm · Puch spare part no.: 050.1.1426

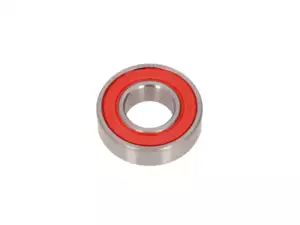

swiing® ingenious ball bearing pinion shaft 13/28/8 | Sachs 502, 50/2, 503

Bearing cage: Sheet steel cage · Manufacturer: swiing® ingenious parts · Dust protection type: 2RS1 - NBR contact seal on both sides · Bearing clearance: CN (standard) · Material: Steel · Bearing type: Deep groove ball bearing · Ø inside: 13 mm · Ø outside: 28 mm · Ball bearing closed: Yes · Width: 8 mm

Fan wheel E-Start | Beta 521 (A8786)

Manufacturer: Pony · Material: Plastic · Number of fixing points: 4 pcs · Color: black

swiing® revival shift arm Z50 Motor | Puch X30 Velux

Manufacturer: swiing® revival parts · Material: Aluminum · Surface: anodized · Puch spare part no.: 320.5.14.017.1

Shim 19/26/0.5

Nominal diameter: 19 mm · Material: Steel · Surface: blank / oiled · Ø inside: 19 mm · Ø outside: 26 mm · Thickness: 0.5 mm

Nut M14x1 gear shaft | Tomos

Manufacturer: Tomos · Nut type: Hexagon nut · Thread type: MF14x1 (fine pitch thread) · Drive: External hexagon · Height: 7.3 mm · Width across flats SW: 22 mm · Tomos spare part no.: 200141

Lock washer pinion nut | Puch X30 Velux

Puch spare part no.: 350.1.13.018.1

Needle bearing 15/18/16 clutch basket | Beta 521, 512 (A8057)

Bearing cage: Sheet steel cage · Bearing type: Needle roller and cage assembly · Ø inside: 15 mm · Ø outside: 18 mm · Width: 16 mm · Dimension needle bearing: 15/18 x 16

M12 locking plate for gearbox crankshaft | Zündapp Belmondo (Type 247)

Manufacturer: Made in Portugal · Thread size: M12 · Ø inside: 12.25 mm · Number of lobes: 3 pcs

Shim 19/26/0.3 Freewheel 2nd gear | Sachs 503 ABL, AB, AC, ADV (A1197)

Ø inside: 19.1 mm · Nominal diameter: 19 mm · Ø outside: 26 mm · Thickness: 0.3 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Pony spare part no.: A1197 · Sachs spare part no.: 0244 200 000

Seeger ring countershaft | Sachs 503 ABL, AB, AC, ADV (A5653)

Fuse type: Outside · Nominal diameter: 19 mm · Place of use: Clutch shaft · Manufacturer: Sachs · Thickness: 1.2 mm · Material: Spring steel · Pony spare part no.: A5653 · Sachs spare part no.: 2512 007 000

Washer (12/21/0.4 mm) Pinion motor | Beta 521 & 512 (A8070)

Manufacturer: Pony · Material: Steel · Surface: blank / oiled · Ø inside: 12.1 mm · Nominal diameter (thread): 12 mm · Ø outside: 21 mm · Thickness: 0.4 mm

swiing® revival plain bearing countershaft | Sachs 50/2, 503 2AL/2BL

Nominal diameter: 14 mm · Total length: 25 mm · Manufacturer: swiing® revival parts · Material: special bearing bronze · Ø outside: 15 mm · Ø inside: 14 mm

Spacer washer 23/28/1 Gearbox | Sachs 50/3, 50/4

Nominal diameter: 23 mm · Material: Steel · Surface: blank / oiled · Ø inside: 23 mm · Ø outside: 28 mm · Thickness: 1 mm

GPO bearing ring 19/27/6.2 bronze gearbox | Sachs 503 AB, AC, ABL, ADV (A4495)

Nominal diameter: 19 mm · Manufacturer: GPO · Material: Bronze · Ø inside: 19 mm · Ø outside: 27 mm · Total height: 6.2 mm · Pony spare part no.: A4495

Transmission pulley 3-speed manual transmission | Sachs 50/3

Gearwheel 2nd gear replica | Beta 521, 512 (A8048)

Material: Steel · Surface: blank · Recording type: Wedge connection · Ø inside: 15 mm · Toothing type: helical toothed · Number of teeth: 49 pcs · Ø outside: 85.7 mm · Pony spare part no.: A8048

66HEROES Nickel-plated pinion shaft cap Puch logo | Puch Z50 (DE/AT version)

Manufacturer: 66HEROES · Surface: nickel-plated

Bearing needle Ø 3x15.8 mm | Sachs 504 Manual (A4226)

Manufacturer: Sachs · Material: Steel · Surface: Hardened · Diameter: 3 mm · Width: 15.8 mm

swiing pinion shaft reinforced | Zündapp Belmondo (Type 247)

Manufacturer: swiing · Material: Copper · Material: Steel · Surface: blank · Surface: coated · Thread type: MF12x1 (fine pitch thread) · Recording type: Ø15 x SW12 · Ø inside: 12 mm · Ø outside: 22 mm · Ø outside: 23.8 mm · Total length: 82.6 mm

Switch wedge | Sachs 50/3, 50/4

Material: Steel · Surface: Hardened · Thread type: M5x0.8 (standard thread)

Fan wheel Ducati | Beta 521 & 512 (A8032)

Manufacturer: Pony · Material: Plastic · Number of fixing points: 4 pcs · Color: black
