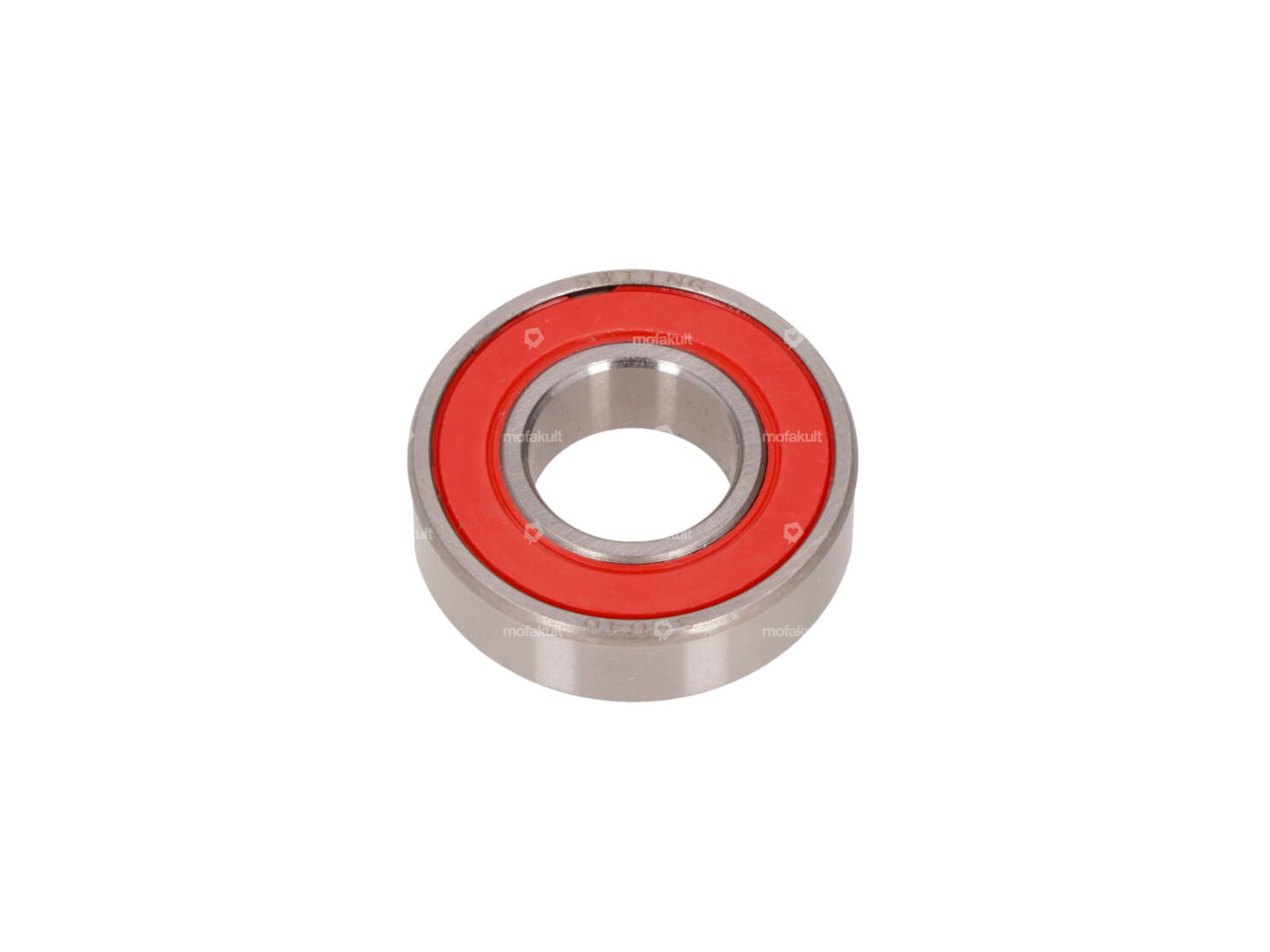

Special ball bearing 13x28x8 mm for the right side of the pinion shaft on your moped / moped with Sachs 502, 50/2 and 503 engine.
The deep groove ball bearing has a dust ring made of NBR on both sides.
This pinion shaft bearing replaces the roller race (bearing ring) A1146, the 6 x 4 mm cylindrical rollers A1145 as well as the two thrust washers A1548 on the right-hand side of the main shaft in your Sachs transmission.
Other shape: 2RS1 (two sheet steel reinforced contact seals made of NBR)
Bearing clearance: Standard
Ball bearing: Sheet steel bearing, ball bearing «-»
Installation instructions: Check the pinion shaft for scalloping or other damage before installation. First, the bearing should be shrunk into the housing. The shaft can then be inserted into the bearing without play and, if necessary, additionally secured with adhesive. The axial play of the shaft must be set to 0.1-0.2 mm.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Bearing type | Deep groove ball bearing |
| Bearing cage | Sheet steel cage |
| Manufacturer | swiing® ingenious parts |
| Dust protection type | 2RS1 - NBR contact seal on both sides |
| Bearing clearance | CN (standard) |
| Material | Steel |
| Width | 8 mm |
| Ø outside | 28 mm |
| Ø inside | 13 mm |
| Ball bearing closed | Yes |
Suitable for the following models
| Sachs | 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 503 - AAL, 2AL / 2BL |
Accessories & related products
Oil seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)
Temperature resistance (min.): -30 - 100 °C · Place of use: Pinion shaft · Manufacturer: Sachs · Ø inside: 14.96 mm · Ø outside: 31.5 mm · Width: 3.5 mm · Material: NBR · Surface: coated · Area of application: Standard · Pony OEM number: A1134 · Sachs OEM number: 0230 011 100 · Sachs OEM number: 0230 011 200
8,80 EUR
Loctite 638 High-strength adhesive 10 ml
Temperature resistance (min.): -75 - 150 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents [ml]: 10 ml · Color: green · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Area of application: Chemistry · Adhesion: high-strength · Type of application: 1K · Gap dimension (max.): 0.25 mm · Alignment time: 300 sec · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m
25,70 EUR
2 570,00 EUR/l
swiing® revival pinion shaft | Sachs 503 2AL, 2BL (A1322)
Total length: 91.5 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Thread type: MF12x1 (fine pitch thread) · Recording type: Ø15 x SW12 · Toothing type: straight toothed · Number of teeth: 4 pcs · Ø inside: 12.9 mm · Ø outside: 15.4 mm
86,60 EUR

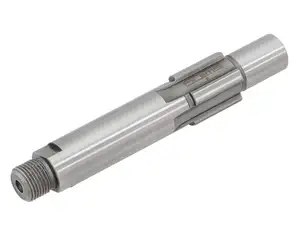

swiing® revival pinion shaft | Sachs 50/2 manual (A1291)
