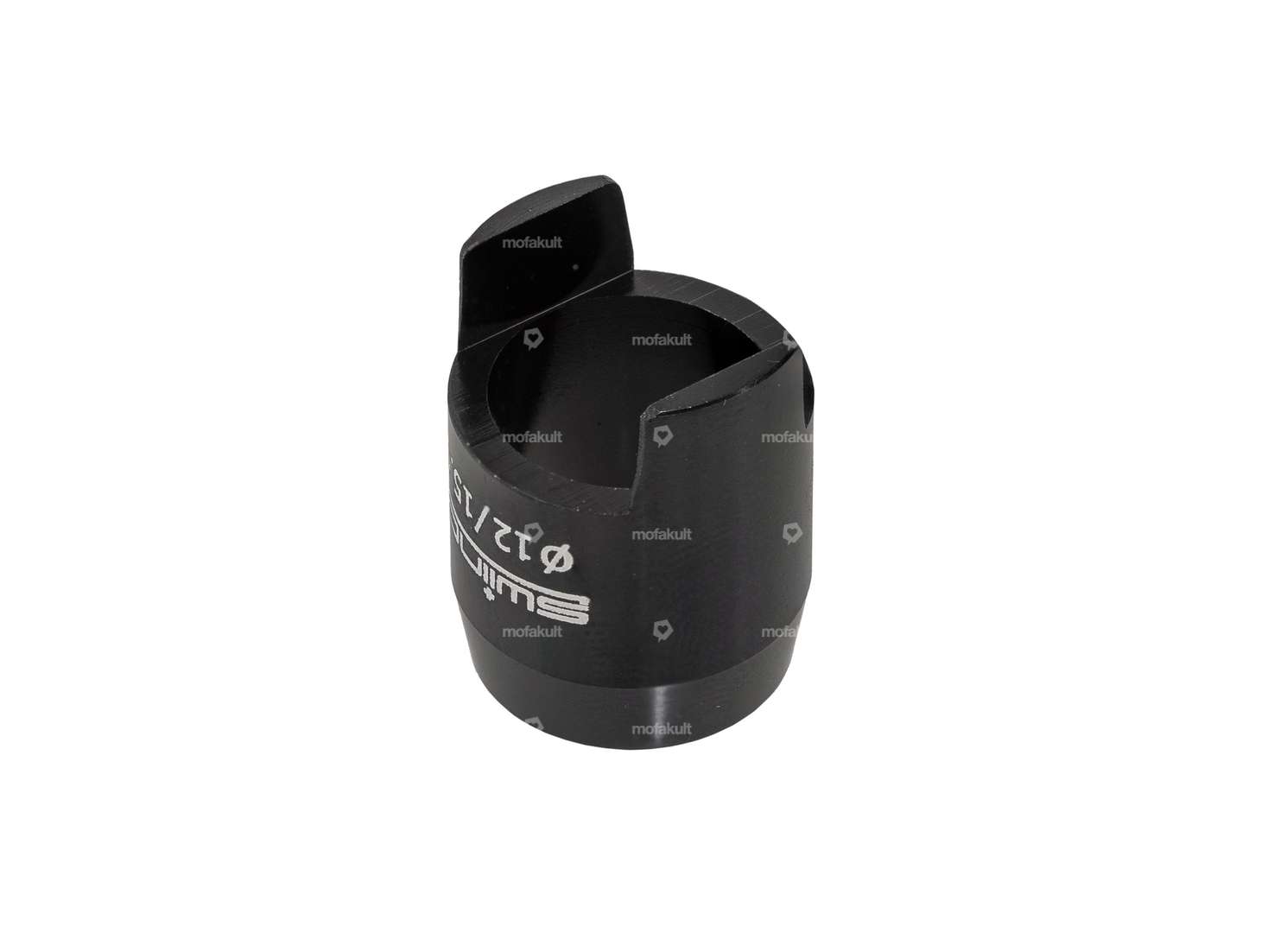

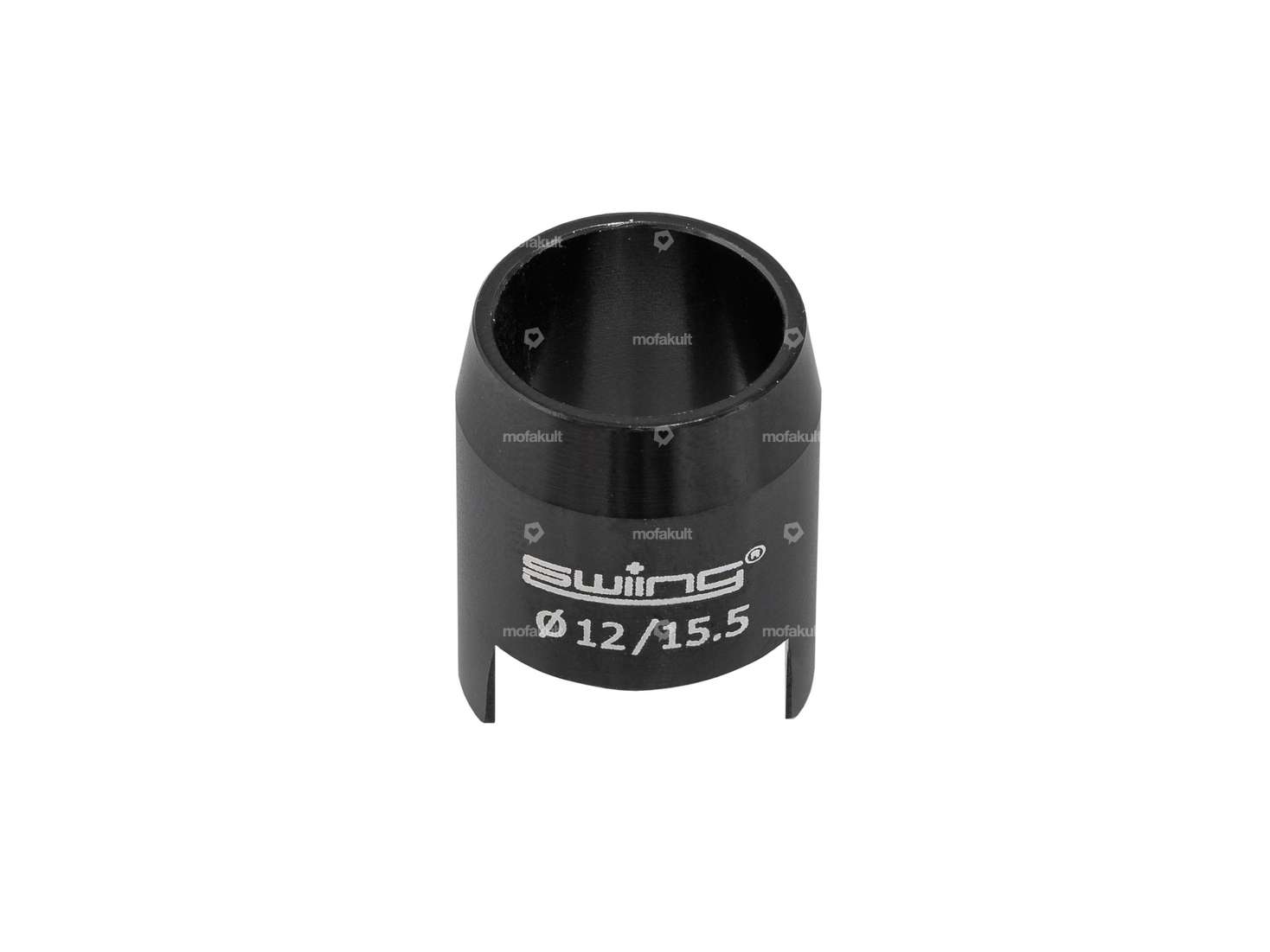

Aluminium bushing, black anodized, for professional installation of the oil seal on the pinion shaft of Sachs 50/2 and 503 2AL / 2BL mopeds and mopeds.
Without this installation aid, the oil seal is often damaged on the sharp-edged shoulder of the pinion shaft. With the help of the installation tool, the oil seal slides gently over the delicate area.
Figure 3 illustrates the area of application of the oil seal.
Exclusive product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Area of application | Special tool |
| Surface | anodized |
| Total length | 20 mm |
| Ø outside | 15.5 mm |
| Ø inside | 12 mm |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AML 50/2 - ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV |
