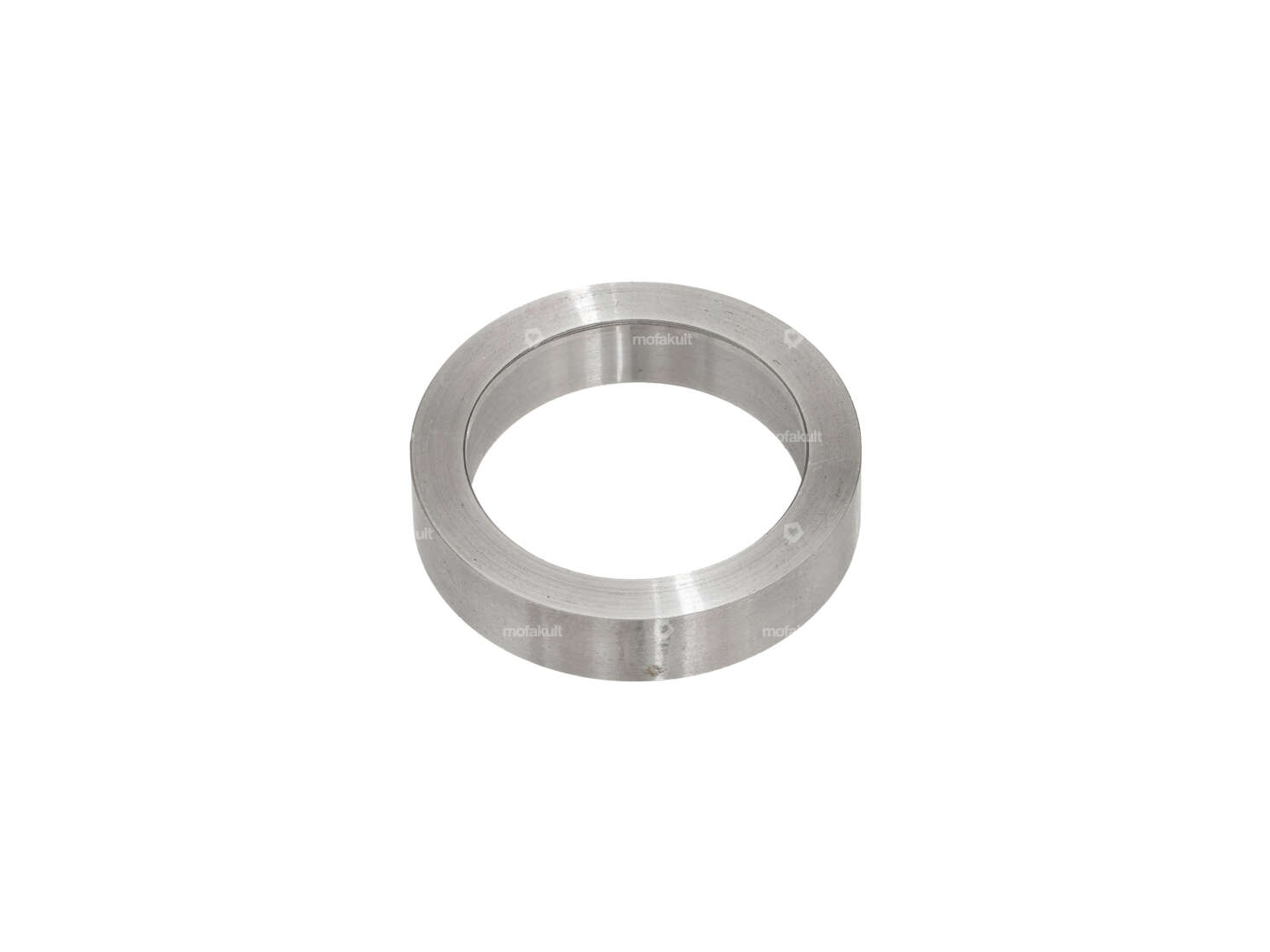

Bearing ring with the dimensions 28x21x6 mm for the roller bearing on the pinion shaft of the following Sachs engines:
- 50/2 with diaphragm and slotted control
- 502 with diaphragm and slotted control
- 503 2AL / 2BL
Dimension of the bearing ring:
Ø inner: 21 mm
Ø outer: 28 mm
Thickness: 6 mm
Original Sachs spare part number: A1146
Details
| Material | Steel |
| Surface | hardened & ground |
| Width | 6 mm |
| Ø outside | 28 mm |
| Ø inside | 21 mm |
| Pony spare part no. | A1146 |
| Sachs spare part no. | 0232 012 000 |
Suitable for the following models
| Sachs | 502 (Saxonette) - AML 50/2 - ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV |
