Clutch basket

swiing® revival clutch spring | Sachs 50/2 & 503 (A1325)

Spring design: Pressure spring · Manufacturer: swiing® revival parts · Pony spare part no.: A1325 · Sachs spare part no.: 0239 015 000

swiing® revival plain bearing clutch basket | Puch E50

Nominal diameter: 15 mm · Manufacturer: swiing® revival parts · Ø inside: 15 mm · Ø outside: 17 mm · Material: special bearing bronze · Total height: 21.75 mm

15 mm circlip clutch basket E50 engine

Fuse type: Outside · Ø outside: 17 mm · Manufacturer: Puch · Material: Spring steel · Place of use: Clutch · Ø inside: 13.8 mm · Nominal diameter: 15 mm · Thickness: 0.95 mm

Spring cup clutch Sachs 50/2, 503 2AL/2BL (A3884)

Pony spare part no.: A3884 · Sachs spare part no.: 0659 006 000

GPO clutch trigger | Puch E50

Manufacturer: GPO · Material: Steel · Surface: blackened · Area of application: (Dis)assembly tool

Seeger ring 17 mm Inox | Puch E50 / ZA50

Fuse type: Outside · Manufacturer: Puch · Material: Chrome steel (stainless steel) · Place of use: Crankshaft · Nominal diameter: 17 mm

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Bearing cage: "-" Sheet steel cage ball-guided · Stock number: E15 · Width: 8 mm · Inner ring width: 25.6 mm · Manufacturer: swiing® revival parts · Bearing clearance: CN (standard) · Area of application: High End · Area of application: Standard · Material: Steel · Bearing type: Deep groove ball bearing · Ø outside: 35 mm · Ø inside: 15 mm · Thread type: MF20.8x1 LH (fine/left-hand thread) · Pony spare part no.: A2531 · Sachs spare part no.: 0286 079 105

CIF intermediate disk flywheel / clutch bell | Piaggio Ciao, SI, Bravo Boxer

Nominal diameter: 12 mm · Ø inside: 12 mm · Manufacturer: CIF · Total length: 5 mm · Material: Steel · Surface: blue galvanized · Ø outside: 23 mm · Ø Bundle: 16.3 mm

Seeger ring 15 mm clutch basket Inox | Puch E50

Fuse type: Outside · Manufacturer: Puch · Material: Chrome steel (stainless steel) · Nominal diameter: 16 mm

swiing® revival plain bearing clutch basket | Puch Z50

Nominal diameter: 15 mm · Ø outside: 17 mm · Manufacturer: swiing® revival parts · Material: special bearing bronze · Ø inside: 15 mm · Total height: 16.2 mm

swiing® revival thrust washer set Ø 15 / 17 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Thickness: 1.1 mm · Thickness: 1.3 mm · Thickness: 1.5 mm · Thickness: 1.7 mm · Ø inside: 15 mm · Ø inside: 17 mm · Ø outside: 22 mm · Ø outside: 24 mm · Area of application: Standard

swiing® ingenious reinforcement set clutch (+40%) | Sachs 503, 50/2 (502), 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Spring steel · Surface: coated · Ø inside: 5.6 mm · Ø outside: 8.75 mm · Number of springs: 9 pcs · Thickness: 1.4 mm · Area of application: Tuning

CIF Clutch 56 mm | Piaggio, Ciao, SI, Bravo, Boxer

Ø outside: 90 mm · Manufacturer: CIF · Material: Steel · Ø Outer pulley: 56 mm · Number of springs: 2 pcs · Number of springs: 3 pcs · Ø inside: 82 mm · Number of jaws: 2 pcs · Number of jaws: 3 pcs · Area of application: Standard

Clutch basket lock washer | Sachs 50/2, 503 2AL/2BL (A1555)

Material: Steel · Surface: blue galvanized · Thickness: 0.5 mm · Ø outside: 32 mm · Ø inside: 21 mm · Pony spare part no.: A1555

Wippermann chain lock (drive) No.17 Standard

Manufacturer: Wippermann · Material: Steel · Surface: raw · Chain type: 415H · Chain pitch: 1/2" x 3/16" · Chain lock type: Spring lock · Ø Pin: 4.07 mm

Flat nut M21x1 LH clutch | Sachs 50/2, 503 AB/ABL/2AL/2BL (A1504)

Nut type: Hexagon flat nut · Thread type: MF21x1 LH (fine/left-hand thread) · Drive: External hexagon · Width across flats SW: 26 mm · Pony spare part no.: A1504 · Sachs spare part no.: 0242 030 005 · Sachs spare part no.: 0242 030 105

Clutch 56 mm (reproduction) | Piaggio, Ciao, SI, Bravo, Boxer

Manufacturer: Quenching · Material: Steel · Ø Outer pulley: 56 mm · Surface: coated · Material addition: Composite materials · Number of springs: 2 pcs · Number of springs: 3 pcs · Number of jaws: 2 pcs · Number of jaws: 3 pcs · Ø inside: 8.45 mm · Ø inside: 12 mm · Ø outside: 90 mm · Area of application: Standard

swiing® ingenious reinforcement set clutch (+20%) | Sachs 503, 50/2 (502), 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Spring steel · Surface: coated · Area of application: Tuning · Ø inside: 5.9 mm · Ø outside: 8.85 mm · Thickness: 1.4 mm · Number of springs: 9 pcs

swiing® ingenious plain bearing 15/17/21.75 Clutch basket "Racing" | Puch E50

Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Material: special bearing bronze · Ø inside: 15 mm · Ø outside: 17 mm · Total height: 21.75 mm

GPO clutch trigger Sachs 502 / 503 (M27x1.25 / M20x1)

Width across flats (trigger): 27 mm · Width across flats Screw: 19 mm · Manufacturer: GPO · Material: Steel · Surface: blackened · Area of application: (Dis)assembly tool · Thread type: MF20x1 (fine pitch thread) · Thread type: MF27x1.25 (fine pitch thread) · Total length: 57 mm · Strength class: 8.8

MBR thrust washer 15/22/0.2 clutch | Puch E50, Z50

Manufacturer: MBR · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 22 mm · Thickness: 0.2 mm

swiing® revival clutch spring | Zündapp Belmondo (Type 247)

Spring design: Pressure spring · Manufacturer: swiing® revival parts · Ø outside: 10.8 mm · Total length: 21.6 mm

swiing® revival thrust washer 15/22/1.7 clutch | Puch E50, Z50

Ø inside: 15 mm · Manufacturer: swiing® revival parts · Ø outside: 22 mm · Material: Steel · Surface: hardened & ground · Thickness: 1.7 mm · Puch spare part no.: 050.1213

MBR clutch basket 19 teeth Racing angled | Puch E50

Manufacturer: MBR · Material: Steel · Recording type: Interlocking · Color: silver · Number of teeth: 19 pcs · Toothing type: helical toothed · Ø Receptacle: 31.1 mm · Ø inside: 15 mm · Ø inside: 17 mm · Ø outside: 100.5 mm · Height: 49 mm · Area of application: Tuning

swiing® revival thrust washer 15/22/1.5 clutch | Puch E50, Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 22 mm · Thickness: 1.5 mm

GPO ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Manufacturer: GPO · Bearing clearance: CN (standard) · Material: Steel · Surface: blank / oiled · Area of application: Standard · Thread type: MF20x1 (fine pitch thread) · Ø outside: 35 mm · Ø inside: 15 mm · Width: 8 mm · Width: 25.6 mm · Ball bearing closed: No · Pony spare part no.: A2531 · Sachs spare part no.: 0286 079 105

Clutch basket 21 teeth lightened | Puch E50

Material: Steel · Ø Receptacle: 30.5 mm · Recording type: Interlocking · Ø inside: 14.5 mm · Toothing type: helical toothed · Number of teeth: 21 pcs · Ø outside: 99.5 mm · Height: 49.3 mm · Area of application: Tuning

Spacer disk 12/24/1.2 clutch original | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 12 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Ø inside: 12.05 mm · Ø outside: 23.7 mm · Thickness: 1.2 mm

MBR plain bearing 15/17/21.75 Clutch basket "Racing" | Puch E50

Nominal diameter: 15 mm · Manufacturer: MBR · Material: special bearing bronze · Ø inside: 15 mm · Ø outside: 17 mm · Total height: 21.8 mm

Pressure plate clutch mono original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Surface: blue galvanized · Area of application: Standard · Piaggio spare part no.: 104488

MBR thrust washer 15/22/0.3 clutch | Puch E50, Z50

Manufacturer: MBR · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 22 mm · Thickness: 0.3 mm

MBR clutch basket 18 teeth Racing straight | Puch E50

Manufacturer: MBR · Material: Steel · Area of application: Tuning · Recording type: Interlocking · Ø inside: 15 mm · Ø inside: 17 mm · Toothing type: straight toothed · Number of teeth: 18 pcs · Ø outside: 99.5 mm · Ø Receptacle: 31 mm · Height: 49 mm

swiing® revival spring cup clutch | Zündapp Belmondo (Type 247)

Manufacturer: swiing® revival parts · Area of application: Standard · Ø outside: 12 mm · Ø outside: 15 mm · Height: 7.8 mm

swiing® revival thrust washer 15/22/0.6 clutch | Puch E50, Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 22 mm · Thickness: 0.6 mm

Reinforcement set 3 springs clutch | Sachs 50/2 & 503

Spring design: Pressure spring · Number of components: 6 pcs

swiing® revival thrust washer 15/22/1.0 clutch | Puch E50, Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 22 mm · Thickness: 1 mm

swiing® revival thrust washer 15/22/0.8 clutch | Puch E50, Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 22 mm · Thickness: 0.8 mm

MBR clutch basket & spur gear 18:94 teeth Racing straight | Puch E50

Manufacturer: MBR · Toothing type: straight toothed · Number of teeth: 18 pcs · Number of teeth: 94 pcs · Area of application: Tuning

swiing® revival thrust washer 15/22/1.1 clutch | Puch E50, Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 21.9 mm · Thickness: 1.1 mm

Clutch 66 mm tuning (reproduction) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Quenching · Material: Steel · Ø outside: 66 mm · Number of jaws: 2 pcs · Number of jaws: 3 pcs

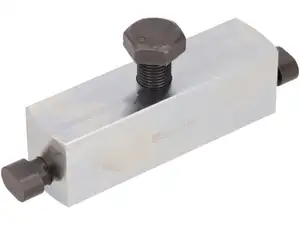

swiing® revival puller clutch basket manual | Sachs

Width across flats Screw: 19 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blackened · Surface: blue galvanized · Area of application: (Dis)assembly tool · Thread type: MF12x1.25 (fine pitch thread) · Thickness: 25 mm · Total length: 106 mm · Number of components: 4 pcs

Oil seal NBR 16/22/3 B clutch original | Piaggio Ciao, SI, Bravo

Temperature resistance (min.): -30 - 100 °C · Simmering type: B - With sheet metal outer casing / one sealing lip. · Manufacturer: Piaggio · Material: NBR · Place of use: Clutch · Ø inside: 16 mm · Ø outside: 22 mm · Width: 3 mm · Piaggio spare part no.: 124571

swiing® revival thrust washer 15/22/1.3 clutch | Puch E50, Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 22 mm · Thickness: 1.3 mm

Olympia clutch 56 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Olympia · Material: Steel · Ø Outer pulley: 56 mm · Surface: blue galvanized · Surface: coated · Surface: galvanized · Material addition: Composite materials · Area of application: Standard · Ø inside: 8.5 mm · Ø inside: 12 mm · Ø outside: 90 mm · Number of jaws: 2 pcs · Number of jaws: 3 pcs · Number of springs: 2 pcs · Number of springs: 3 pcs

swiing® revival thrust washer 17/24/1.7 clutch | Maxi E50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 17 mm · Ø outside: 24 mm · Thickness: 1.7 mm

Reinforcement set 9 springs clutch | Sachs 50/2 & 503

Spring design: Pressure spring · Number of components: 12 pcs

GPO retaining plate clutch basket Sachs

Manufacturer: GPO · Material: Steel · Surface: blue galvanized · Area of application: Special tool · Ø inside: 40 mm · Thickness: 4.6 mm · Total length: 135 mm · Number of components: 1 pcs · Width: 51 mm

Nut & spring washer clutch hub | Sachs

Nut type: Hexagon nut · Thread type: MF12x1 (fine pitch thread) · Drive: External hexagon · Width across flats SW: 17 mm

MBR thrust washer 17/24/0.3 clutch | Puch E50

Manufacturer: MBR · Material: Steel · Surface: hardened & ground · Ø inside: 17 mm · Ø outside: 24 mm · Thickness: 0.3 mm

swiing® revival thrust washer 17/24/1.5 Clutch | Maxi E50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 17 mm · Ø outside: 24 mm · Thickness: 1.5 mm

swiing® revival spring basket 3-slat version | Puch Z50

Manufacturer: swiing® revival parts · Material: Aluminum · Surface: anodized · Area of application: Standard · Color: red · Ø inside: 24.3 mm · Ø outside: 62 mm · Height: 28.5 mm

Clutch basket 21 teeth needle bearing lightened | Puch E50

Material: Steel · Area of application: Tuning · Recording type: Interlocking · Ø inside: 15 mm · Toothing type: helical toothed · Number of teeth: 21 pcs · Ø outside: 99.6 mm · Ø Receptacle: 30.5 mm · Height: 49.5 mm · Color: graphite colors

swiing® revival thrust washer 15/26/1 clutch | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 26 mm · Thickness: 1 mm

Thrust washer 15/22/1.2 clutch | Puch E50, Z50

Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 21.9 mm · Thickness: 1.2 mm

Malossi clutch bell (torque converter) Vario | Piaggio Ciao, SI, Bravo, Boxer, Grillo

Ø inside: 93 mm · Manufacturer: Malossi · Material: Steel · Weight: 535 g · Ø outside: 105 mm · Gearbox type: Vario

Clutch pressure plate | Sachs 50/2, 503 2AL/2BL (A4023)

Material: Steel · Area of application: Standard · Pony spare part no.: A4023 · Sachs spare part no.: 0686 018 005

Clutch lock plate | Sachs 50/2 & 503 (A1907)

Material: Steel · Area of application: Standard · Pony spare part no.: A1907 · Sachs spare part no.: 0259 014 000

swiing® revival thrust washer 16/26/1 clutch | Sachs 502 AL, AML / 503 AAL, AC, ADV (A1690)

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 16.3 mm · Ø outside: 26 mm · Thickness: 1 mm · Pony spare part no.: A1690 · Sachs spare part no.: 0246 015 002

Oil seal NBR 18/24/4 A Vario clutch hub original | Piaggio Ciao, SI, Bravo, Boxer

Temperature resistance (min.): -30 - 100 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Piaggio · Material: NBR · Surface: rubberized · Ø inside: 18 mm · Ø outside: 24 mm · Width: 4 mm

swiing® revival nut M12x1 clutch hub | Sachs 50 / 50/2 / 50/3 / 50/4 / 503 2AL, 2BL

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Nut type: Hexagon flat nut · Thread type: MF12x1 (fine pitch thread) · Drive: External hexagon · Height: 4 mm · Strength class: 8 · Width across flats SW: 17 mm · Pony spare part no.: A1502 · Sachs spare part no.: 0242 027 000
