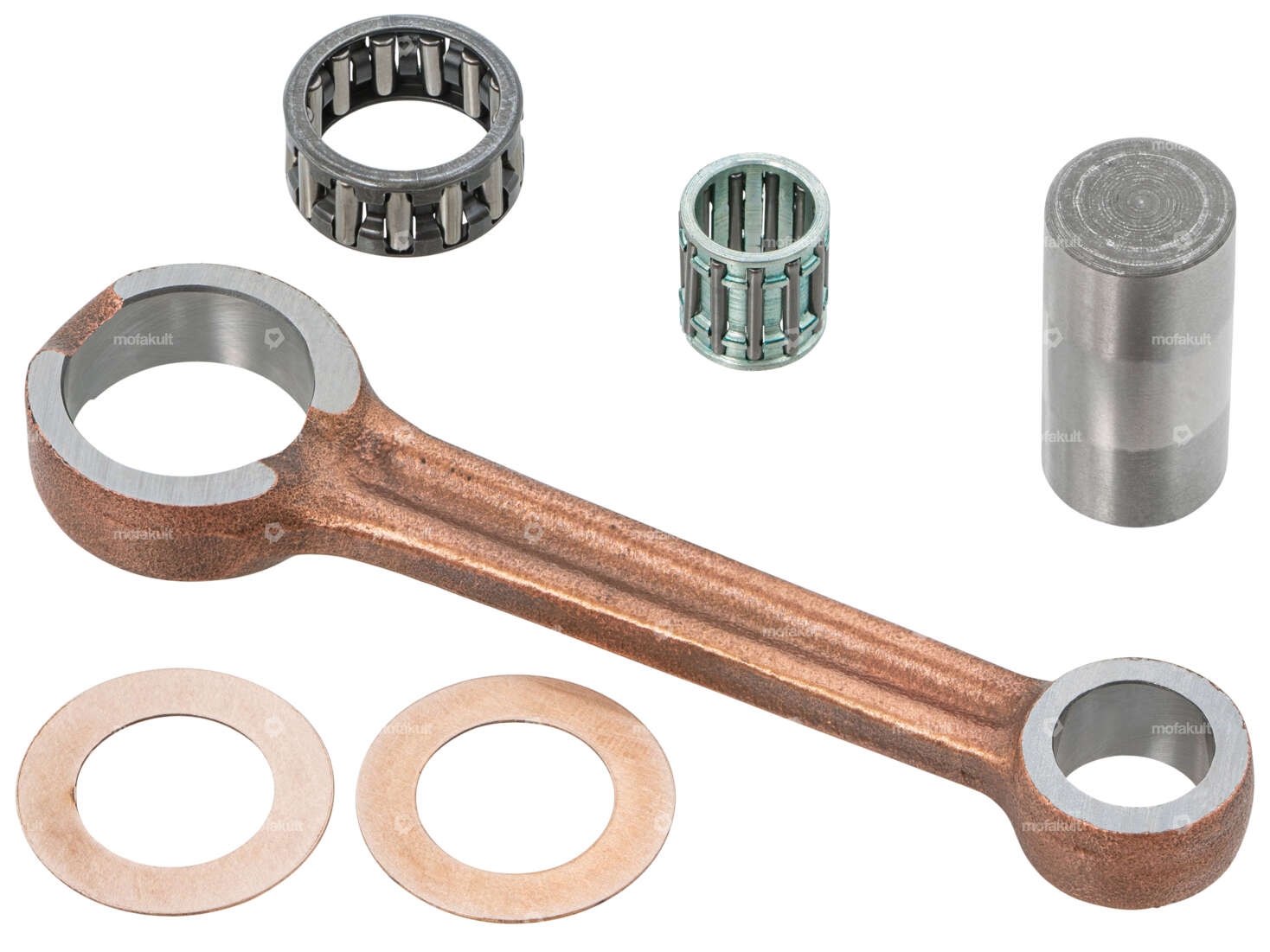

Mazzucchelli connecting rod "Standard" axe 10 mm | Piaggio Ciao, SI, Bravo, Boxer

Mazzucchelli crankshaft "Original" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Area of application: Original · Area of application: Standard · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Thread type: M8x1.25 (standard thread) · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Weight: 698 g · Ø Bearing seat (ignition side): 15 mm · Thread length: 16 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 ° · Number of gears: 1 pcs

Mazzucchelli crankshaft "Original" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Area of application: Original · Area of application: Standard · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Thread type: M8x1.25 (standard thread) · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø piston pin (B): 10 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Weight: 695 g · Ø Bearing seat (ignition side): 15 mm · Thread length: 16 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 ° · Number of gears: 1 pcs

Mazzucchelli crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Area of application: Racing · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Thread type: M8x1.25 (standard thread) · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Weight: 705 g · Ø Bearing seat (ignition side): 15 mm · Thread length: 16 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 ° · Number of gears: 1 pcs

Mazzucchelli crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Area of application: Racing · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Thread type: M8x1.25 (standard thread) · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø piston pin (B): 10 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Weight: 698 g · Ø Bearing seat (ignition side): 15 mm · Thread length: 16 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 ° · Number of gears: 1 pcs

Adjustable reamer Ø 11.25 - 12.25 mm (1A quality)

Manufacturer: Made in Germany · Area of application: Special tool · Diameter: 11.25 mm · Width: 4.8 mm

Mazzucchelli connecting rod with bronze bushing axe 12 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Area of application: Original · Area of application: Standard · Material: Steel · Connecting rod length center-center: 87 mm · Ø Connecting rod bolt: 16 mm · Thickness: 9.8 mm · Ø piston pin (B): 12 mm · Ø lower bearing inside: 16 mm · Ø inside upper bearing: 12 mm · Total length: 113 mm · Dimension lower bearing: Ø 16 / 21 x 9.6 mm (axe 16) · Dimension upper bearing: Ø 12 / 15.2 x 12.2 mm (axe 12) · Connecting rod pin length: 33 mm

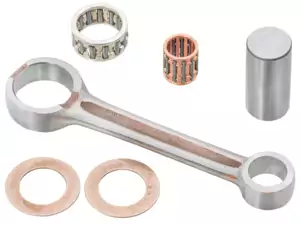

Mazzucchelli connecting rod "Racing" axe 10 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Area of application: Racing · Material: Steel · Surface: polished · Connecting rod length center-center: 87 mm · Ø Connecting rod bolt: 16 mm · Thickness: 9.8 mm · Ø piston pin (B): 10 mm · Ø lower bearing inside: 16 mm · Ø inside upper bearing: 10 mm · Total length: 110 mm · Dimension lower bearing: Ø 16 / 21 x 9.6 mm (axe 16) · Dimension upper bearing: Ø 10 / 13 x 14.2 mm (axe 10) · Connecting rod pin length: 33 mm

Mazzucchelli connecting rod "Standard" axe 12 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Area of application: Racing · Material: Steel · Connecting rod length center-center: 87 mm · Ø Connecting rod bolt: 16 mm · Thickness: 9.8 mm · Ø piston pin (B): 12 mm · Ø lower bearing inside: 16 mm · Ø inside upper bearing: 12 mm · Total length: 112 mm · Dimension lower bearing: Ø 16 / 21 x 9.6 mm (axe 16) · Dimension upper bearing: Ø 12 / 15 x 14.8 mm (axe 12) · Connecting rod pin length: 33 mm

Mazzucchelli connecting rod "Racing" axe 12 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Area of application: Racing · Material: Steel · Connecting rod length center-center: 87 mm · Ø Connecting rod bolt: 16 mm · Thickness: 9.8 mm · Ø piston pin (B): 12 mm · Ø lower bearing inside: 16 mm · Ø inside upper bearing: 12 mm · Total length: 112 mm · Dimension lower bearing: Ø 16 / 21 x 9.6 mm (axe 16) · Dimension upper bearing: Ø 12 / 15 x 14.6 mm (axe 12) · Connecting rod pin length: 33 mm

swiing® ingenious puller flywheel | Piaggio Ciao, SI, Bravo, Boxer

Width across flats (trigger): 10 mm · Width across flats (trigger): 18 mm · Manufacturer: swiing® ingenious parts · Width across flats Screw: 19 mm · Area of application: (Dis)assembly tool · Material: Steel · Surface: blackened · Surface: galvanized (blue) · Thread type: MF12x1.5 (fine pitch thread) · Thread type: MF17x1 (fine pitch thread) · Diameter: 12 mm · Diameter: 24 mm · Total length: 100 mm · Number of components: 2 pcs

Malossi air filter | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Camouflaged: No · Material: Plastic · Color: black · Filter type: Foam · Ø Internal connection: 51 mm · Width: 95 mm · Mounting type: Plug connection clamped · Ø outside: 53.2 mm · Height: 88.7 mm · Area of application: Tuning · Total length: 31.2 mm

TECNO Exhaust 25 mm | Piaggio Ciao Mix

Manufacturer: TECNO · Material: Steel · Color: black · Total length: 670 mm · Ø Internal connection: 23 mm · Mounting type: Welded lug · Ø Flame tube outside: 25 mm · Exhaust type: Cylindrical · Number of fixing points: 1 pcs · Flame tube attachment: Plug connection clamped

Airsal piston pin lock Ø 10 mm (single)

Manufacturer: Airsal · Material: Spring steel · Surface: blank · Number of sensors / lugs: 1 pcs · Ø outside: 10 mm

Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao P, SC

Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Color: black · Carburetor type: SHA (type 3) · Nominal diameter: 13 mm · Total length: 55 mm · Ø Internal connection: 16 mm · Ø without reducing sleeve: 18 mm · Width: 60 mm · Ø Inside entrance: 13 mm · Mounting type: Plug connection clamped · Ø Output inside: 13 mm · Height: 110 mm · Ø Air filter connection: 50.9 mm · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 66

Dell'Orto 13/13 SHA carburetor & racing air filter set | Piaggio Ciao P, SC

Manufacturer: Dell'Orto · Manufacturer: Malossi · Carburetor type: SHA (type 3) · Nominal diameter: 13 mm · Ø Internal connection: 16 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 66 · Mounting type: Plug connection clamped · Total length: 46 mm · Width: 60 mm · Height: 96 mm · Area of application: Tuning

Retaining plate for CDI | Piaggio Ciao

Material: Plastic · Area of application: Standard · Material: Steel · Area of application: Tuning · Surface: galvanized (blue) · Color: silver · Total length: 90 mm · Width: 57 mm · Height: 33 mm · Number of fixing points: 2 pcs · Hole spacing: 73 mm · Ø mounting hole: 6.3 mm
