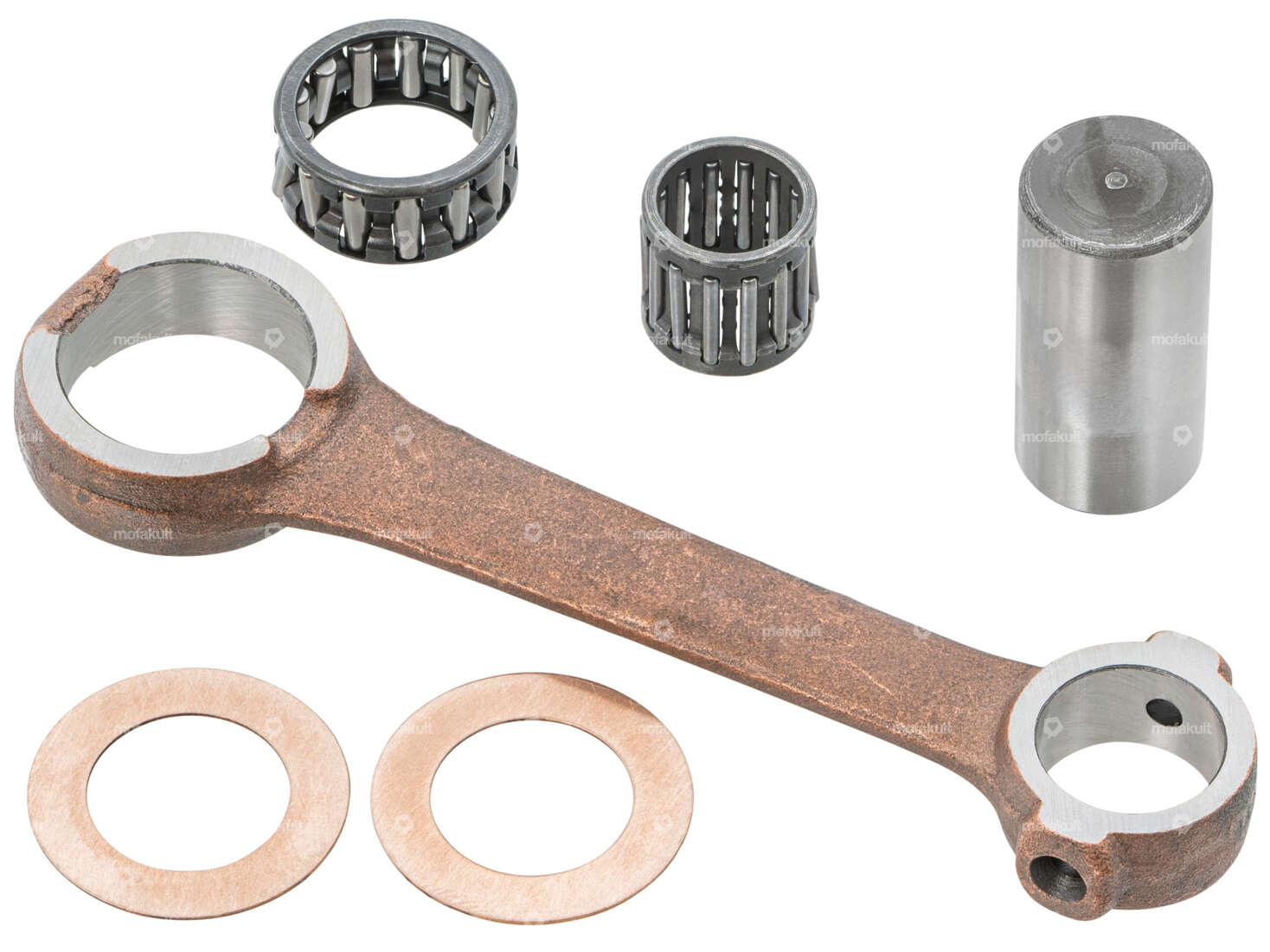

Replacement connecting rod for racing crankshafts from Mazzucchelli with a 12 mm axle on your Piaggio Ciao, Si, Bravo or Boxer moped / moped.
This is the reinforced connecting rod for the racing shaft, but it has not been polished.
Dimensions:
Scope of delivery:
Further versions of the connecting rod as well as crankshafts for your Piaggio can be found in the accessories section.
Quality product from the Italian manufacturer Mazzucchelli.
Details
Manufacturer | Mazzucchelli |
Material | Steel |
Area of application | Racing |
Ø piston pin (B) | 12 mm |
Connecting rod length center-center | 87 mm |
Ø Connecting rod bolt | 16 mm |
Thickness | 9.8 mm |
Ø lower bearing inside | 16 mm |
Ø inside upper bearing | 12 mm |
Dimension lower bearing | Ø 16 / 21 x 9.6 mm (axe 16) |
Total length | 112 mm |
Dimension upper bearing | Ø 12 / 15 x 14.6 mm (axe 12) |
Connecting rod pin length | 33 mm |
Suitable for the following models
Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
