Semi-polished replacement connecting rod for racing crankshafts from Mazzucchelli with a 10 mm axle on your Piaggio Ciao, Si, Bravo or Boxer moped / moped.
Dimensions:
- Total sword connecting rod length: 110 mm
- Connecting rod length (center-center): 87 mm
- Dimension needle bearing top: Ø 10 / 13 x 14.2 mm (axe 10)
- Dimension lower connecting rod bearing: Ø 16 / 21 x 9.6 mm (axe 16)
- Length of crank pin: 33 mm
- Ø crank pin: 16 mm
- Ø thrust washers: 26 mm
- Thickness of thrust washers: 0.5 mm

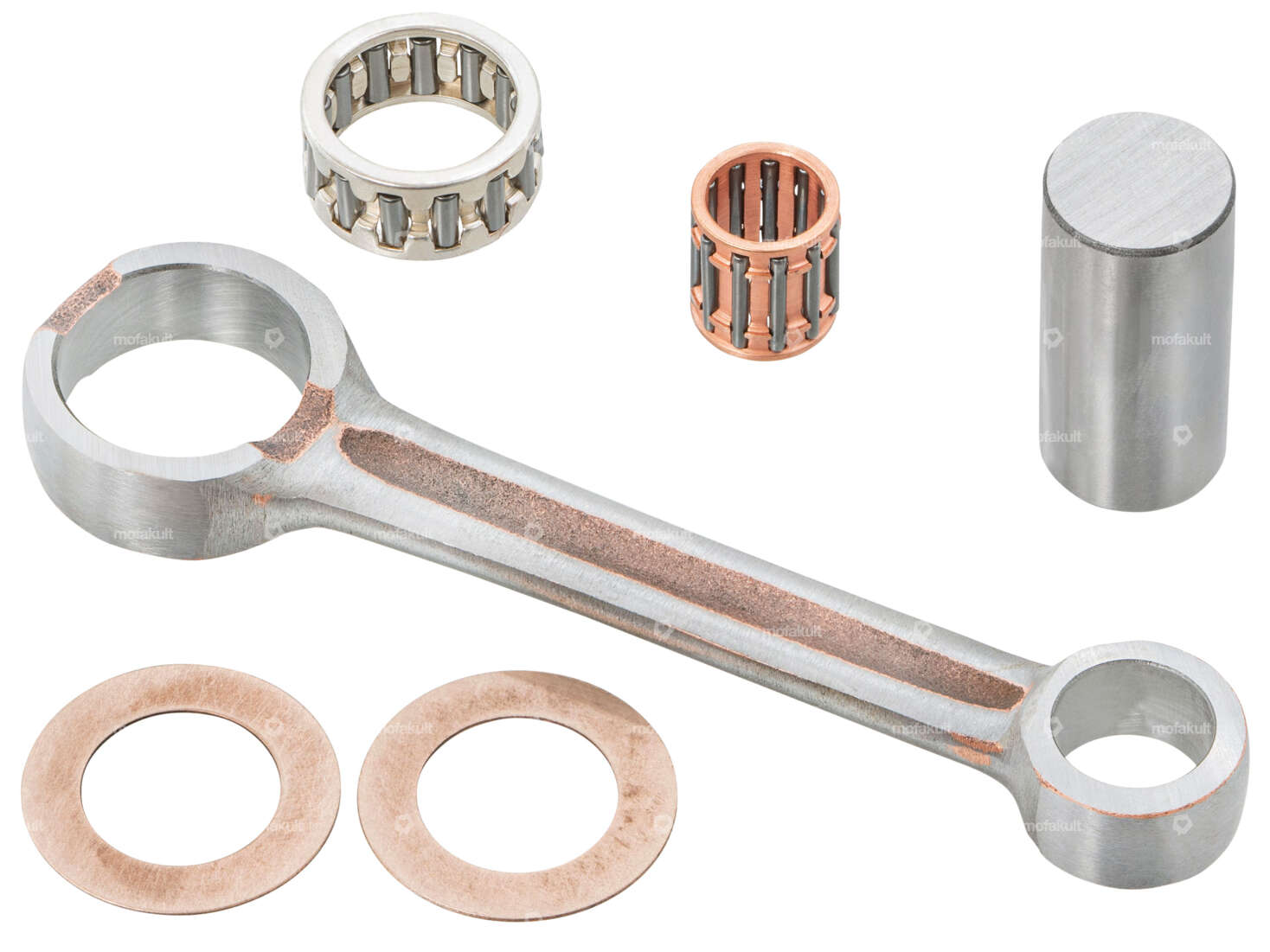

Scope of delivery:
- Connecting rod
- Needle bearing top
- Connecting rod bearing bottom
- Thrust washers
- Stroke pin
Further versions of the connecting rod, as well as crankshafts for your Piaggio can be found in the accessories section.
Quality product from the Italian manufacturer Mazzucchelli.
Details
| Total length | 110 mm |
| Manufacturer | Mazzucchelli |
| Material | Steel |
| Area of application | Racing |
| Surface | polished |
| Ø piston pin (B) | 10 mm |
| Connecting rod length center-center | 87 mm |
| Ø Connecting rod bolt | 16 mm |
| Ø lower bearing inside | 16 mm |
| Ø inside upper bearing | 10 mm |
| Dimension lower bearing | Ø 16 / 21 x 9.6 mm (axe 16) |
| Dimension upper bearing | Ø 10 / 13 x 14.2 mm (axe 10) |
| Thickness | 9.8 mm |
| Connecting rod pin length | 33 mm |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
