Jasil connecting rod | Puch

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony spare part no.: A2080 · Sachs spare part no.: 0263 014 002

Rito Crankshaft Racing | Puch E50

Dimension needle bearing: 12 / 15 x 15 mm (axe 12) · Manufacturer: Rito · Material: Steel · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Weight: 970 g · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Area of application: Racing · Area of application: Tuning · Ø Connecting rod eye: 15 mm · Thread length: 11 mm · Thread length: 14 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs

Rito connecting rod | Puch

Manufacturer: Rito · Area of application: High End · Material: Steel · Surface: copper-coated · Connecting rod length center-center: 90 mm · Ø Connecting rod bolt: 16 mm · Ø lower connecting rod eye outside: 28.2 mm · Total length: 114 mm · Thickness: 10 mm · Ø upper connecting rod eye outside: 20.5 mm · Ø piston pin (B): 12 mm · Ø lower bearing inside: 21 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 16/21 x 9.7 mm · Dimension upper bearing: 12/15 x 14.7 mm · Connecting rod pin length: 34.15 mm

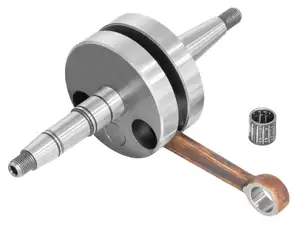

Jasil crankshaft | Puch E50

Manufacturer: Jasil · Area of application: Standard · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Thread length: 11 mm · Thread length: 15 mm · Total length of crankpin on clutch side: 74 mm · Weight: 942 g · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.6 mm (axe 12) · Wide crank webs: 34.3 mm · Length 1st paragraph: 23.3 mm · Length 2nd paragraph: 25 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs

Mazzucchelli crankshaft original E50

Manufacturer: Mazzucchelli · Area of application: Standard

swiing® revival crankshaft standard (version 2.0) | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread type: MF8x1 (fine pitch thread) · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 873 g · Number of gears: 1 pcs · Area of application: Standard

swiing® revival connecting rod standard | Puch

Manufacturer: swiing® revival parts · Area of application: Standard · Material: Steel · Surface: copper-coated · Connecting rod length center-center: 90 mm · Ø Connecting rod bolt: 12 mm · Ø lower connecting rod eye outside: 24.6 mm · Total length: 114.5 mm · Thickness: 10 mm · Ø upper connecting rod eye outside: 20.9 mm · Ø piston pin (B): 12 mm · Ø lower bearing inside: 21 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 16/21 x 9.75 mm · Dimension upper bearing: 12/15 x 14.7 mm · Connecting rod pin length: 34 mm

swiing® ingenious connecting rod "Racing" | Puch

Manufacturer: swiing® ingenious parts · Area of application: Tuning · Material: Steel · Surface: ground · Connecting rod length center-center: 90 mm · Ø Connecting rod bolt: 16 mm · Ø lower connecting rod eye outside: 28.2 mm · Total length: 90 mm · Thickness: 10 mm · Ø upper connecting rod eye outside: 21.5 mm · Ø piston pin (B): 12 mm · Ø lower bearing inside: 21 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 16/21 x 9.7 mm · Dimension upper bearing: 12/15 x 14.2 mm · Connecting rod pin length: 34 mm

swiing® ingenious crankshaft High End (Version 2.0) | Puch E50

Manufacturer: swiing® ingenious parts · Area of application: High End · Area of application: Racing · Area of application: Tuning · Material: Aluminum · Cheek type: Full cheeks · Material: Steel · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Thread length: 11 mm · Thread length: 15 mm · Total length of crankpin on clutch side: 74 mm · Weight: 968 g · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Number of gears: 1 pcs

Rito connecting rod "Racing" Ø 16 mm bolt | Sachs

Manufacturer: Rito · Area of application: High End · Area of application: Tuning · Material: Steel · Surface: polished · Connecting rod length center-center: 85 mm · Ø Connecting rod bolt: 16 mm · Ø lower connecting rod eye outside: 28.2 mm · Total length: 110 mm · Thickness: 10 mm · Ø upper connecting rod eye outside: 21.6 mm · Ø piston pin (B): 12 mm · Ø lower bearing inside: 21 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 16/21 x 9.7 mm · Dimension upper bearing: 12/15 x 14.7 mm · Connecting rod pin length: 38.5 mm

Rito connecting rod "Racing" Ø 16 mm bolt | Zündapp

Manufacturer: Rito · Area of application: High End · Area of application: Tuning · Material: Steel · Surface: polished · Connecting rod length center-center: 91 mm · Ø Connecting rod bolt: 16 mm · Ø lower connecting rod eye outside: 29.6 mm · Total length: 117 mm · Thickness: 12 mm · Ø upper connecting rod eye outside: 23 mm · Ø piston pin (B): 12 mm · Ø lower bearing inside: 22 mm · Ø inside upper bearing: 16 mm · Dimension lower bearing: 16/22 x 11.7 mm · Dimension upper bearing: 12/16 x 15.7 mm · Connecting rod pin length: 37.3 mm

GPO clutch plates (pair) | Puch X30

Manufacturer: GPO · Area of application: Standard · Number of slats: 2 pcs

BERU spark plug connector / 1 kΩ interference suppressed

Ø cable: 5 mm · Ø cable: 7 mm · Manufacturer: BERU · Material: Sheet metal (steel) · Spark plug socket: M4 · Cable available: No · Color: silver · Resistance: 1000 Ω · Suppressed: Yes · Pony spare part no.: A2099 · Sachs spare part no.: 0265 100 00

swiing® revival upright spring blue galvanized | Puch

Spring design: Tension spring · Total length: 122 mm · Length spring hook: 19 mm · Length spring hook: 53 mm · Ø wire: 2.5 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: blue galvanized · Ø inside: 9 mm · Ø outside: 14 mm

KMC Standard pedal chain

Chain pitch: 1/2" x 1/8" · Chain type: 410 · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Rolling circumference: 1422 mm · Number of chain links: 112 pcs · Chain lock type: Spring lock · Color: gray

swiing® revival gasket set | Puch X30 Velux

Manufacturer: swiing® revival parts · Number of components: 11 pcs · Area of application: Standard · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony spare part no.: A2080 · Sachs spare part no.: 0263 014 002

BOSCH Breaker with cable | Bosch / Ducati

Manufacturer: BOSCH · Ø axle: 4 mm · Number of fixing points: 1 pcs · Ø mounting hole: 4.5 mm · Material: Steel · Area of application: Original · Area of application: Standard · Cable available: Yes · Ø Internal flywheel: 90 mm · Cable length: 100 mm · Alternative version of the Pony Spare part no.: A4606 · Alternative version of the Pony Spare part no.: A4606A · Pony spare part no.: A4607 · BOSCH spare part no.: 1 217 013 025 · Sachs spare part no.: 0283 116 102 · Alternative version of Sachs spare part no.: 0983 106 000 · Alternative version of Sachs spare part no.: 2783 039 001 · BERU spare part no.: 0 340 100 710

GPO light switch with wiring harness base chrome version

Total length: 50 mm · Width: 30 mm · Height: 25 mm · Manufacturer: GPO · Material: Plastic · Housing material: Steel · Surface: chrome-plated · Substructure material: Steel · Ø Handlebars: 22 mm · Color: Chrome · Functions: High beam (headlights) · Functions: Horn · Functions: Light off · Functions: Low beam · Functions: Motor stop · Number of positions: 3 pcs · Cable length: 970 mm · Cable bifurcation to motor: 970 mm · Cable bifurcation to lamp: 180 mm · Number of cables: 5 pcs · Cable bifurcation to switch: 420 mm

GPO pedal cranks pair chrome | Puch

Manufacturer: GPO · Wide intake: 28 mm · Material: Steel · Surface: chrome-plated · Thread type: FG14.3 (9/16" 20G) · Color: Chrome · Crank length (center-center): 156 mm · Cranking (offset): 37 mm · Cranking (offset): 49 mm · Ø Pedal wedge: 9.5 mm · Total length: 180 mm · Ø Pedal axle: 16 mm

swiing® revival Ø 9.5 mm wedge 4.5° pedal crank galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Thread type: M7x1 (standard thread) · Color: silver · Angle crank wedge: 4.5° · Ø outside: 9.5 mm · Total length: 43 mm
