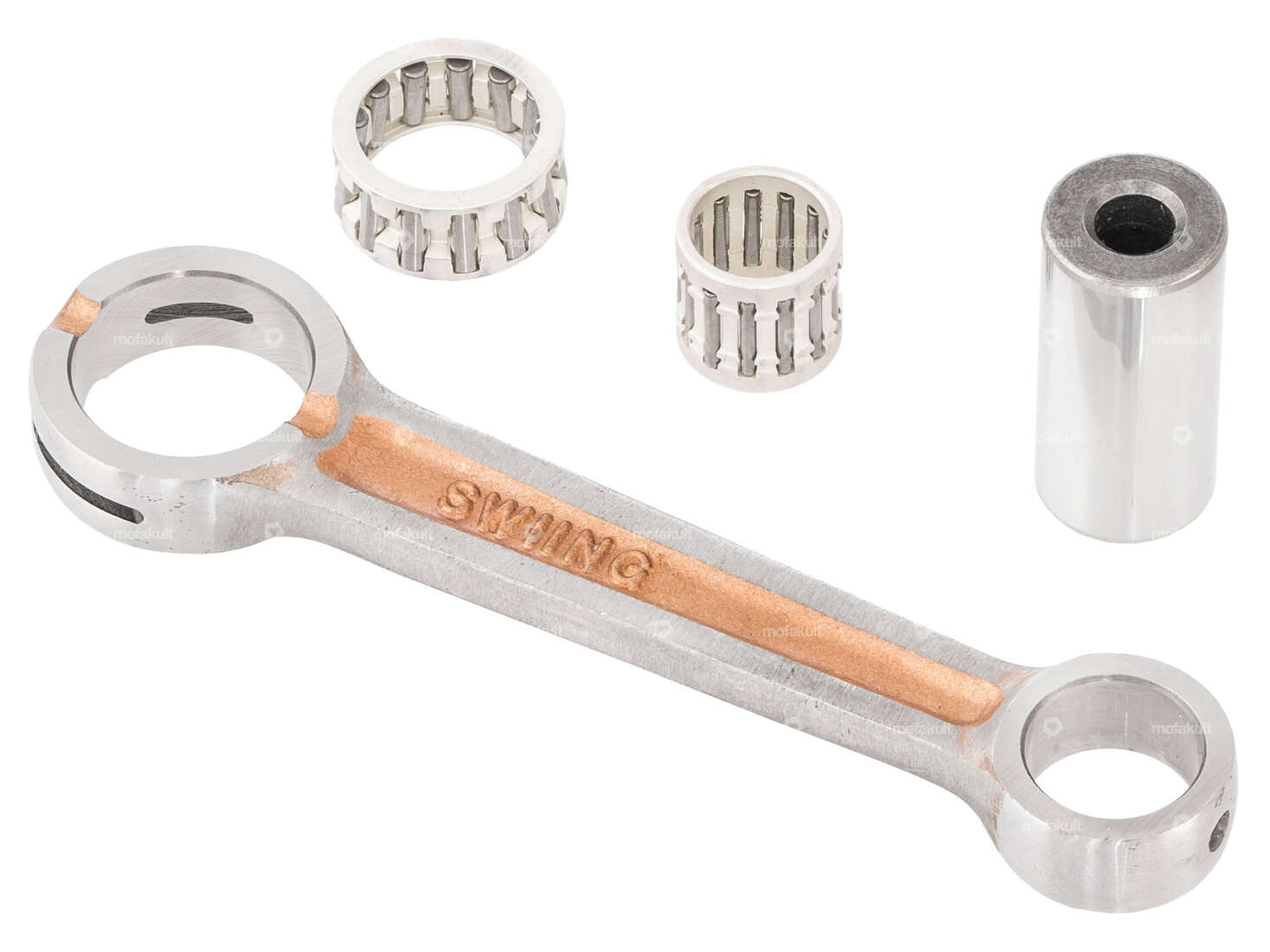

Details
| Total length | 90 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Steel |
| Area of application | Tuning |
| Surface | ground |
| Ø piston pin (B) | 12 mm |
| Connecting rod length center-center | 90 mm |
| Ø Connecting rod bolt | 16 mm |
| Ø lower connecting rod eye outside | 28.2 mm |
| Ø upper connecting rod eye outside | 21.5 mm |
| Ø lower bearing inside | 21 mm |
| Ø inside upper bearing | 15 mm |
| Dimension lower bearing | 16/21 x 9.7 mm |
| Dimension upper bearing | 12/15 x 14.2 mm |
| Thickness | 10 mm |
| Connecting rod pin length | 34 mm |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) ZA50 (Gebläsegekühlt) Z50 (X30 Sport) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
