Trilingual workshop manual for the Ciao, Si and Bravo models of the Italian Piaggio Vespa Gilera Bianchi Group.

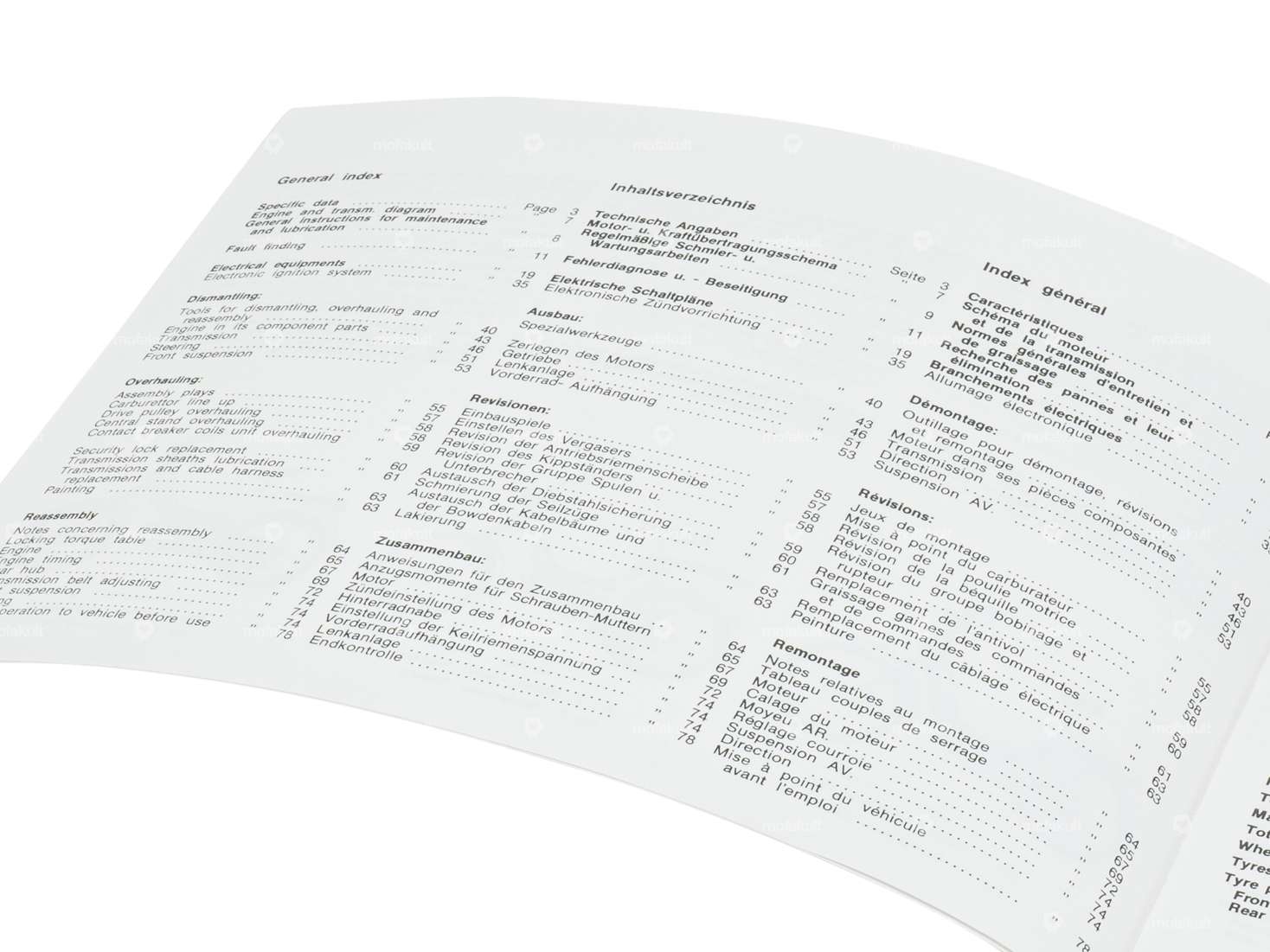

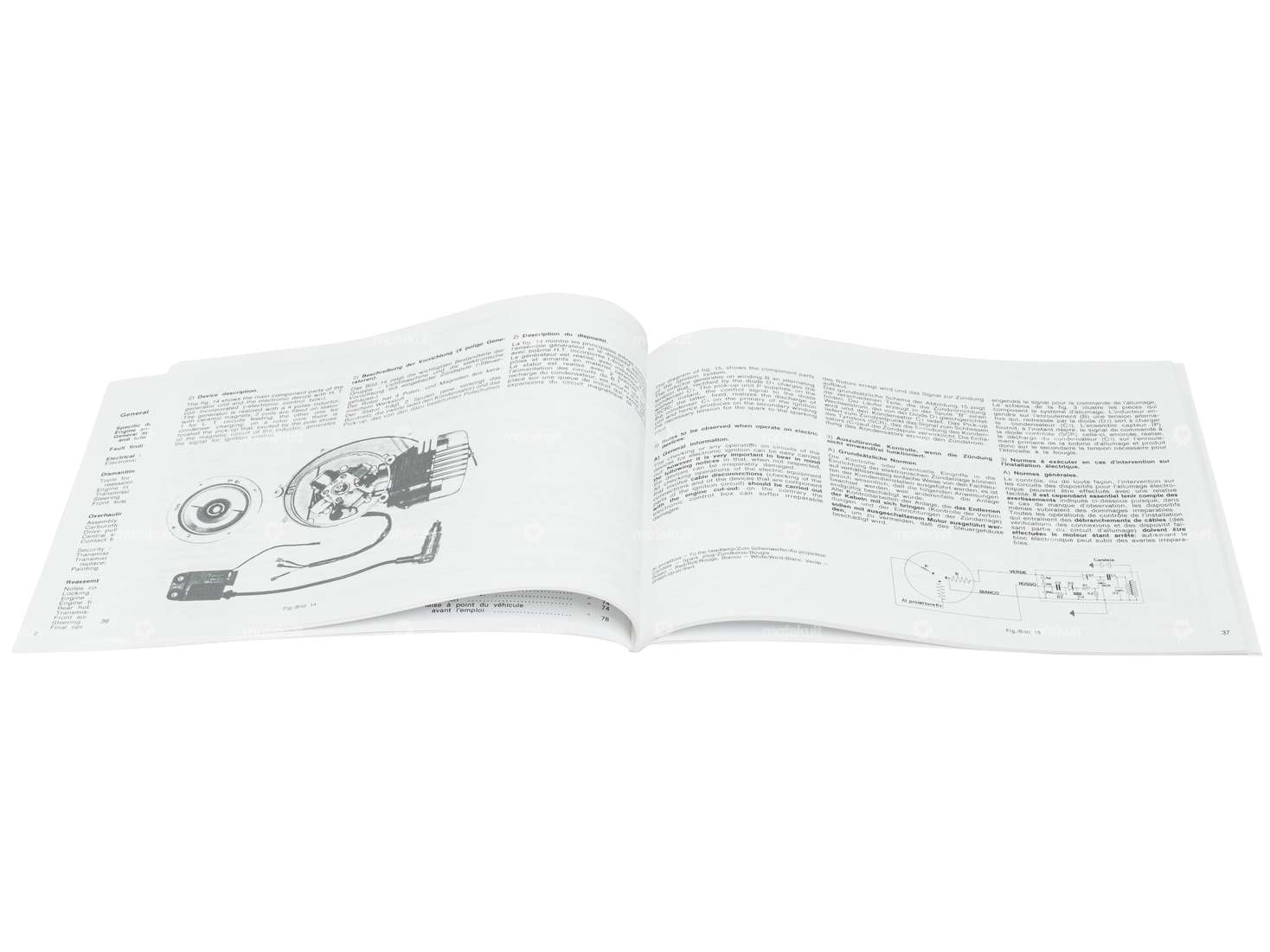

The most important assembly and repair instructions are described with the aid of many technical drawings, exploded views and diagrams. This manual makes troubleshooting much easier.
Format: A4 (297 x 210 mm)
Pages: 78
Language: German, English, French
High-quality facsimile (reproduction) of the original edition.
Further operating instructions, spare parts catalogs and repair manuals can be found in the accessories section.
Details
Material | Paper |
Width | 210 mm |
DIN format | A4 |
Height | 297 mm |
Number of pages | 78 pcs |
Suitable for the following models
Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo |
