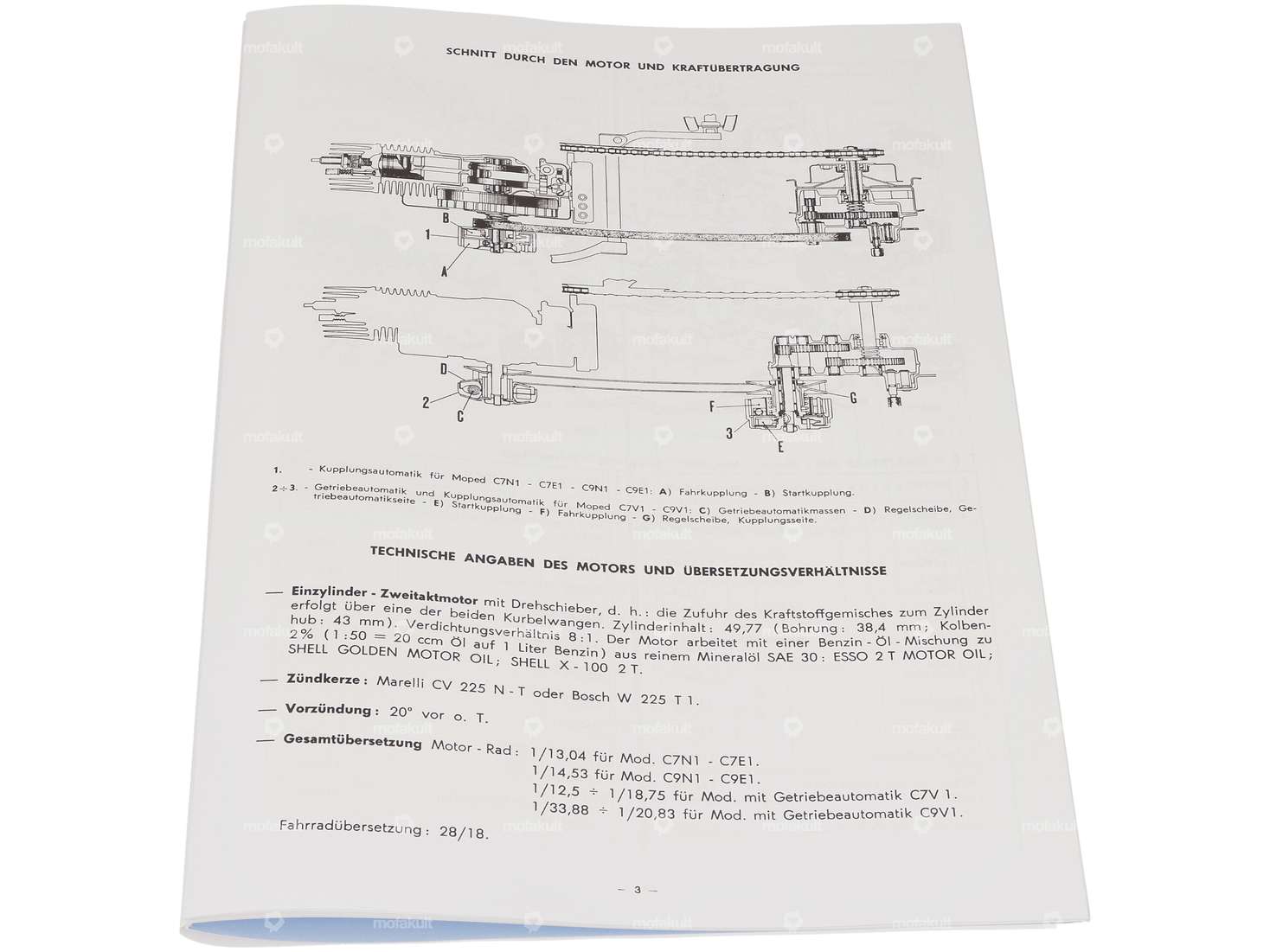

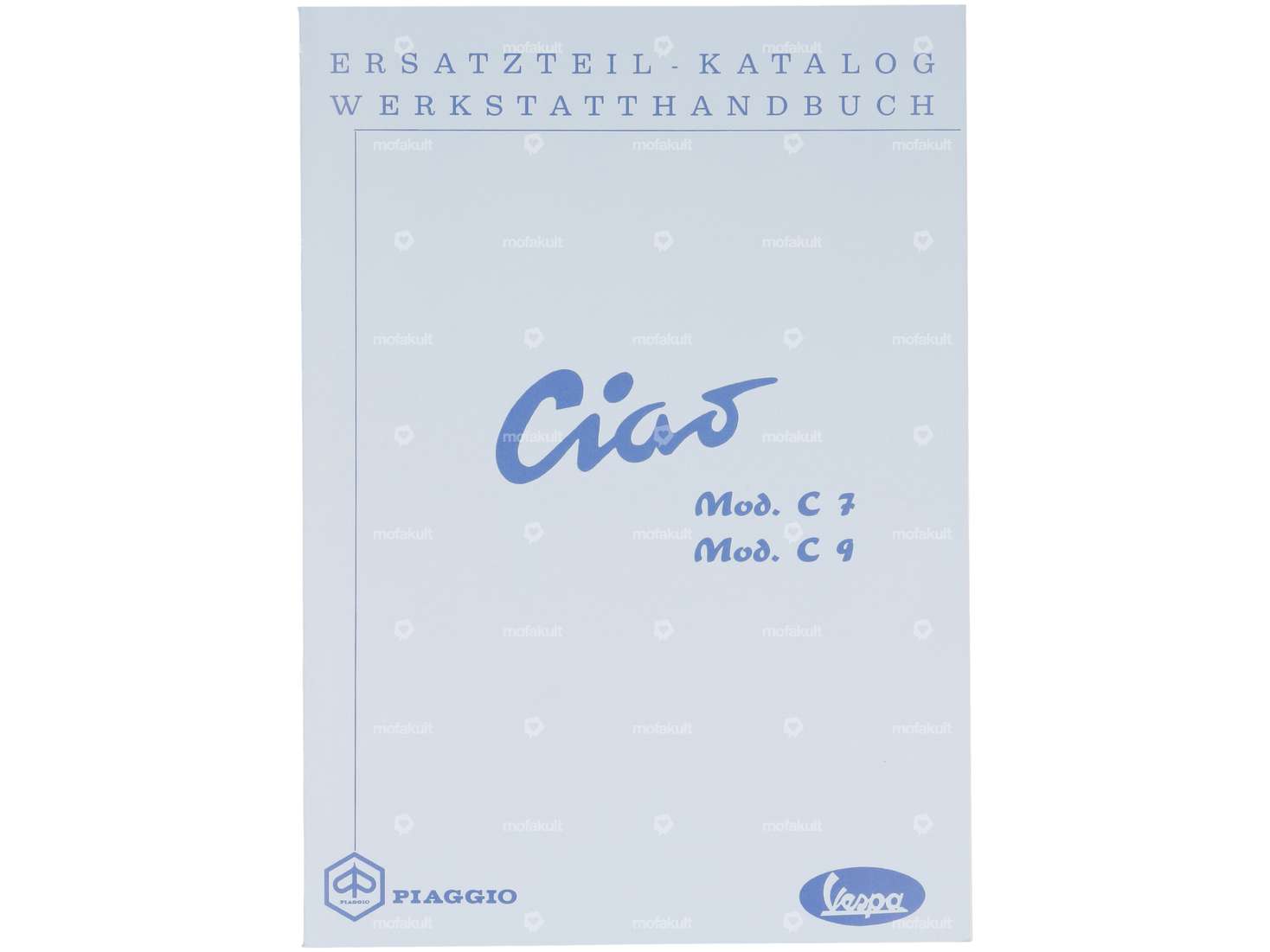

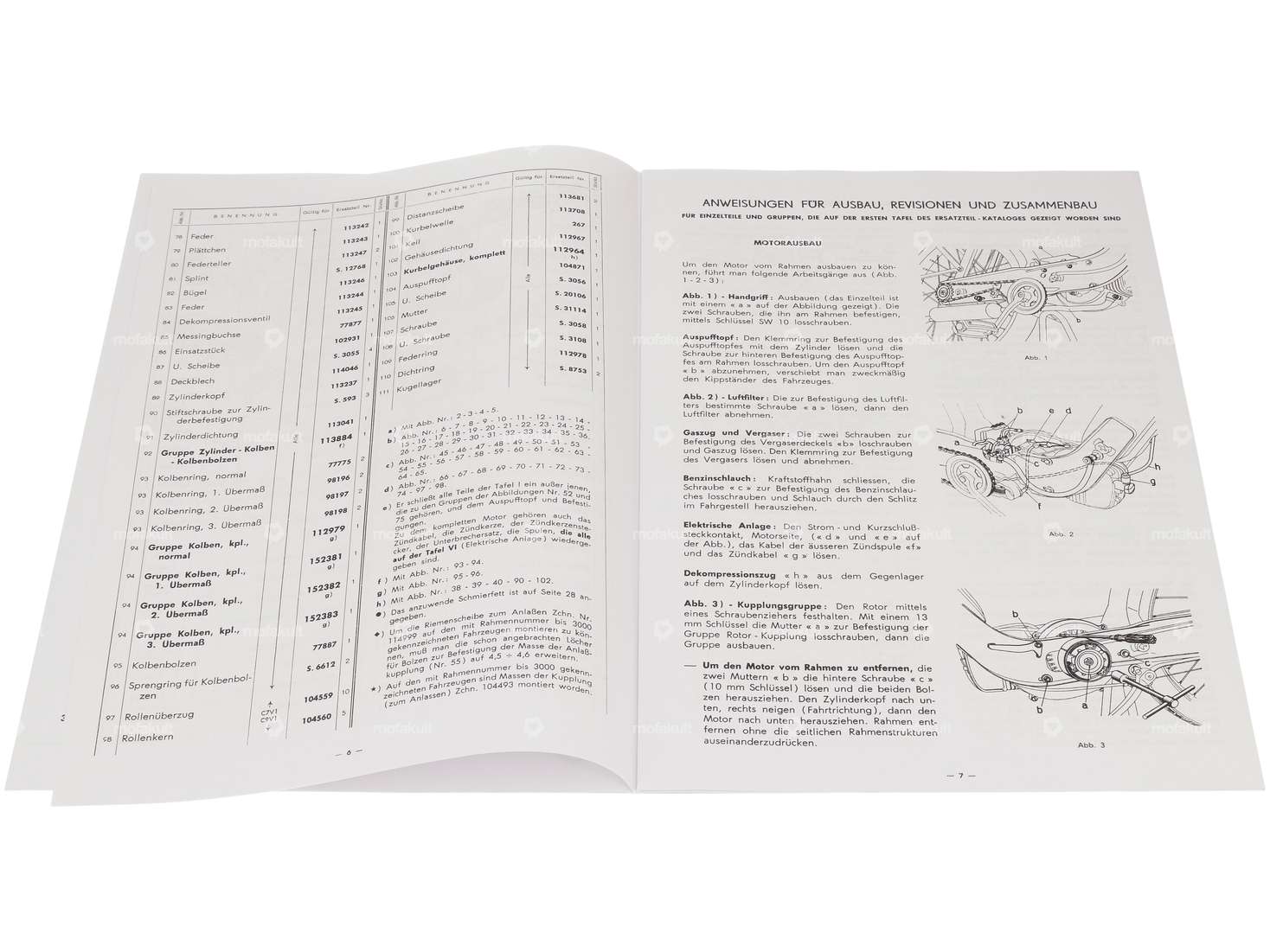

Spare parts catalog for the Ciao models C7 and C9 of the Italian Piaggio Vespa Gilera Bianchi Group. Each individual component is illustrated with the correct spare part number and installation location using numerous exploded views.
The catalog reprint also contains a workshop manual including the most important assembly and repair instructions, which makes troubleshooting much easier.
Format: A4 (210 x 297 mm)
Pages: 34
Language: German
High-quality facsimile (reproduction) of the original edition.
Further operating instructions, spare parts catalogs and repair manuals can be found under accessories.
Details
| Material | Paper |
| Width | 210 mm |
| DIN format | A4 |
| Number of pages | 34 pcs |
| Height | 297 mm |
Suitable for the following models
