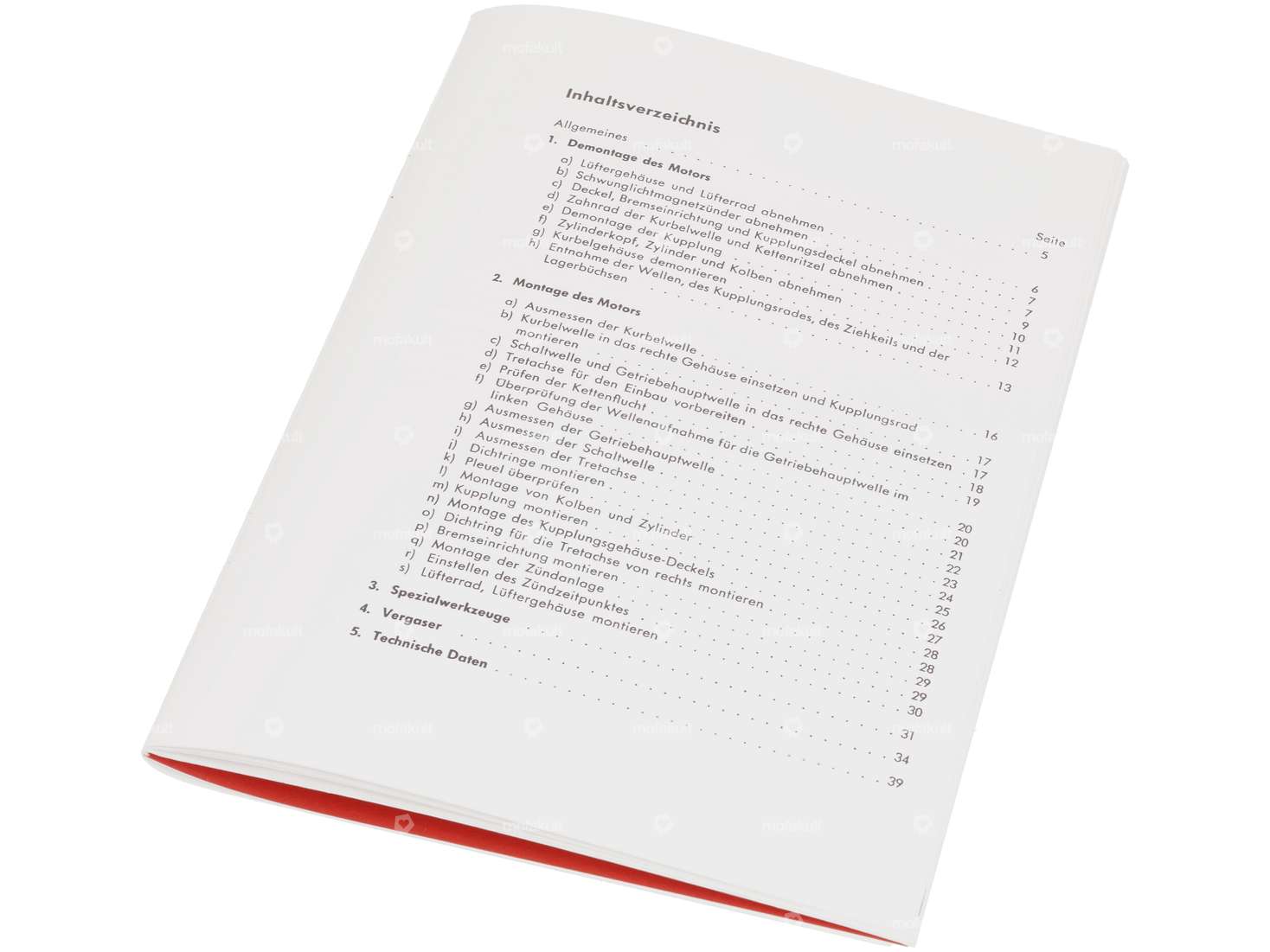

Instructive booklet about the Zündapp engines.

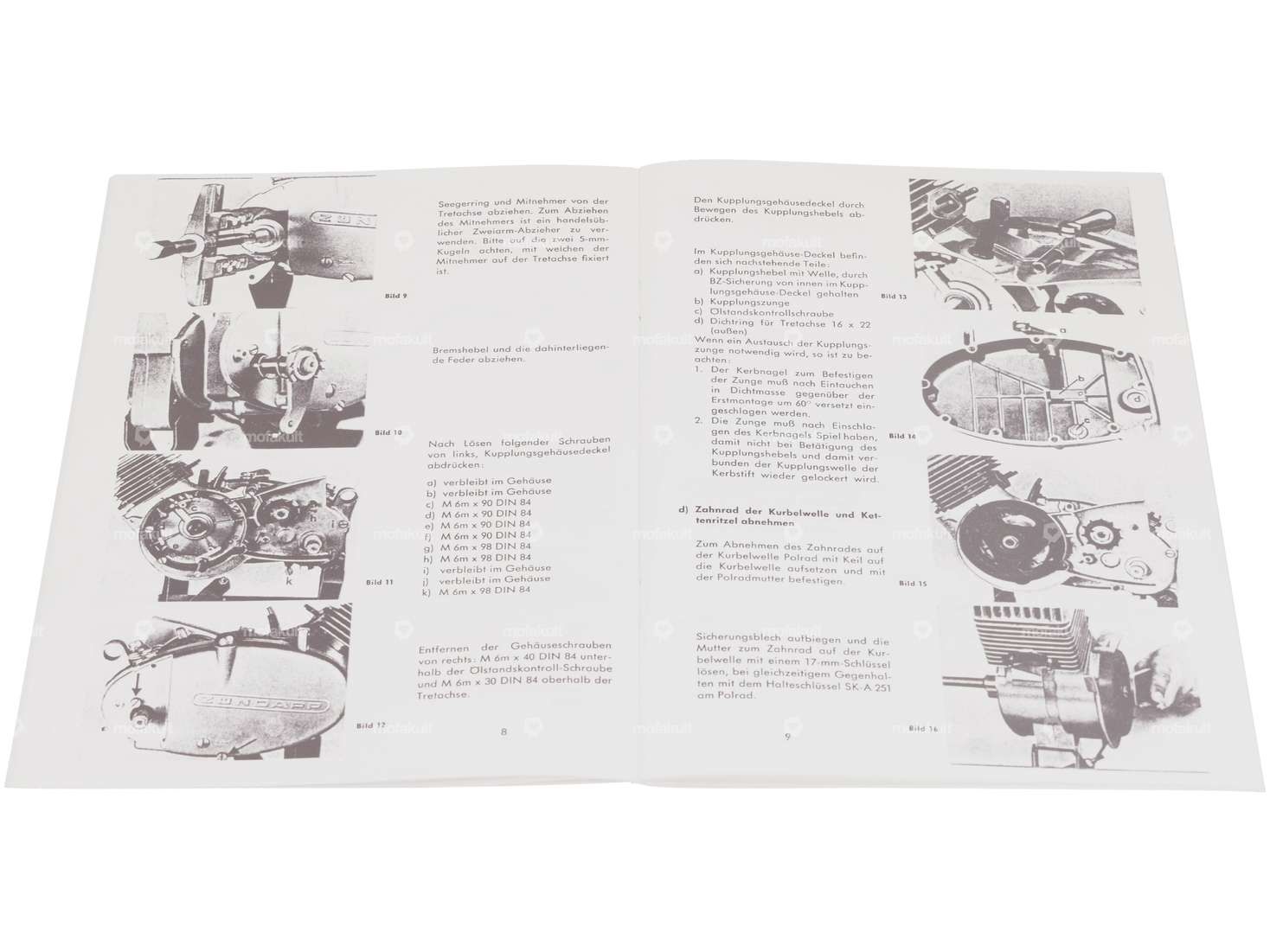

The revision of an engine is described step by step and is illustrated with many pictures.
You will also find a list of special tools, a functional guide to the carburetor and general technical data on the engine.
A5 format with 39 exciting pages.
Details
Material | Paper |
DIN format | A5 |
Number of pages | 39 pcs |
Suitable for the following models
Zündapp Belmondo | |
Zündapp | 247 Motor |
