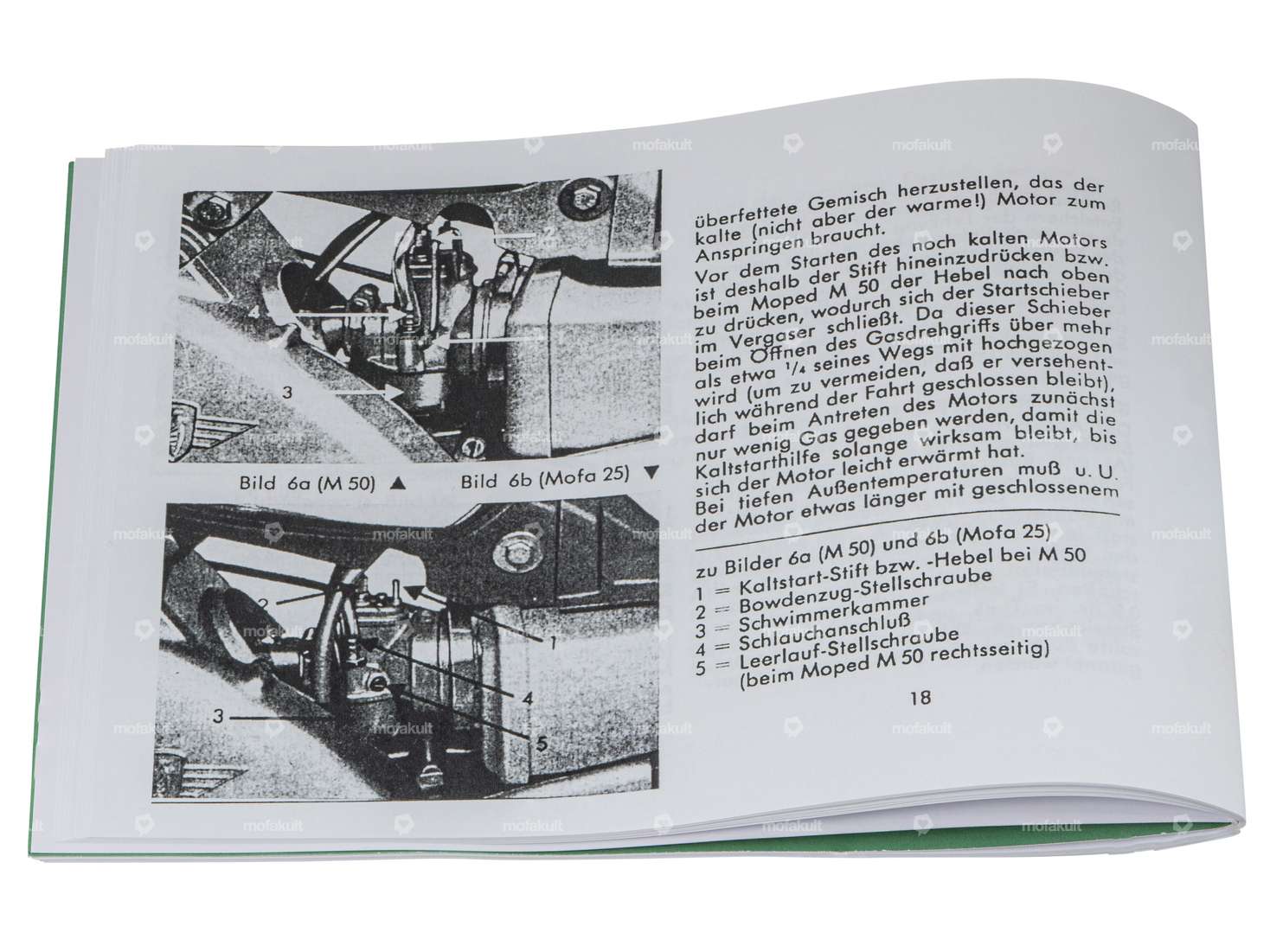

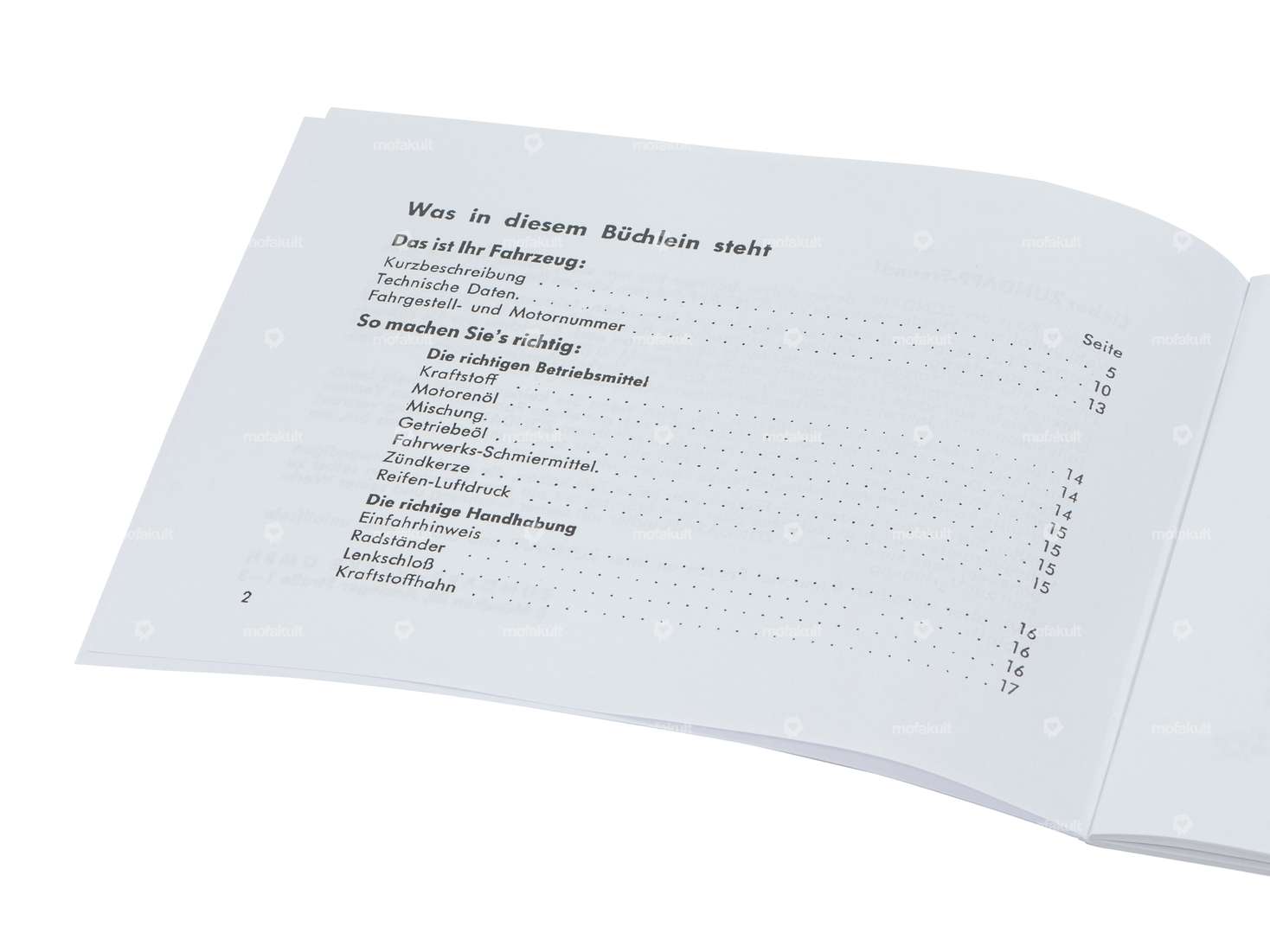

Operating and maintenance instructions for the hand-operated Zündapp models – Mofa 25 (type 434–02 L1) and Moped M 50 (type 434–01 L0).
Very helpful, informative booklet. Among other things, it explains maintenance and adjustment work as well as troubleshooting. This instruction manual should not be missing in any Zündapp workshop.
Format: A5 (210 x 148 mm)
Pages: 50
Language: German
High-quality facsimile (reproduction) of the original edition.
You can find more workshop manuals, spare parts catalogs and repair instructions in the accessories section.
Details
Material | Paper |
DIN format | A5 |
Number of pages | 50 pcs |
Width | 210 mm |
Height | 210 mm |
Suitable for the following models
Zündapp |
