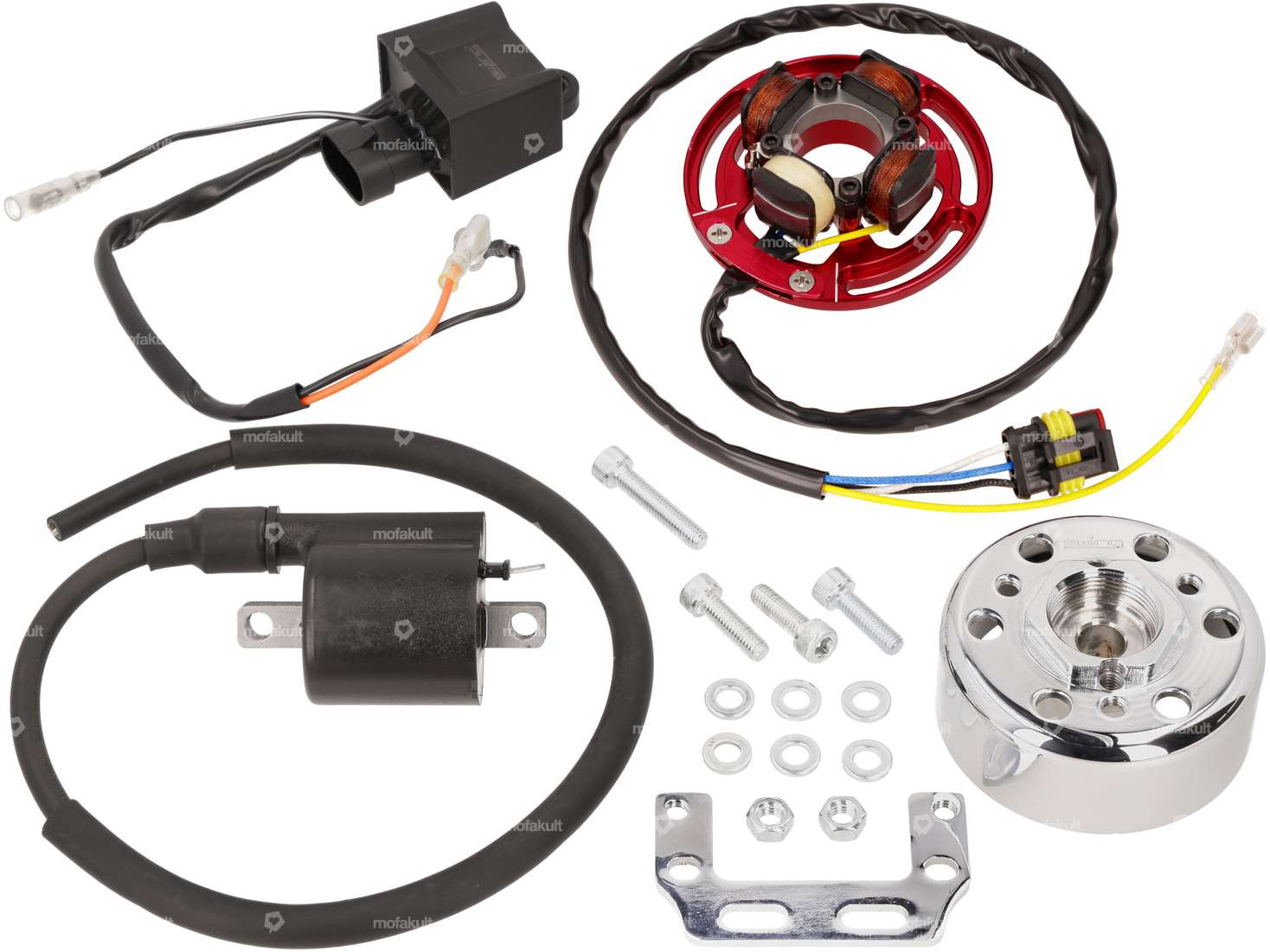

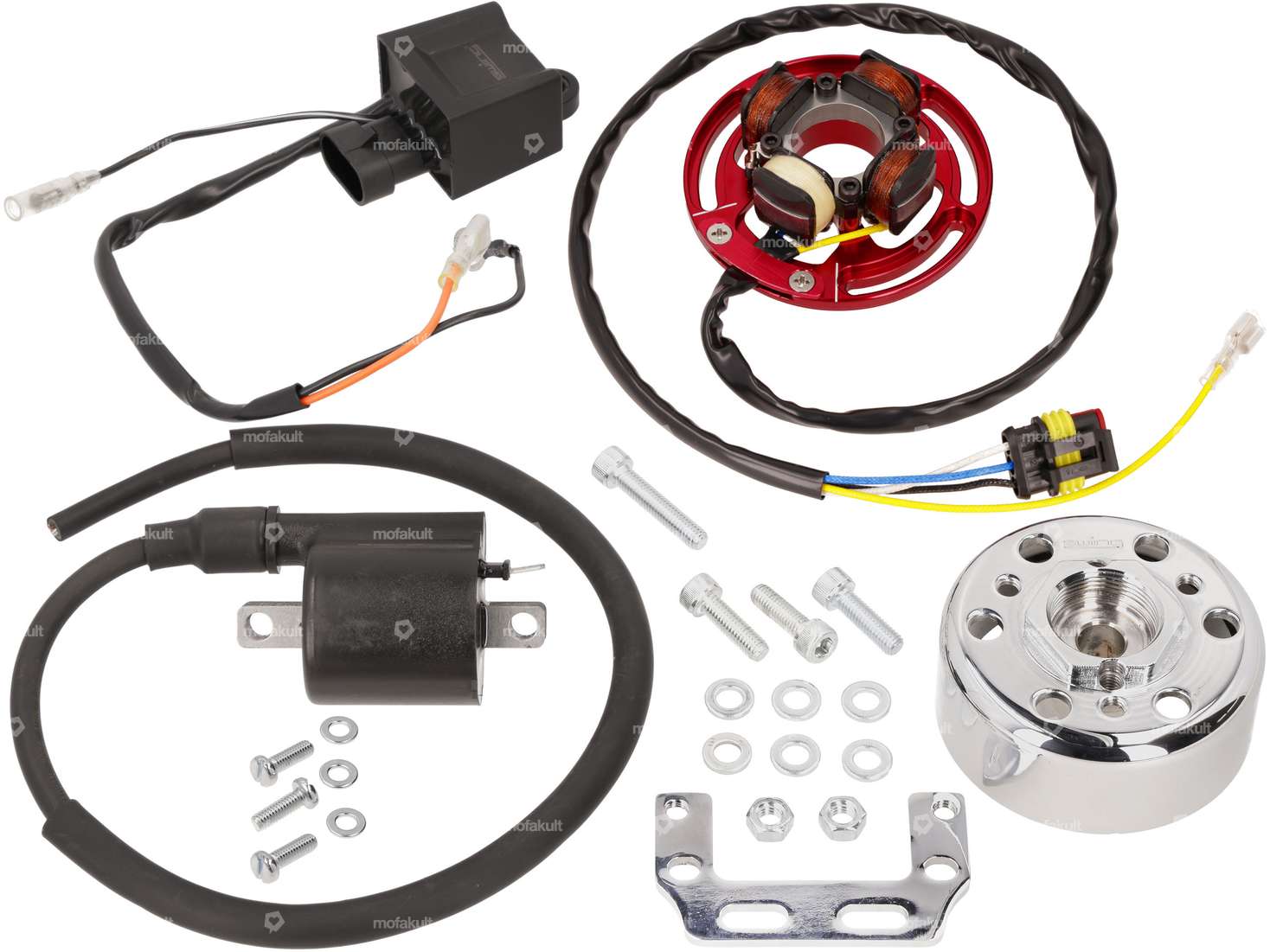

Complete set of the 12V swiing® ingenious EVO ignition with built-in 60W light coil, suitable for various mopeds / mopeds with Sachs 503 AB, AC, ADV engine.
With the optionally selectable 280 g additional weight, you can increase the flywheel mass so that the engine runs more smoothly at idle and starting is easier when stationary.
Advantages of the EVO tuning ignition:
- Always a constant, strong spark
- No more false ignitions
- one-time adjustment
- Little to no wear and tear
- large adjustment range due to long slots
The following special features characterize this tongue:

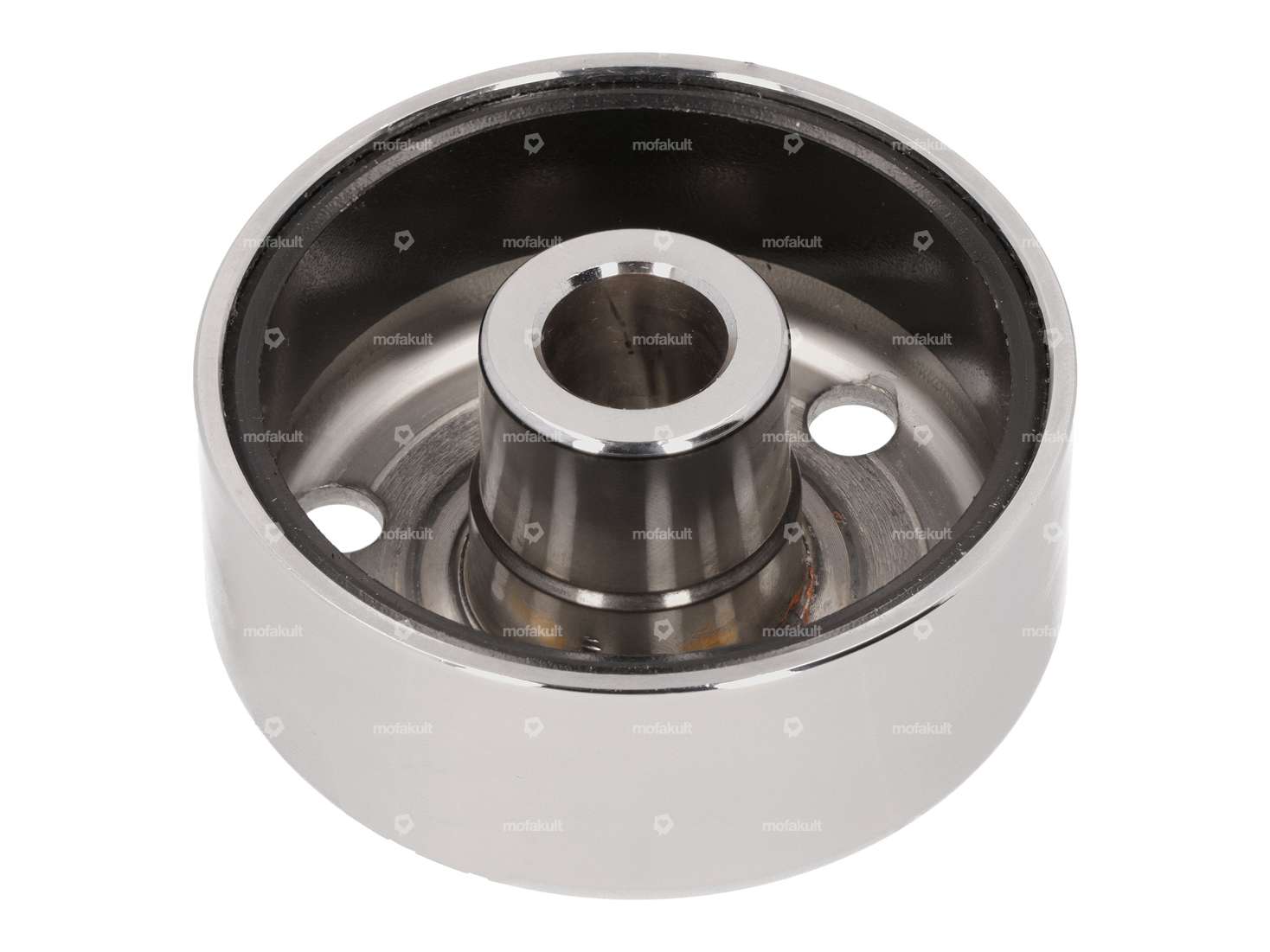

- From the factory more flywheel mass than HPI ignitions, thus smoother engine idling (382 grams)
- Fine-balanced flywheel for less vibration
- Trigger thread with normal M26x1.5 mm pitch, so normal Bosch/Ducati flywheel pullers can be used
- Child-friendly adjustment of the ignition timing

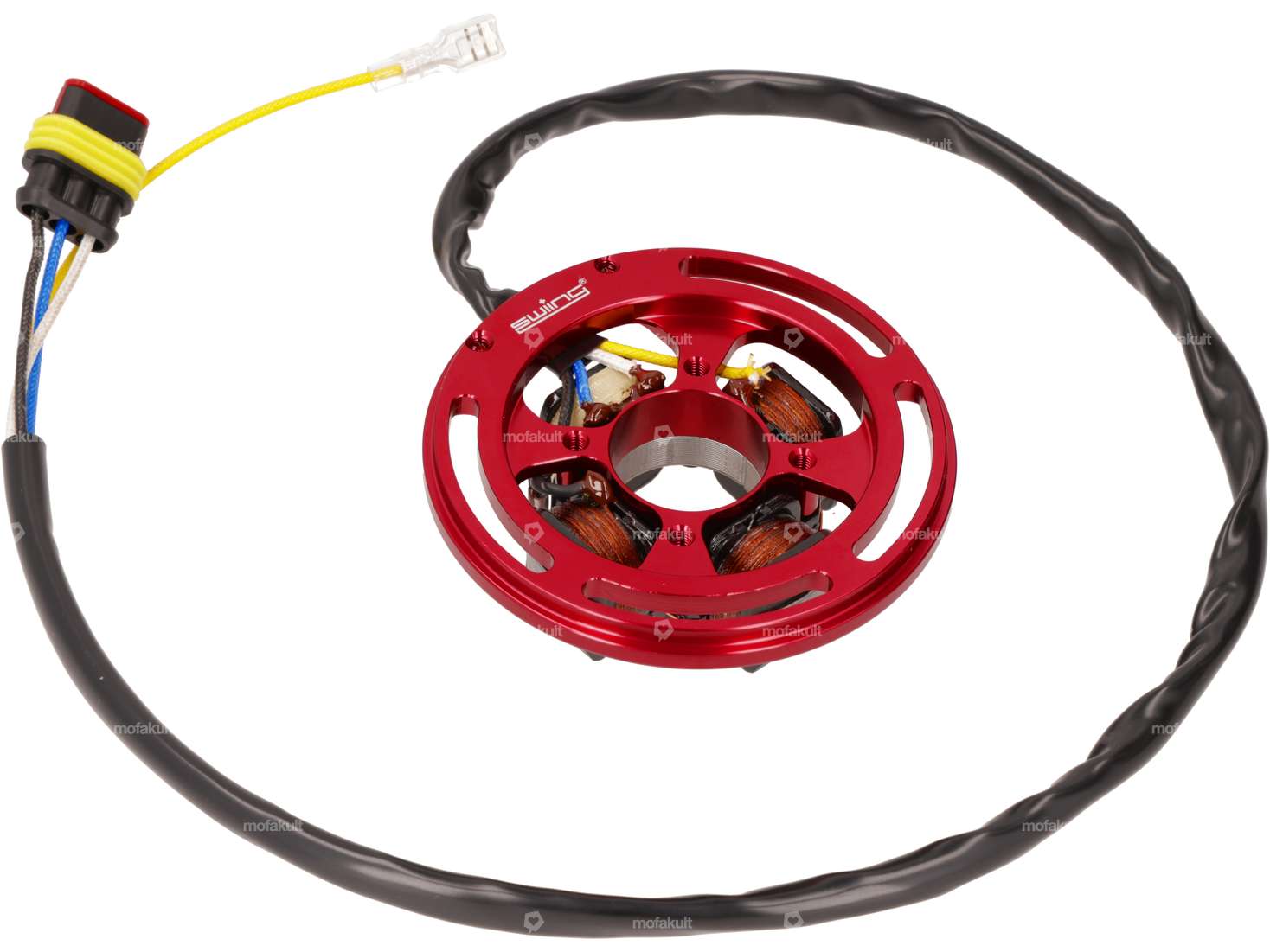

- the stator has been designed for high heat loads, no more failures due to overheating
- Optimized ignition curve (adjustment 12° - 14°)
- Light voltage: 12 volts
- Light output: 60 watts
- Ø outer flywheel: 75 mm
- Flywheel cone: Ratio 1:5 (standard for Puch & Sachs crankshafts)
- Ø outer stator plate: 90 mm
Installation instructions:
- Left-turning engines: Set the piston to TDC, the marking on the base plate at 13 o'clock (to the right of the swiing logo) must match the marking on the flywheel,
this achieves a timing point of 2 mm before TDC.
- Flywheel tightening torque: 37 - 39 Nm (no keyway present)

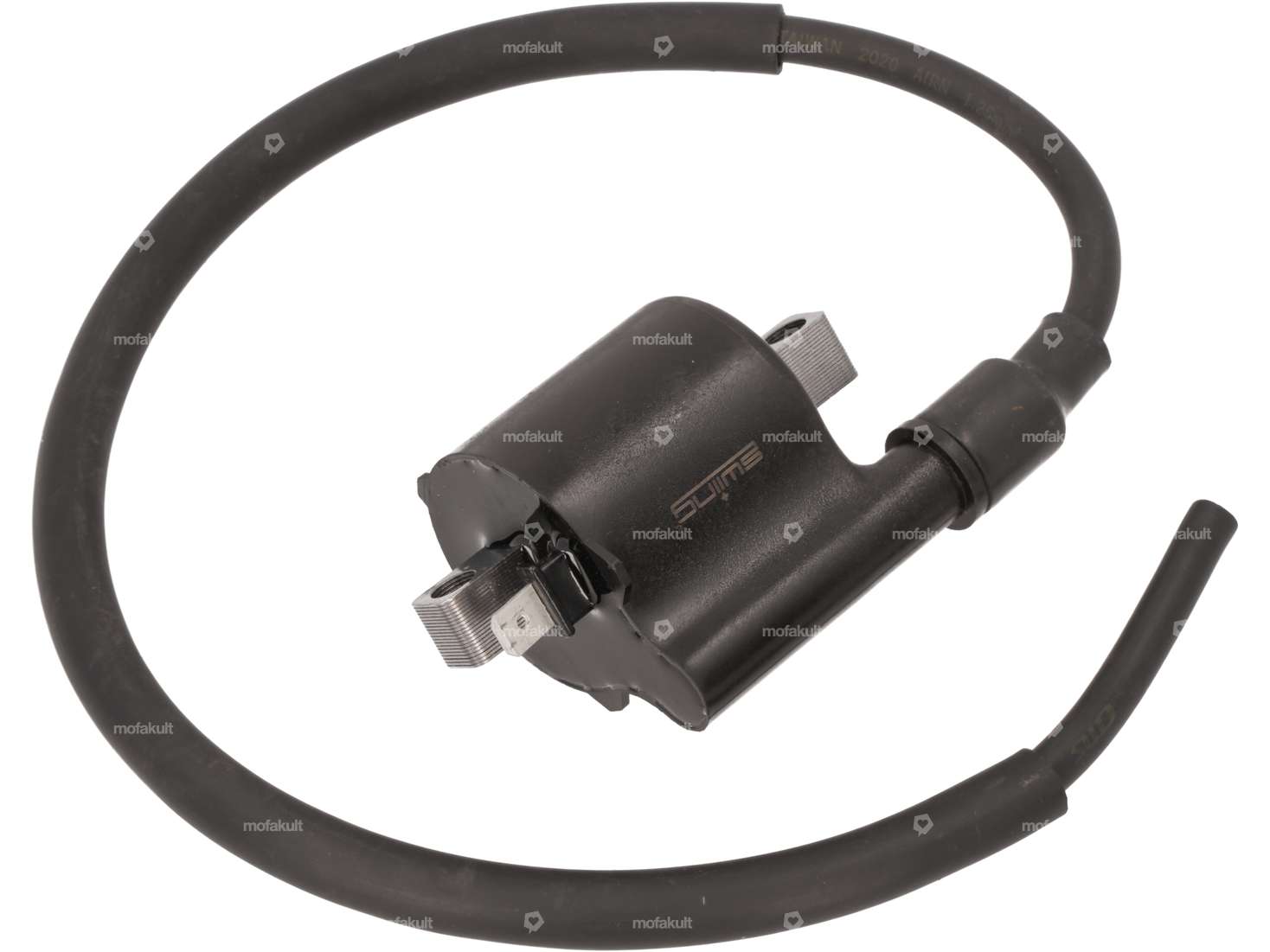

- The CDI and ignition coil must be supplied with a good earth (grounding), otherwise they can be damaged within a short time.
- The lighting system should also be equipped with a 12 V voltage regulator .

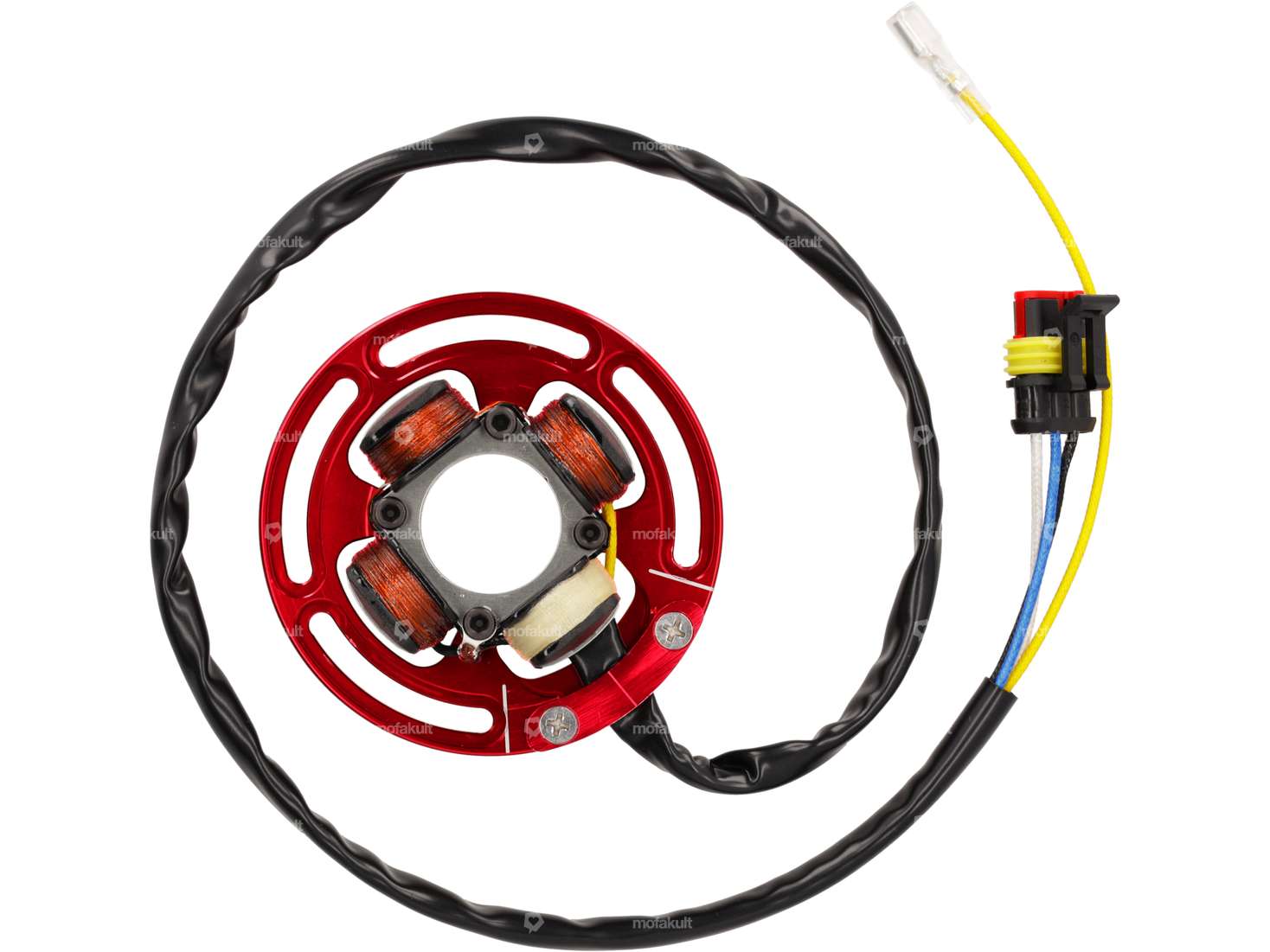

Correct pin assignment of the Superseal connector:
- 1 = black
- 2 = blue
- 3 = white
Note: This version of the swiing® ingenious EVO Zündung is not compatible with blower-cooled Sachs 503 engines.
When you buy this complete set, you get a big discount on the retail price of the individual parts.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® ingenious parts |
| Ø Internal flywheel | 63.5 mm |
| Tension | 12 V |
| Light coil voltage | 12 V |
| Area of application | Tuning, Racing, High End |
| Performance | 60 W |
| Direction of rotation | any |
| Ø mounting plate | 90 mm |
| Ø Flywheel outside | 75 mm |
| Mounting type | Screws |
| Number of fixing points | 3 pcs |
Suitable for the following models
| Sachs | 503 - AB, AC, ADV |
