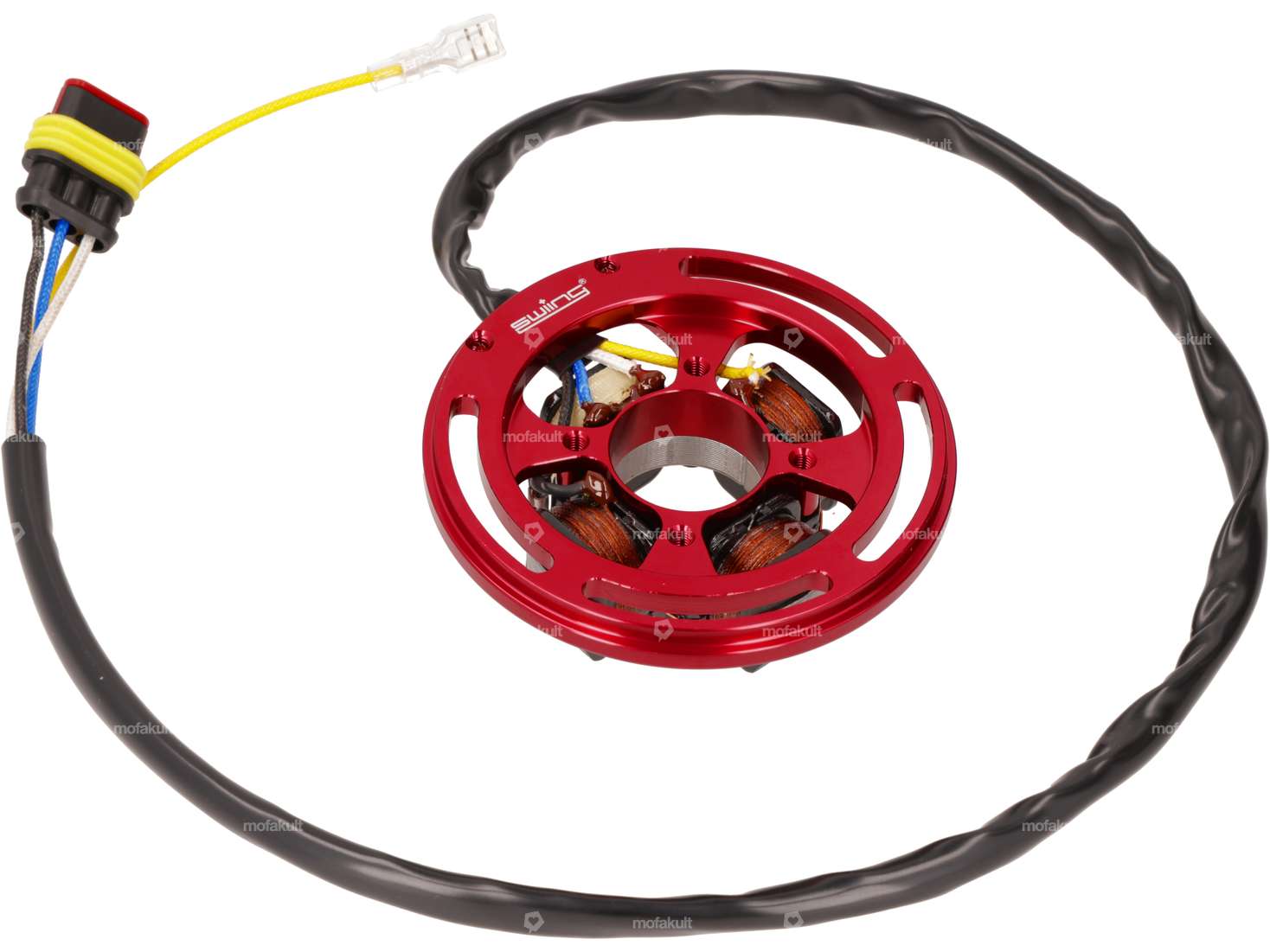

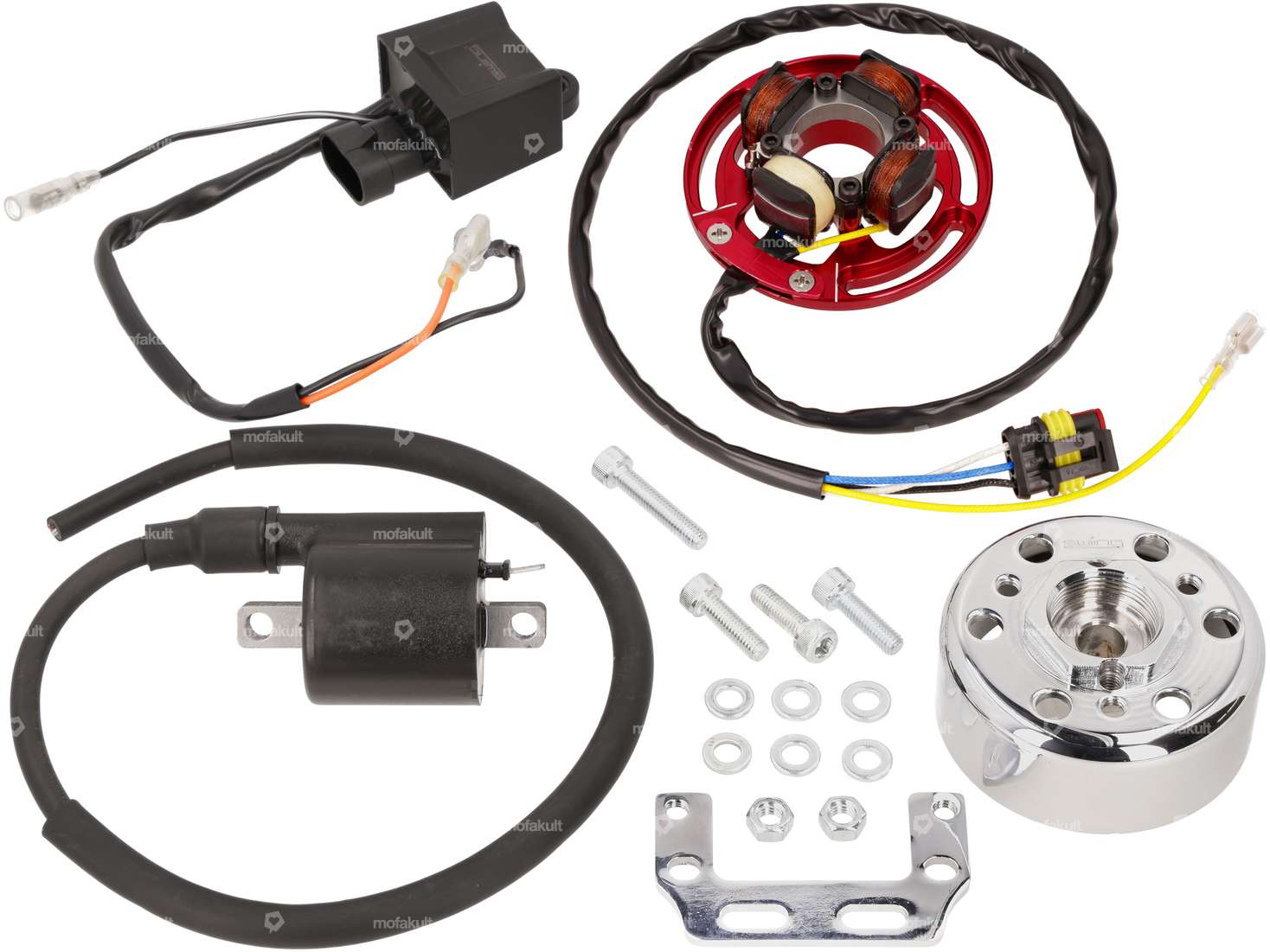

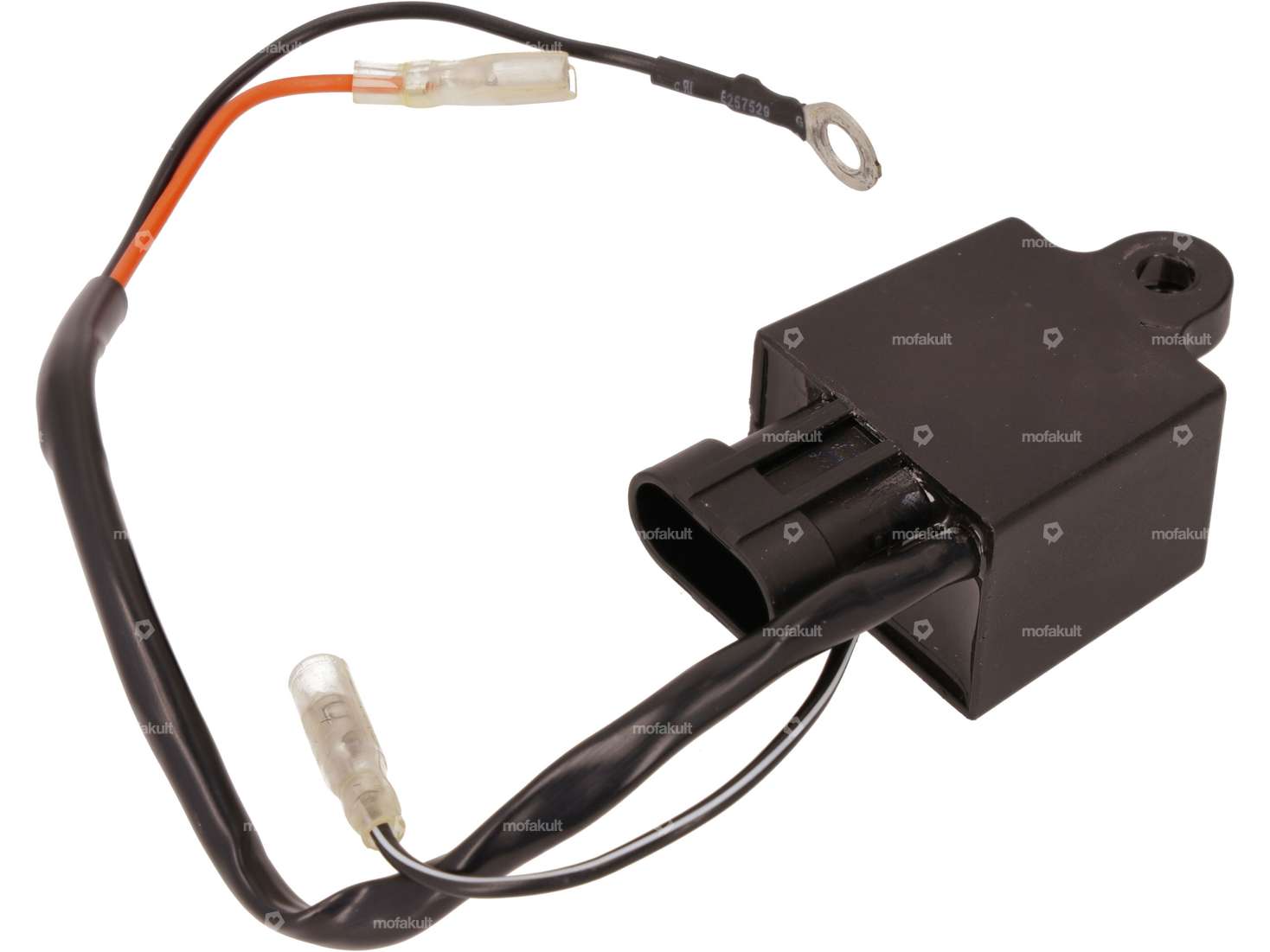

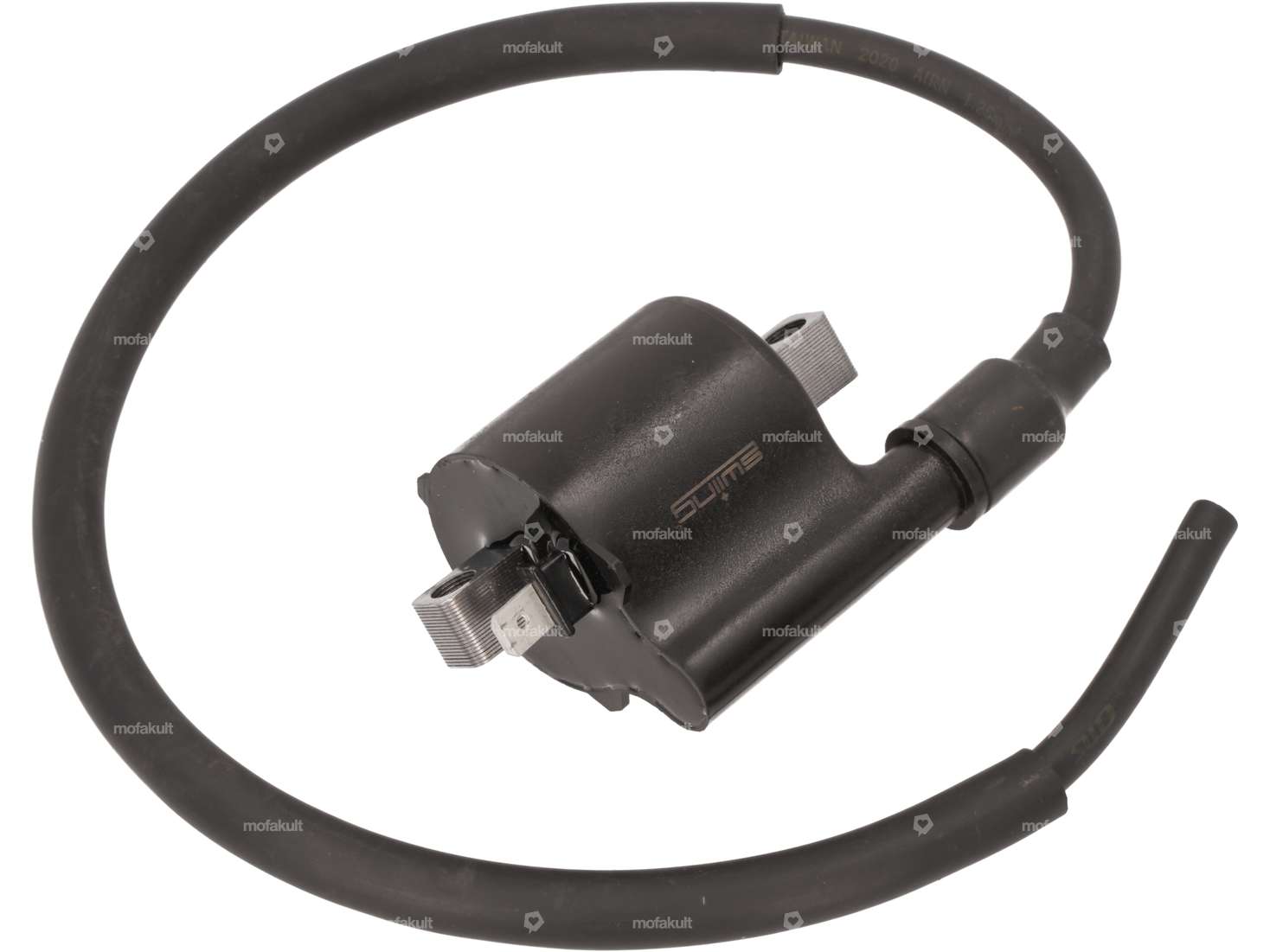

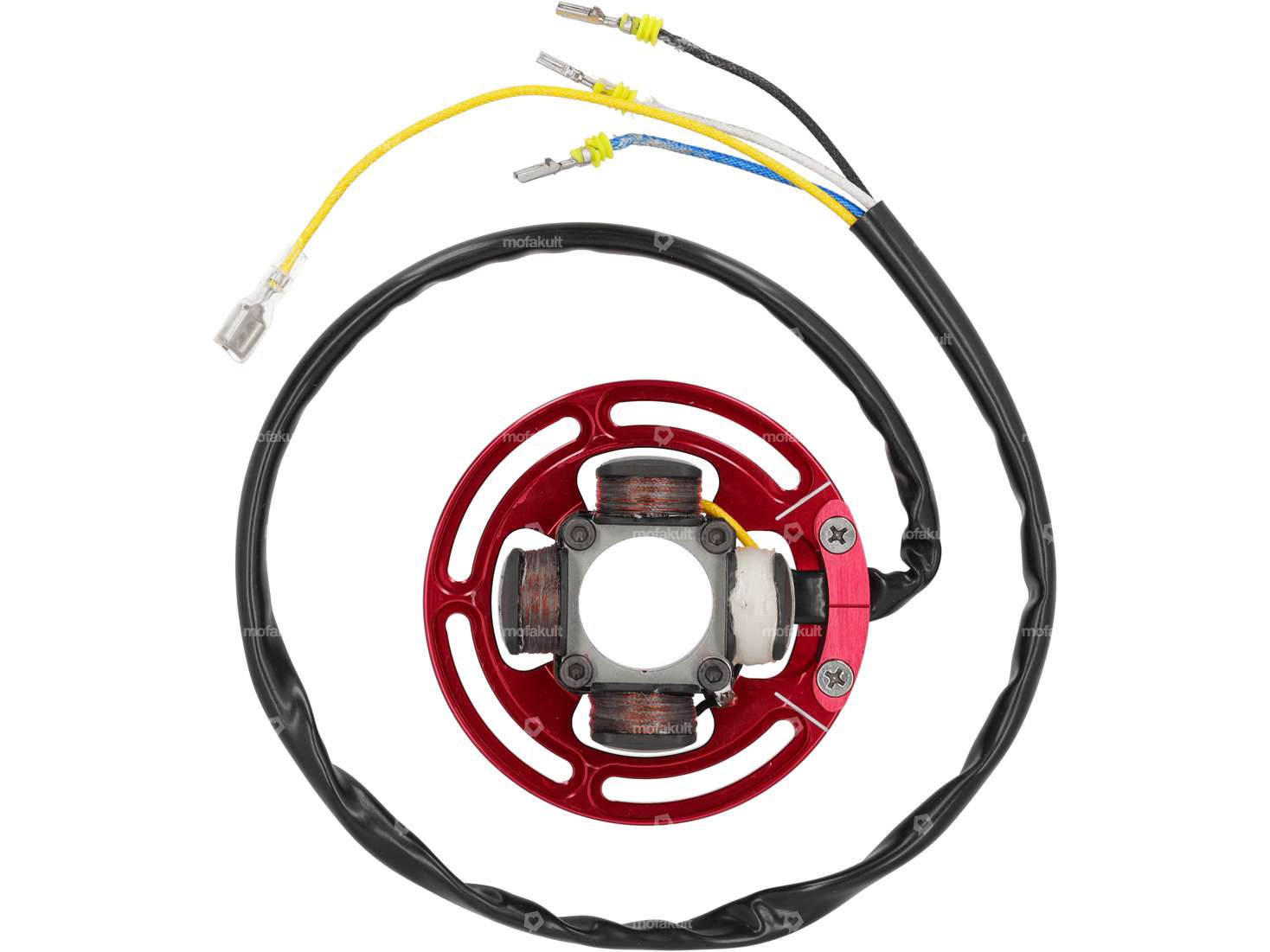

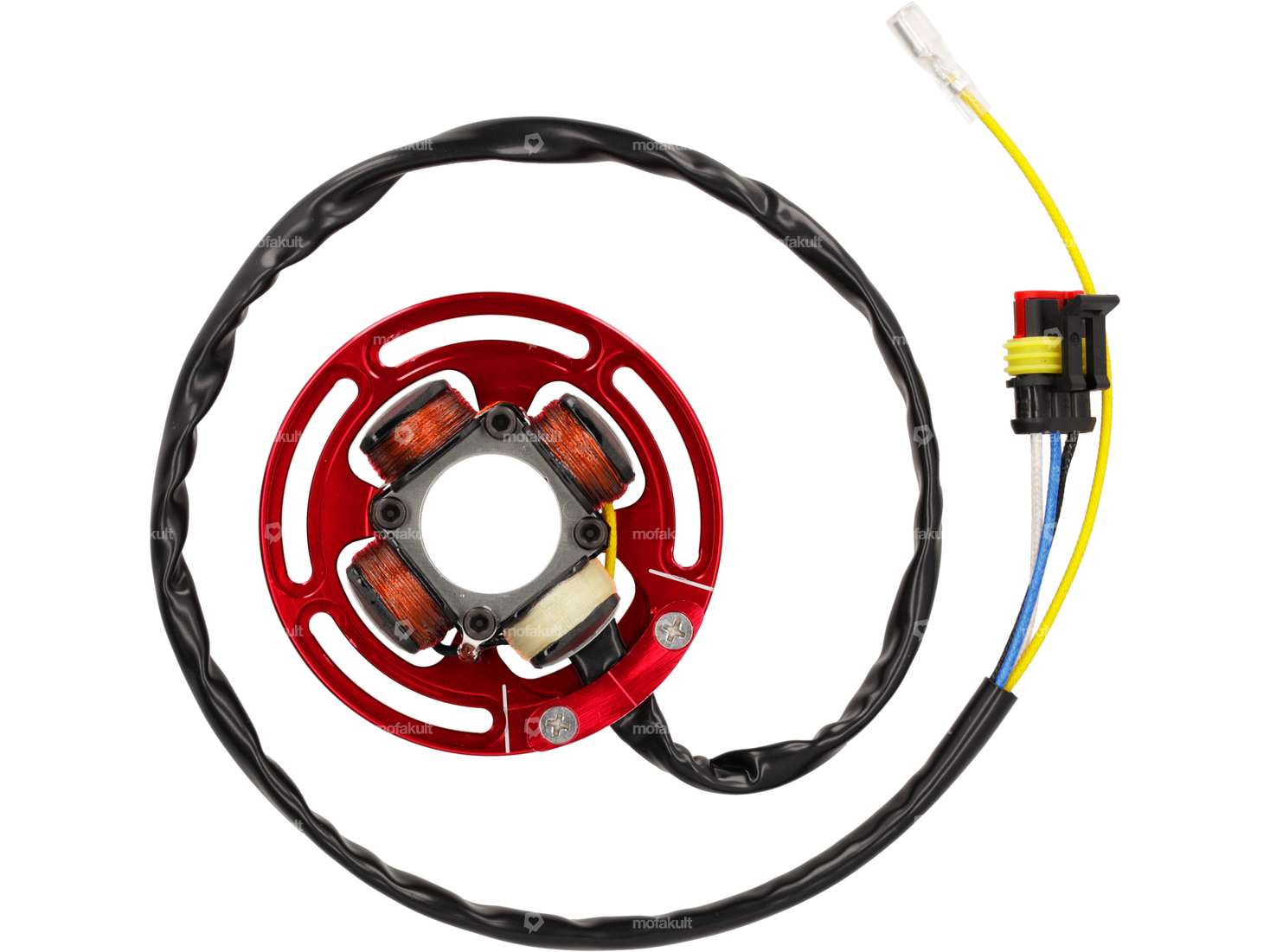

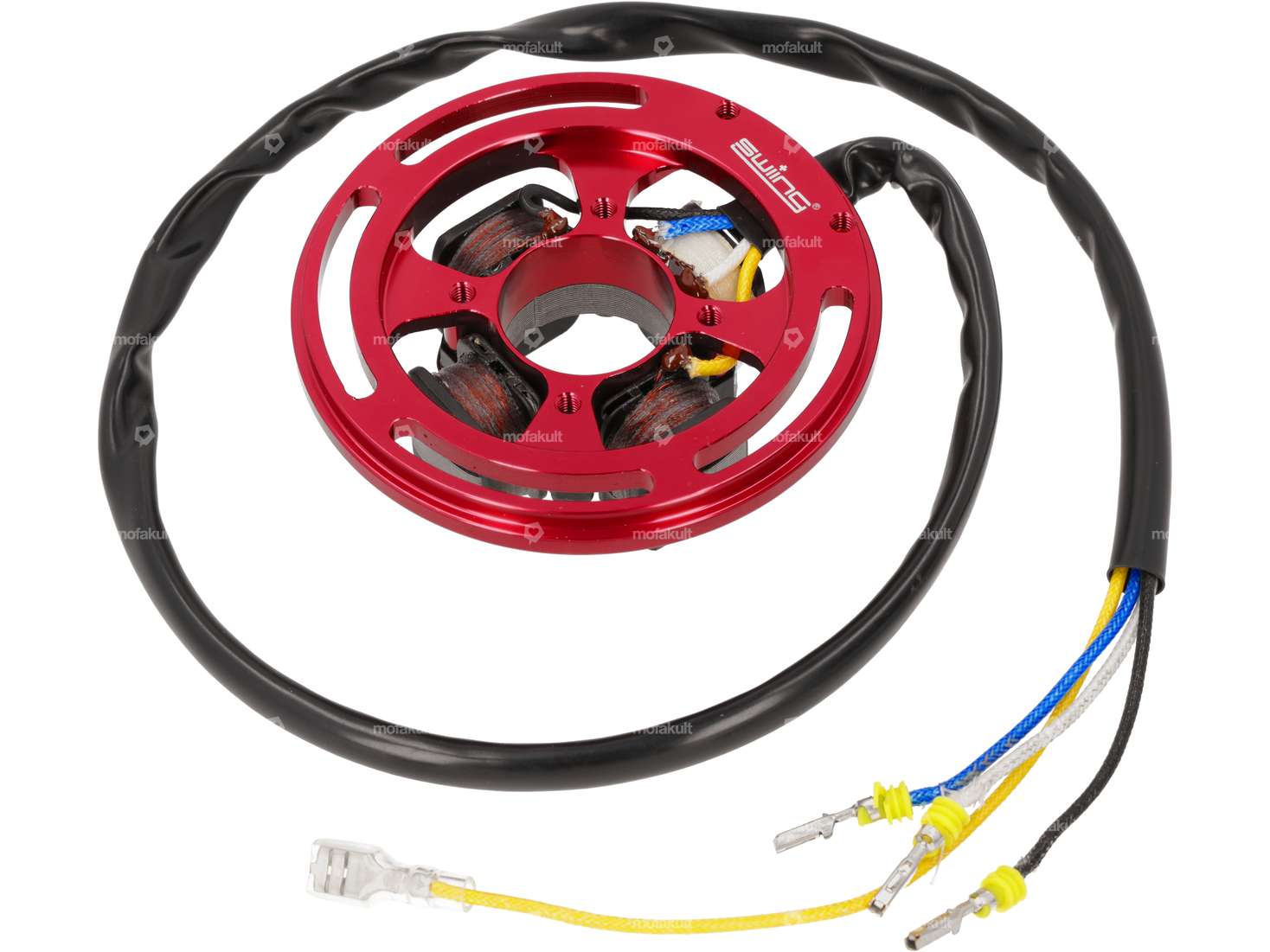

Complete set of the 12V swiing® ingenious EVO ignition with built-in 60W light coil and fan wheel. Suitable for your Puch moped / moped with E50 and Z50 engine.
Advantages of the EVO tuning ignition:
- Always a constant, strong spark
- No more misfires
- One-time adjustment
- Little to no wear
- Large adjustment range thanks to long slots
The following special features characterize this ignition:
- From the factory more flywheel mass than HPI ignitions, therefore smoother engine idling (382 grams)
- Fine balanced flywheel for less vibration
- Trigger thread with normal M26x1.5 mm pitch, so normal Bosch/Ducati flywheel pullers can be used
- Easy adjustment of the ignition timing
- The stator was designed for high heat loads;designed for high heat loads, no more failures due to overheating
- Optimized ignition curve (adjustment 12° - 14°)
- Light voltage: 12 Volt
- Light output: 60 Watt
- Ø outside flywheel: 75 mm
- Flywheel cone: ratio 1:5 (standard for Puch & Sachs crankshafts)
- Ø outer stator plate: 90 mm
Installation instructions:
- Right-turning engines: Set piston to TDC, marking on the base plate at 11 o'clock (to the left of the swiing logo) must match the marking on the flywheel, this achieves a timing of 2 mm before TDC.
- Left-turning engines: Set the piston to TDC, the marking on the base plate at 13 o'clock (to the right of the swiing logo) must match the marking on the flywheel; this achieves a timing point of 2 mm before TDC.
- Flywheel tightening torque: 37 - 39 Nm (no keyway available)
- The CDI and ignition coil must be supplied with a good earth (grounding), otherwise they can be damaged within a short time.
- The lighting system should also be equipped with a 12 V voltage regulator.
Correct pinning of the Superseal connector:
- 1 = black
- 2 = blue
- 3 = white
Attention: The ignition components stator, rotor, CDI and ignition coil are not compatible with parts of the HPI ignition!
When you buy this complete set, you get a big discount on the retail price of the individual parts.
The ignition is compatible with cable starters, which also fit the HPI, you can find these in the accessories section.
Exclusive product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® ingenious parts |
| Light coil voltage | 12 V |
| Tension | 12 V |
| Direction of rotation | any |
| Ø mounting plate | 90 mm |
| Ø Internal flywheel | 63.5 mm |
| Ø Flywheel outside | 75 mm |
| Performance | 60 W |
| Number of fixing points | 3 pcs |
| Mounting type | Screws |
| Area of application | Tuning, High End, Racing |
Suitable for the following models
| Puch | E50 Z50 (X30 Sport) |
