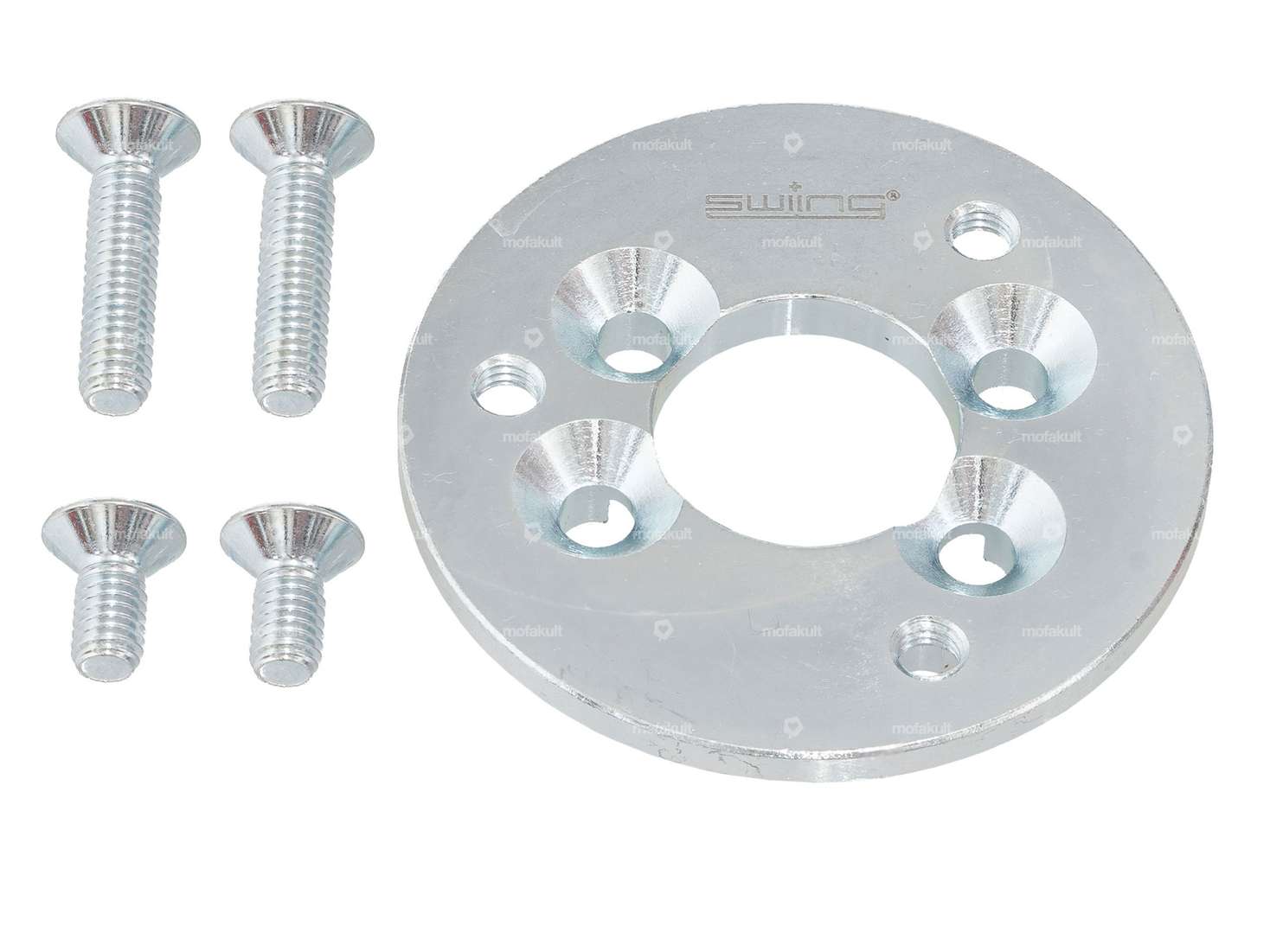

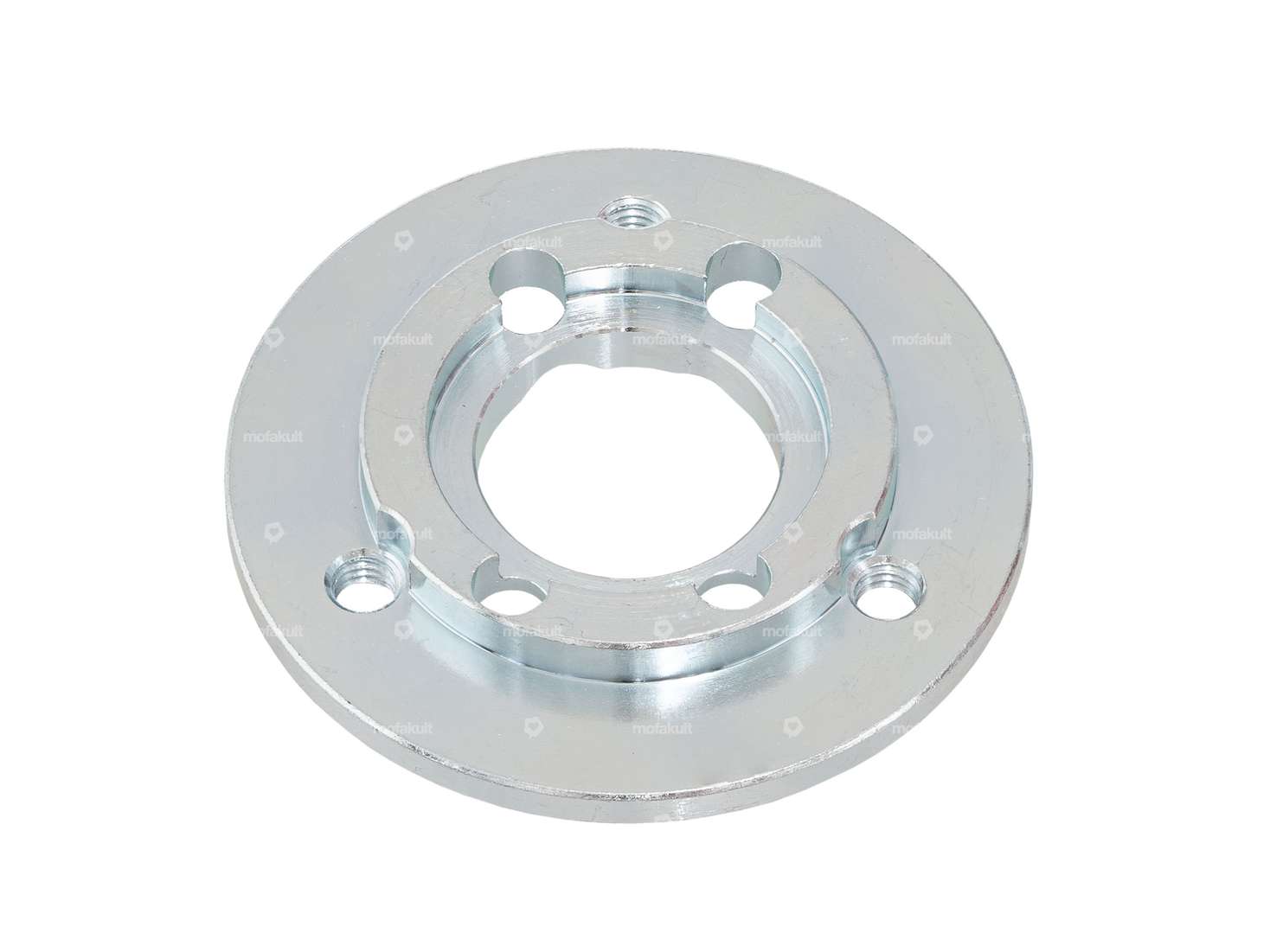

Adaptor plate for MVT, Selettra and PVL internal rotor race systems suitable for various mopeds, mopeds and small motorcycles (e.g. Puch Maxi, Puch X30 Sport, Puch X30 Velux, Sachs 503, Sachs 50/2, Zündapp Belmondo, Kreidler etc.).
The intermediate plate is bolted to the rotor of the above-mentioned Zündungen using the screws supplied. We recommend securing the screws with Loctite.
The M6x25 countersunk head screws supplied are suitable for PVL and Selettra tongues. When using an MVT Zündung, the enclosed M6x14 countersunk screws must be used.
The use of the adapter plate has the following advantages:
- can be used as a weight plate (additional weight)
- swiing guide wheels for blower-cooled engines can be mounted on the adapter plate
- other additional weights can be mounted on the adapter plate
Ø inside: 24.5 mm
Ø outer: 65 mm
Plate thickness: 4 mm
Weight of the plate without screws: 100 grams
Weight of the plate with screws: 110 grams
Material: galvanized steel
The additional weight gives your engine a smooth, even running when stationary and improves the «starting behaviour». Depending on the setting, even more torque can be achieved with the additional weight.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® ingenious parts |
| Material | Steel |
| Area of application | Performance, Racing, High End, Tuning |
| Surface | galvanized (blue) |
| Ø inside | 24.5 mm |
| Thickness | 9 mm |
| Ø outside | 65 mm |
| Weight | 110 g |
| Number of fixing points | 4 pcs |
| Ø bolt circle | 50 mm |
| Ø mounting hole | 6 mm |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) ZA50 (Gebläsegekühlt) Z50 (X30 Sport) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 50/5 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV 504 (ohne Tretwelle) 505 (mit Tretwelle) - 1A (AT), 2 A (HG) 508 - 1 A 535 |
| Zündapp Belmondo |
