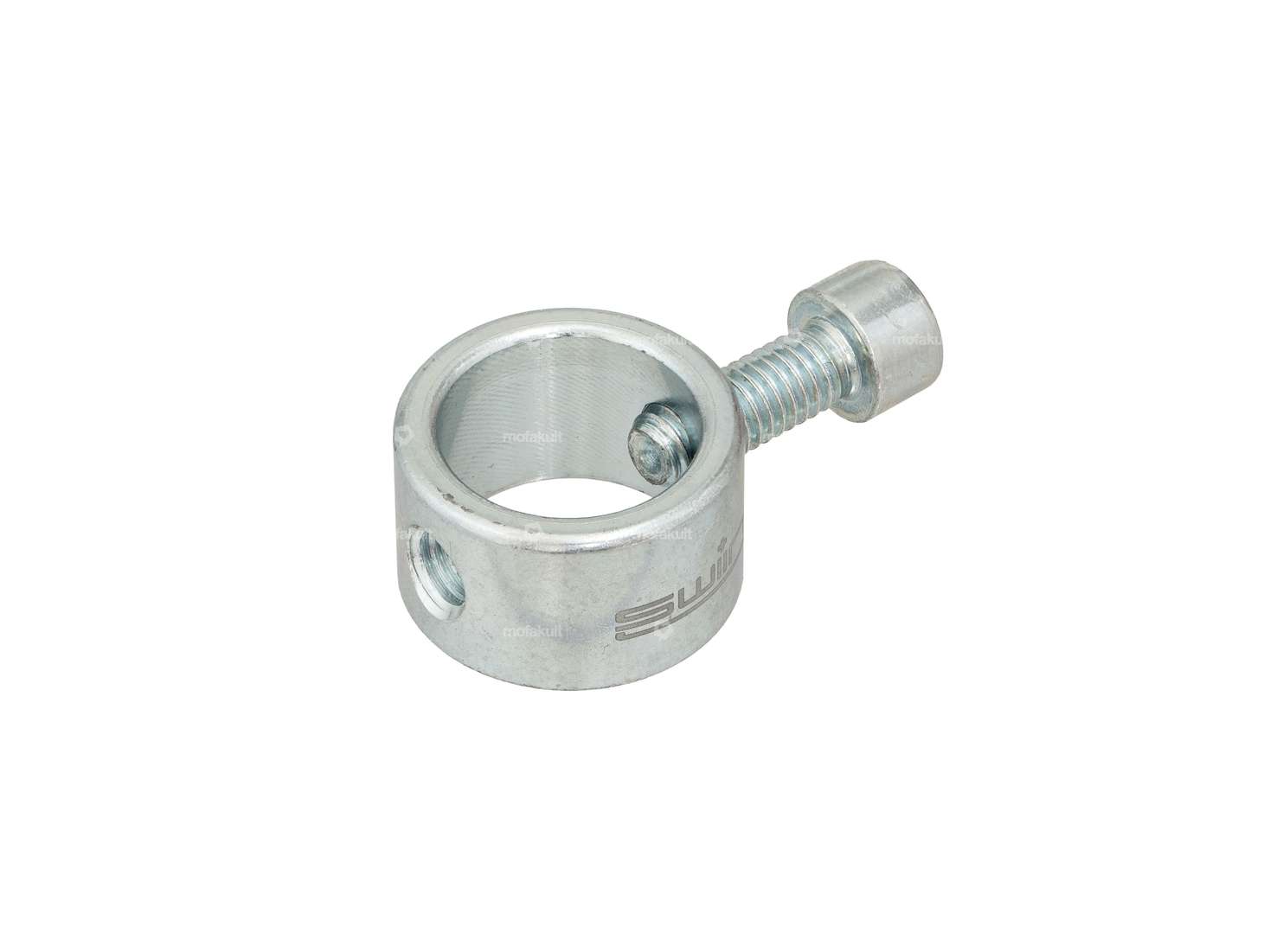

Mounting ring made of galvanized steel for fixing the kickstarter shaft when assembling the engine cases of Sachs 50/3 and 50/4 engines with kickstarter device.
The ring prevents the kickstarter shaft from being repeatedly pulled into the interior of the housing by the spring force when assembling the engine, causing the stop plate to jump off the bearing bush.
The sleeve is clamped onto the shaft with an M6 Allen screw.
Ø inside: 17 mm
Ø outside: 23 mm
Length: 14 mm

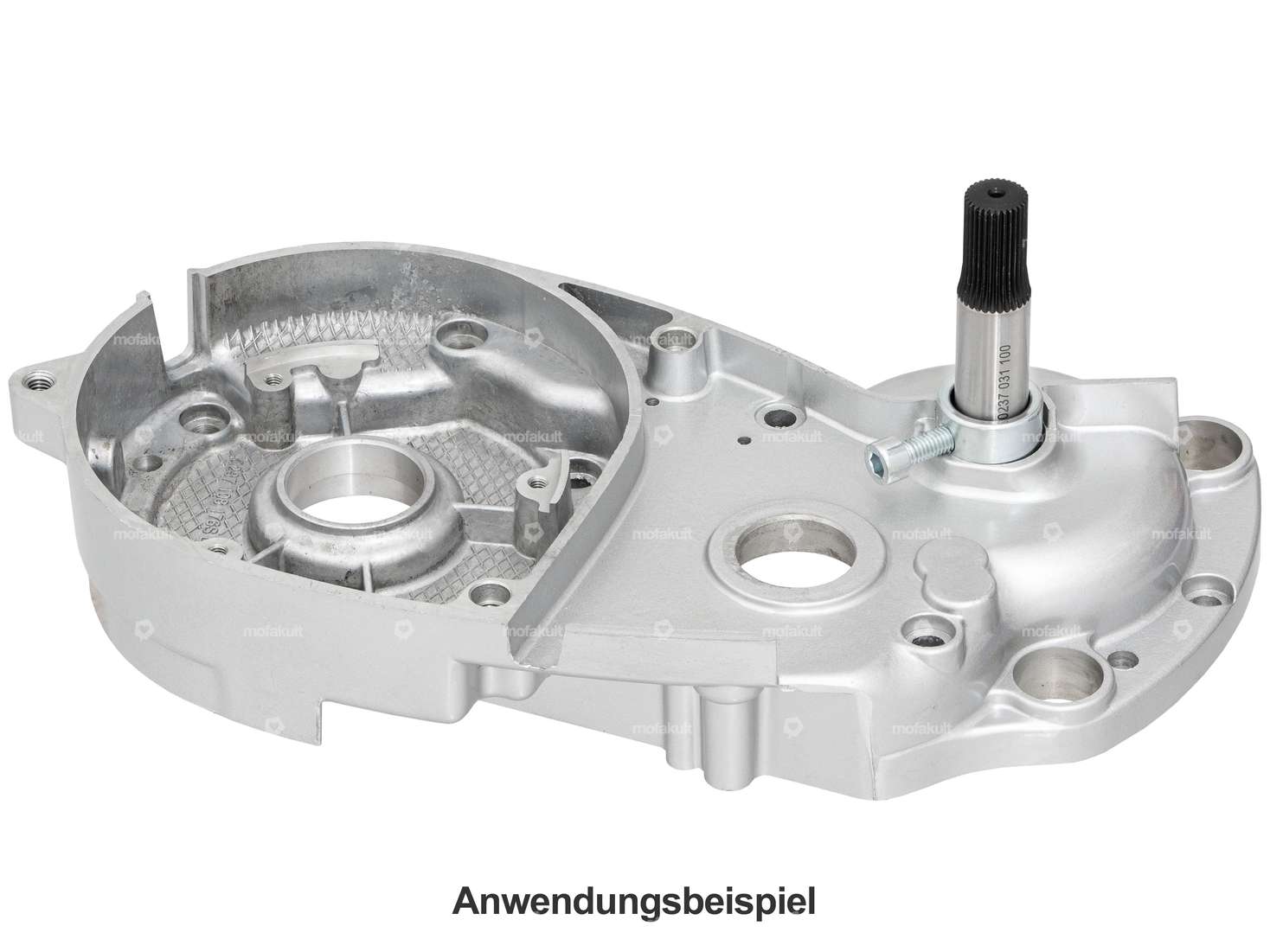

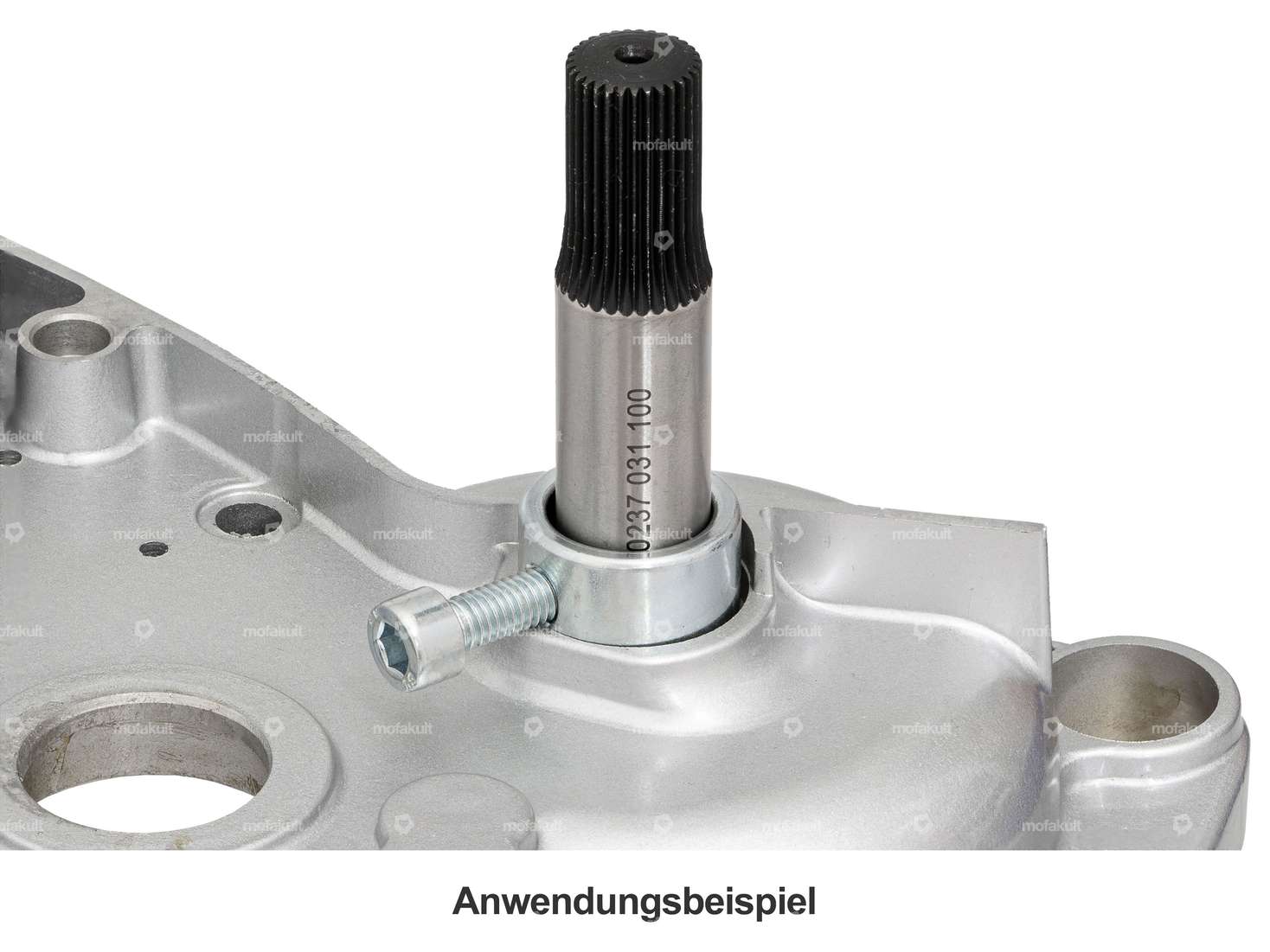

Figures 2 and 3 show the area of application of the clamp.
Made by the quality brand swiing – swiss ingenious.
Details
| Manufacturer | swiing |
| Material | Steel |
| Area of application | Special tool |
| Surface | blue galvanized |
| Total length | 14 mm |
| Ø outside | 23 mm |
| Ø inside | 17 mm |
Suitable for the following models
| Sachs | 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
