Spare parts catalog for the Puch X30 models NS and NL

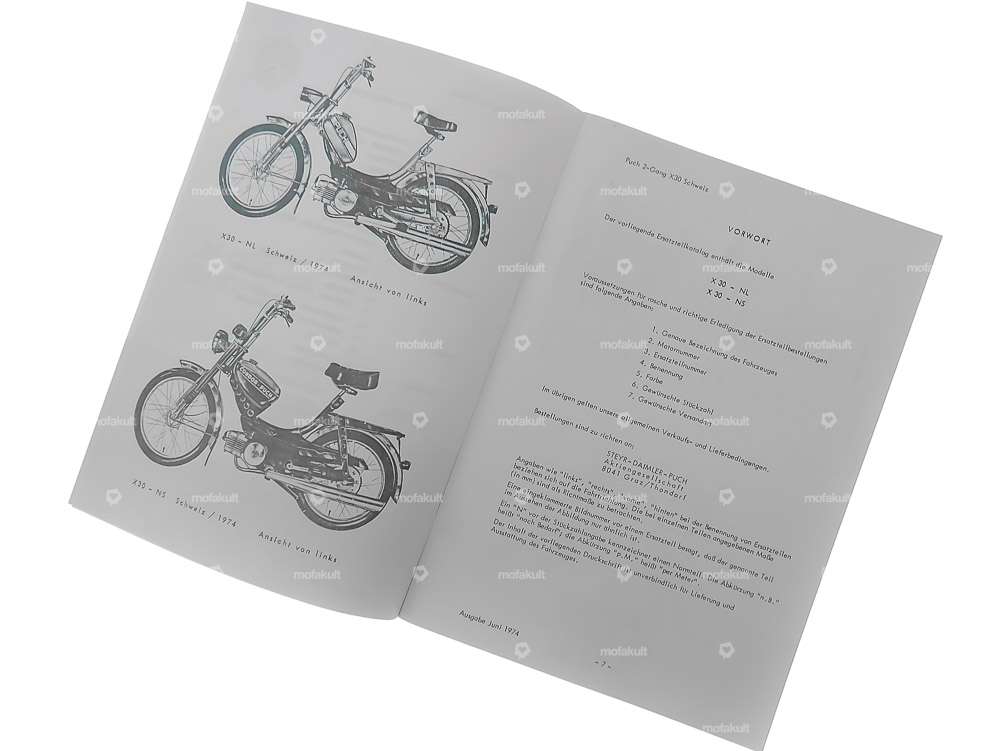

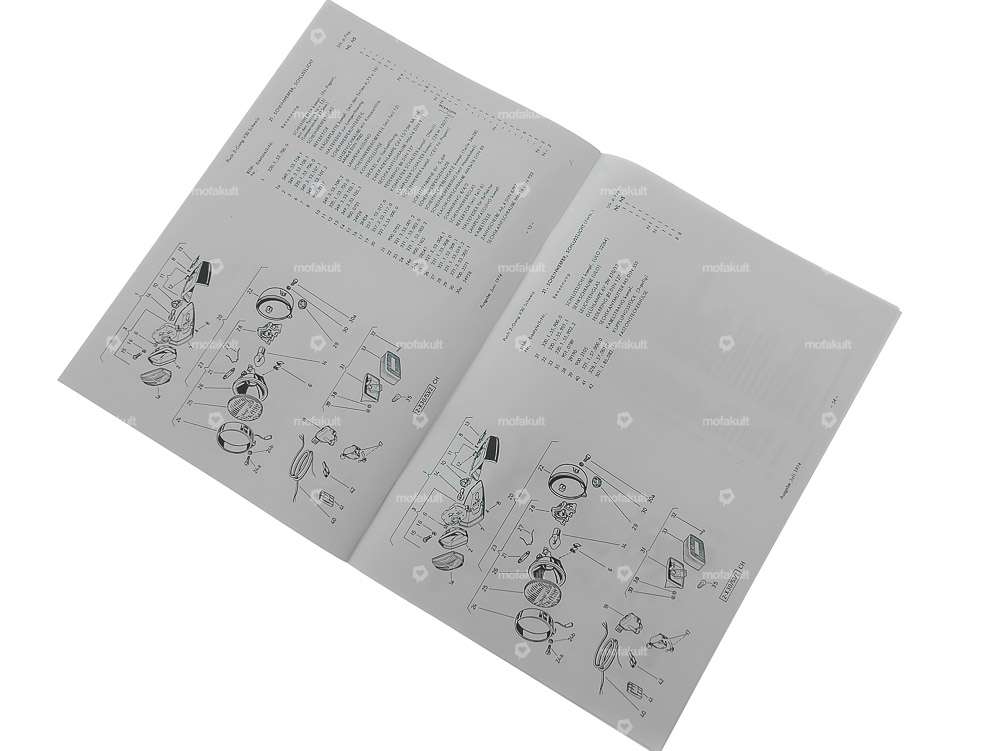

The complete moped was recorded in exploded drawings. Each individual component is provided with the quantity, spare part number and assembly location.

Super Swiss catalog from 1974 with 60 interesting pages.

Details

Material	Paper
Number of pages	60 pcs

Suitable for the following models

Puch

Z50 (X30 Sport)
