Operator's manual for the hand-shifted Puch X30 moped from Steyr-Daimler-Puch AG Graz Austria.

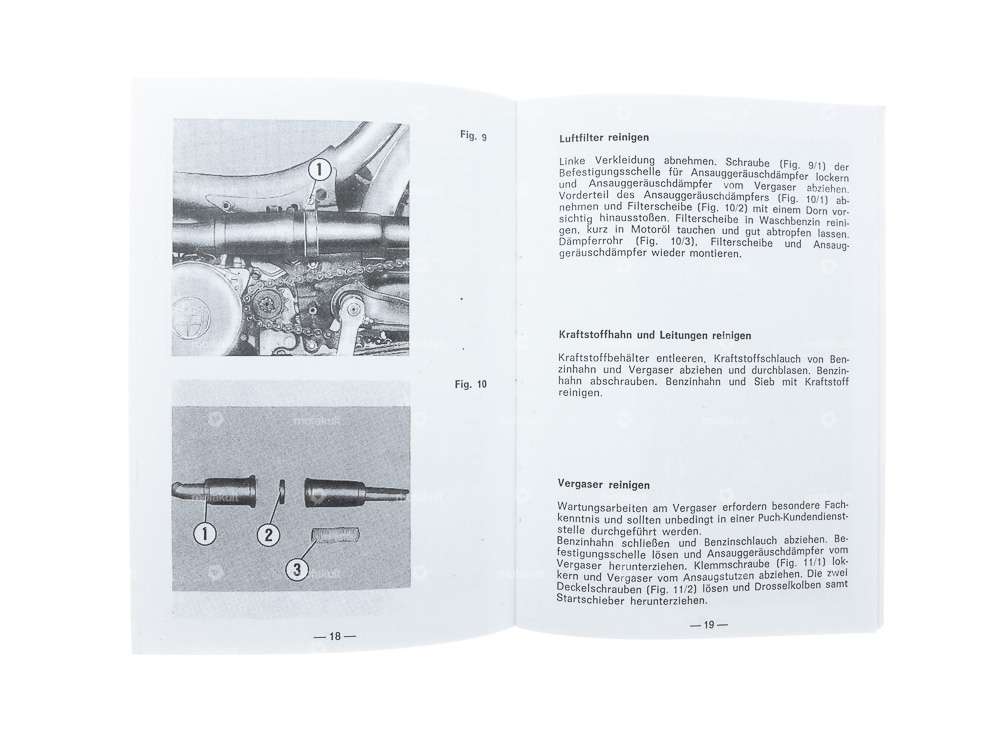

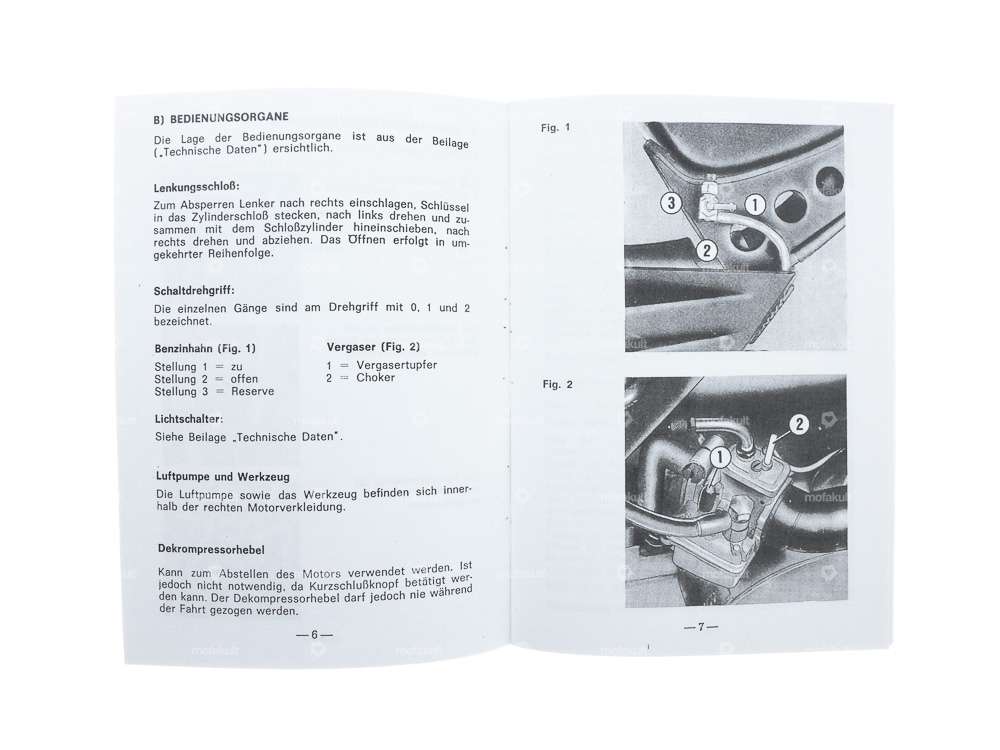

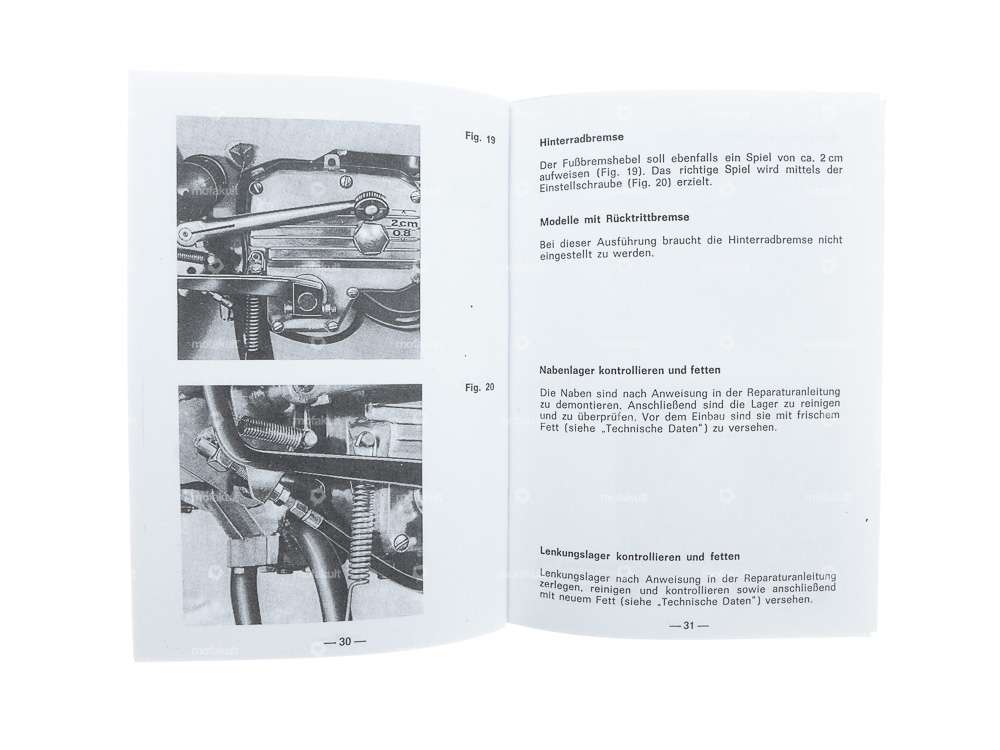

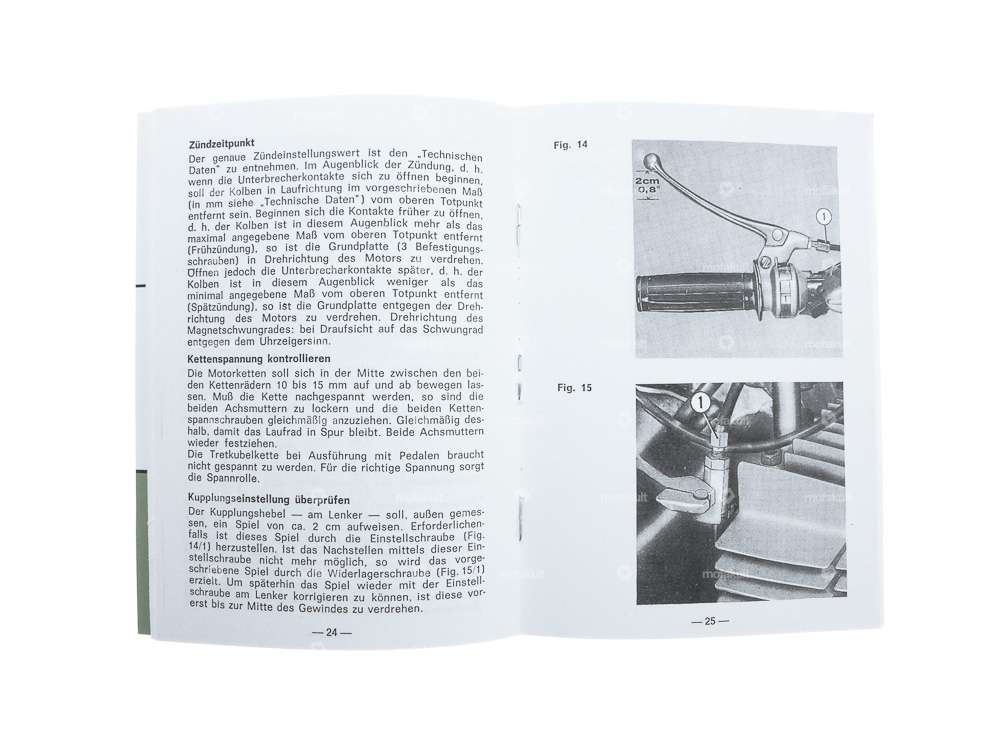

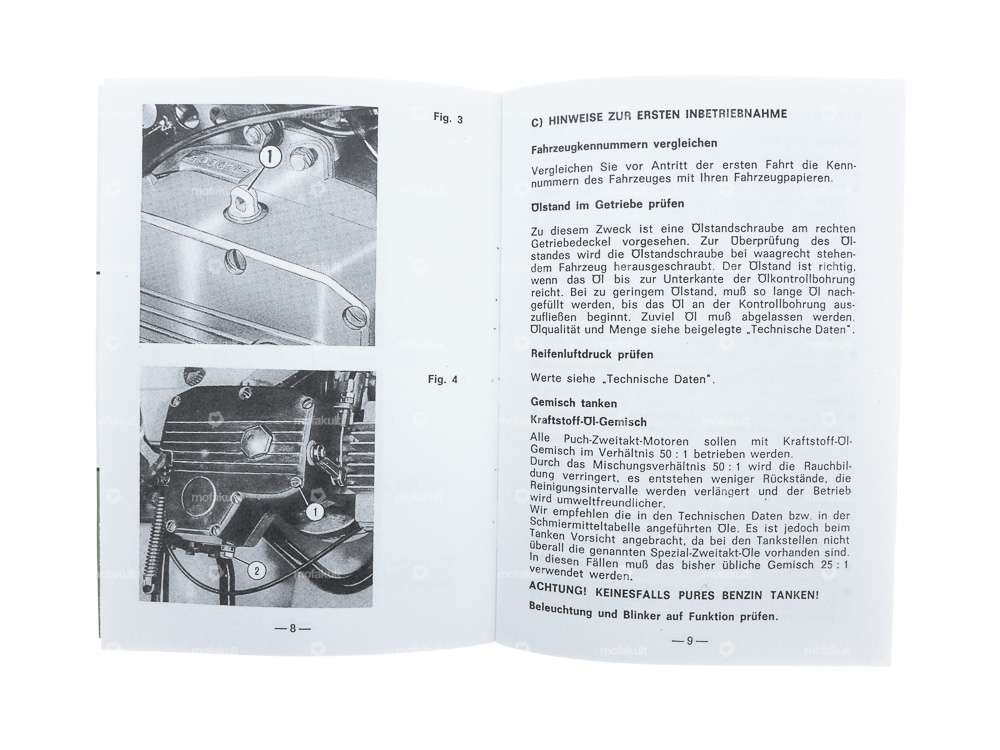

Very helpful, informative booklet. Among other things, operating elements, repair / maintenance / and adjustment work are explained.
A5 format with 48 pages. Without the additional sheet "Technical data"
Further literature can be found in the accessories section.
Details
| Material | Paper |
| DIN format | A5 |
| Number of pages | 48 pcs |
Suitable for the following models
| Puch | Z50 (X30 Sport) |
