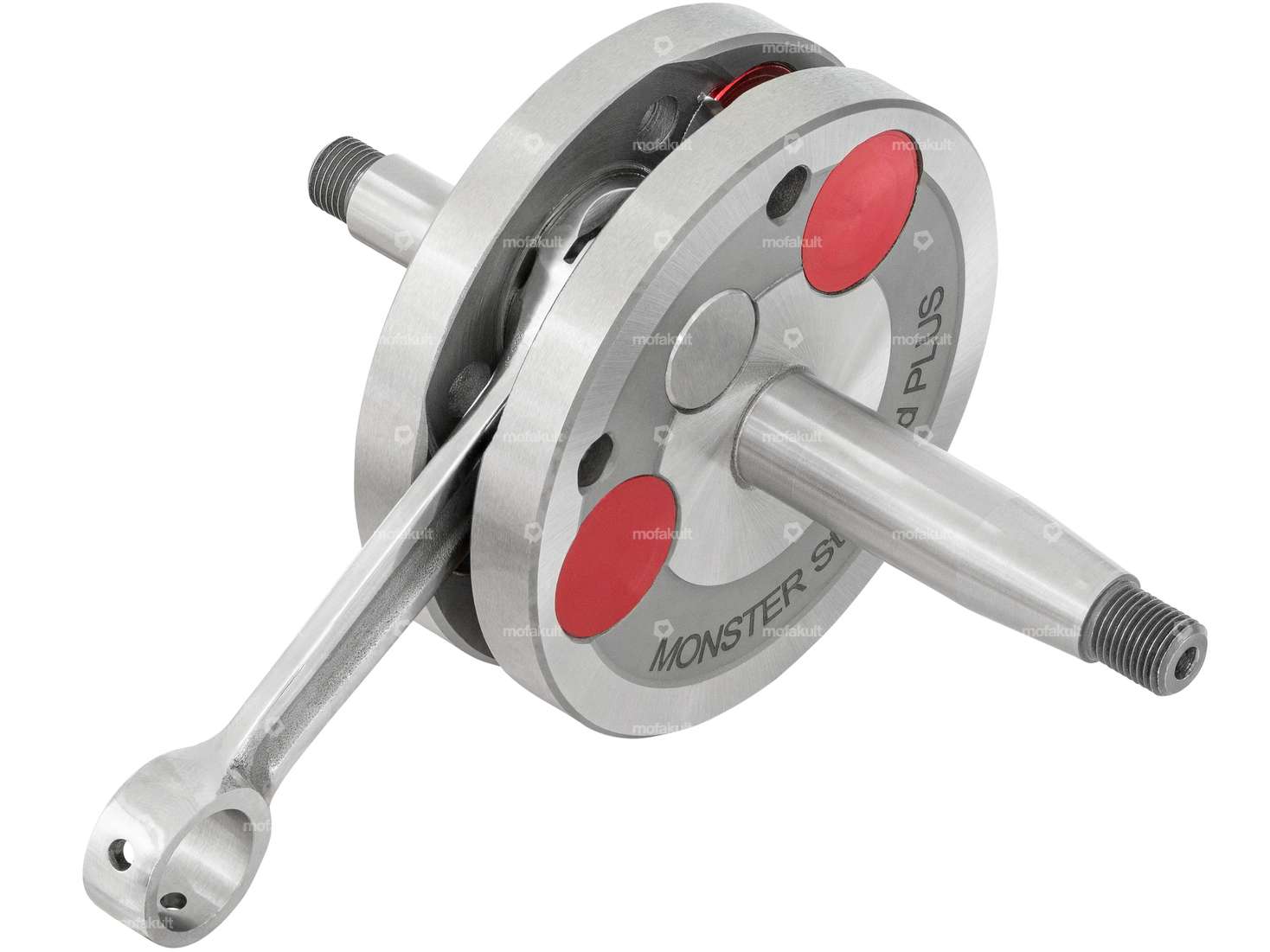

High-end crankshaft with 1 mm additional stroke developed by a Swiss high-end tuning forge and built by the best manufacturer to fit Sachs 503, 50 (without blower) and 50/3 engines.
The shaft can also be used in the 50/2 (also known as 502) engine with minor adjustments.
High-quality and precisely fitting, 1026 gram full cheek crankshaft with polished connecting rod, which has proven itself in various load tests. Designed for use in engines with a large power increase and tested up to 19,000 rpm.
The high-end crankshaft is designed for Sachs 503 engines and has the correct length of the clutch-side cheek pin, which is 3.5 mm longer than that of the Sachs 50/2 crankshafts currently in circulation.
The large balancing bores in the cheeks were sealed with aluminum inserts for maximum pre-compression.
Dimensions of the crankshaft:
- Total length of clutch-side crankpin: 43.3 mm
- Total length of clutch-side crankpin: 63.5 mm
- Length of 1st shoulder (clutch-side): 21.3 mm
- Length 2nd shoulder (clutch side) 14.2 mm
- Ø 1st shoulder (clutch side): 15 mm
- Ø 2nd heel (clutch side): 12 mm
- Thread (coupling side): MF10x1 mm
- Length of shoulder (on coupling side): 34.6 mm
- Ø shoulder (on the coupling side): 15 mm
- Thread (on end face): MF10x1 mm
- Ø crank webs: 84.8 mm
- Width of crank webs: 29.8 mm
- Ø connecting rod eye top: 16 mm
- Ø connecting rod pin bottom: 16 mm
- Conrod length (center-to-center): 85 mm
- Stroke: 43 mm (+1 compared to original shaft)
- Weight (incl. Connecting rod): 1026 grams
- Dimension needle bearing: Ø 12 / 16 x 15.7 mm (axe 12)

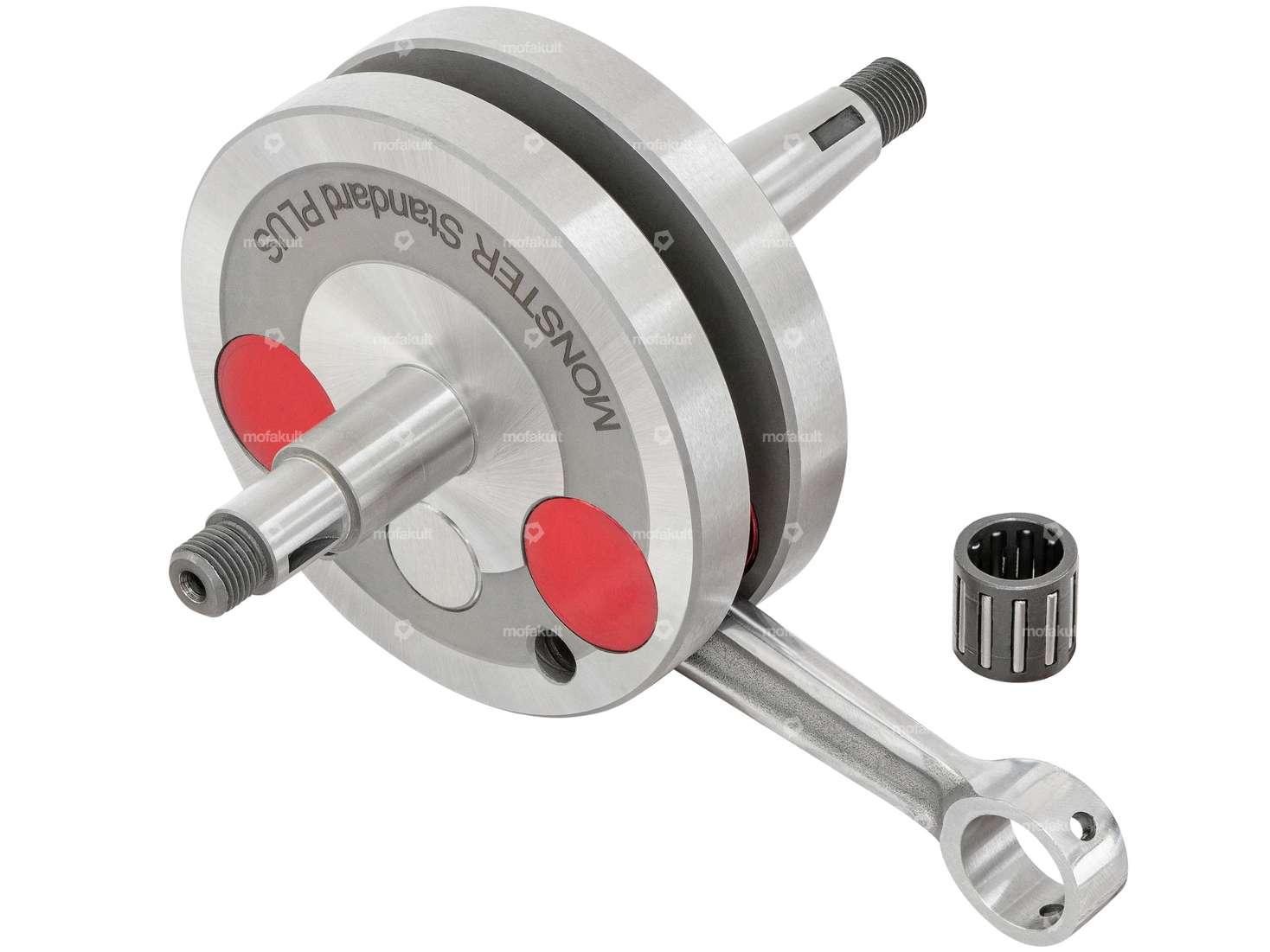

The needle bearing is included in the scope of delivery.
The matching bearings and oil seals can be found under accessories.
Installation tip:
- The transition between the crank webs and the journals is provided with a slight radius for reinforcement. To ensure clean spacing, a Ø 16 x 1 mm spacer washer should be used on both the left and right-hand sides; these are placed neatly over the chamfer and are therefore perfectly centered. The other spacers can be used normally with Ø 15 mm.
- The crushing edge should be checked in all cases and adjusted with cylinder base gaskets of different thicknesses if necessary.
Quality product from Portuguese manufacturer Rito.
Details
| Manufacturer | Rito |
| Thread length | 8 mm, 11 mm |
| Material | Steel, Aluminum |
| Cheek type | Full cheeks |
| Area of application | Tuning, Racing |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Connecting rod length center-center | 85 mm |
| Total length of crankpin on clutch side | 43.3 mm |
| Total length crankpin ignition side | 63.5 mm |
| Ø crank webs | 84.8 mm |
| Ø Connecting rod eye | 16 mm |
| Ø Bearing seat (clutch side) | 15 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Dimension needle bearing | 12 / 16 x 15.7 mm (axe 12) |
| Thread type | MF10x1 (fine pitch thread) |
| Wide crank webs | 29.8 mm |
| Length 1st paragraph | 21.3 mm |
| Length 2nd paragraph | 14.2 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Ø 2nd shoulder (on the clutch side) | 12 mm |
| Weight | 1026 g |
| Length of shoulder (ignition side) | 34.6 mm |
