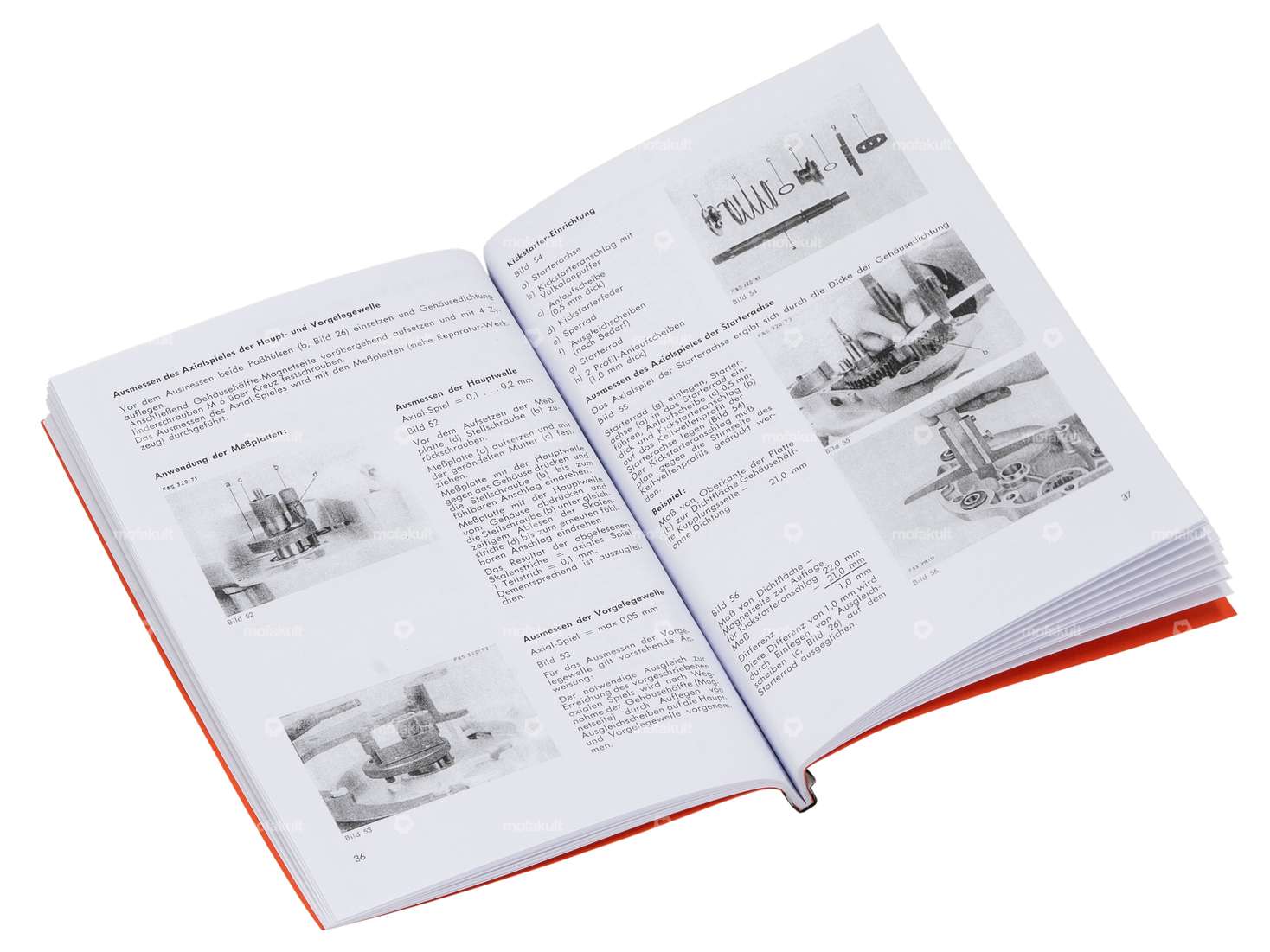

Repair instructions no. 320.8/2 for foot-operated three- and four-speed engines from Fichtel & Sachs AG. This helpful operating manual explains, among other things, operating elements, repair, maintenance and adjustment work. Everything to do with the engine is described in detail, with revision instructions, many pictures and important facts. A lasting reference book that no workshop with Sachs mopeds should be without. The following models are described in detail:
- 50/3 LFH
- 50/3 MLFB
- 50/4 LKH
- 50/4 LKS
- 50/4 MLFB
- 50/4 MLKAX
Format: A5 (148 x 210 mm)
Pages: 63
Language: German
High-quality facsimile (reproduction) of the original edition.
