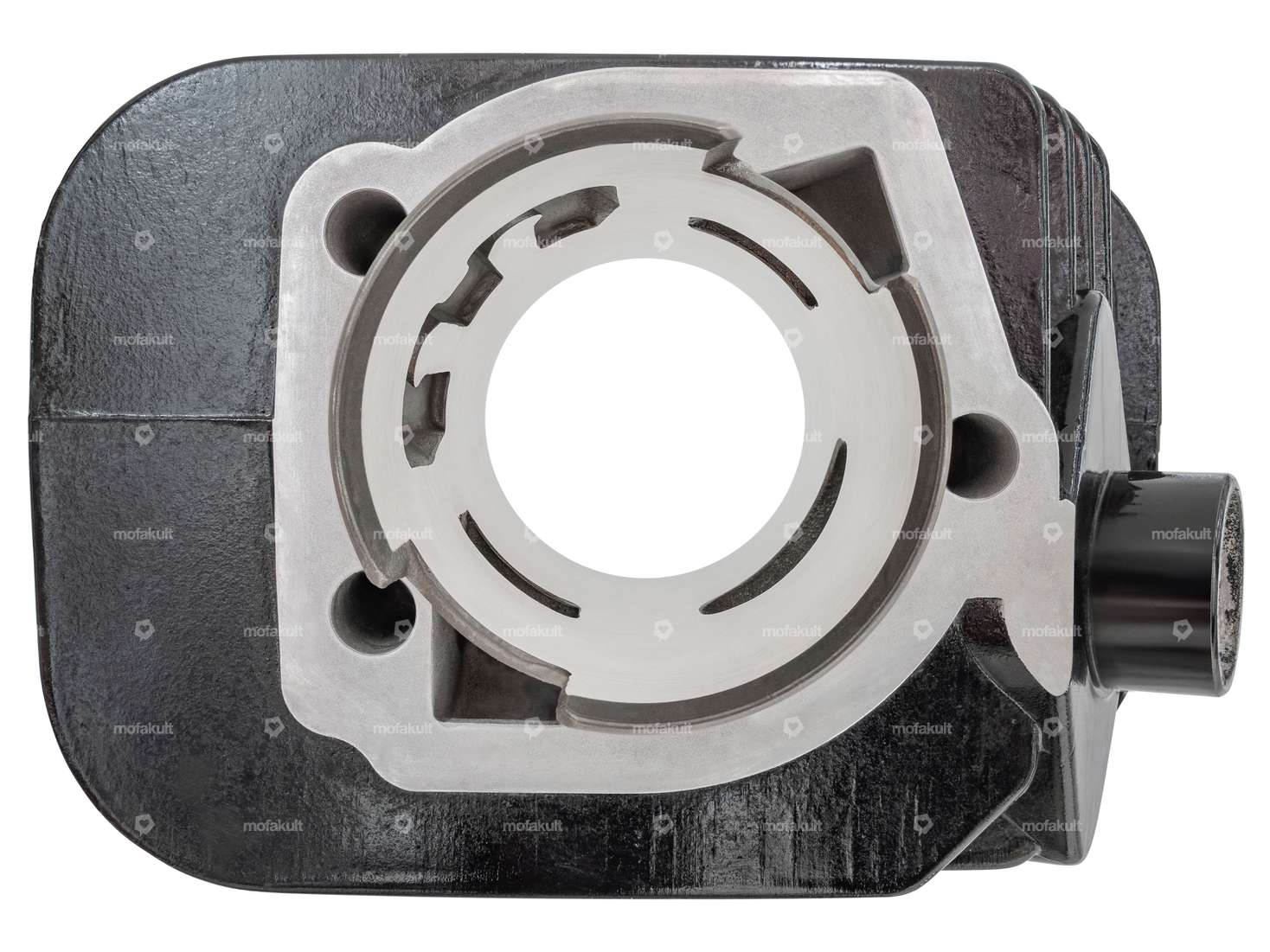

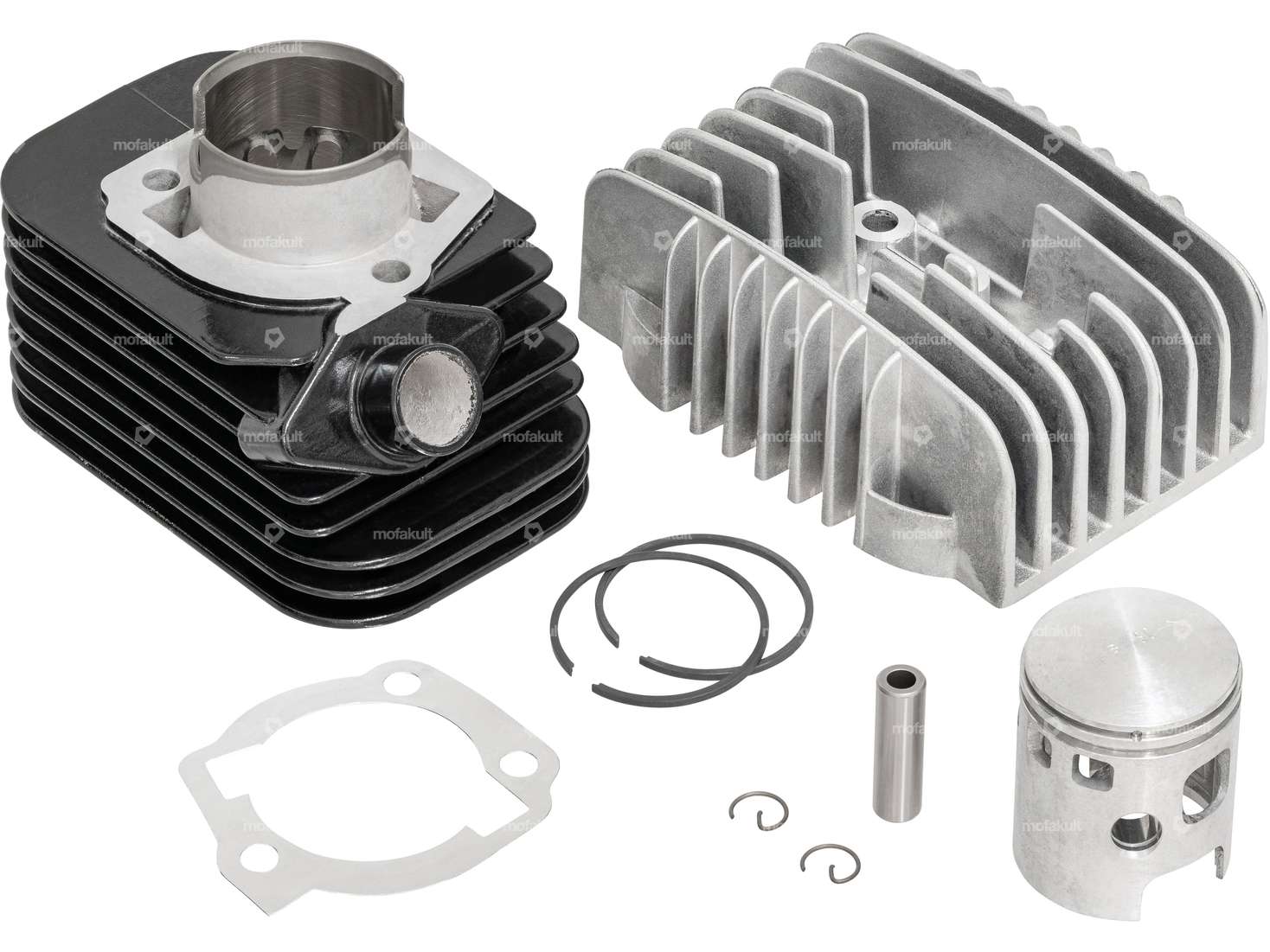

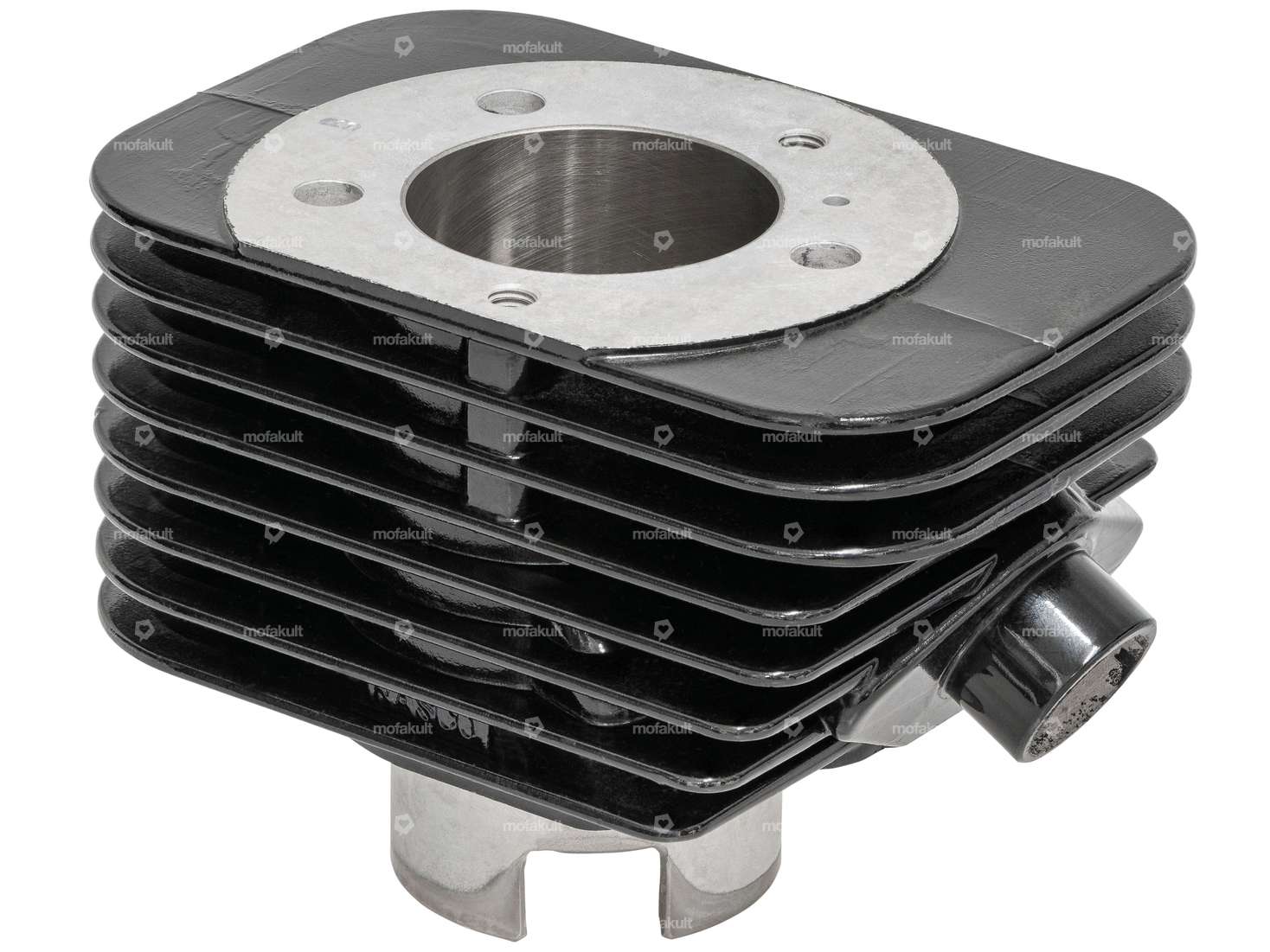

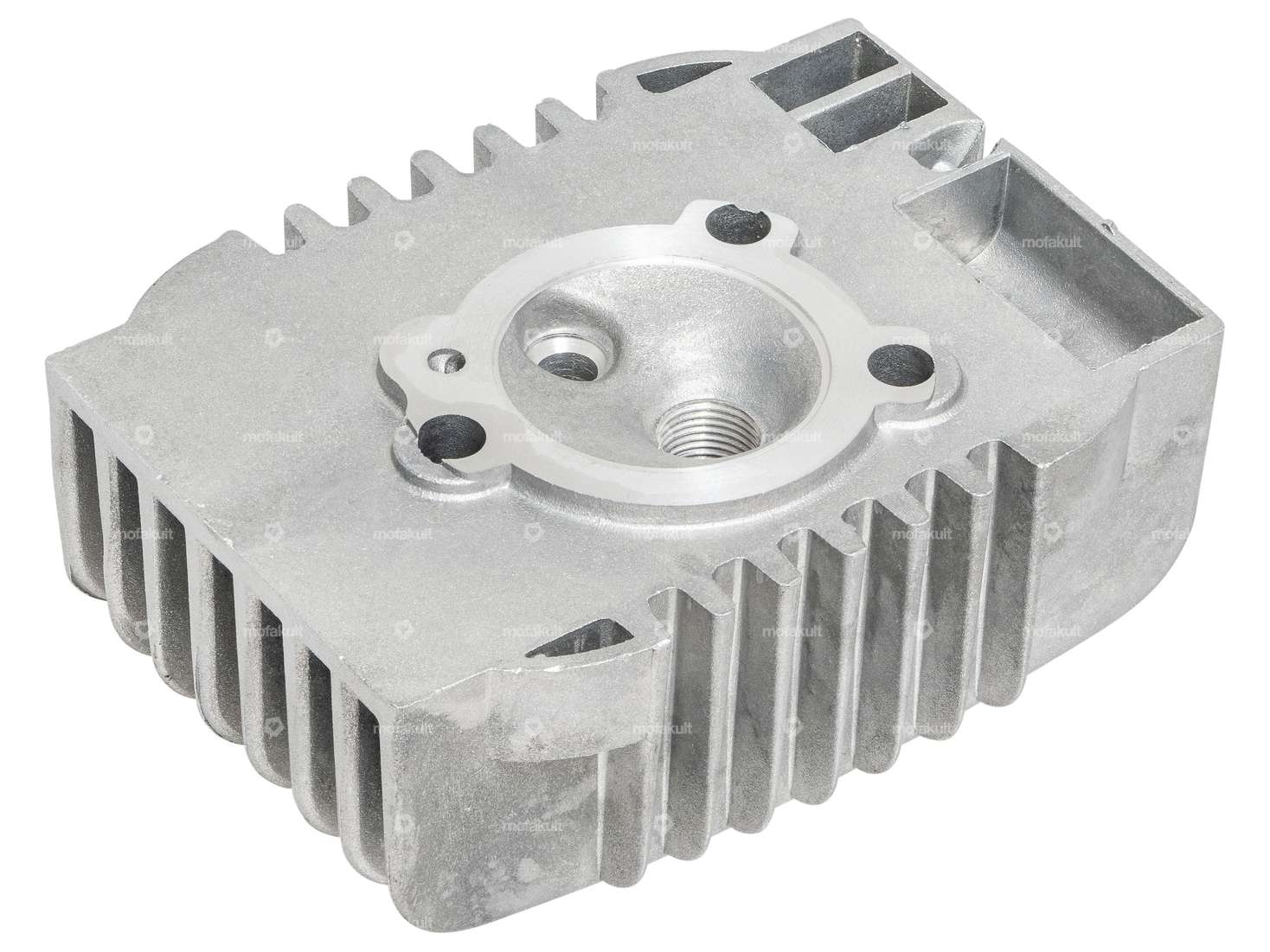

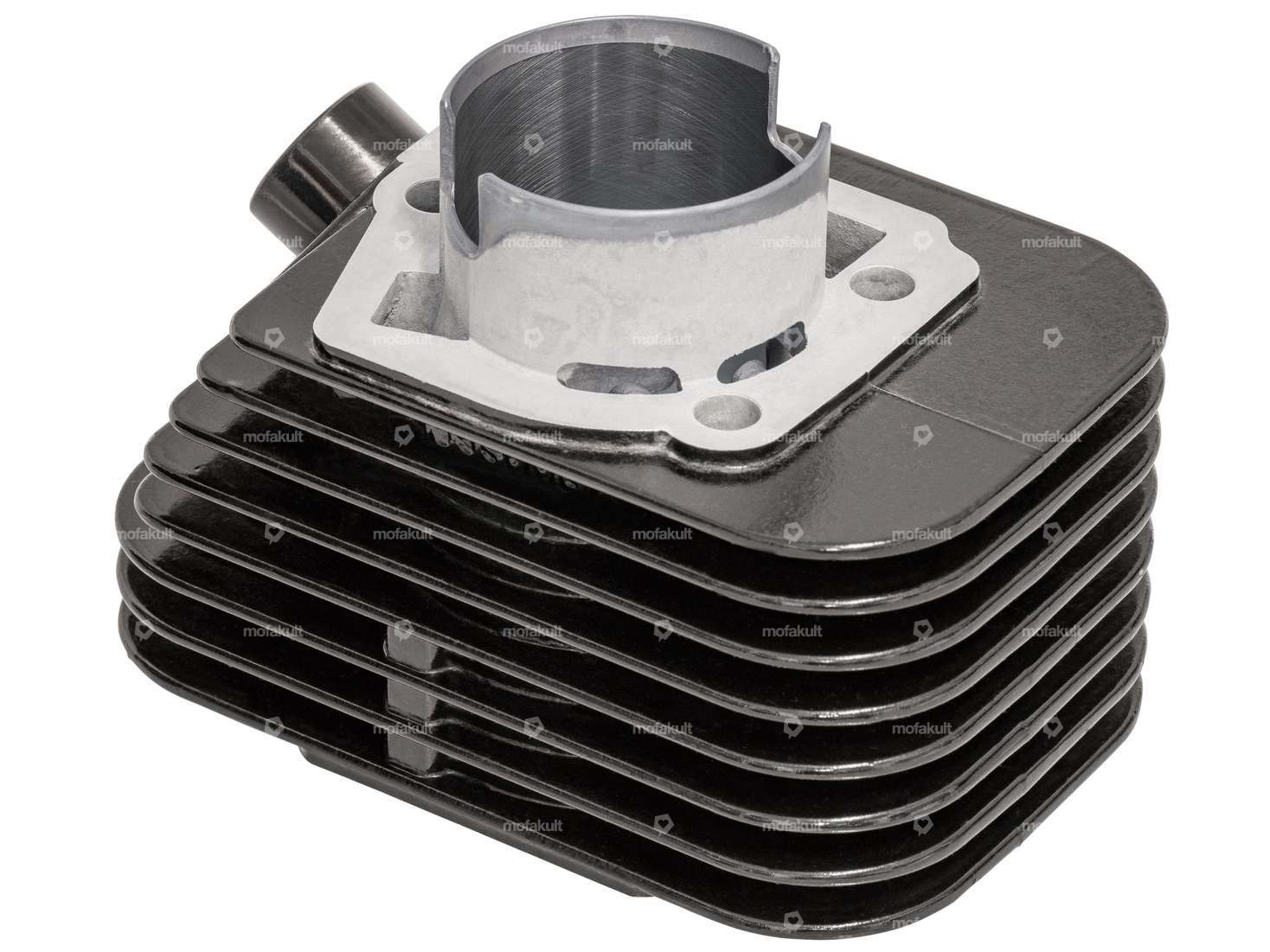

This aluminum cylinder, which is supplied with the matching cylinder head, fits Piaggio Si, Bravo 2 and 3 as well as Grillo mopeds.
The 42 mm racing cylinder from Pinasco is one of the best cylinders for Piaggio currently available on the market. Perfect workmanship and detailed tuning characterize this 60 cc cylinder.
This racing cylinder has optimum power development in the high speed range due to its design and corresponding timing. As a result, it has slightly less torque at lower engine speeds.
The piston pin has a diameter of 10 mm.
Can be mounted on an original housing without any modifications.
In order to get the full performance out of this kit, we recommend installing an adapted engine housing. You can find this in the accessories section.
Quality product from the Italian manufacturer Pinasco.
Details
| Manufacturer | Pinasco |
| Material | Aluminum |
| Area of application | Tuning |
| Surface | varnished |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 10 mm |
| Nominal diameter | 42 mm |
| Number of fixing points | 3 pcs |
| Decompressor | Yes |
| Outlet type | clamped |
Suitable for the following models
| Piaggio | Si Bravo/Superbravo Grillo |
