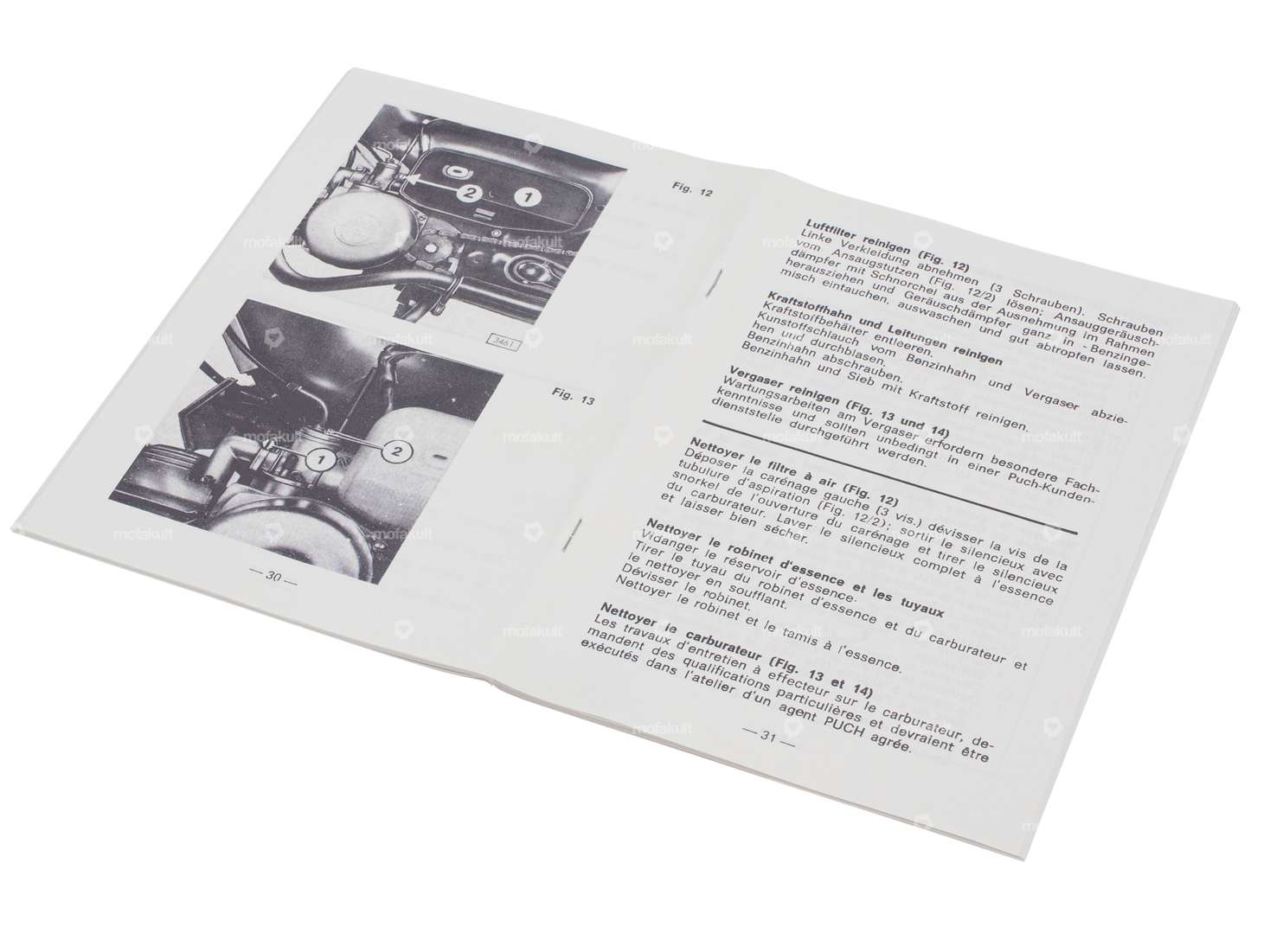

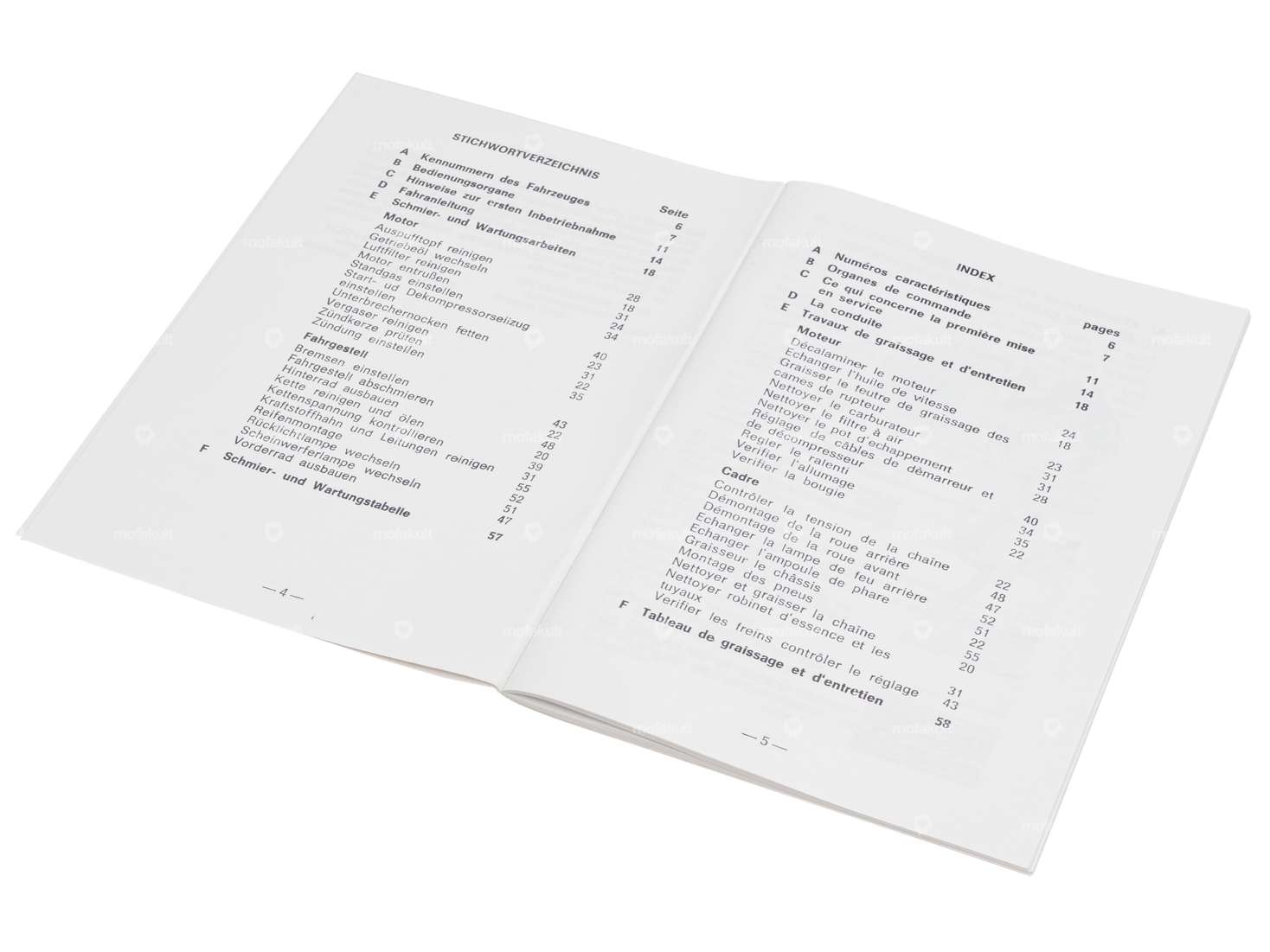

Operating instructions | Maxi / Maxi 2A

GPO oil filler plug black | Puch Z50, ZA50

Manufacturer: GPO · Material: NBR · Ø mounting hole: 11 mm · Ø outside: 16.4 mm · Clamping diameter: 13 mm · Total length: 25 mm · Color: black · Puch OEM number: 364.2.10.660.1

GPO license plate holder Inox

Manufacturer: GPO · Material: Chrome steel (known as Nirosta®) · Color: silver · Total length: 145 mm · Width: 105 mm · Height: 5.3 mm · Thread type: M5x0.8 (standard thread) · Thread length: 8 mm · Mounting type: Nuts & bolts · Number of fixing points: 2 pcs · Ø mounting hole: 5 mm · Hole spacing: 30 mm · Hole spacing: 50 mm

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Ø cable: 5 mm · Ø cable: 7 mm · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Component group Carburetor: Spraying · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

Magura cable clamp Ø 8 x 15 mm

Ø outside: 8 mm · Total length: 15 mm · Drive: External hexagon · Drive: Slot · Screw head: Hexagon · Width across flats SW: 7 mm · Thread type: M6x1 (standard thread) · Manufacturer: Magura · Thread length: 7 mm · Ø Cable bushing: 2.3 mm · Ø Bundle: 6 mm · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Area of application: Standard

Clutch 3-jaw aluminum | Puch E50

Material: Aluminum · Material: Steel · Material addition: Composite materials · Recording type: Cone mounting · Number of jaws: 3 pcs · Number of springs: 3 pcs · Ø inside: 12 mm · Ø inside: 14.6 mm · Ø outside: 93 mm · Thickness: 20.9 mm · Area of application: Original · Area of application: Standard

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Handlebar fork plate 15 cm cross chrome

Material: Steel · Surface: chrome-plated · Color: Chrome · Mounting type: Fork plate · Clamping diameter: 22 mm · Fork plate holder length: 110 mm · Width: 710 mm · Height: 150 mm · Length handlebar ends: 155 mm · Ø outside: 22 mm · Crossbar: Yes

Spare parts catalog | Puch Maxi S, N, S-2A (CH)

Material: Paper · DIN format: A4 · Number of pages: 116 pcs · Language: French · Language: German

Repair instructions | Puch Maxi 1-speed automatic

Material: Paper · DIN format: A4 · Number of pages: 21 pcs · Language: German

Outlet gasket 18 - 22 mm metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Ø inside: 22 mm · Place of use: Outlet · Ø mounting hole: 6.7 mm · Number of fixing points: 2 pcs · Hole spacing: 38 - 42.5 mm · Thickness: 2 mm
