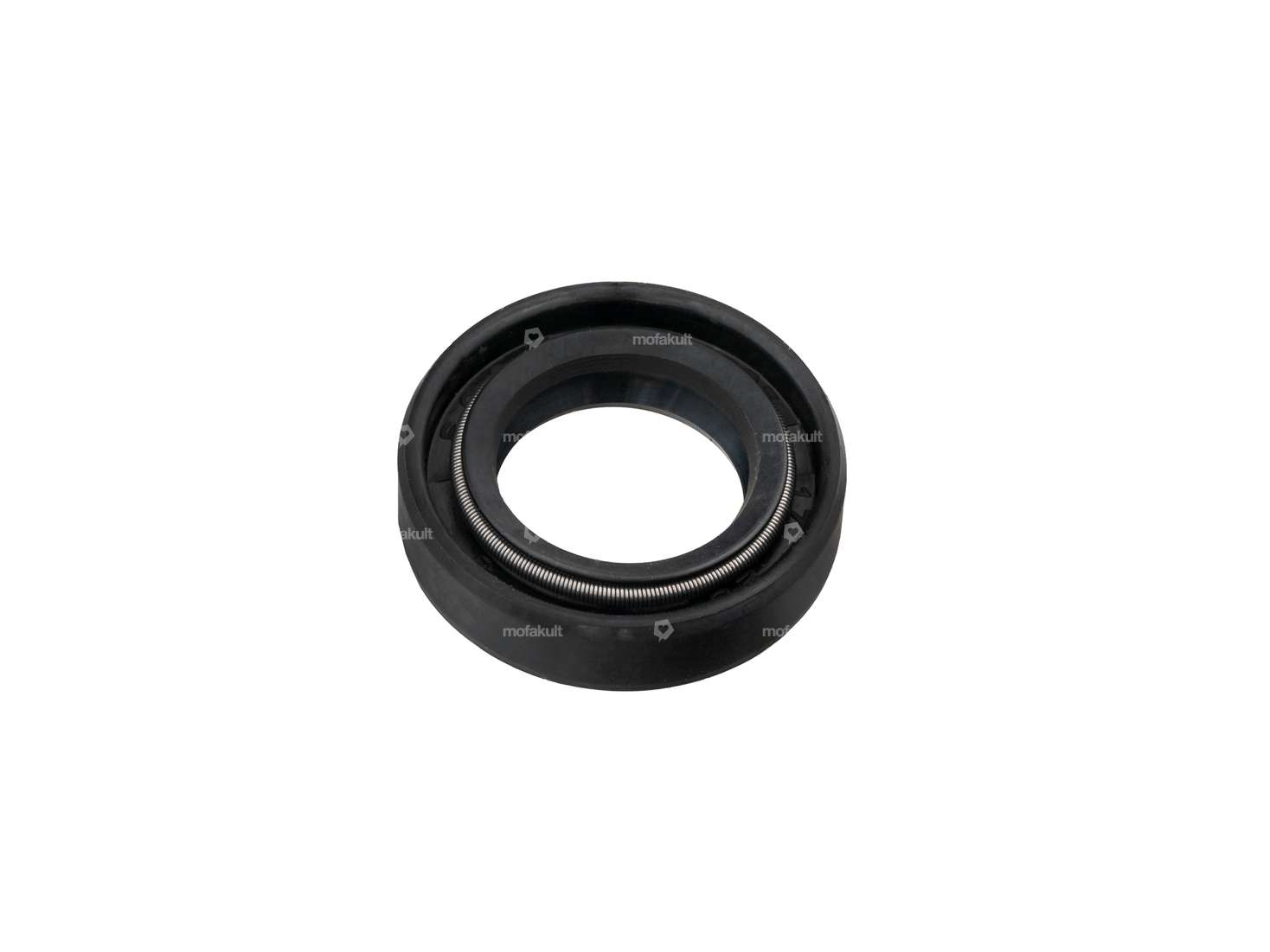

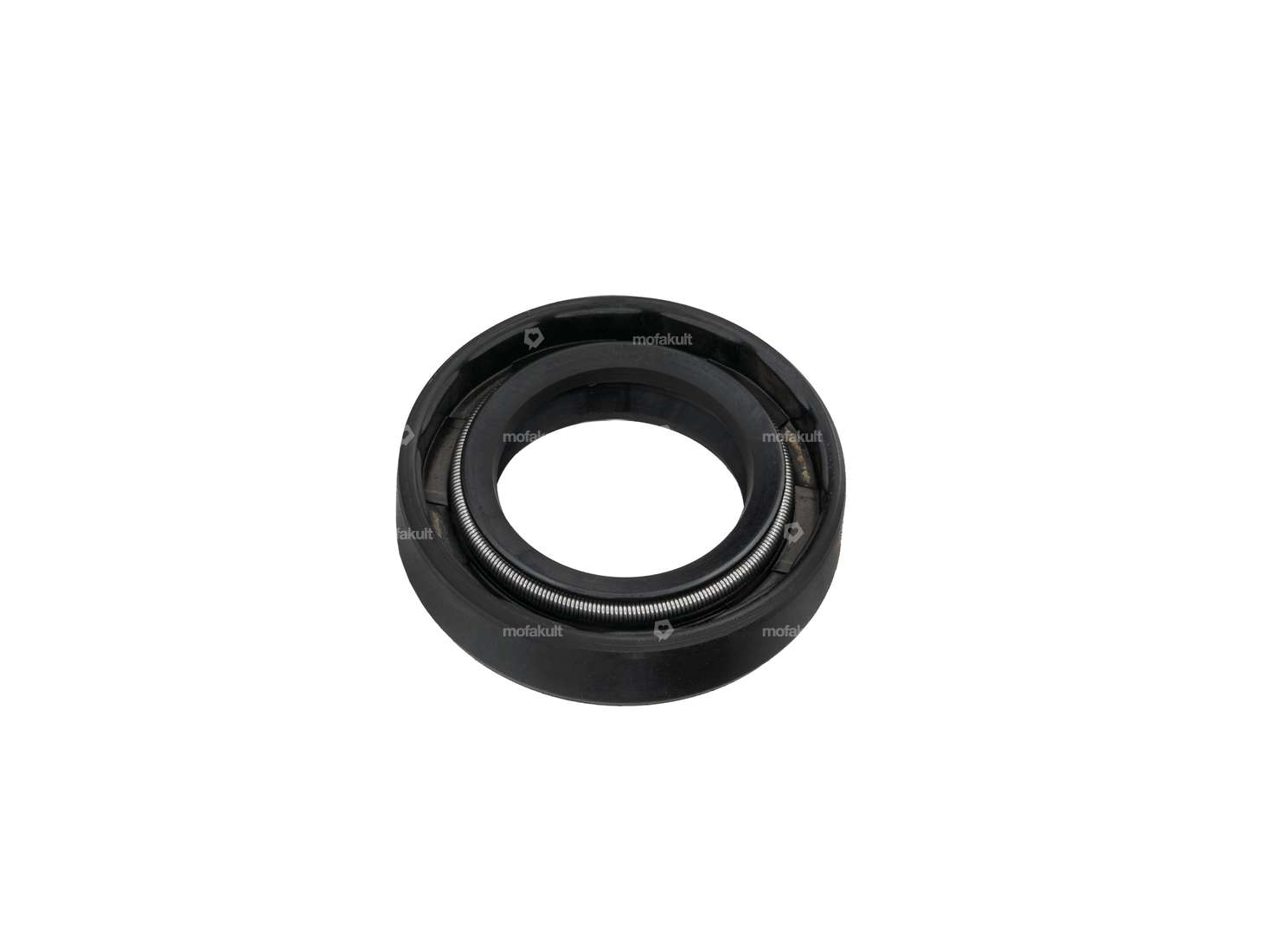

Oil seal NBR 17/28/7 A DUO gearbox shaft | Puch Z50

Oil seal NBR 17/28/7 AS Pinion shaft | Puch Z50

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 17 mm · Ø outside: 28 mm · Manufacturer: Puch · Material: NBR · Area of application: Standard · Surface: rubberized · Width: 7 mm · Place of use: Pinion shaft · Temperature resistance (min.): -30 - 100 °C

Loctite 243 medium-strength threadlocker 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Contents [ml]: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Color: blue · Adhesion: medium strength · Temperature resistance (min.): -75 - 200 °C · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

Loctite 638 High-strength adhesive 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Color: green · Contents [ml]: 10 ml · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Temperature resistance (min.): -75 - 150 °C · Gap dimension (max.): 0.25 mm · Type of application: 1K · Alignment time: 300 sec · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m

swiing® revival bearings & oil seals | Puch Z50

Manufacturer: NTN · Manufacturer: SKF · Manufacturer: swiing® revival parts · Area of application: Standard · Material: Plastic · Material: Steel · Number of components: 6 pcs

swiing® revival engine revision set Z50 | Puch X30 Sport NS/NL

Manufacturer: NSK · Manufacturer: NTN · Manufacturer: swiing® revival parts · Area of application: Standard · Number of components: 16 pcs

swiing® revival engine revision set large | Puch X30 Sport NS/NL

Manufacturer: swiing® revival parts · Number of components: 29 pcs · Area of application: Standard

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Ø cable: 5 mm · Ø cable: 7 mm · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Color: silver · Pony spare part no.: A2099 · Sachs spare part no.: 0265 100 00

swiing® revival rubber grommet ignition | Puch X30 Z50

Ø Cable bushing: 2.5 mm · Ø Cable bushing: 5.2 mm · Total height: 11.3 mm · Manufacturer: swiing® revival parts · Material: Rubber · Area of application: Standard · Color: black · Surface: raw · Width: 15.6 mm · Height: 3.5 mm · Total length: 19.3 mm

swiing® revival gearbox cover gasket (old model) | Puch Z50 engine

Manufacturer: swiing® revival parts · Thickness: 0.35 mm · Total length: 166 mm · Material: Sealing paper · Width: 155 mm · Number of components: 1 pcs · Color: sand-colored · Number of fixing points: 8 pcs

swiing® revival plain bearing clutch basket | Puch Z50

Manufacturer: swiing® revival parts · Material: special bearing bronze · Nominal diameter: 15 mm · Ø inside: 15 mm · Ø outside: 17 mm · Total height: 16.2 mm

NSK L17 shoulder ball bearing

Width: 10 mm · Bearing type: Shoulder bearing · Stock number: L17 · Inner ring width: 10 mm · Manufacturer: NSK · Ball bearing closed: No · Ø inside: 17 mm · Ø outside: 40 mm · Bearing clearance: CN (standard) · Bearing cage: Brass cage ball-guided · Material: Brass · Area of application: Standard · Material: Steel · Surface: blank / oiled

Oil seal NBR 17/35/7 A DUO

Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 35 mm · Material: NBR · Surface: rubberized · Width: 7 mm · Temperature resistance (min.): -30 - 100 °C

swiing® revival engine gasket | Puch Z50 engine X30 NS, NL

Manufacturer: swiing® revival parts · Thickness: 0.4 mm · Total length: 240 mm · Material: Sealing paper · Width: 167 mm · Number of components: 1 pcs · Ø inside: 74 mm · Color: sand-colored · Number of fixing points: 12 pcs

Oil seal FPM 17/35/7 A | Puch Z50

Width: 7 mm · Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 17 mm · Ø outside: 35 mm · Material: FPM - Rubber · Surface: rubberized · Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C

NSK L17 shoulder ball bearing 17/40/10 engine | Puch Z50, ZA50

Bearing type: Shoulder bearing · Ø inside: 17 mm · Stock number: L17 · Ø outside: 40 mm · Manufacturer: NSK · Width: 10 mm

Oil seal NBR 17/35/7 A DUO crankshaft | Puch Z50, ZA50

Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm · Manufacturer: Puch · Material: NBR · Surface: rubberized
