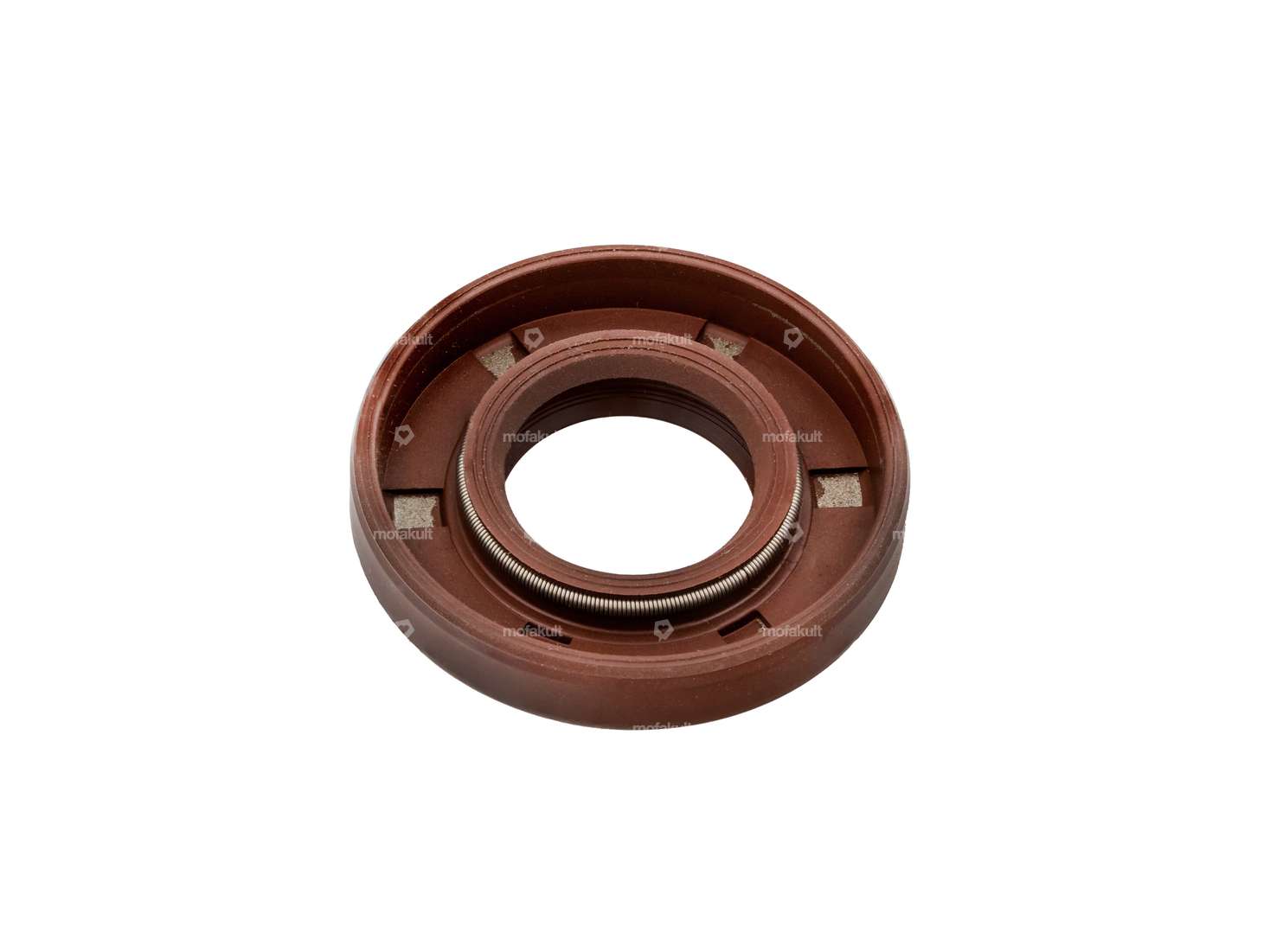

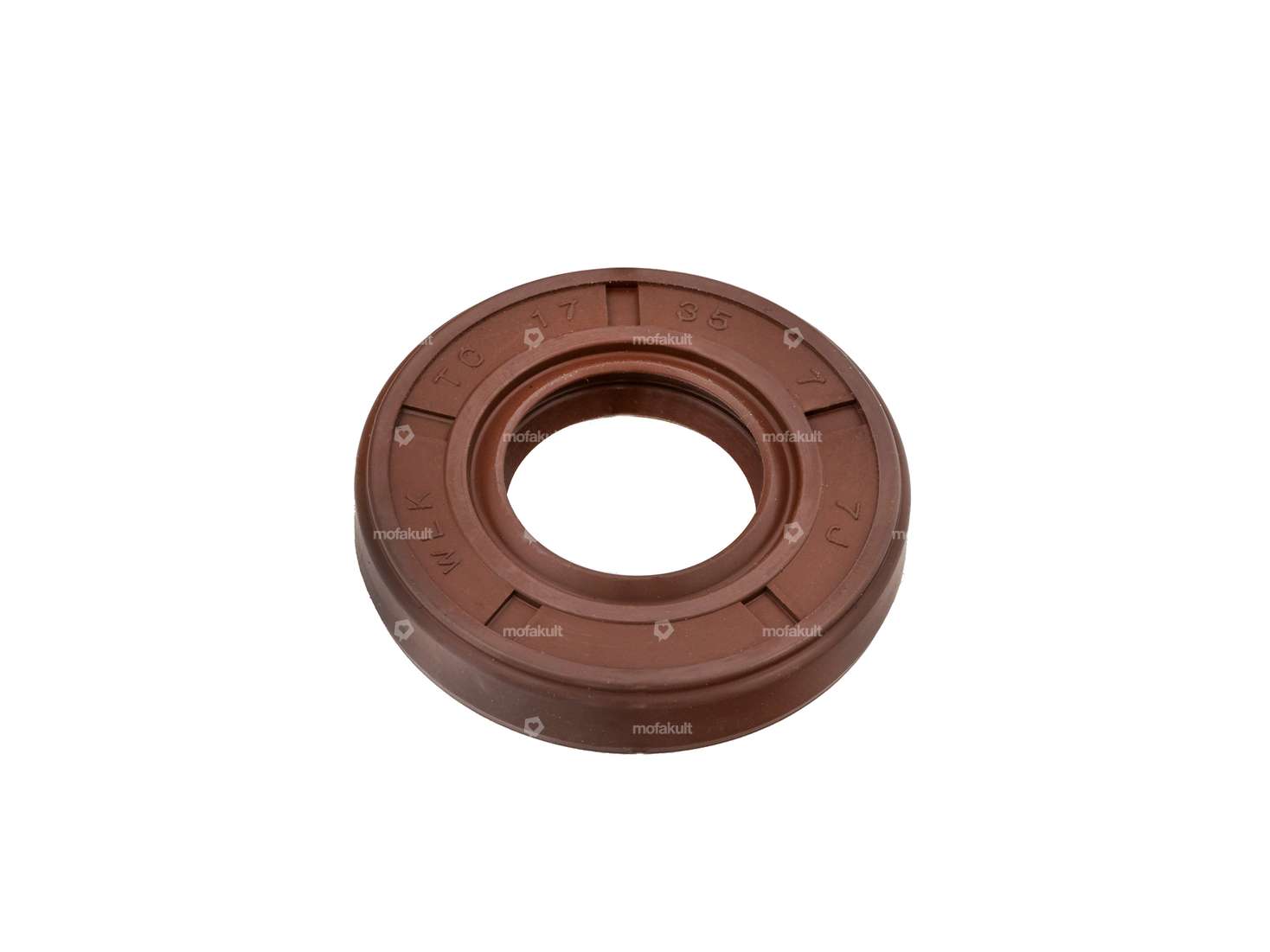

Radial shaft seal 17x35x7 mm for use on the crankshaft (on the ignition side) on your Puch moped / moped with Z50 engine.
This radial shaft seal with fluorine rubber outer jacket is resistant up to a temperature of 200 °C.
Manufactured NBR oil seals are temperature-resistant up to 100 °C.
Viton oil seals are particularly suitable for racing, as they are designed for higher speeds and can therefore withstand higher temperatures.
Details
| Temperature resistance (min.) | -30 - 200 °C |
| Simmering type | A - With rubberized outer part / one sealing lip. |
| Material | FPM - Rubber |
| Surface | rubberized |
| Width | 7 mm |
| Ø outside | 35 mm |
| Place of use | Crankshaft |
| Ø inside | 17 mm |
Suitable for the following models
| Puch | Z50 (X30 Sport) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
