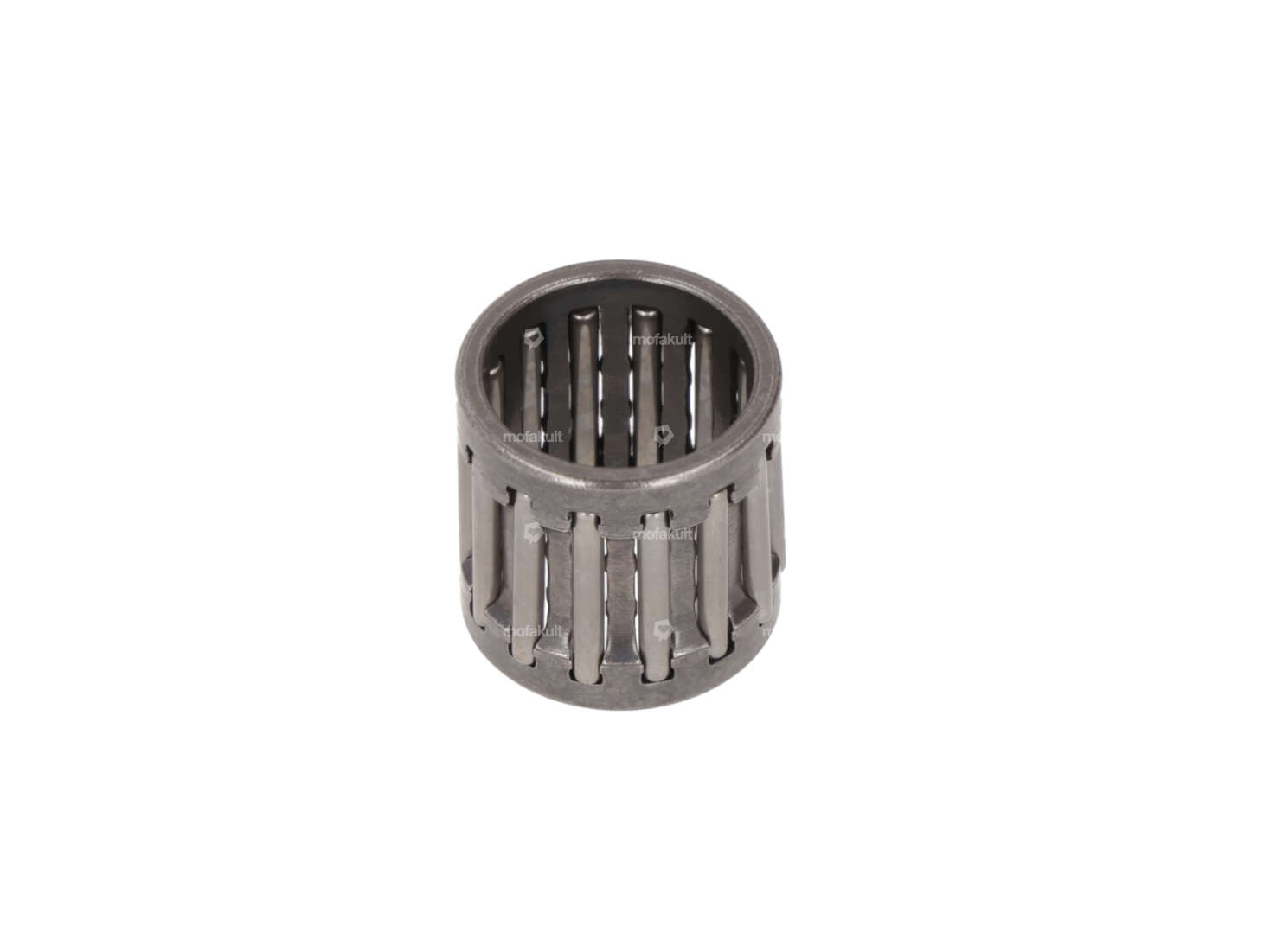

Mazzucchelli needle bearing 12/15/15 piston pin | Piaggio Ciao, SI, Bravo, Boxer

Jasil crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Jasil · Area of application: Racing · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Thread type: M8x1.25 (standard thread) · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 91.5 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 32.9 mm · Length 1st paragraph: 21.5 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 64.9 mm

Malossi piston 43 mm (12 mm KoBo) old version | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Ø outside piston (A): 42.92 mm · Compression height (C): 26.1 mm · Curvature (D): 4.7 mm · Total piston height (E): 52.8 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 43 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Piston weight: 90 g

Polini 46 mm piston (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Ø outside piston (A): 45.94 mm · Compression height (C): 26 mm · Curvature (D): 2.7 mm · Total piston height (E): 50.7 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 46 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm

Athena crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Area of application: Racing · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Thread type: M8x1.25 (standard thread) · Connecting rod length center-center: 85 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 91.6 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 33 mm · Length 1st paragraph: 21.9 mm · Length 2nd paragraph: 43.2 mm · Length 3rd paragraph: 63.5 mm

Pinasco 46 mm cylinder kit EVOTEN BIG 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Pinasco · Material: Aluminum · Area of application: Tuning · Surface: varnished · Displacement: 71 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 46 mm · Ø cylinder neck: 49.9 mm · Ø Outlet outside: 22.5 mm · Ø Outlet outside: 25 mm · Ø Outlet outside: 28 mm · Ø outlet inside: 18.5 mm · Ø outlet inside: 20.9 mm · Ø outlet inside: 24.4 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 47.5 mm · Number of fixing points: 3 pcs · Outlet type: clamped · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No

Mazzucchelli needle bearing 10/13/14.5 piston pin | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Bearing type: Needle roller and cage assembly · Width: 14.5 mm · Ø inside: 10 mm · Ø outside: 13 mm · Dimension needle bearing: 10/13 x 14.5

GPO sprocket 14 teeth (wide) | Puch

Manufacturer: GPO · Material: Steel · Surface: Hardened · Number of teeth: 14 pcs · Chain type: 415H · Recording type: Interlocking · Chain pitch: 1/2" x 3/16" · Total thickness: 4.6 mm

swiing® revival stud bolt inlet/outlet M6 x 30 mm (10.9 strength)

Manufacturer: swiing® revival parts · Total length: 30 mm · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Diameter: 5.95 mm · Thread length: 12 mm · Strength class: 10.9

Sliding bush fork original | Puch

Manufacturer: Made in Italy · Total length: 30 mm · Color: white · Material: Plastic · Surface: raw · Ø inside: 23 mm · Ø outside: 27 mm

swiing® revival wheel bearing 25/37/6.3 coaster wheel

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 25 mm · Manufacturer: swiing® revival parts · Ø ball: 6.34 mm · Groove ring: No · Area of application: Standard · Material: Steel · Stock number: K042 · Bearing type: Ball ring · Width: 6.8 mm · Ø outside: 36 mm · Ø inside: 25 mm · Ball bearing closed: No

GPO mudguard strut silver | Puch Maxi S, N

Manufacturer: GPO · Material: Steel · Outer width: 25.5 mm · Surface: varnished · Color: silver · Wheel size [inch]: 17 " · Distance mudguard - center hole: 197 mm · Distance mudguard - center hole: 231 mm · Number of fixing points: 8 pcs · Total length: 240 mm · Mounting type: Nuts & bolts · Hole spacing: 40 mm · Wide intake: 53 mm · Ø mounting hole: 6 mm

swiing® revival screw set frame Inox | Puch Maxi N

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Surface: stainless · Area of application: Standard

GPO side bars chrome | Puch Maxi N

Manufacturer: GPO · Total length: 360 mm · Color: Chrome · Material: Steel · Surface: chrome-plated · Width: 140 mm · Height: 60 mm · Ø mounting hole: 8.1 mm · Mounting type: Screws · Hole spacing: 342 mm · Number of fixing points: 2 pcs

Metrakit gasket set 43.5 mm

Manufacturer: Metracite · Area of application: Tuning · Ø cylinder: 43.5 mm · Hole spacing outlet: 42 mm · Hole spacing inlet: 38 mm · Number of components: 5 pcs · Hole pattern [mm]: 44 x 44 mm

swiing® revival side protection screw set black | Puch Maxi S

Manufacturer: swiing® revival parts · Color: silver · Material: Plastic · Material: Steel · Surface: galvanized (blue) · Surface: raw · Thread type: M5x0.8 (standard thread) · Drive: Slot · Drive: Triangular head · Total length: 47 mm · Total length: 60 mm · Thread length: 35 mm · Thread length: 50 mm

GPO 44 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Total length: 135 mm · Material: Aluminum · Surface: sandblasted · Width: 125 mm · Height: 55 mm · Ø cylinder: 44 mm · Area of application: Tuning · Candle thread: short · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: Yes
