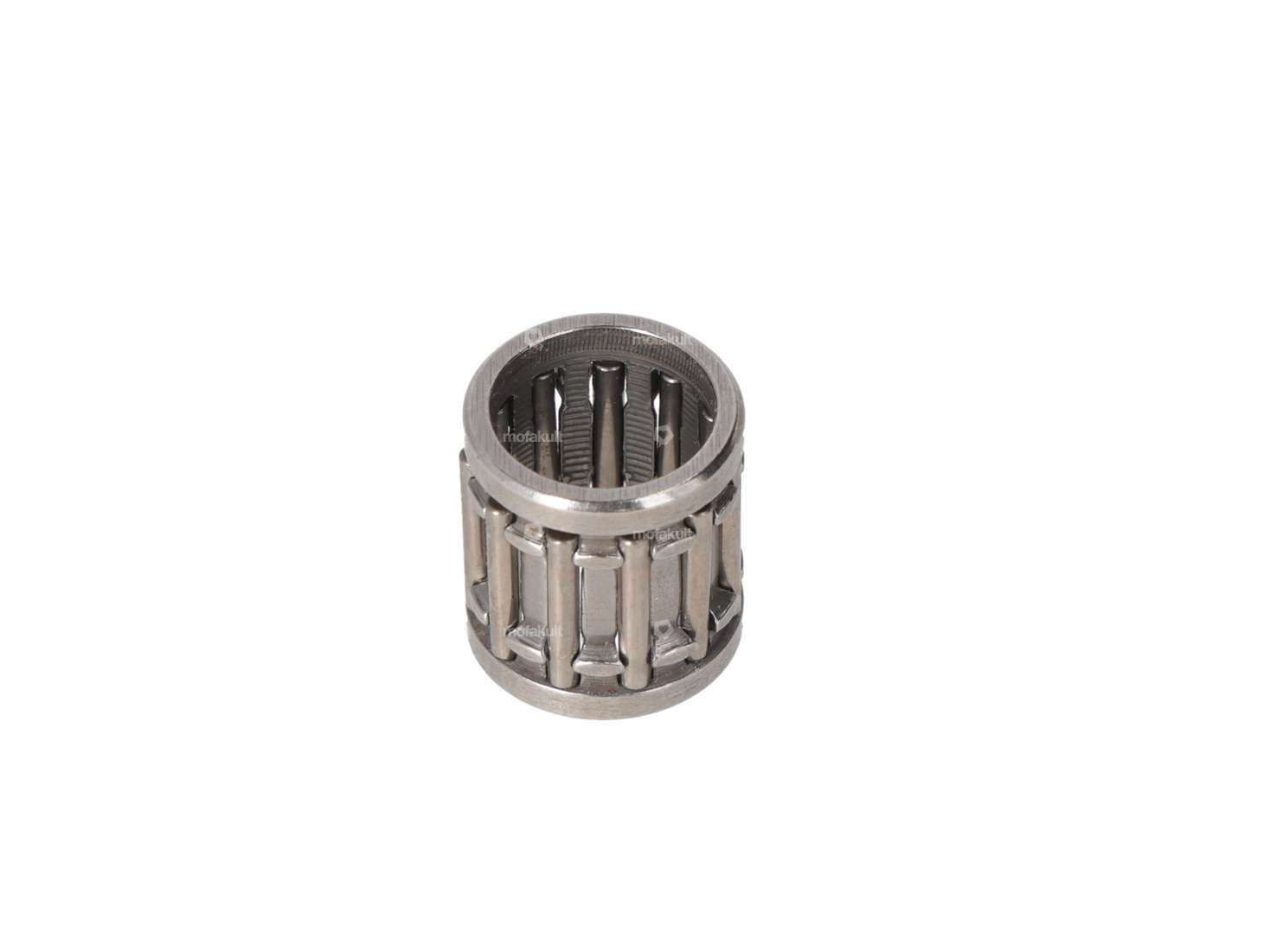

Piston pin bearing for various Piaggio mopeds / mopeds, with crankshafts without sliding bushes, a 10 mm piston pin (axe 10) and a 13 mm connecting rod eye.
Ø inner: 10 mm
Ø outer: 13 mm
Width: 14.5 mm
Attention: For crankshafts with a pressed-in connecting rod eye, a needle roller and cage assembly cannot be used retroactively.
You can find other needle bearings or piston pin retainers in the accessories section.
Quality product from the Italian manufacturer Mazzucchelli.
Details
| Manufacturer | Mazzucchelli |
| Bearing type | Needle roller and cage assembly |
| Ø inside | 10 mm |
| Ø outside | 13 mm |
| Width | 14.5 mm |
| Dimension needle bearing | 10/13 x 14.5 |
Suitable for the following models
| Universal | |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
