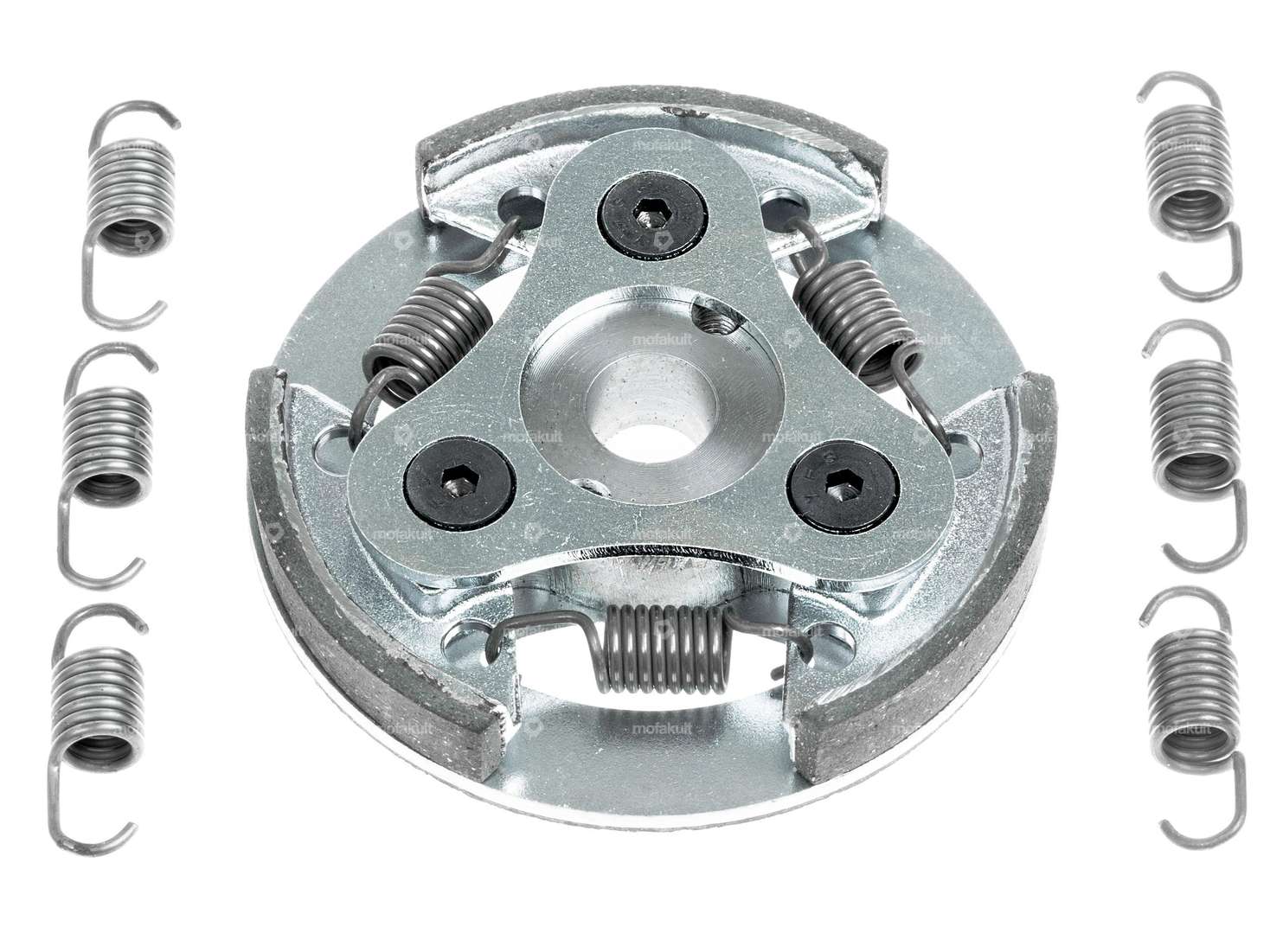

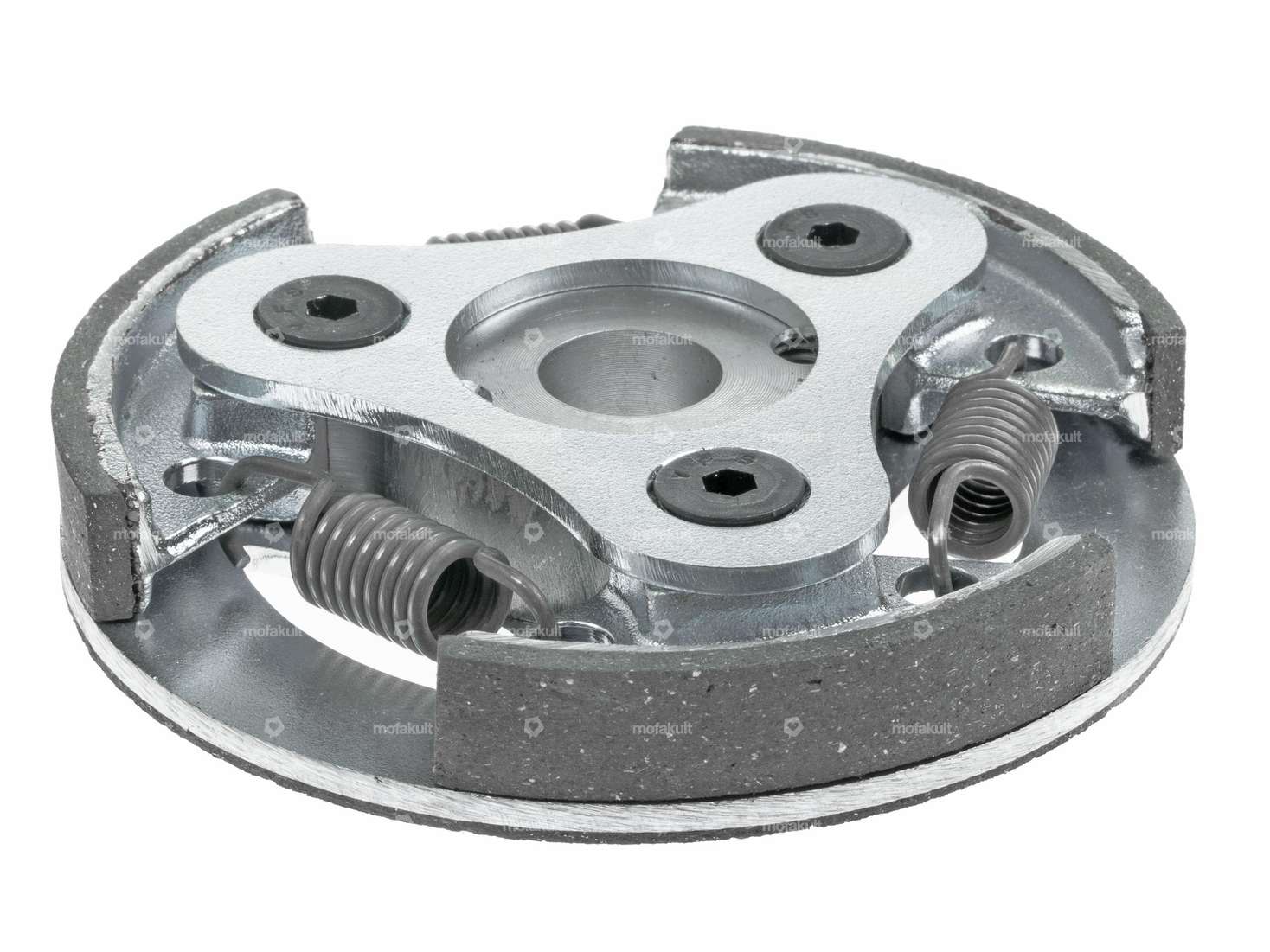

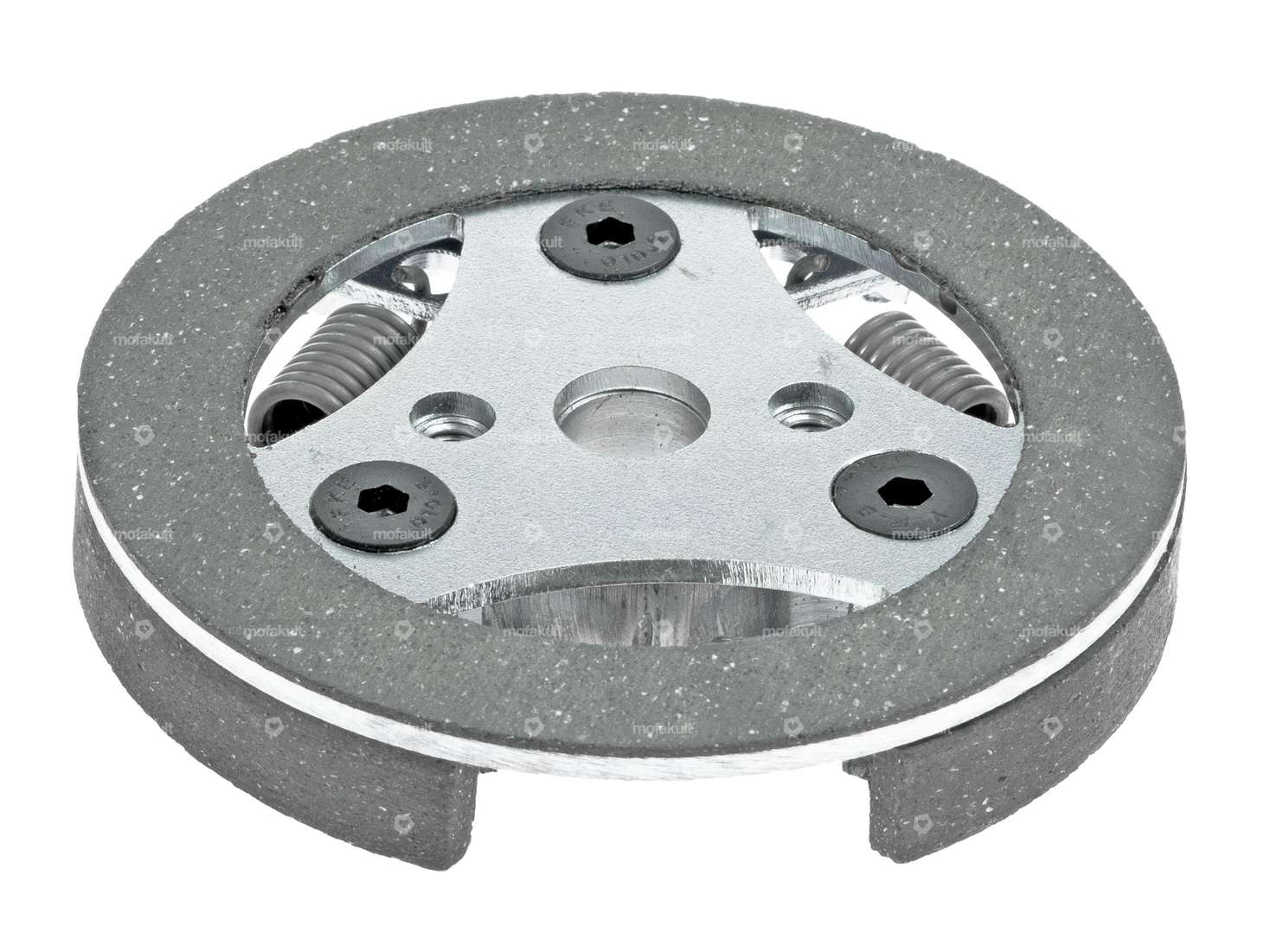

One of the best clutches available for the Puch E50 engine.
Qualitatively very high quality.
Three different spring strengths are included for the corresponding application range, with the heaviest springs you can achieve a clutch engagement speed of approx. 5000 rpm
The low-wear copper linings provide the necessary grip.
Weight: 440 grams. Lightweight construction, ideal for any racing moped.
We recommend using the clutch only from 65 cc. For smaller cylinders, the centrifugal clutch tends to be too hard, which can lead to too much slippage.
We recommend rounding off the holes in the linings into which the springs are inserted.
This ensures that the springs are not damaged and will hold even under heavy loads.
Quality product from the American manufacturer Jammer Clutches.
Details
| Ø outside | 92.5 mm |
| Manufacturer | Jammer |
| Material | Steel |
| Material addition | Steel |
| Area of application | Racing, High End, Tuning, MX |
| Surface | galvanized (blue) |
| Recording type | Cone mounting |
| Number of jaws | 3 pcs |
| Number of springs | 3 pcs |
| Thickness | 19 mm |
Suitable for the following models
| Puch | E50 |
