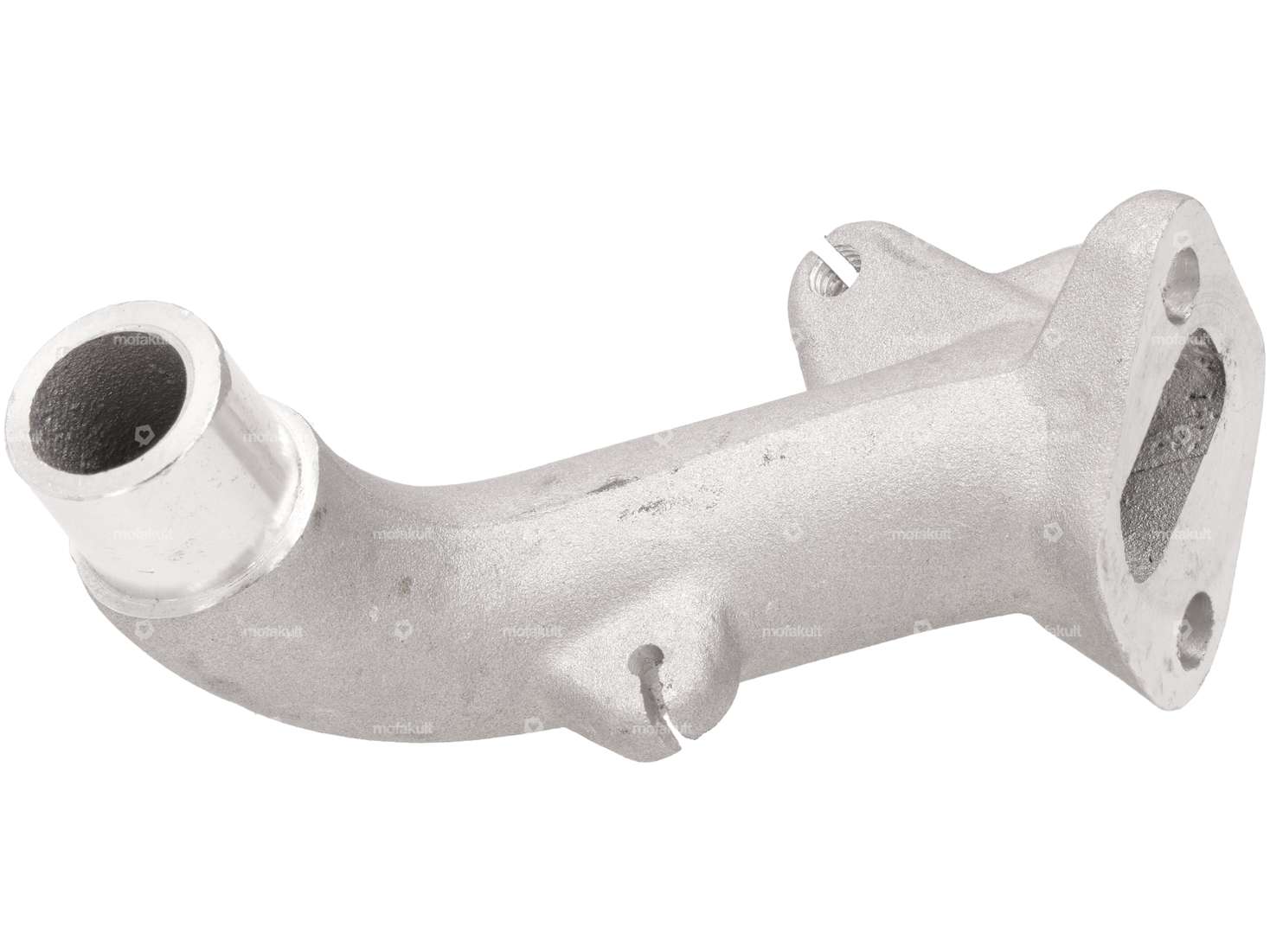

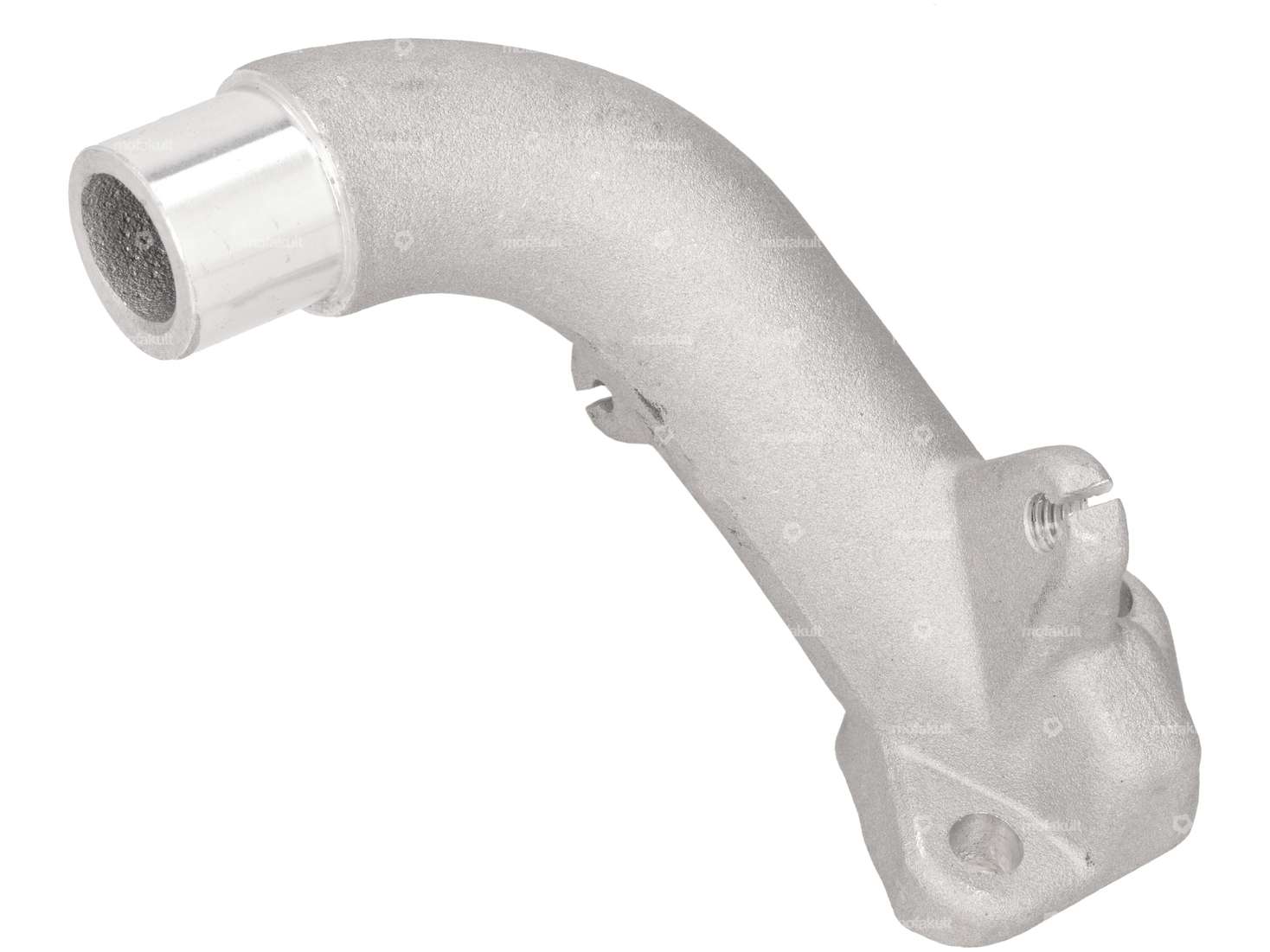

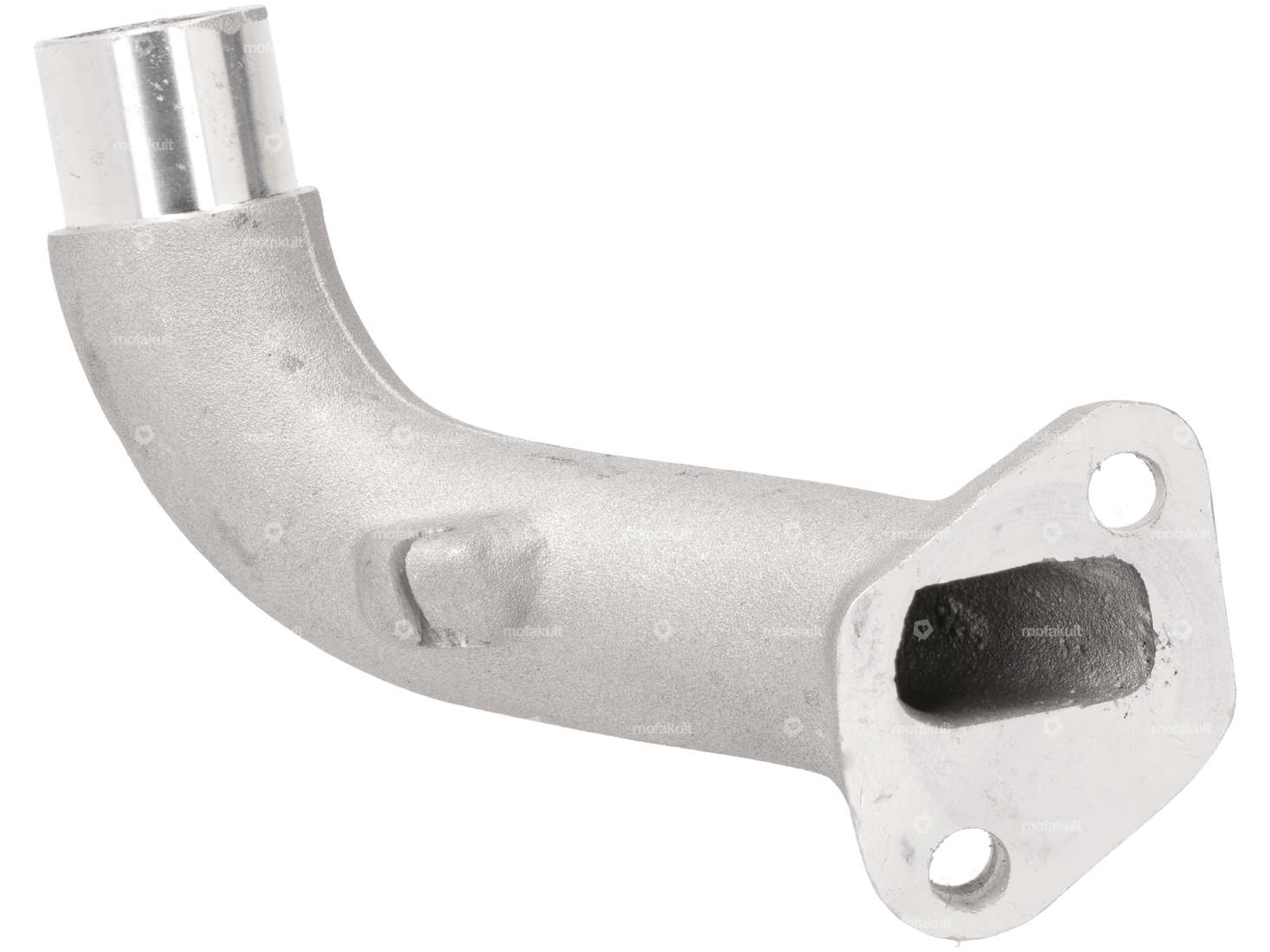

14 mm intake manifold for Athena cylinder kits suitable for mopeds / mopeds with Sachs 504, 505 engines
.Inlet: 23 x 12 mm
For a perfect seal, the flange surface has been milled flat.
Alternative connecting pieces and transition pieces can be found under accessories.
Details
Material | Aluminum |
Ø inside | 14 mm |
Ø External connection | 20 mm |
Total length | 80 mm |
Hole spacing inlet | 32 mm |
Number of fixing points | 2 pcs |
Mounting type | Stud bolts & nuts |
Thread type | M6x1 (standard thread) |
Height flange center hole | 65 mm |
Area of application | Tuning |
Total height | 76 mm |
Suitable for the following models
Sachs | 504 (ohne Tretwelle) 505 (mit Tretwelle) |
