Name: Exhaust 22 mm | Puch Supermaxi LG1/LG2
Brand: Made in Portugal
SKU: 15026
Price: 87.60 EUR
Availability: InStock

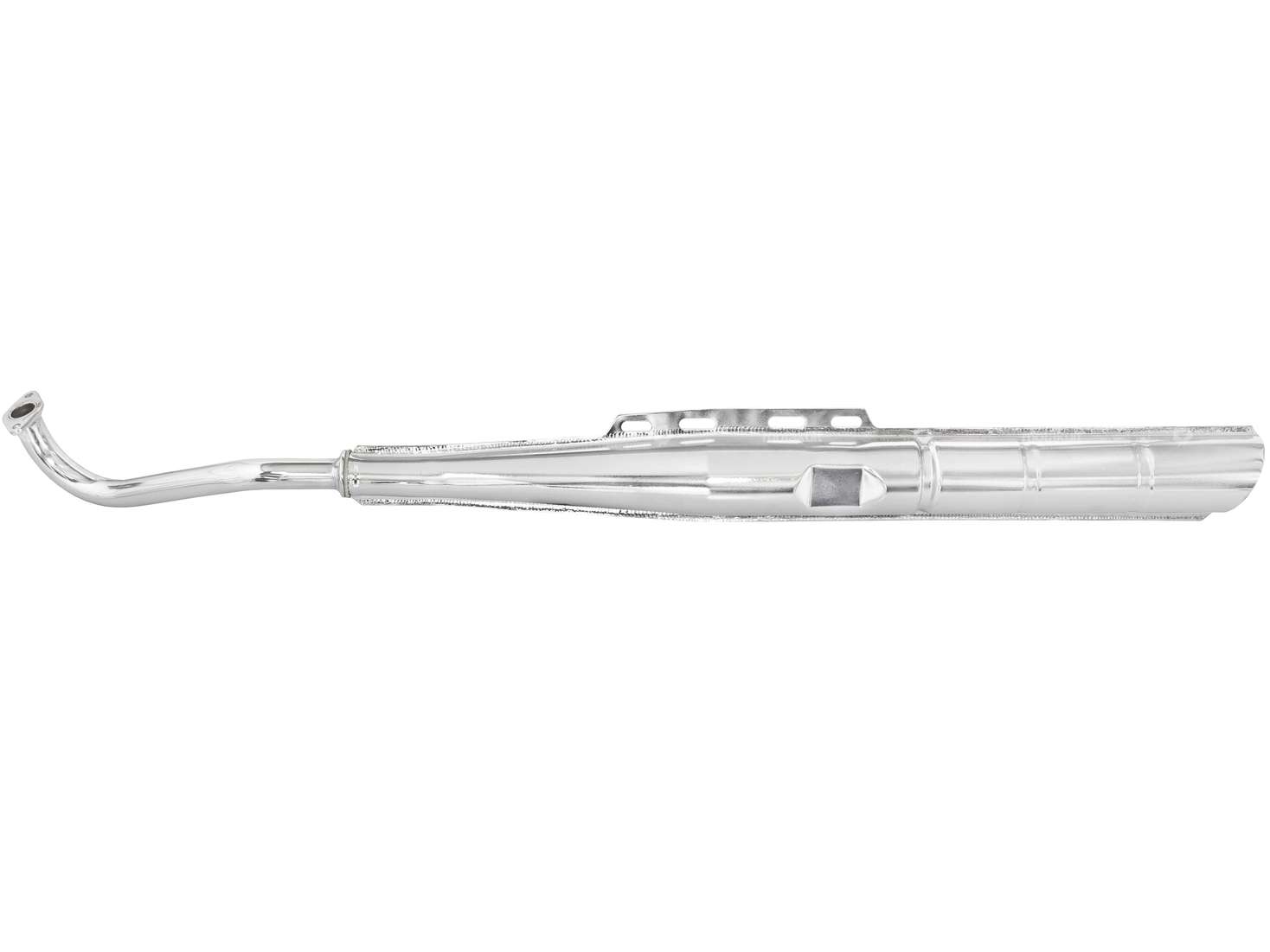

Special 22 mm exhaust suitable for Puch Supermaxi LG1 / LG2 mopeds.

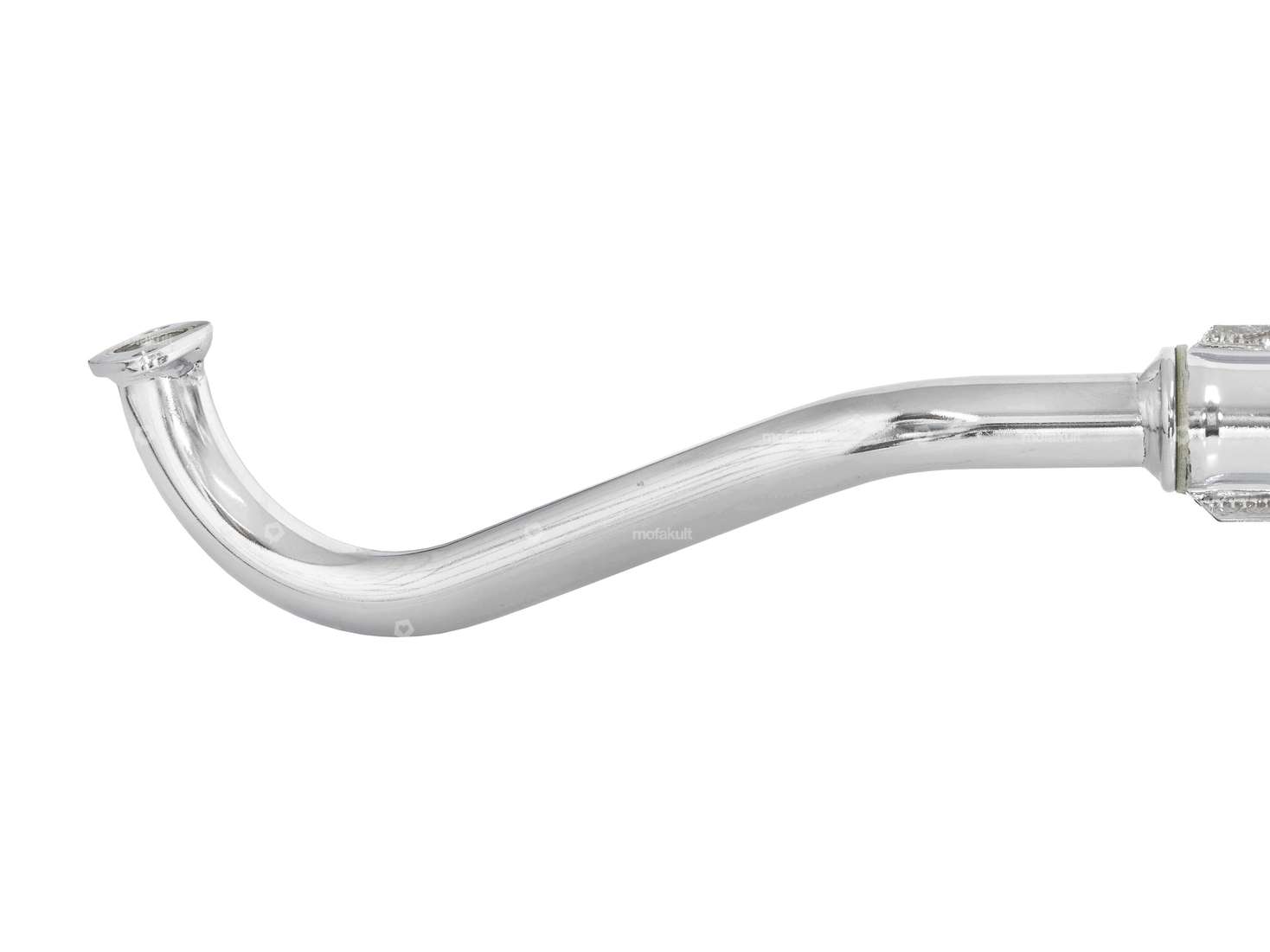

With a slanted mounting flange so that it can be fitted to the Puch Supermaxi cylinders mentioned.
Not suitable for conventional Puch Maxi cylinders.

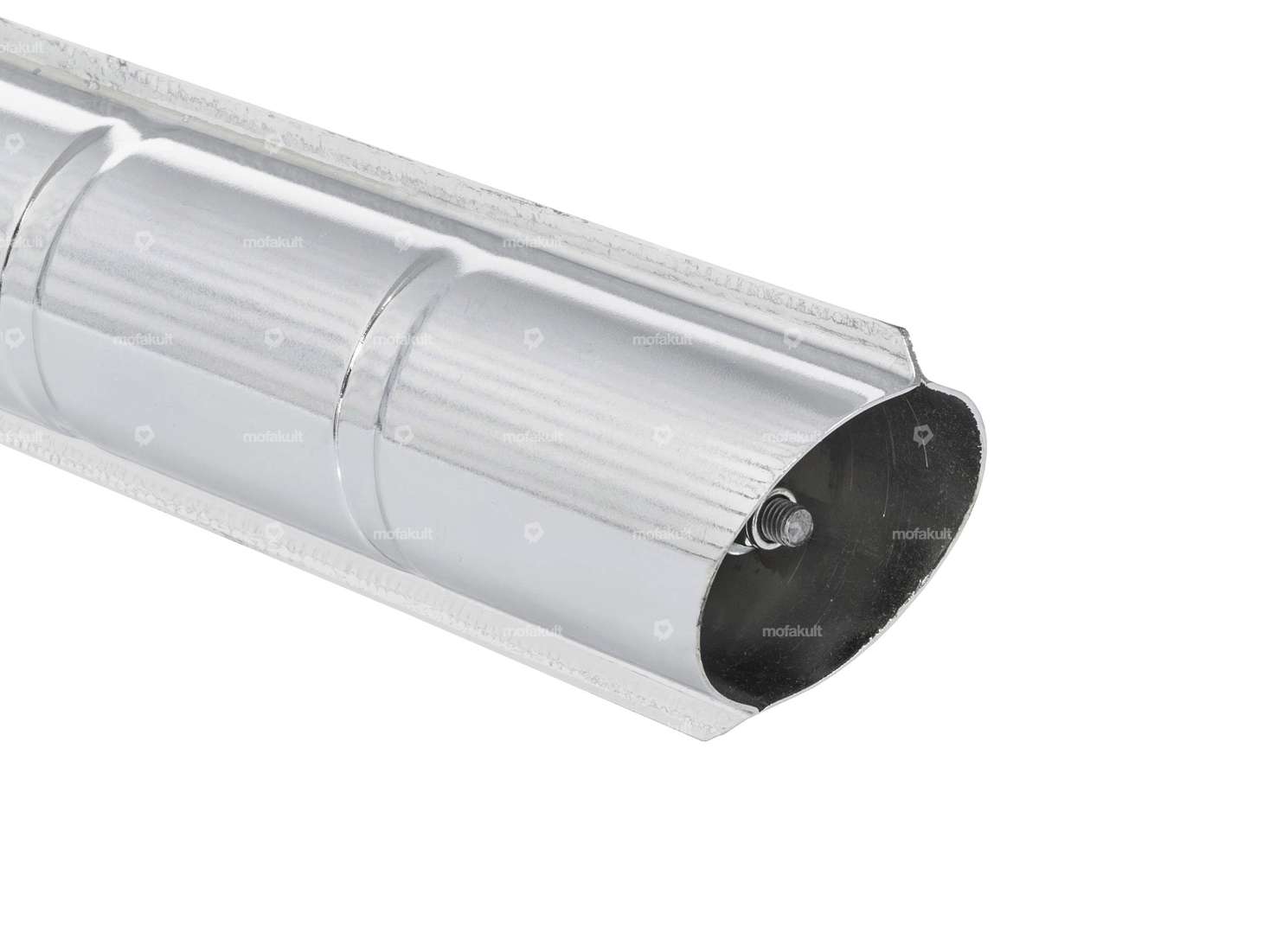

The M7 bolt at the end of the flame tube must be locked with an additional nut, otherwise the nut may loosen and the muffler insert may fall out.

Attention: The sound of the replica exhausts can be slightly louder than the original ones; this can be remedied by wrapping wool around the muffler. You can find this in the accessories below.

A quality product made in Portugal.

Details

Manufacturer	Made in Portugal
Material	Steel
Color	Chrome
Surface	chrome-plated
Total length	915 mm
Ø Silencer	58 mm
Ø Internal connection	19 mm
Ø outside	56.5 mm
Ø Flame tube outside	22 mm
Number of fixing points	4 pcs

Flame tube attachment	Flange
Mounting type	Welded lug

Suitable for the following models

Puch

E50

ZA50 (Fahrtwindgekühlt)
