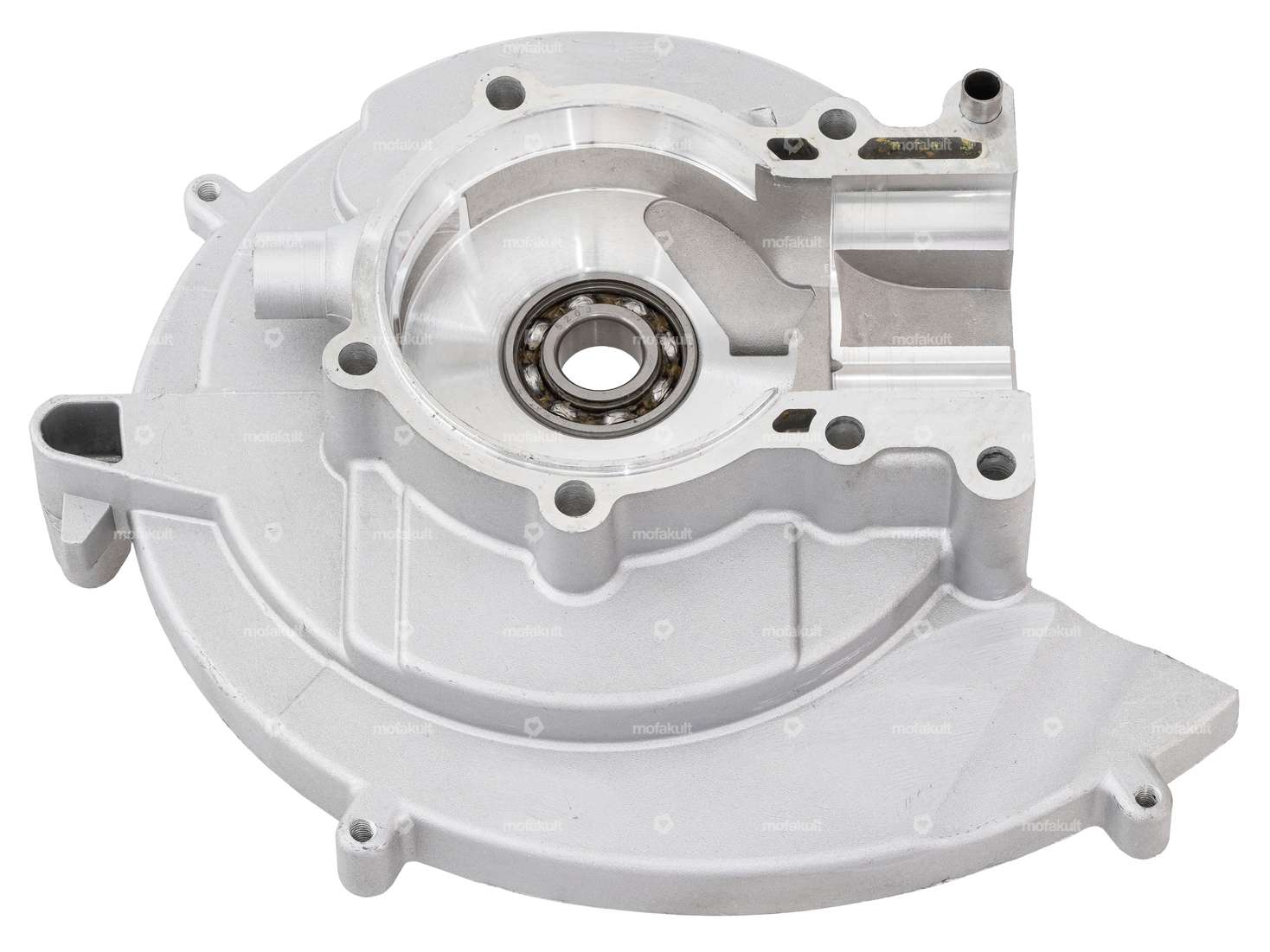

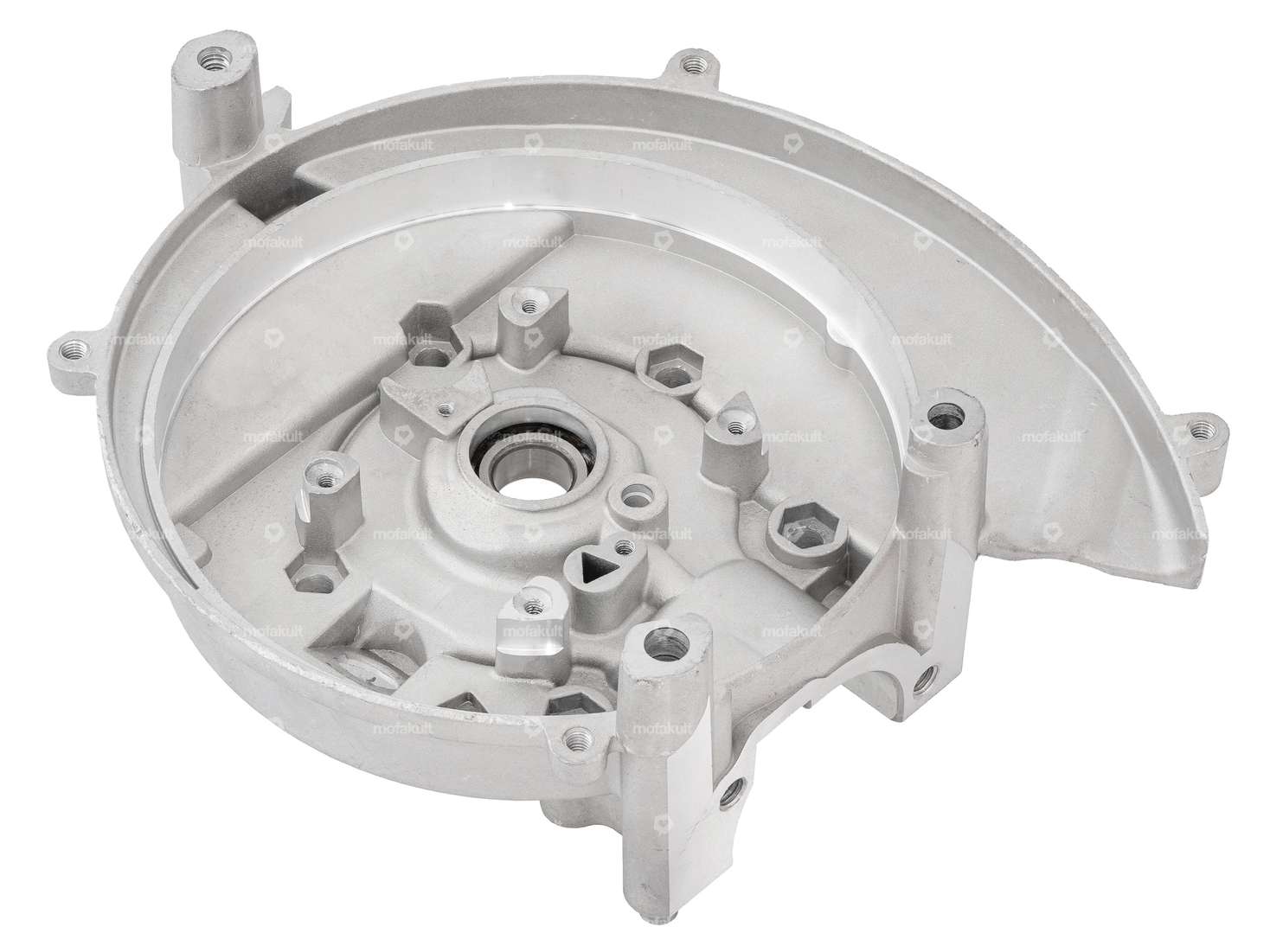

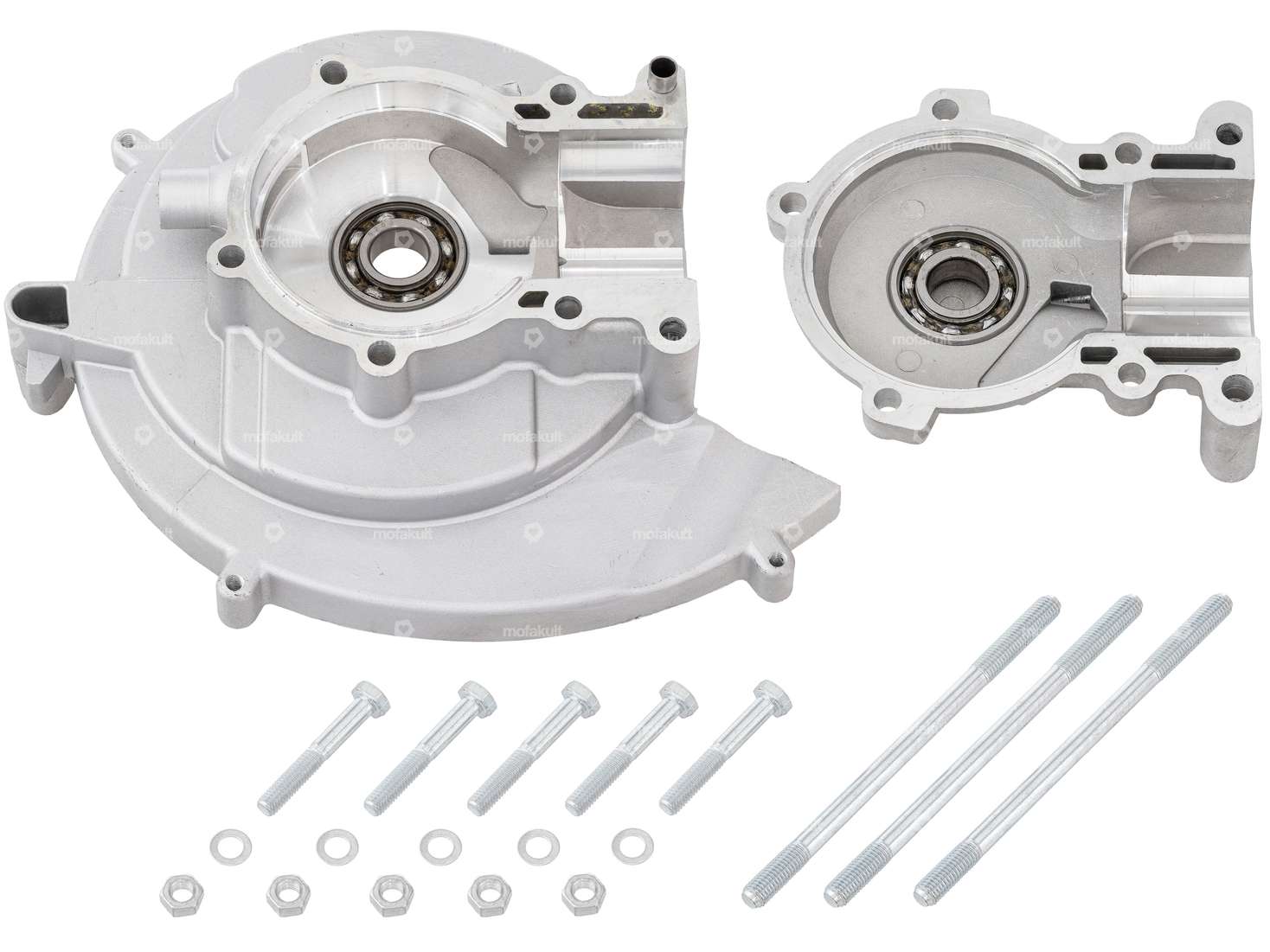

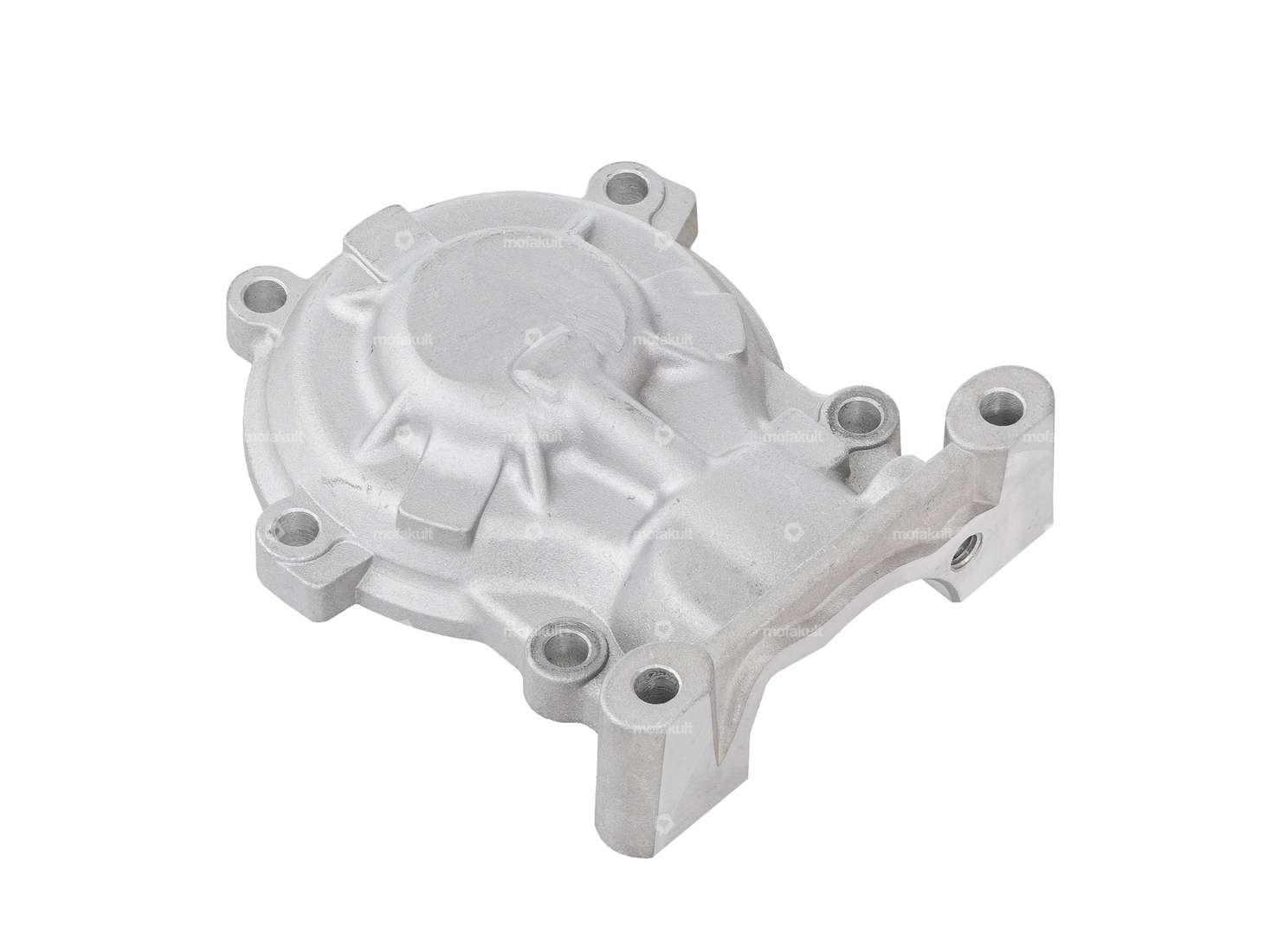

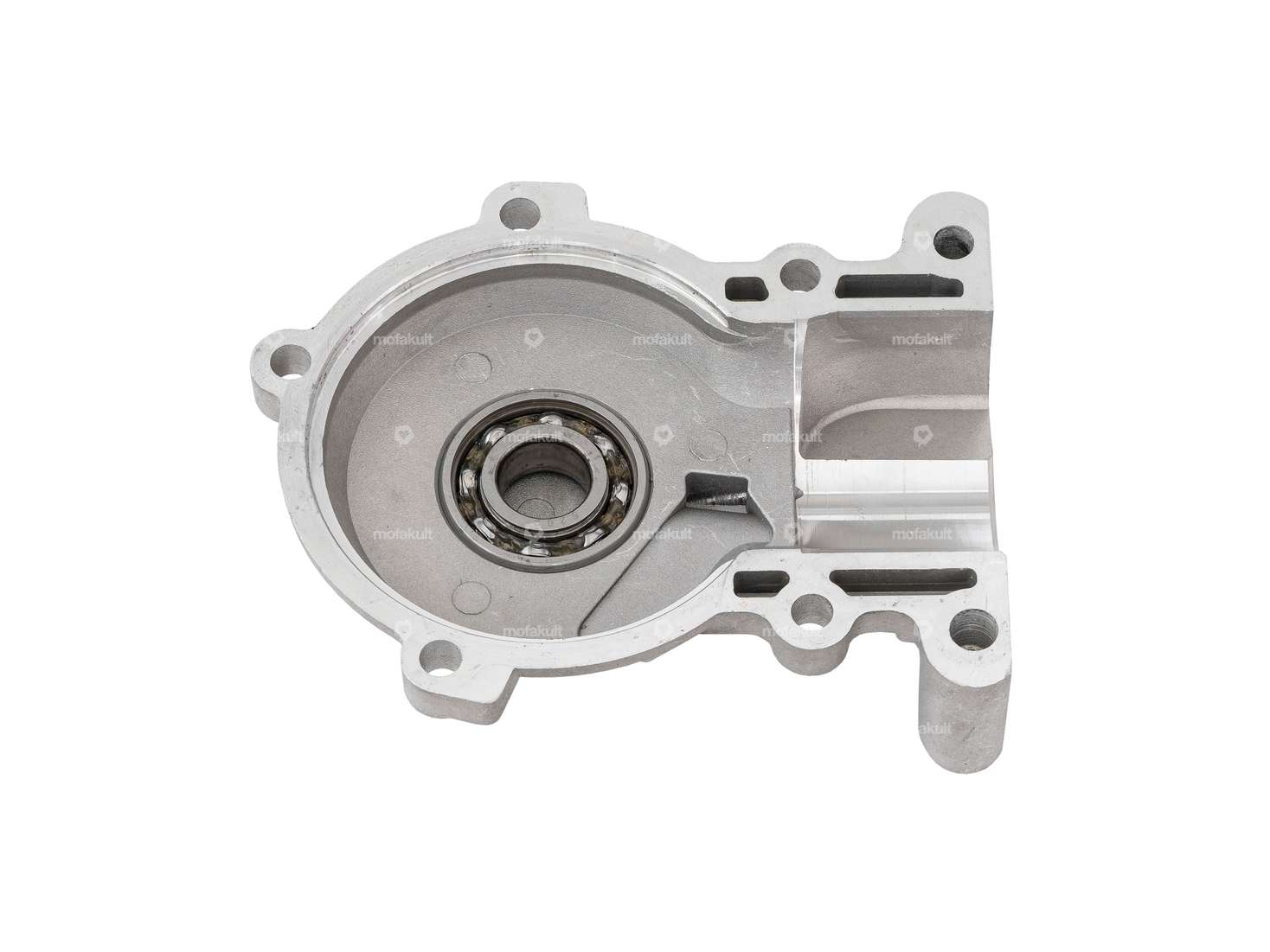

Engine housing with already pressed-in ball bearings suitable for various Piaggio models (Ciao, Si, Bravo & Boxer).
The stud bolts, screws, nuts and washers are included in the scope of delivery.
The square intake is optimized.
However, the flat surface of the intake window is too low. The distance between the crankshaft and engine housing is too large.
This means that the required pre-compression is not achieved.
Only experienced mechanics who can rectify this minor shortcoming should attempt this project.
Other than that, this is a cleanly finished case at a bargain price!
Inlet window dimensions: 7 x 24 mm
Ø internal inlet: 12 mm
Carburetor connection diameter: 16 mm
Mäsig-läsig! – We strive to offer you the widest range of moped spare parts. However, this product is of rather poor quality and is not recommended by us. Should you still choose this item, we understand, but cannot offer you any guarantee or exchange.
You can find high-quality alternatives in the accessories section.
Details
Stock number | 6202 |
Material | Aluminum |
Surface | sandblasted |
Suitable for the following models
Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
