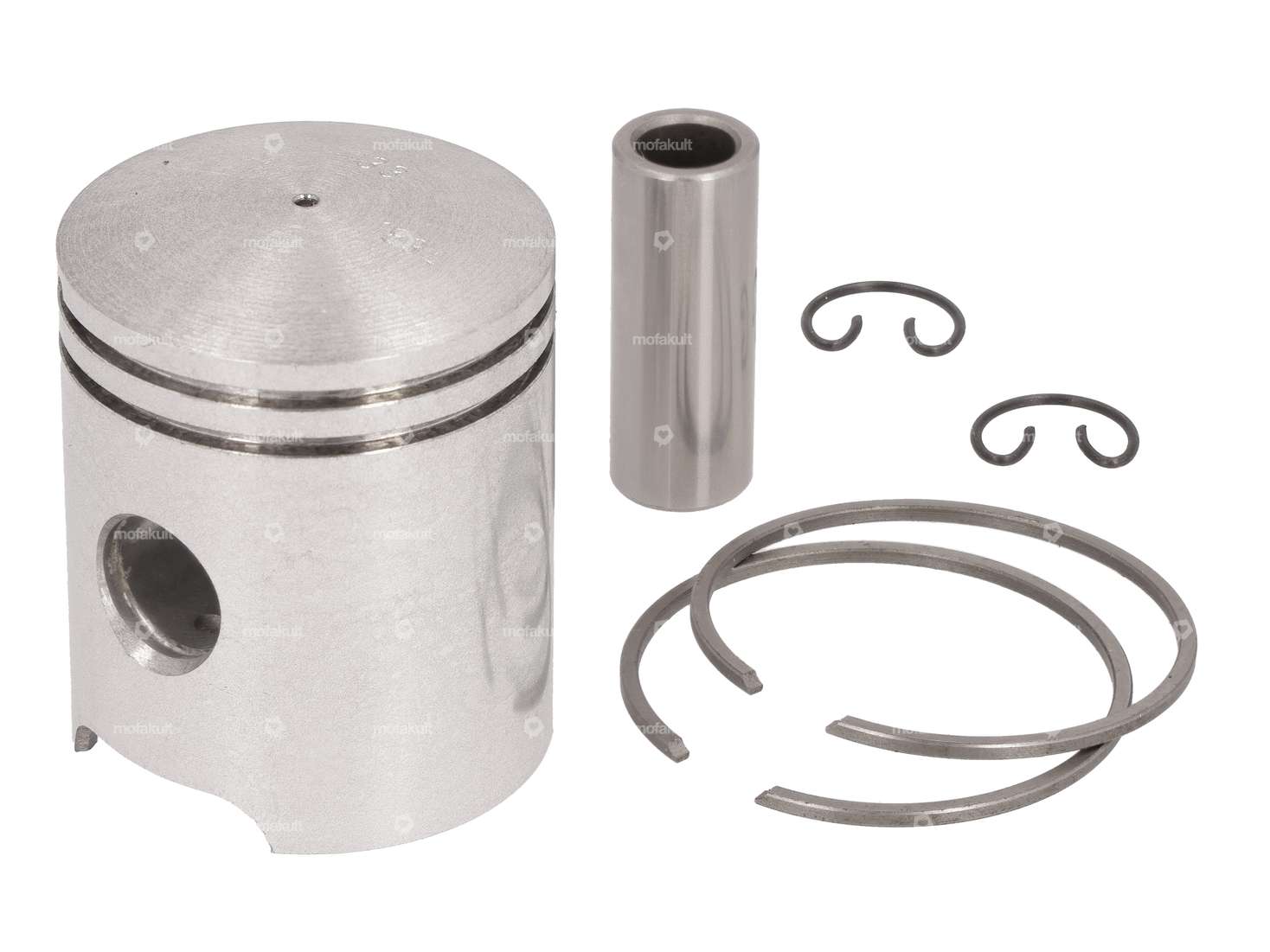

38 mm piston with 2 pieces of 1.5 mm rectangular piston rings with flank lock (FS) for your Puch moped / moped.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
Details
| Manufacturer | ELKO (König) |
| Material | Aluminum |
| Ø outside piston (A) | 37.98 mm |
| Compression height (C) | 22.7 mm |
| Curvature (D) | 3.3 mm |
| Total piston height (E) | 47 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 38 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 1.5 mm |
| Thick piston ring | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Tolerance group | 3 |
| Piston weight | 78 g |
Suitable for the following models
| Puch |
Accessories & related products

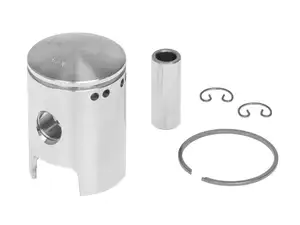

Athena piston 38 mm #A | Puch
Manufacturer: Athena · Nominal diameter: 38 mm · Ø outside piston (A): 37.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.5 mm · Curvature (D): 3.55 mm · Total piston height (E): 55 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: A · Piston weight: 76 g
74,90 EUR
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Number of components: 7 pcs · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Area of application: (Dis)assembly tool
23,00 EUR
swiing® revival piston 38 mm Vertex | Puch
Manufacturer: Vertex · Manufacturer: swiing® revival parts · Nominal diameter: 38 mm · Ø outside piston (A): 37.96 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.45 mm · Curvature (D): 3.5 mm · Total piston height (E): 50.45 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Thick piston ring: 1.6 mm · Tolerance group: A · Piston weight: 71 g
69,20 EUR
Barikit piston 38 mm | Puch
Manufacturer: Barikite · Ø outside piston (A): 38 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.5 mm · Curvature (D): 3.57 mm · Total piston height (E): 52.47 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1 mm · Piston weight: 73 g
63,40 EUR

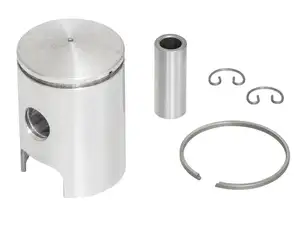

ELKO piston 38.0 mm type B | Puch
