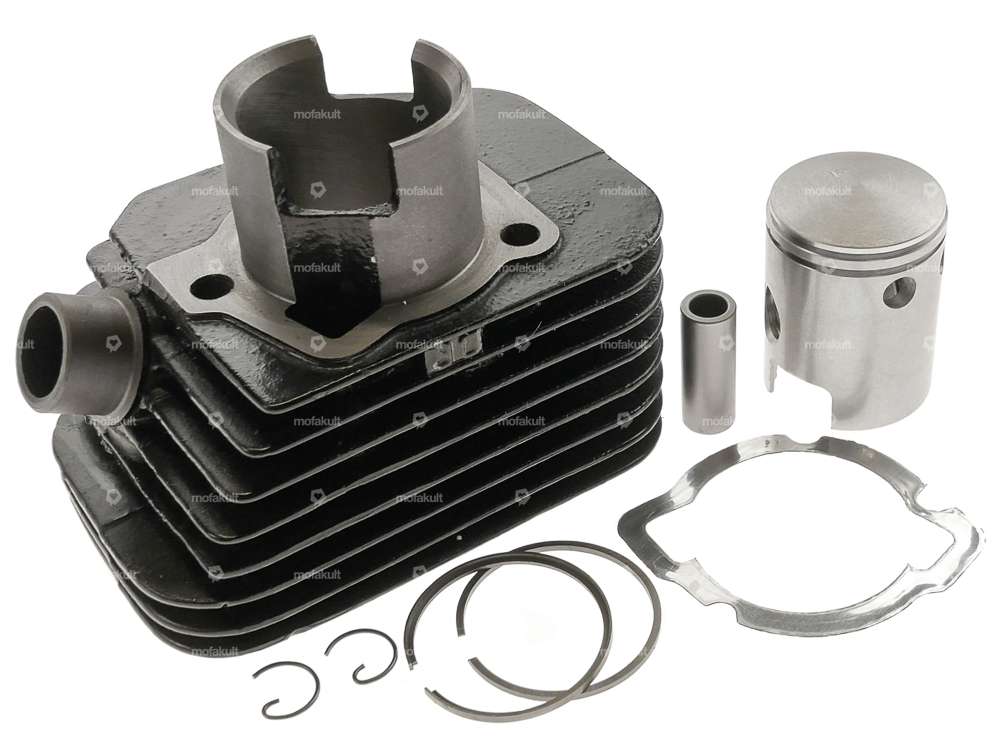

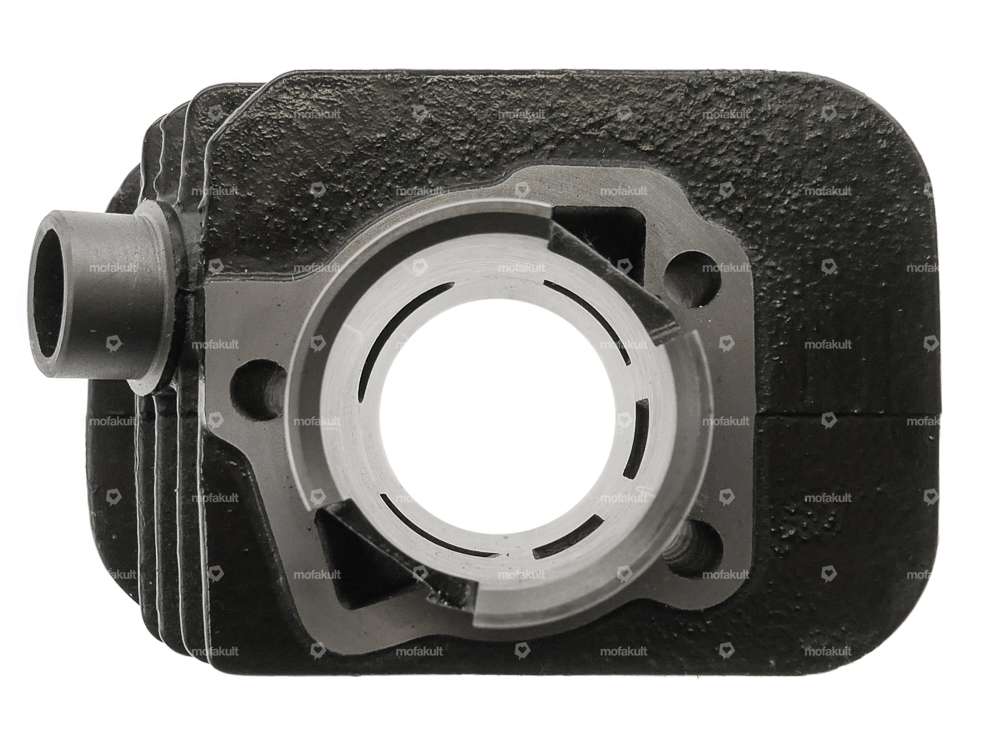

DR 38.4 mm cylinder kit 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Nut M7 Inox

Material: Chrome steel (stainless steel) · Drive: External hexagon · Nut type: Hexagon nut · Thread type: M7x1 (standard thread) · Width across flats SW: 11 mm

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Color: green · Contents [ml]: 1000 ml · Area of application: Standard

GPO piston pin extractor Ø 10, 12, 14 mm

Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Manufacturer: GPO · Material: Steel · Surface: burnished · Number of components: 7 pcs · Total length: 130 mm · Area of application: (Dis)assembly tool · Width across flats SW: 10 mm · Width across flats SW: 17 mm

Decompressor set | Piaggio Ciao, Bravo, Boxer

Material: Spring steel · Material: Steel · Surface: blank · Surface: galvanized (blue) · Total length: 75 mm · Area of application: Standard

Stud bolt M7x120 mm (budget)

Material: Steel · Surface: galvanized (blue) · Total length: 120 mm · Thread type: M7x1 (standard thread) · Thread length: 25 mm

38 mm cylinder head (reproduction) | Piaggio Ciao, Bravo, Boxer

Total length: 120 mm · Width: 78 mm · Height: 62 mm · Ø cylinder: 38 mm · Decompressor: Yes

Gasket cylinder base aluminum original | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.25 mm · Material: Aluminum · Area of application: Original · Place of use: Cylinder base

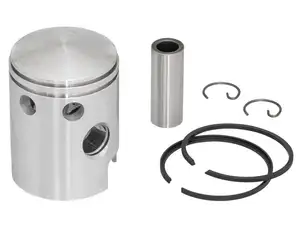

DR Piston 38.4 mm (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: DR Racing Parts · Ø outside piston (A): 38.33 mm · Compression height (C): 26.4 mm · Curvature (D): 3.8 mm · Nominal diameter: 38.4 mm · Total piston height (E): 52.3 mm · Number of piston rings (F): 2 pcs · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Piston weight: 79 g

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Ø inside: 12 mm · Ø outside: 15 mm · Width: 14.2 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

NGK B5HS spark plug short thread

Manufacturer: NGK · Candle thread type: short · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Thread type: MF14x1.25 (fine pitch thread) · Width across flats SW: 21 mm

swiing® revival 0.3 mm cylinder base gasket | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 46 mm · Manufacturer: swiing® revival parts · Material: Oiled paper · Place of use: Cylinder base · Thickness: 0.3 mm · Ø cylinder: 38 - 43 mm · Piaggio OEM number: 182519

swiing nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG

Total length: 8 mm · Manufacturer: swiing · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70

Fan cover | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Italy · Material: Plastic · Color: black · Ø inside: 120 mm · Total length: 230 mm · Width: 182 mm · Height: 20 mm · Number of fixing points: 4 pcs

Cover plate cylinder cover black | Piaggio, Ciao, SI, Bravo, Boxer

Manufacturer: Made in Italy · Material: Plastic · Color: black · Surface: blank · Width: 63 mm · Height: 90 mm · Total length: 95 mm · Number of fixing points: 2 pcs

Wedge 12.1x4.9x3 mm

Width: 3 mm · Height: 4.9 mm · Material: Steel · Total length: 12.5 mm

Mazzucchelli crankshaft "Original" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Area of application: Original · Area of application: Standard · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 16 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Thread type: M8x1.25 (standard thread) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 ° · Weight: 698 g · Number of gears: 1 pcs

Dell'Orto 12/12 SHA carburetor hand choke | Piaggio Ciao PX, C24

Material: Aluminum · Manufacturer: Dell'Orto · Nominal diameter: 12 mm · Camouflaged: No · Component group Carburetor: Carburetor complete · Area of application: Tuning · Choke control: Hand choke · Carburetor type: SHA (Piaggio) · Total length: 55 mm · Color: black · Height: 110 mm · Nozzle thread: M5x0.8 (standard thread) · Ø without reducing sleeve: 18 mm · Nozzle size: 48 · Ø Inside entrance: 12 mm · Ø Internal connection: 16 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Width: 60 mm · Ø fuel hose connection: 5.1 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Mounting type: Plug connection clamped · Vacuum connection: No

SKF 6202 C3 ball bearing 15/35/11

Bearing type: Deep groove ball bearing · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Puch OEM number: 900.4.6202

GPO engine overhaul kit with bearing selection | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Number of components: 9 pcs

DR 38 mm everyday tuning set | Piaggio Ciao, SI

Nominal diameter: 38 mm · Manufacturer: DR Racing Parts · Manufacturer: Dell'Orto · Manufacturer: NGK · Manufacturer: SITO · Material: Gray cast iron · Displacement: 50 ccm
