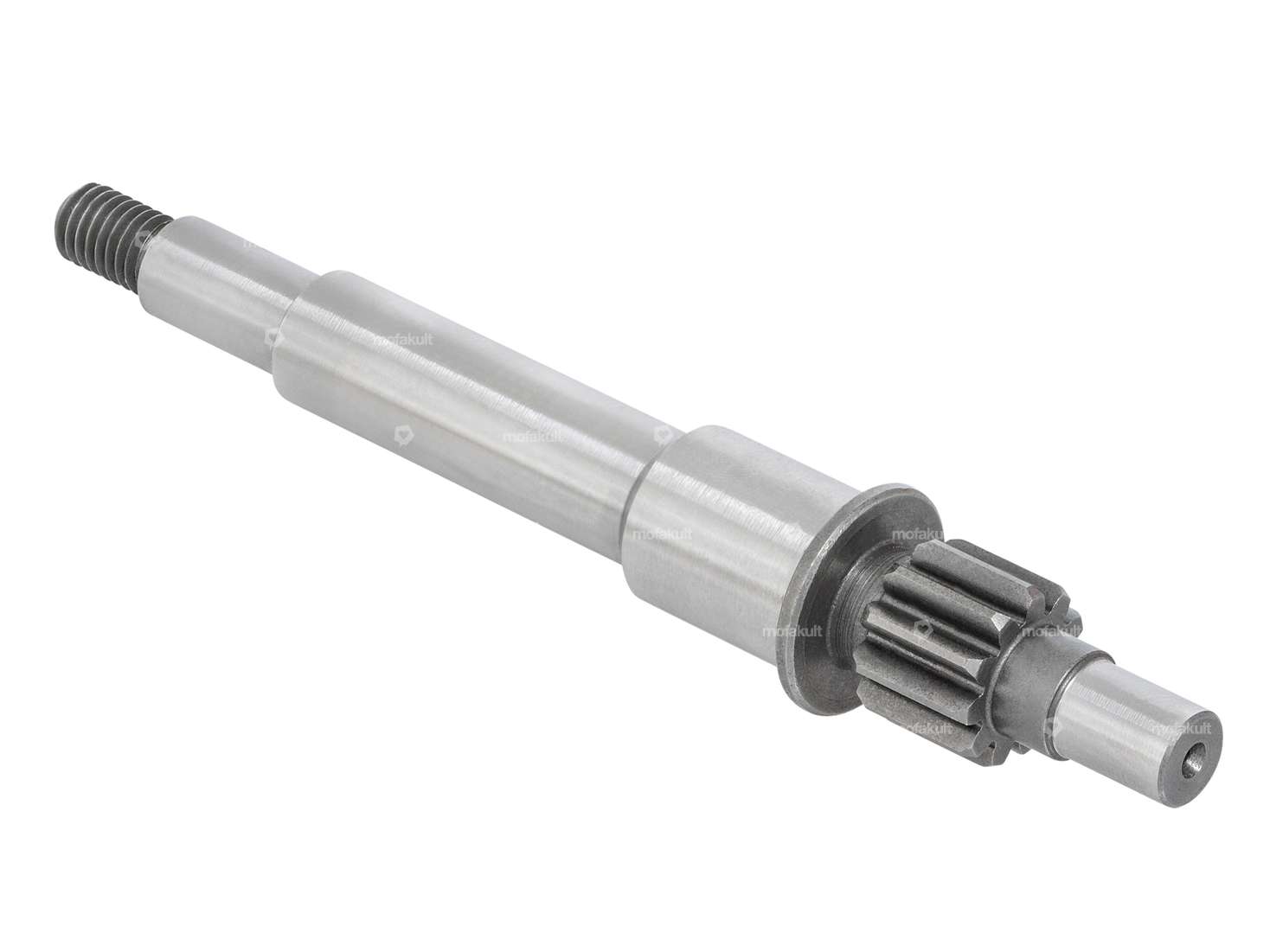

Special input shaft to convert your Piaggio Ciao, SI, Bravo, Boxer, Grillo moped / moped with mono gearbox to a variomatic gearbox.

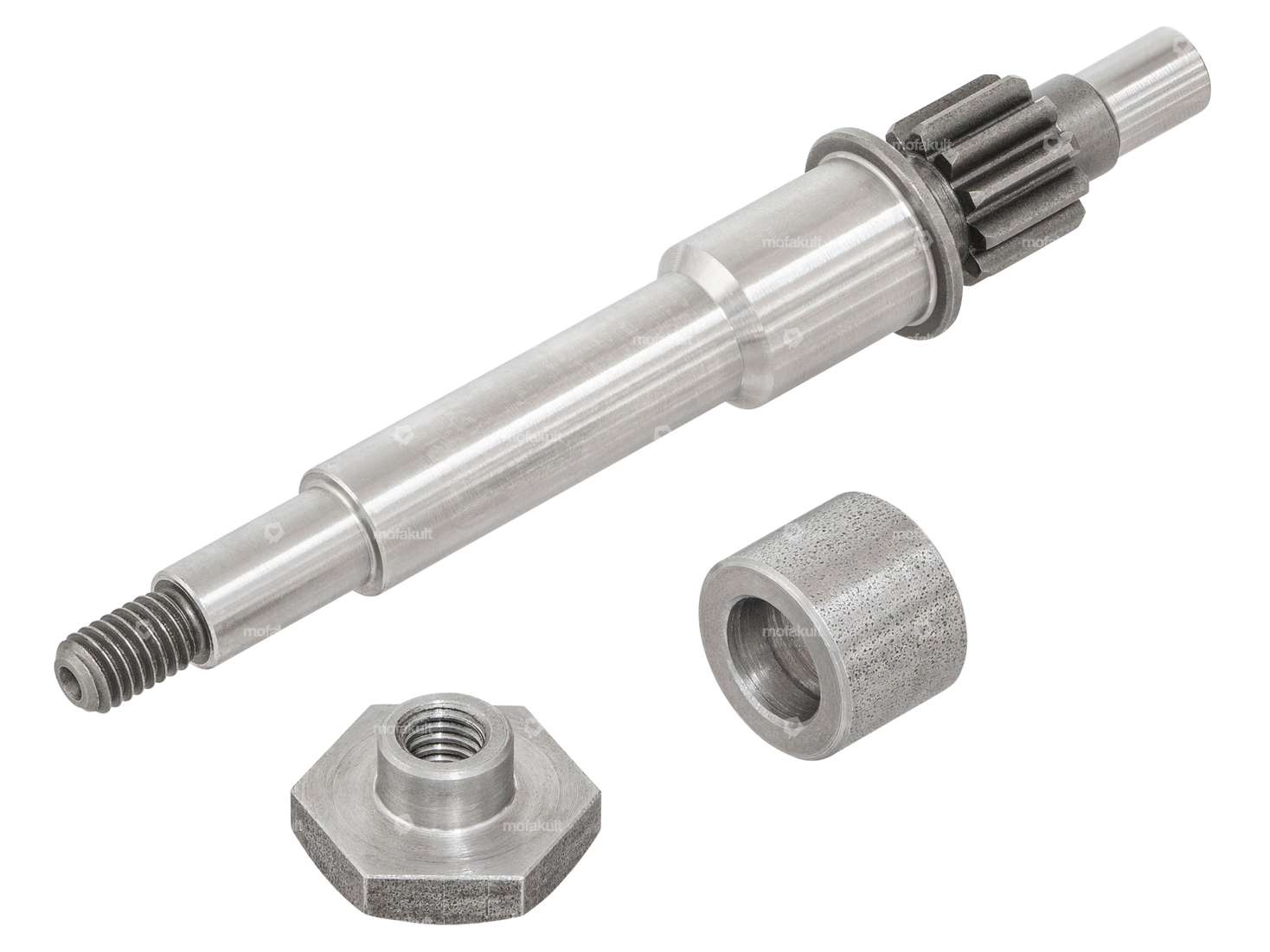

The converter shaft is used instead of the pully shaft. The longer spacer sleeve and flange nut are used for the variator at the front so that the V-belt is aligned with the rear converter.
Please note:

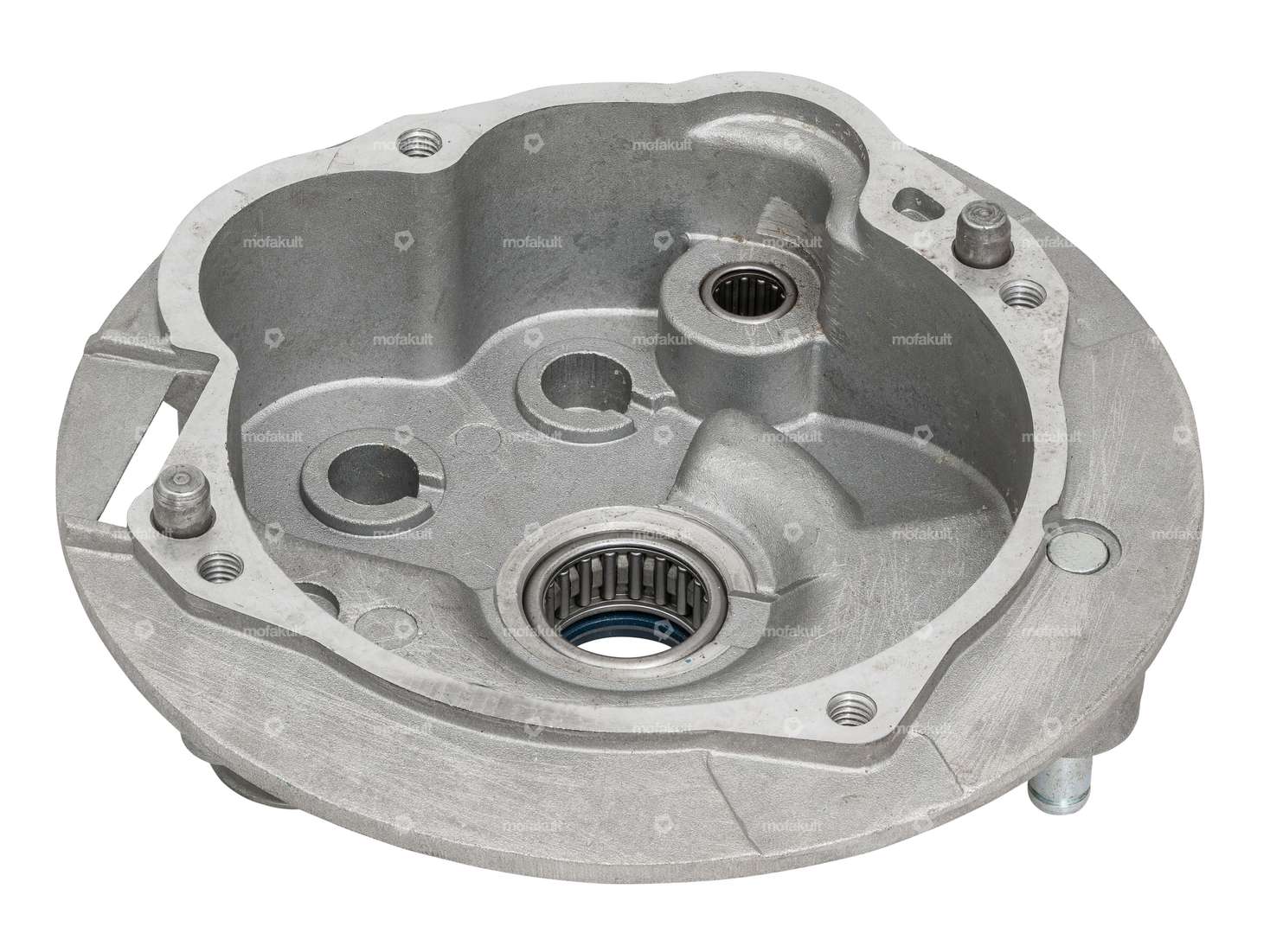

- The gearbox must be designed for two sprockets (with raised bearing seat for the input shaft), see Figure 3 (not included in the scope of delivery).
- A transmission ratio of 6.73 / 1 (ID 2 // 990505 (12B/12C)), with an 11 tooth input shaft and large gear with 74 teeth.
- This above mentioned gear ratio was not installed in Switzerland by default, so check your gearbox before buying the shaft or order the matching gear from the accessories below.
- The gear ratio of 6.73 is very long. A powerful engine is required to be able to extend the transmission.
- As the torque converter and the vario are mounted slightly further out, adjustments to the side shift may be necessary.
Suitable accessories, such as torque converters, variomats, the additionally required transmission sprocket or V-belts, can be found in the accessories section.
A quality product made in Italy.
Details
| Manufacturer | Made in Italy |
| Material | Steel |
| Gearbox type | Vario |
| Toothing type | straight toothed |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
