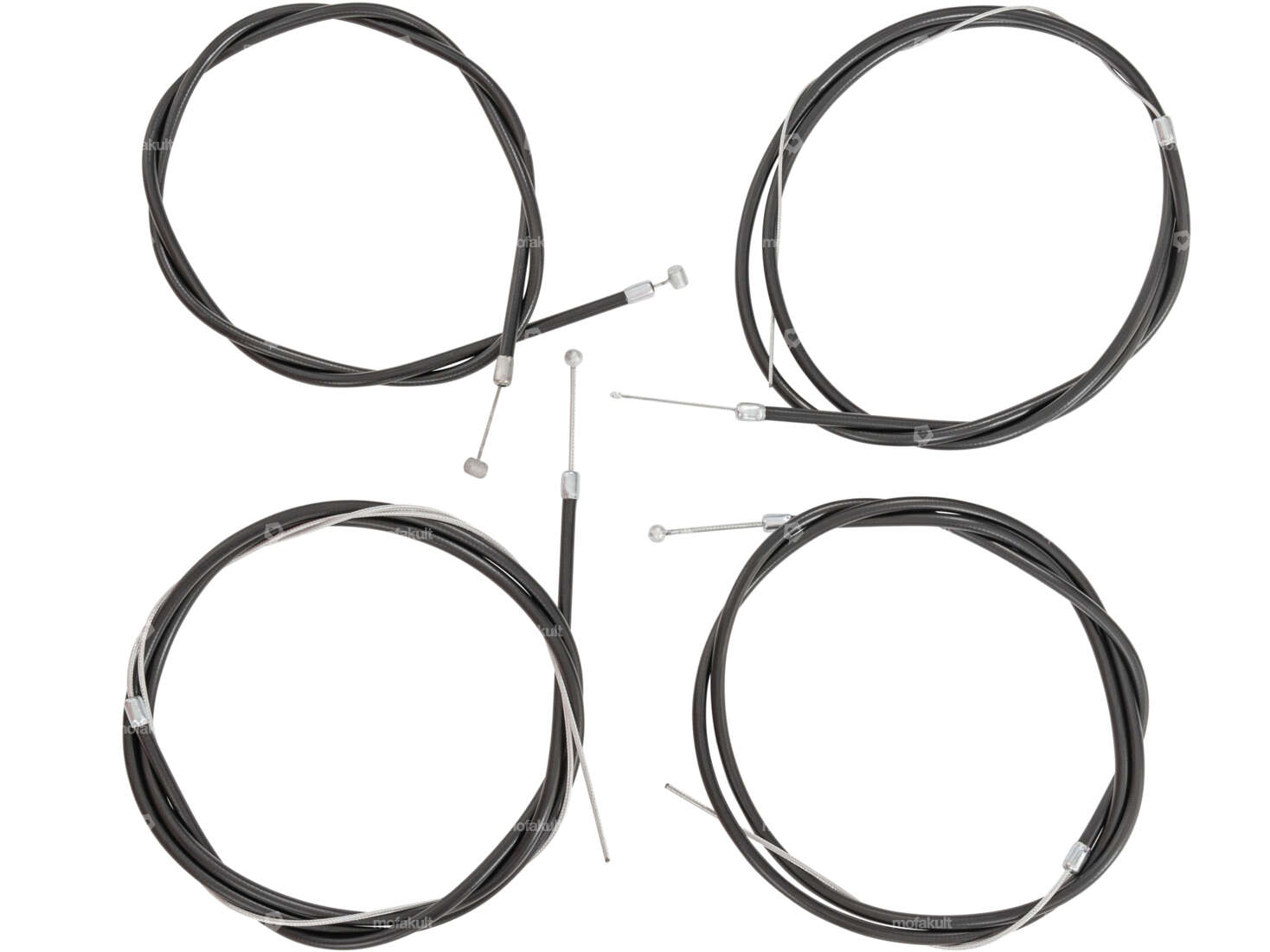

Complete cable set suitable for Piaggio Ciao mopeds / mopeds.
This complete cable set in black color was designed for the older Ciao models P and SC with spoke rims, but can also be fitted to any newer model. The difference lies in the Kuggel nipples instead of bulb nipples and the slightly shorter end sleeves in the oldie look.
The inner cables are already cut to the correct length with the original handlebars and the cable sleeves are fitted with end sleeves.
The cable set contains the following components:
1 pc. Gas cable (inner cable with cylindrical nipple 138 cm, Ø 1.25 mm / cable sleeve 107 cm)
1 pc. Deco cable (inner cable with barrel on both sides (transverse) 90 cm, Ø 1.25 mm / cable length 84 cm)
1 pc. Front brake cable (inner cable with ball nipple 126 cm, Ø 1.80 mm / cable length 105 cm)
1 pc. Rear brake cable (inner cable with ball nipple 190 cm, Ø 1.80 mm / cable length 115 cm)
You can find the cable set in gray and other versions in the accessories section.
Alternative for the original Piaggio spare part numbers: 103217, 103209, 103220, 104080
A quality product made in Italy.
Details
| Ø Stranded wire | 1.25 mm, 1.8 mm |
| Nipple shape | Cylinder, Pears, Barrel (transverse) |
| Manufacturer | Made in Italy |
| Material | Steel |
| Quantity | 4 pcs |
| Color | black |
| Total length | 1380 mm, 900 mm, 1260 mm, 1900 mm |
| Outer shell length | 1070 mm, 840 mm, 1050 mm, 1150 mm |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao |
