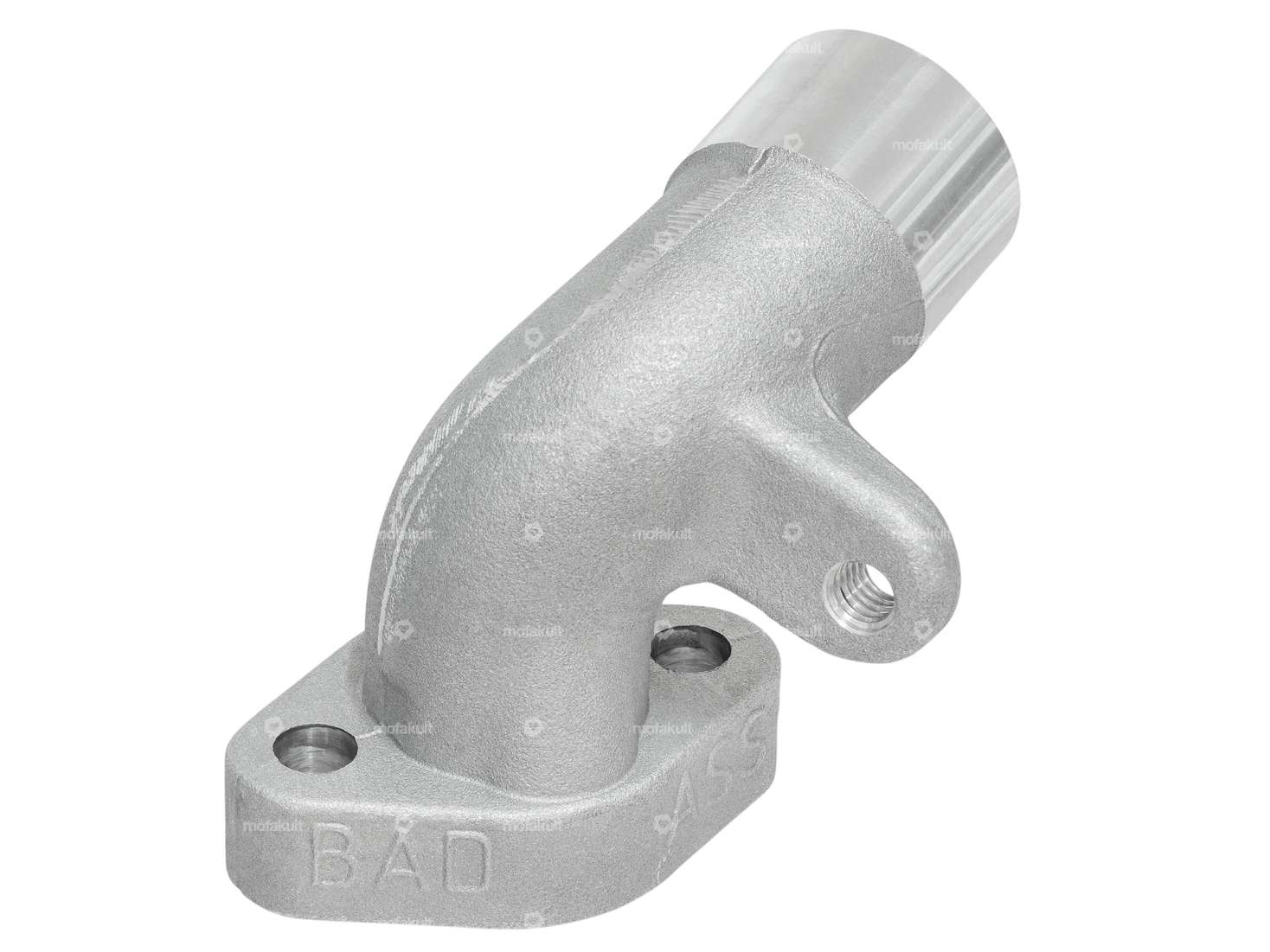

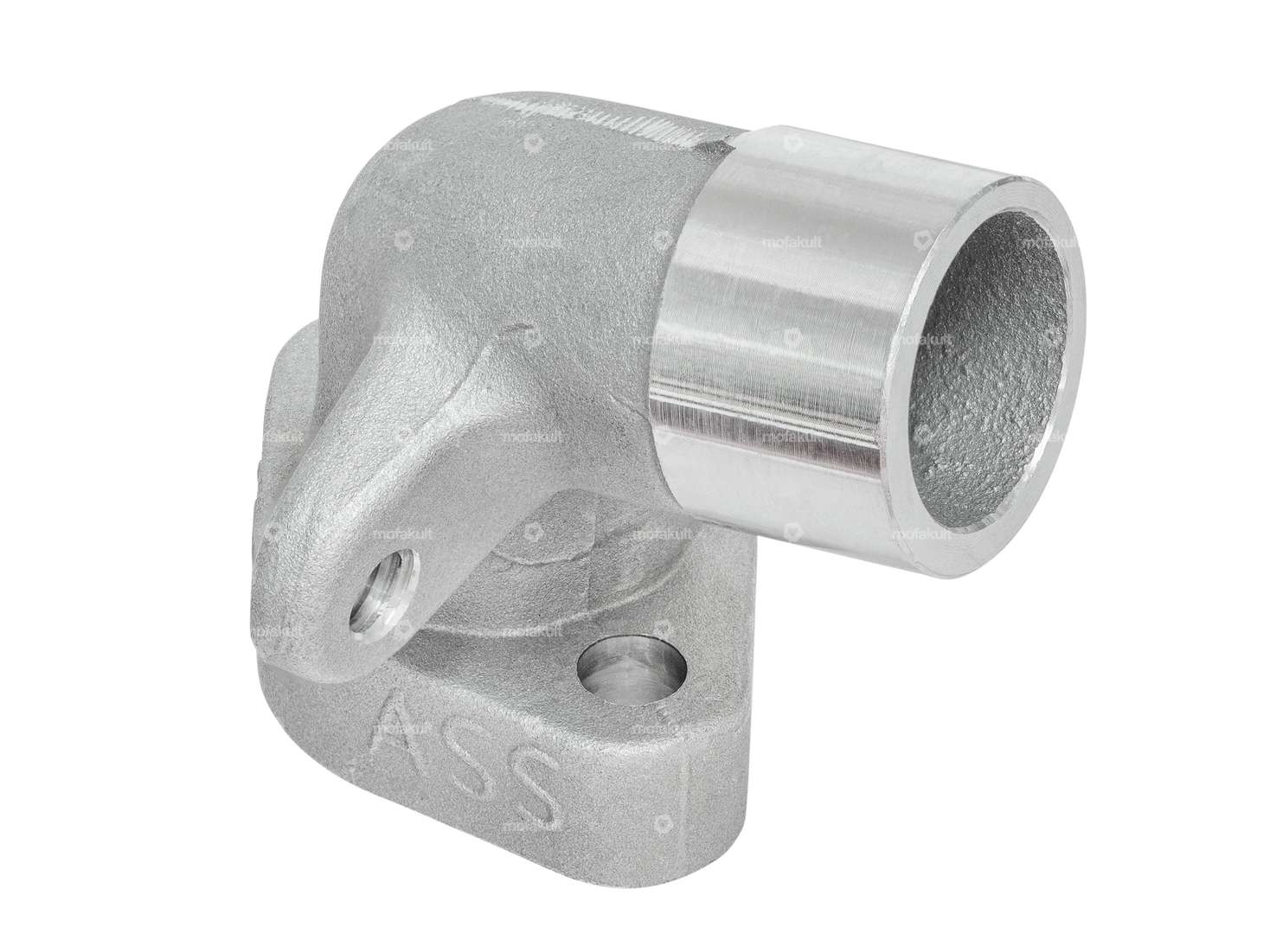

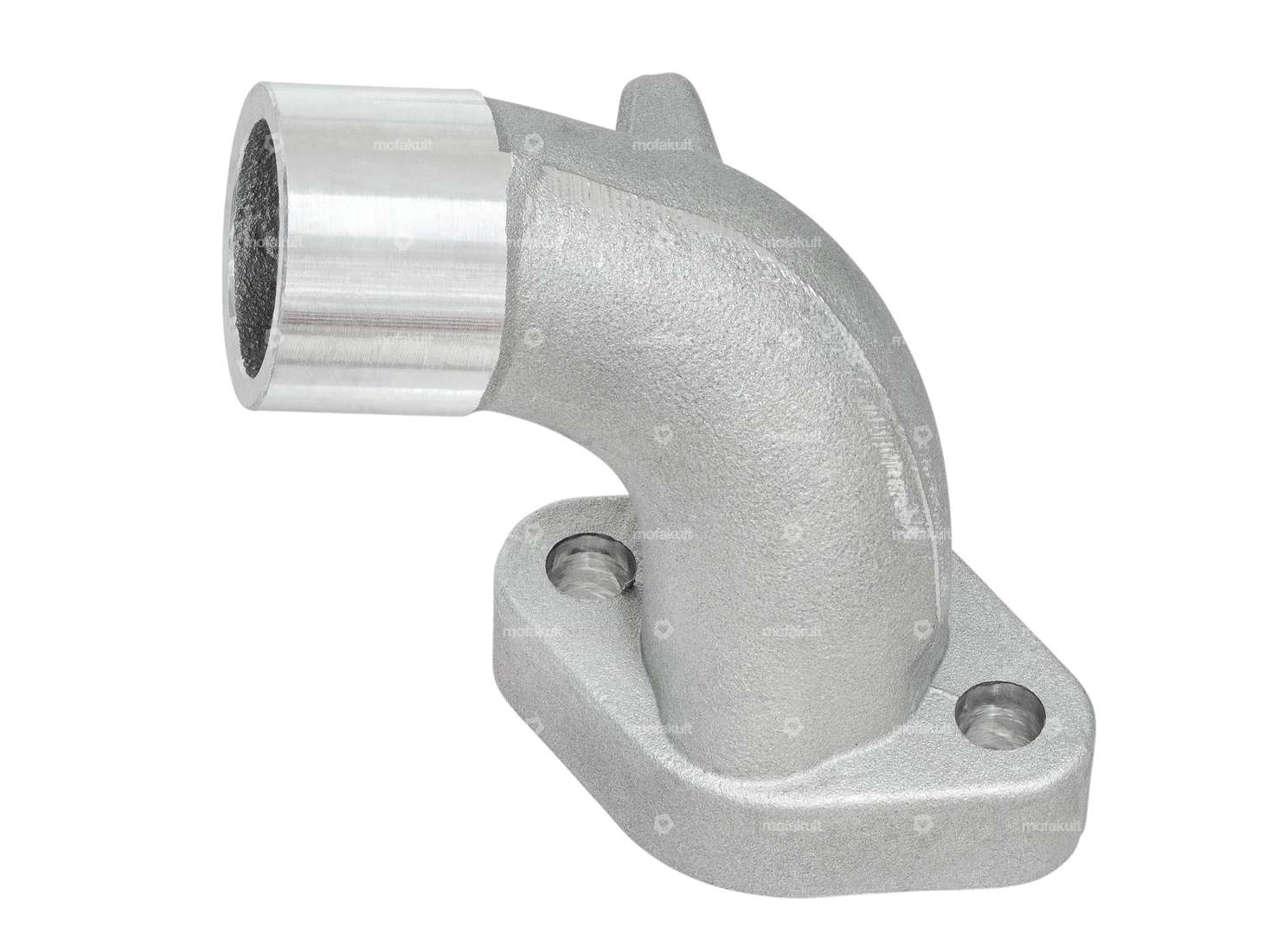

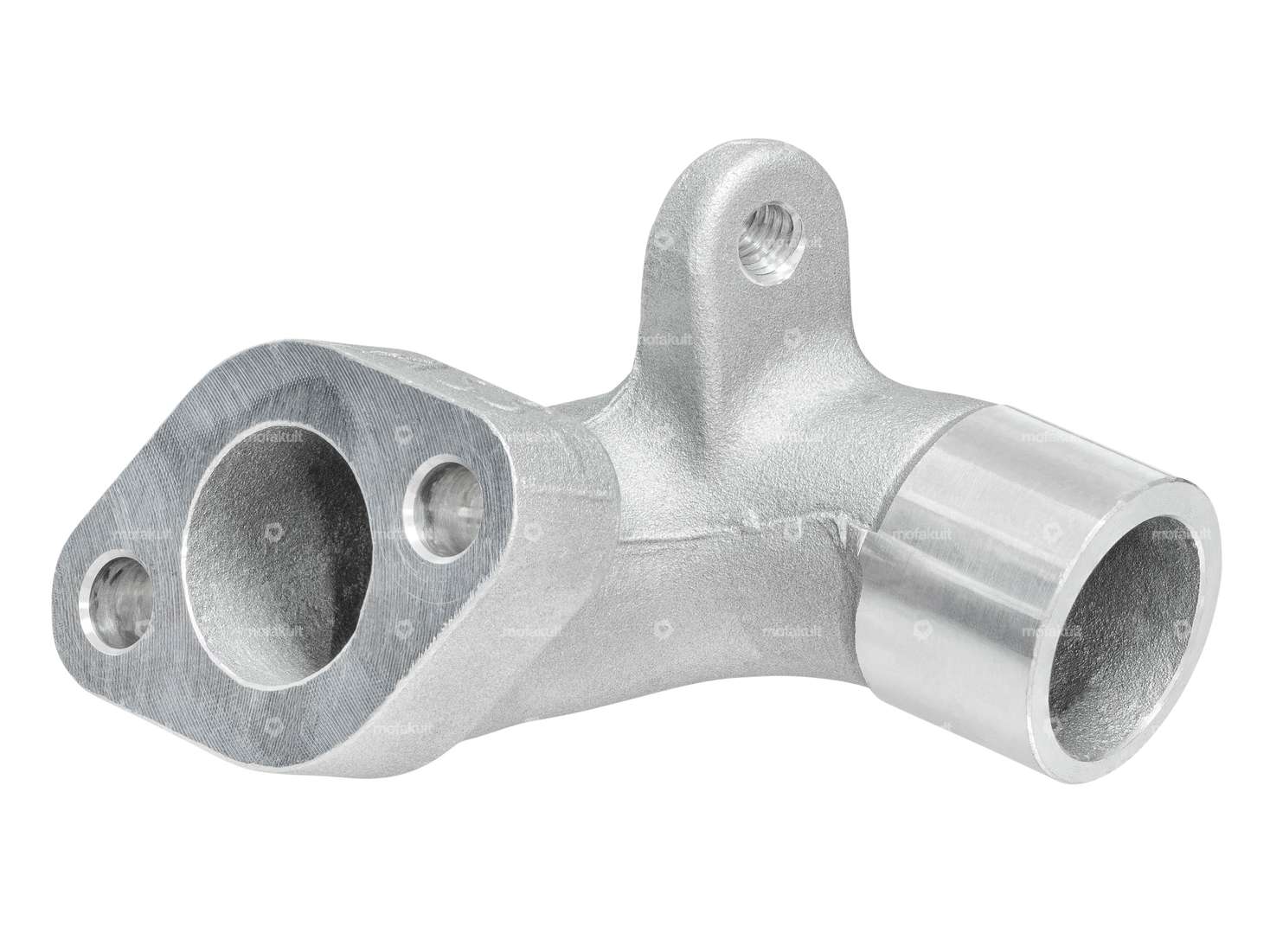

Short 50 mm intake manifold for hand-shifted Sachs 503 2AL and 2BL mopeds / mopeds.
This manifold is recommended in combination with the 41 mm BAD ASS Pandora tuning cylinder and makes it possible to fit a 17 mm Bing SRF or a Dell'Orto or GPO PHBG carburettor with the corresponding sleeve.
- Carburetor connection diameter: 23 mm
- Internal diameter: 17 mm throughout
- Hole spacing: 32 mm
- Threaded bracket: M6
To simplify installation, we recommend using M6 nuts with reduced key width. You can find these special nuts as well as the long 70 mm intake manifold or the sleeve for mounting PHBG carburetors in the accessories.
This is the tuning version of the original Sachs spare part with the number A2177.
Made by the brand BADASS.
Details
| Total height | 56.5 mm |
| Manufacturer | BAD ASS |
| Material | Aluminum |
| Area of application | Tuning |
| Total length | 54 mm |
| Ø inside | 17 mm |
| Mounting type | Screws |
| Ø External connection | 23 mm |
| Hole spacing inlet | 32 mm |
| Thread type | M6x1 (standard thread) |
| Number of fixing points | 3 pcs |
| Height flange center hole | 45 mm |
| Camouflaged | No |
