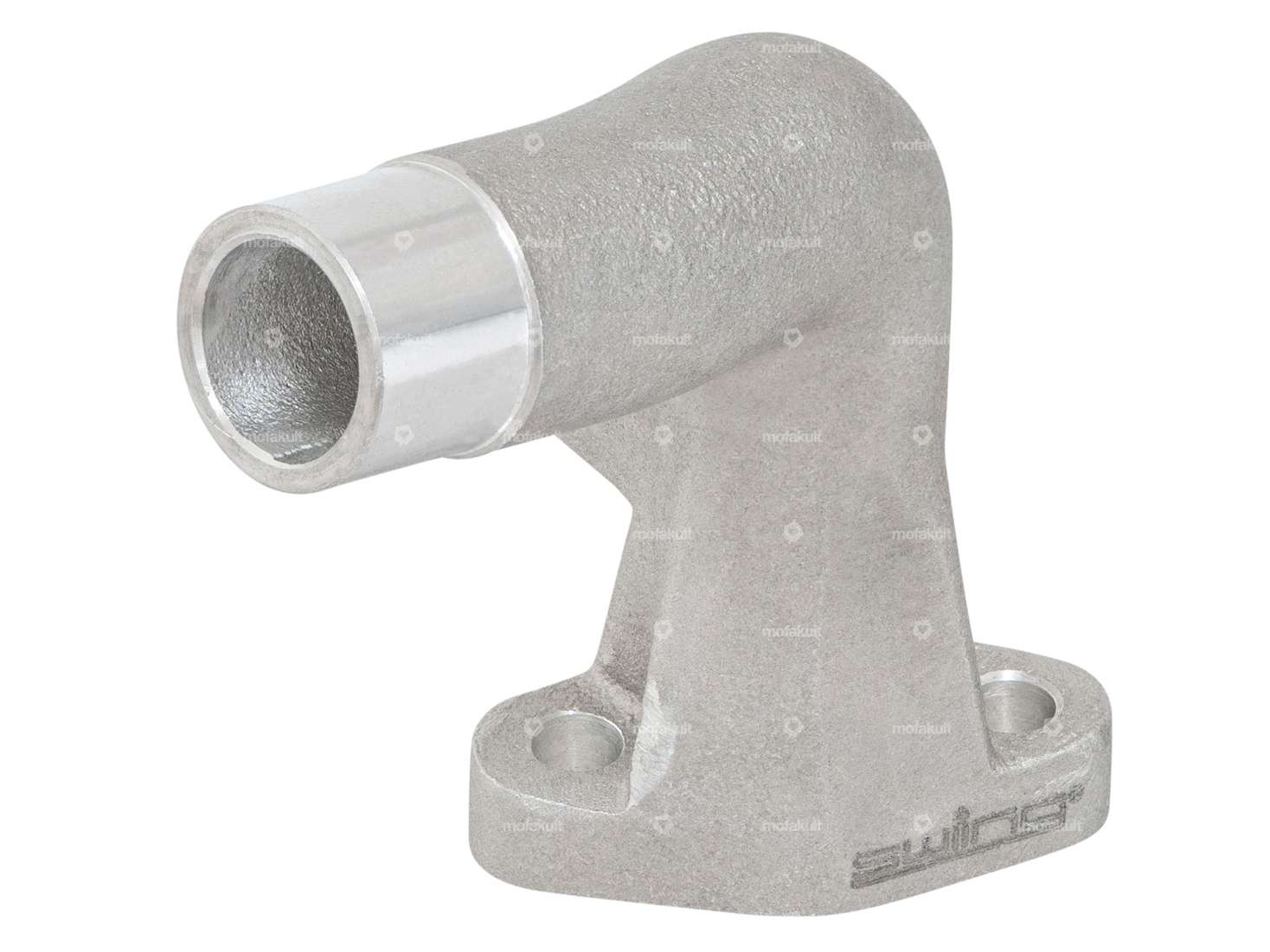

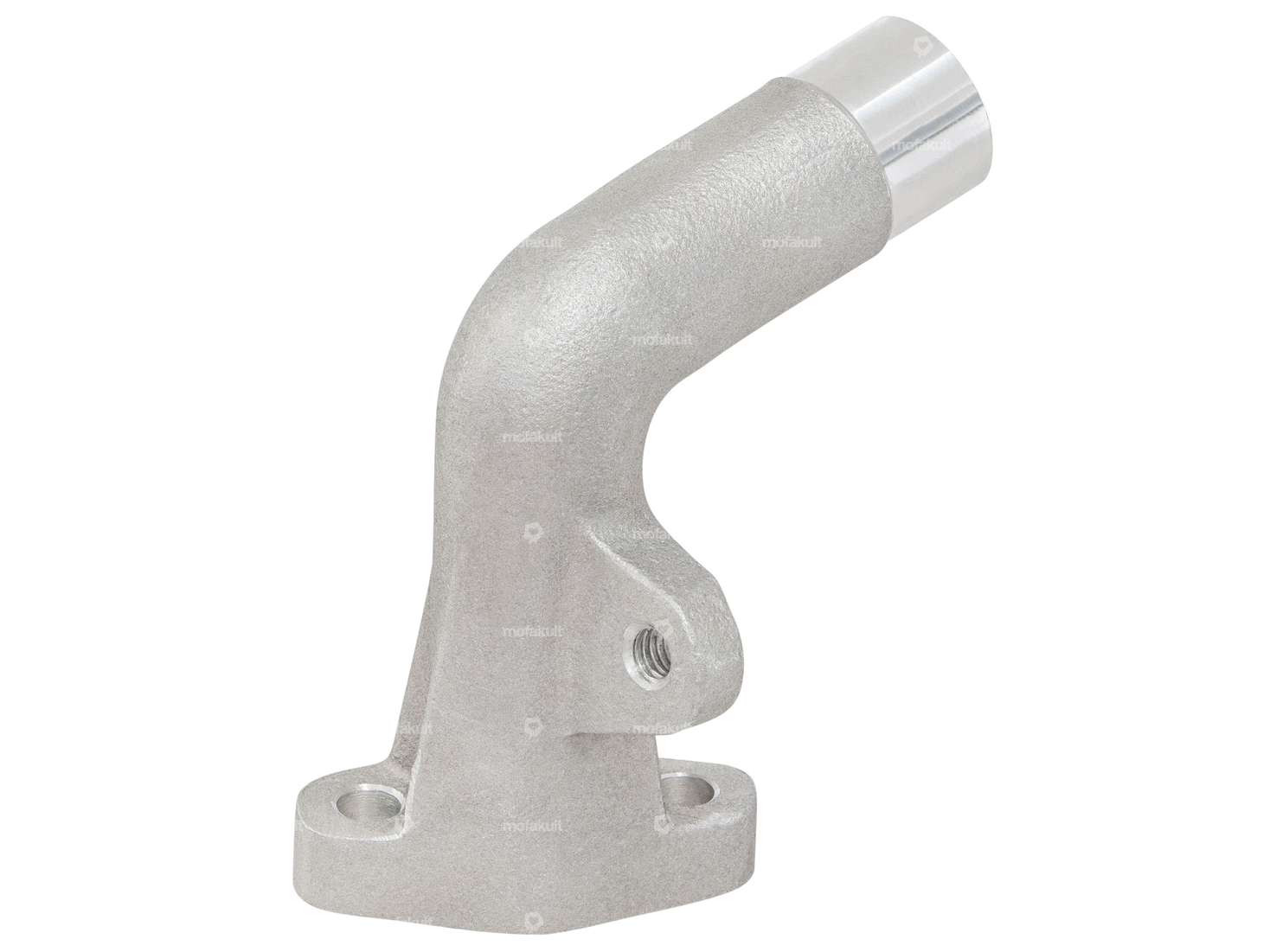

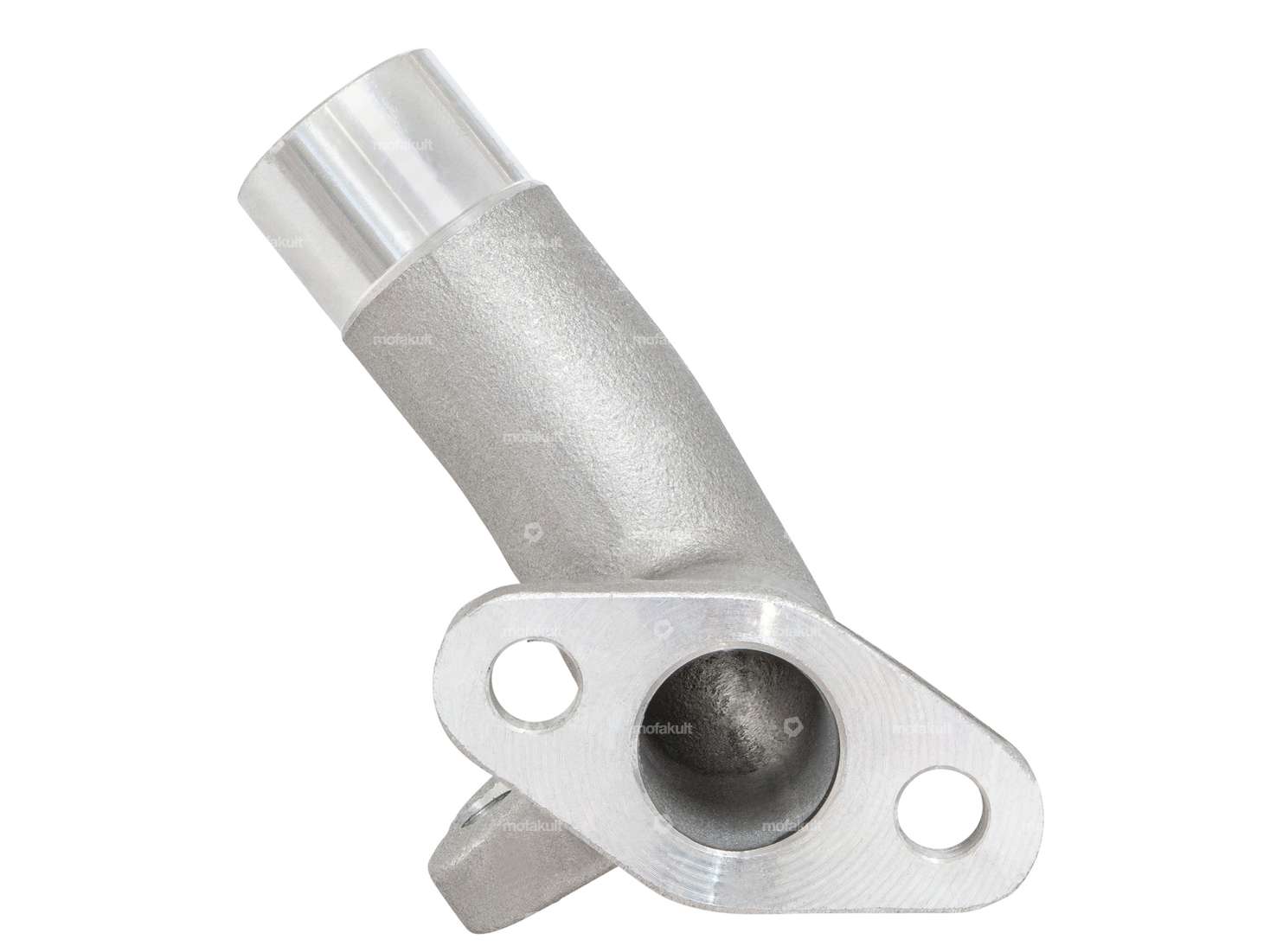

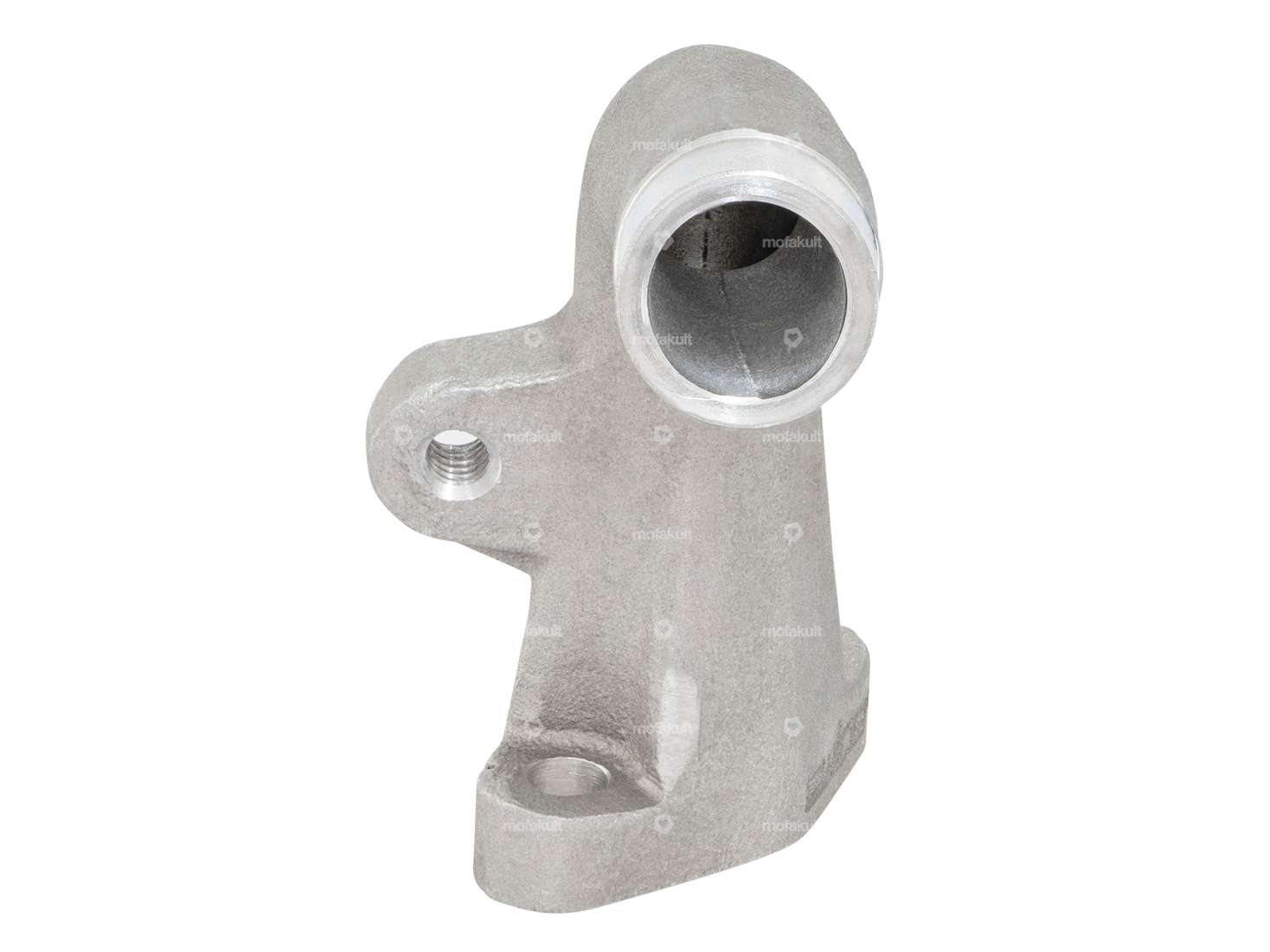

Long intake manifold for manual Sachs 503 2AL / 2BL mopeds / mopeds such as Pony Junior 503.
- Ø connection carburetor: 20 mm
- Ø inside: continuous 15 mm
- Hole spacing: 32 mm
- Threaded bracket: M6
For easier installation, we recommend using M6 nuts with reduced key width.
You will find the appropriate nuts for installation as well as the short intake manifold (50 mm) in addition to other parts in the accessories section.
Exceptional product for the highest demands of the quality brand swiing®.
This is the tuning version of the original Pony spare part with the number A2176.
Details
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Ø inside | 15 mm |
| Thread type | M6x1 (standard thread) |
| Ø External connection | 20 mm |
| Hole spacing inlet | 32 mm |
| Total height | 80 mm |
| Height flange center hole | 70 mm |
| Total length | 70 mm |
| Number of fixing points | 2 pcs |
| Camouflaged | No |
| Area of application | Tuning |
| Mounting type | Screws |
| Pony OEM number | A2176 |
Suitable for the following models
| Sachs | 503 - AAL, ABL, 2AL / 2BL |
